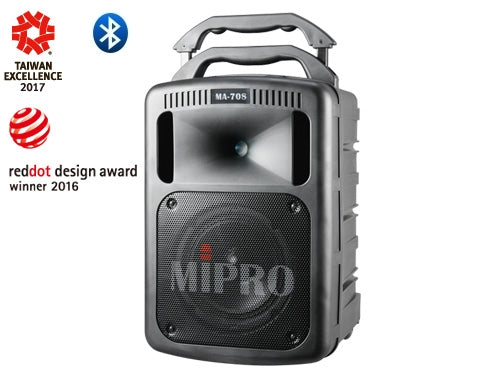

Bringing a host of impressive features and functionalities, the MA-708 is an undisputed market leader in its class. MA-708 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. It offers an ideal public address solution for medium to large crowds.
Ideal applications include:
- School sports events and marching bands
- Places of worship
- Large meetings and public gatherings
- Presentations, seminars and meetings
- Shopping center presentations and promotions
- Aerobic & fitness centers
- Parades & fetes
- Street performers
- Park and recreational facilities
- Emergency and rescue situations
- Weddings & funeral services
- Public auctions

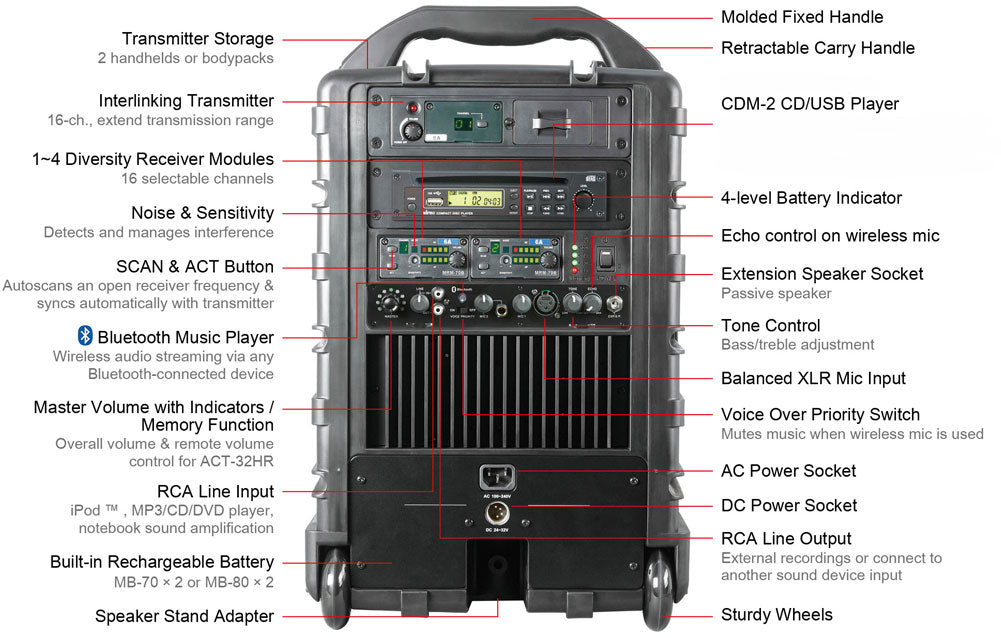

Key Features
- Robust, rugged enclosure, built-in class D amplifiers system with 8" woofer and 1" tweeter.
- Up to 4 UHF or 2.4 GHz diversity receiver modules with 16 auto-scannable frequencies and built-in active antenna prevents accidental antenna breakage.
- Plug-&-play CD/MP3 player, plus certified Bluetooth receiver for music streaming.
- Voice Priority mutes music when a wireless mic is used.
- Echo effect for richer-sounding vocals.
- Industry’s only Master volume with “Memory” and “Standard” mode options. “Memory” mode saves and recalls last volume level during next power on. “Standard” mode resets to zero level.
- Industry’s only master volume that can be remotely controlled by an optional ACT-32HR transmitter microphone directly instead of a separate remote.

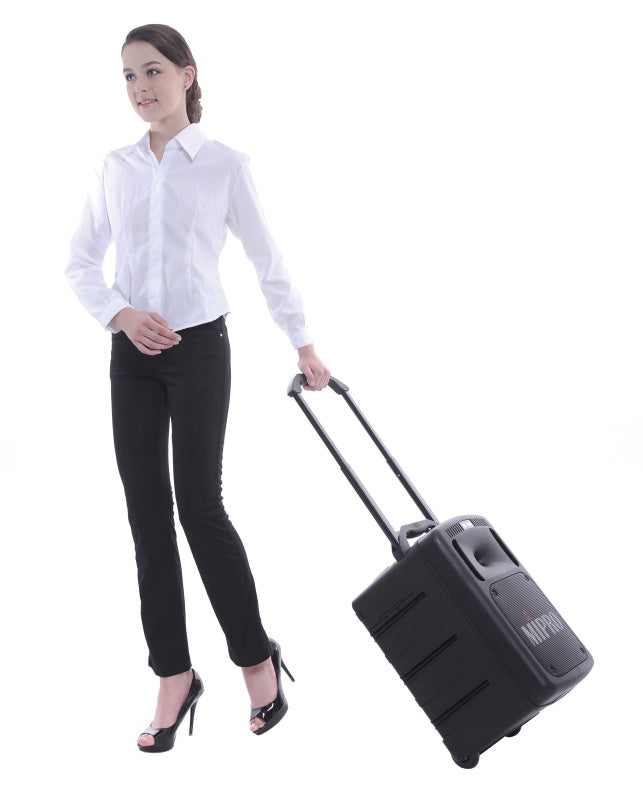

- Retractable handle and rugged wheels make it amazingly easy to transport.
- Built-in storage compartment for 2 handhelds or bodypack transmitters.
- Wirelessly link 2 or more MA-708 systems for more sonic coverage (industry’s only MTM-92 trans-mitter module is required).
- Active limiter prevents speaker damage from loud signal spikes.
- Can be powered via AC power, battery or direct DC.
- Weighs only 16 kgs | 35 lbs. fully loaded.
| Portable PA | |||
| Max. Power Output | 190 Watts | ||
| Amplifier | Class D | ||
| Sensitivity | Typical: 89 dB | Maximum: 108 dB | ||
| T.H.D. | < 1% | ||
| Frequency Response | 50 Hz ~ 18 kHz | ||
| Speaker | Tweeter: 1 " Compression Driver Bass: 8 " Woofer |
||
| Coverage | H 80° × V 60° | ||

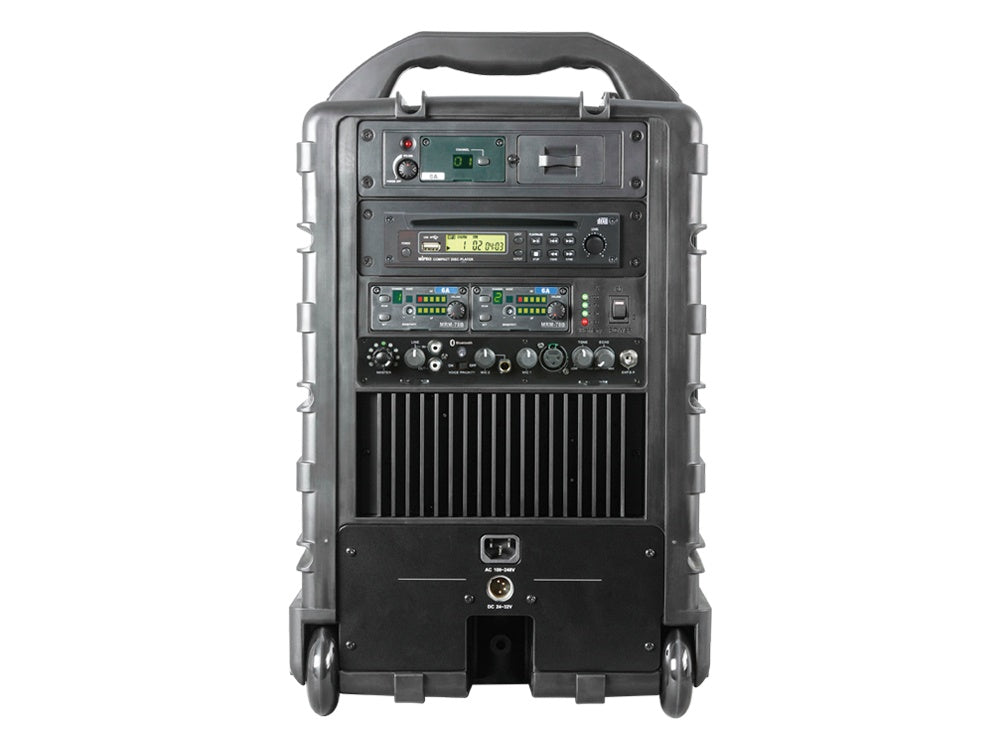

| Audio Inputs | Wired: XLR × 1, Ø 6.3 mm (1/4 ") × 1 Wireless: Up to 4 wireless microphones Audio Player: CDM-2︱DPM-3 Line-In:Unbalanced RCA jack |
||
| Bluetooth Connectivity | Yes | ||
| Audio Output | Unbalanced line RCA jack | ||
| Extension Speaker | Ø 6.3 mm (1/4 ") Phone jack | ||
| Master Volume Control | Manually or Wirelessly via ACT-32HR | ||
| Controls | Tone, Voice Priority & Echo on wireless mics | ||
| Storage | 2 handheld or bodypack transmitters | ||

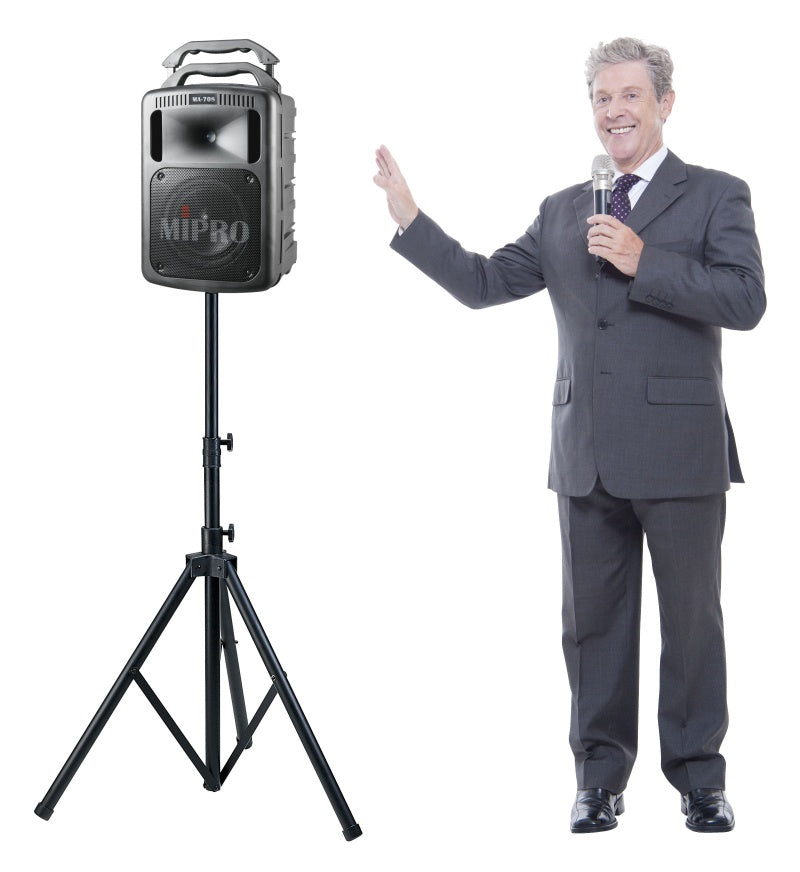

| Installation | Speaker stand, flat surface or retractable handle & wheels | ||
| Power Supply | AC: Built-in 100 ~ 240 V AC switching power supply (Max. Power Consumption: 220 W) DC & Battery: 24 ~ 32 V DC, 12 V / 4.5 AH rechargeable gel cell battery (MB-70 × 2) or optional MB-80 × 2 |
||
| Charge Time | 8 hours (automatic charging management) | ||
| Standby Time | > 7 hours | ||
| Battery Indicator | 4-level indicator (25/50/75/100%) | ||
| Color | Black or white option | ||
| Dimensions (W × H × D) | 336 × 545 × 325 mm | 13.2 × 21.5 × 12.8 " | ||
| Weight | Approx. 16.3 kg | 36 lbs (MB-70 batteries included) | ||
| Wireless System (optional) | |||

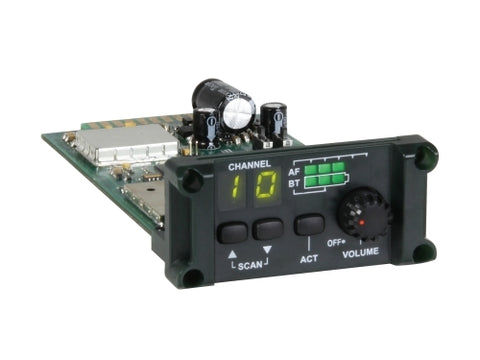

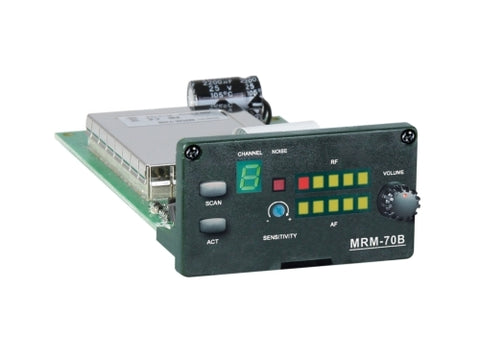

| Receiver | 1 or 2 MRM-70B︱MRM-70W︱MRM-80︱MRM-24 Scan & ACT sync | ||
| Max. Receiver | Up to 4 | ||
| Frequency Range |
MRM-70B︱MRM-70W︱MRM-80: UHF 480 ~ 934 MHz (country dependent) |
||
| Preset Channels & Bandwidth | See Accessories - Receiver Modules | ||

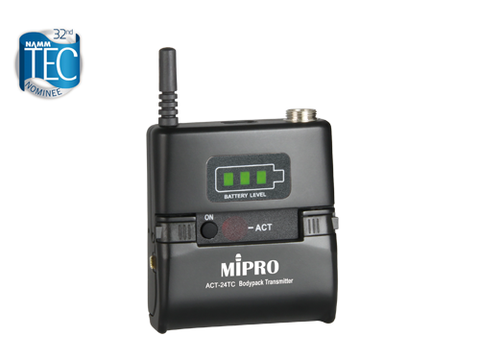

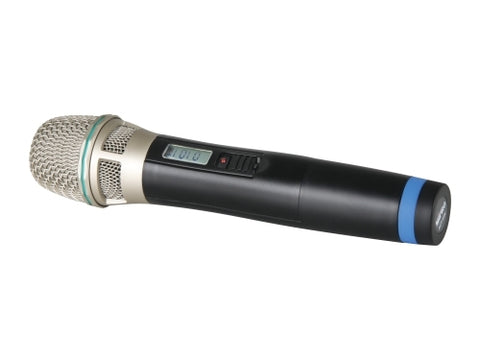

| Transmitters | See Accessories - Receiver Modules | ||
| Microphones | MM-107︱MM-39︱MM-59 Wired Dynamic Microphone | ||
| Interlinking Transmit-ter | MTM-92 | ||
| Installation | Plug-in Module | ||
| Antenna | Built-in | ||
| Audio Player (optional) | |||

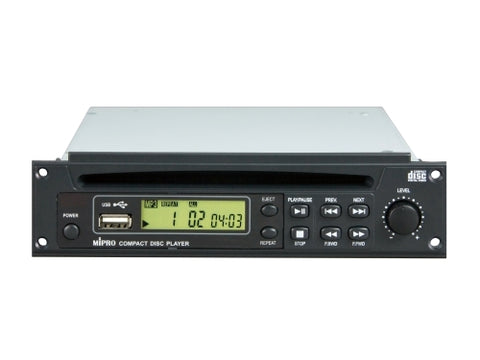

| Model | CDM-2 | DPM-3 | ||
| Installation | Plug-in Module | ||
| Note | Refer to actual product in the event of product description discrepancy. | ||
