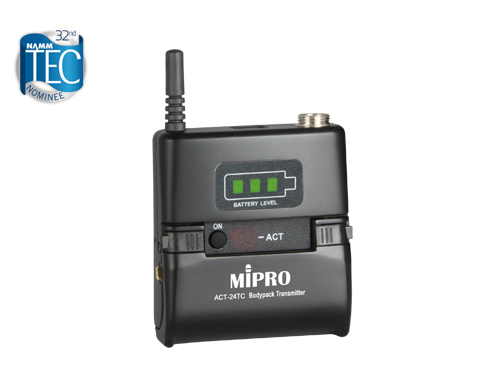

- Miniature, sturdy plastic compact design.
- Mute button with Push & Talk function along with a LED status indicator. A connector for remote mute switch cable.
- Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
- Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
- World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- The transmitter can be either charged by directly placing it in the MP-80 charger or removing the 18500 lithium battery for charging. Bright LEDs indicate battery status.
| Frequency Range | 2.4 GHz – ISM band | ||
| RF Output Power | 2 mW / 10 mW switchable (country dependent) | ||
| Battery Meter | 3 LEDs light in green to indicate battery status and turn to red to indicate low battery; after 2 hours power will automatically be shut down. | ||
| Operating Time | A 25-minute fast charge provides up to 1 hour operation. 4-hour full charge gives 12 hours of operation (depending on the battery quality). | ||
| Capsules | Headworn: MU-13 / MU-23 / MU-210 / MU-53HN / MU-55HN Lavalier: MU-53L / MU-55L |
||
| Max. Audio Input | 6.5 dBV | ||
| Dimensions (W × H × D) | 63 × 70 × 25 mm / 2.5 × 2.8 × 1 " | ||
| Net Weight | Approx. 66 g / 2.3 oz | ||
| Charger | MP-80 / MP-8 | ||
| Note | Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
