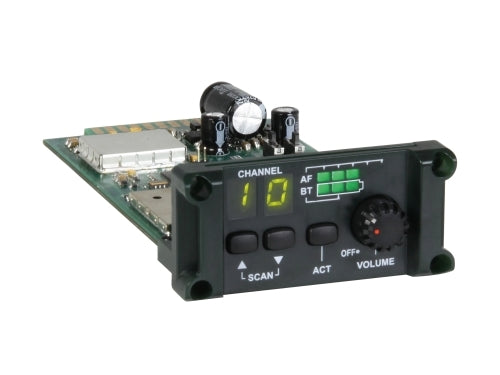

The easy to install and use plug-and-play MRM-series receiver modules are designed mainly to fit MIPRO wireless portable PA systems for wireless microphone applications. Other unique installations can be considered for PA amplifiers, mixers, signal processors, and active speakers.
Key Features
- Operates in the 2.4 GHz user license-free ISM band. Up to 12 preset compatible channels.
- True diversity technology and stable digital FSK modulation circuit eliminate signal dropouts and ensure best reception quality.
- Combining FHSS frequency-hopping technique with adaptive tracking algorithm to prevent interferences from other 2.4 GHz wireless devices.
- Featuring an easy-to-read channel LED display, audio and transmitter battery status indicators.
- The modular design allows for fast and easy installation or replacement.
- No analog’s companding noise. Ideal sound amplification for musical instruments.
| Frequency Range | 2.4000 ~ 2.4835 GHz | ||
| Preset Frequency | 12 preset frequencies in total | ||
| Channel Set-up | SCAN and ACT sync | ||
| Display Status | Channel, audio meters and the battery status of the transmitter | ||
| Receiving Mode | Dual-tuner Digital True Diversity | ||
| Sensitivity | +12 dB μ V | ||
| Frequency-hopping | Each channel has 4 preset hopping frequencies. | ||
| Audio Sampling | 24-bit / 44.1 kHz Rate | ||
| Latency | < 4 ms | ||
| Audio Frequency Response | 20 Hz ~ 20 kHz | ||
| S/N Ratio (Analog Output) | > 115 dB(A) | ||
| T.H.D. | < 0.1% @ 1 kHz | ||
| Audio Output | 2 Vrms | ||
| Antenna | 50 Ω fixed antenna × 2 | ||
| Power Supply | 10 ~ 15 V DC | ||
| Power Consumption | < 1.5 W | ||
| Dimensions (W × H × D) | 74.5 × 34.5 × 149 mm / 2.9 × 1.4 × 5.9 " | ||
| Weight | 78 g / 1.3 oz | ||
| Transmitters | ACT-24HC Handheld & ACT-24TC Bodypack DM-100 / VT-24 / ST-24 / ET-24 / MT-24 Musical Instrument Transmitter |
||
| Operating Temperature | -10℃ ~ +60℃ | ||
| Note | Refer to actual product in the event of product discrepancy. |
