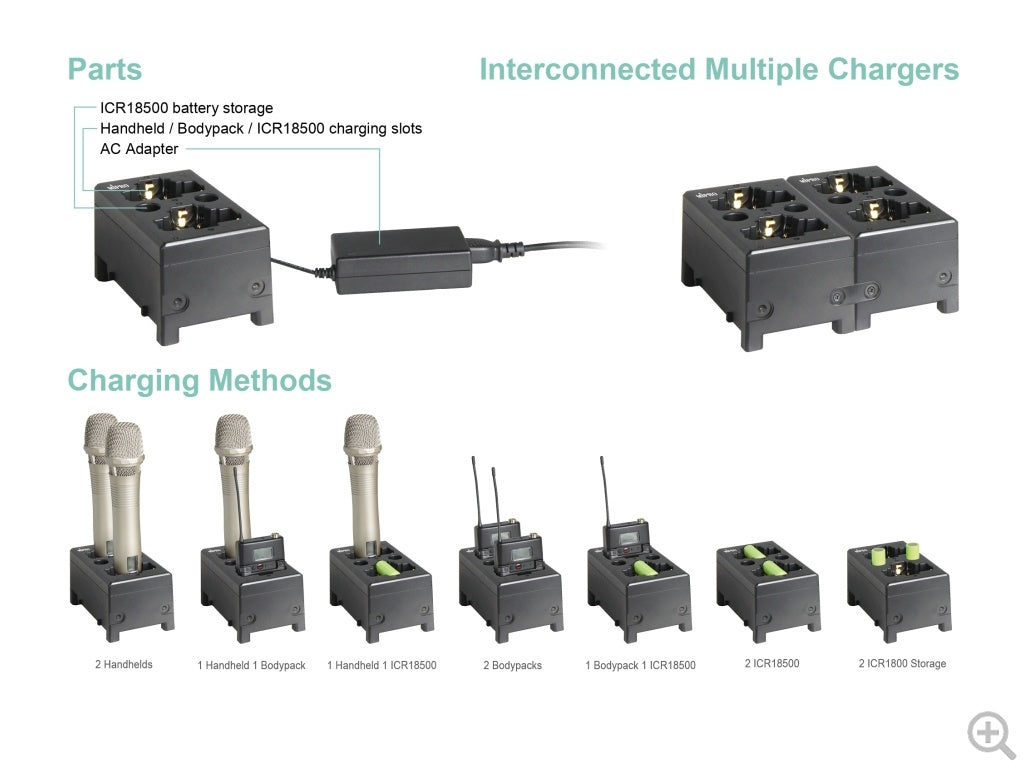

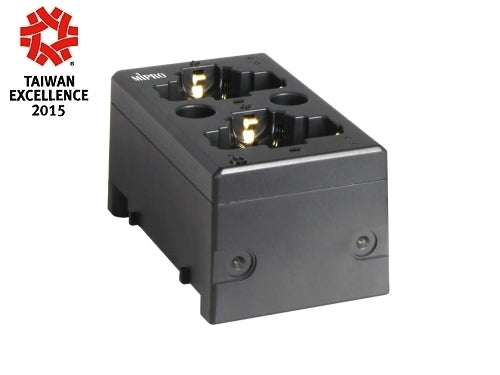

The MP-80 is a new generation of charging station designed exclusively for MIPRO rechargeable transmitters. Each station has two charging slots. Each slot has a 3-in-1 charging design, enabling multiple charging options:
- Two handheld transmitters
- Two bodypack transmitters
- Two ICR18500 lithium batteries
- One handheld & one bodypack transmitter
- One handheld transmitter & one ICR18500
- One bodypack transmitter & one ICR18500
Each station also provides two storage slots for 2 spare ICR18500 lithium batteries. Precise charging status with red (charging) & green (charged) indicators for easy reading by the users. Multiple charging stations can be easily connected for more charging options.
Key Features
- Two charger slots provide convenient charging for MIPRO rechargeable handheld & bodypack transmitters and ICR18500 rechargeable batteries.
- Intelligent charging circuitry provides efficient and safe charging.
- Precise charging status with red (charging) & green (charged) indicators.
- The reverse polarity protection circuit prevents charging errors.
- Two spare ICR18500 battery storage slots.
- Storage compartment for charging cable.
- Two or more chargers can be easily interconnected for more charging options.
| Compatible Transmitter | Rechargeable Handheld & Bodypack | ||
| Input Voltage Range | DC 10 ~ 15 V / 1A | ||
| Battery Type | ICR 18500 3.7 V Li-ion Battery | ||
| Charge Method | Termination by 20% regulation current | ||
| Charge Current | Approx. 500 mA by regulation current | ||
| Current Consumption | Approx. 600 mA / 12 V, for two batteries charging at the same time | ||
| Compatible | For charging transmitters and lithium batteries | ||
| Dimension (W × H × D) | 92 × 78 × 158 mm / 3.6 × 3.1 × 6.2 " | ||
| Weight | Approx. 313 g / 11 oz | ||
| Note | Refer to actual product in the event of product discrepancy. |
