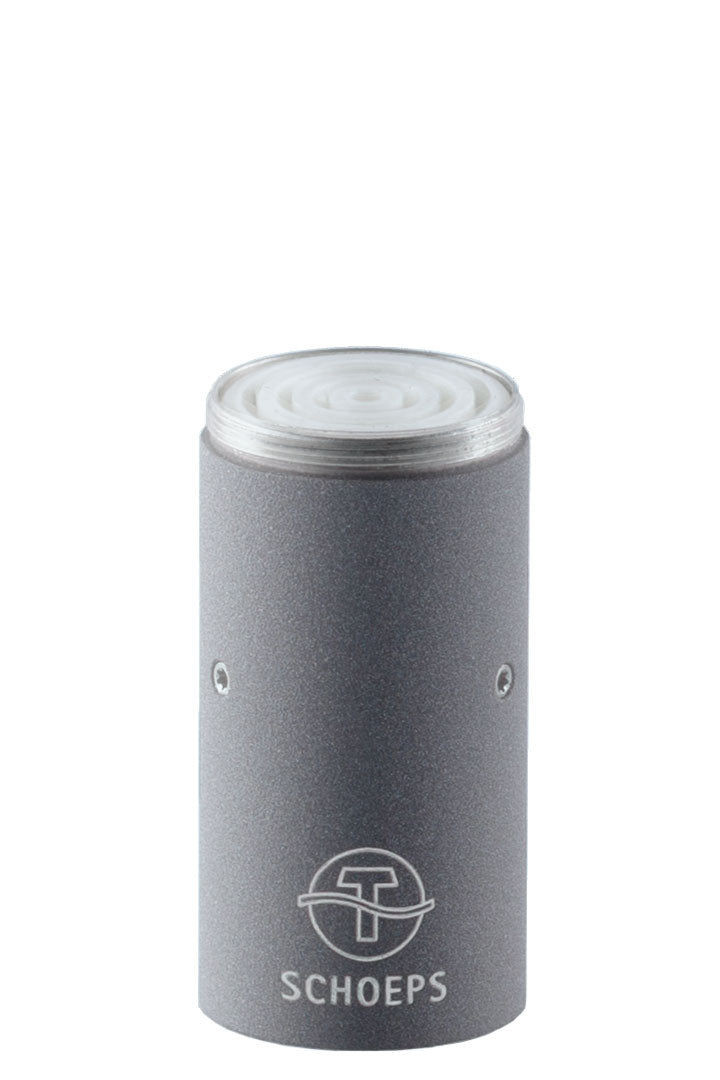

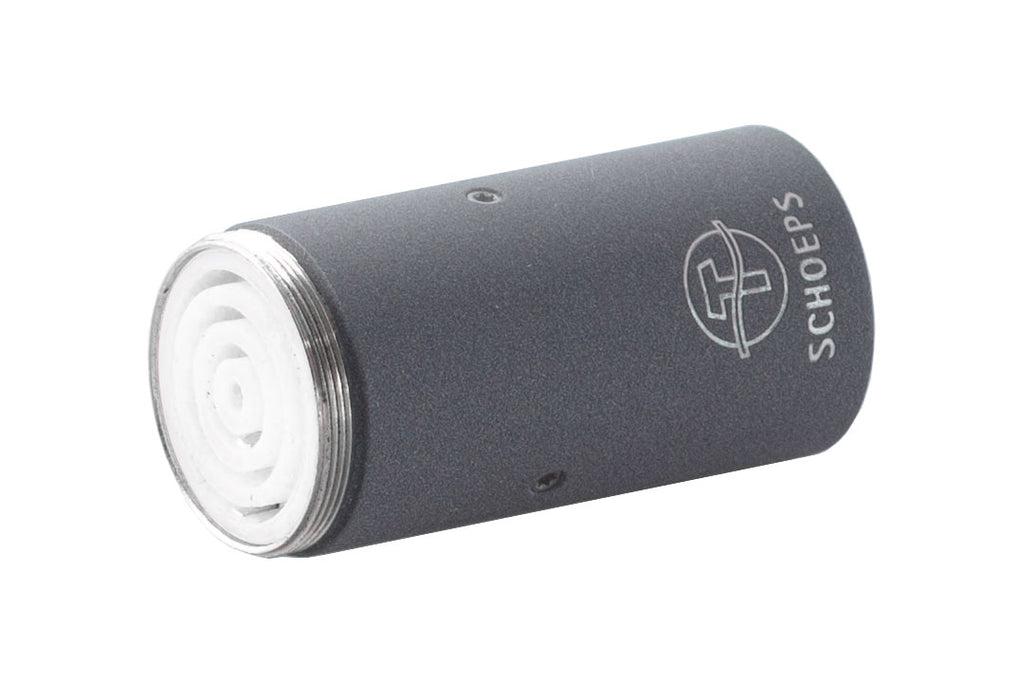

The CMC 1 is our new, small Colette microphone amplifier, about one-third the length and 53% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.
At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:
- high maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
- very low current consumption: 2.0 mA at 48 Volts
- operates on 48 V or 12 V phantom power, reliable operation even if powering is somewhat marginal

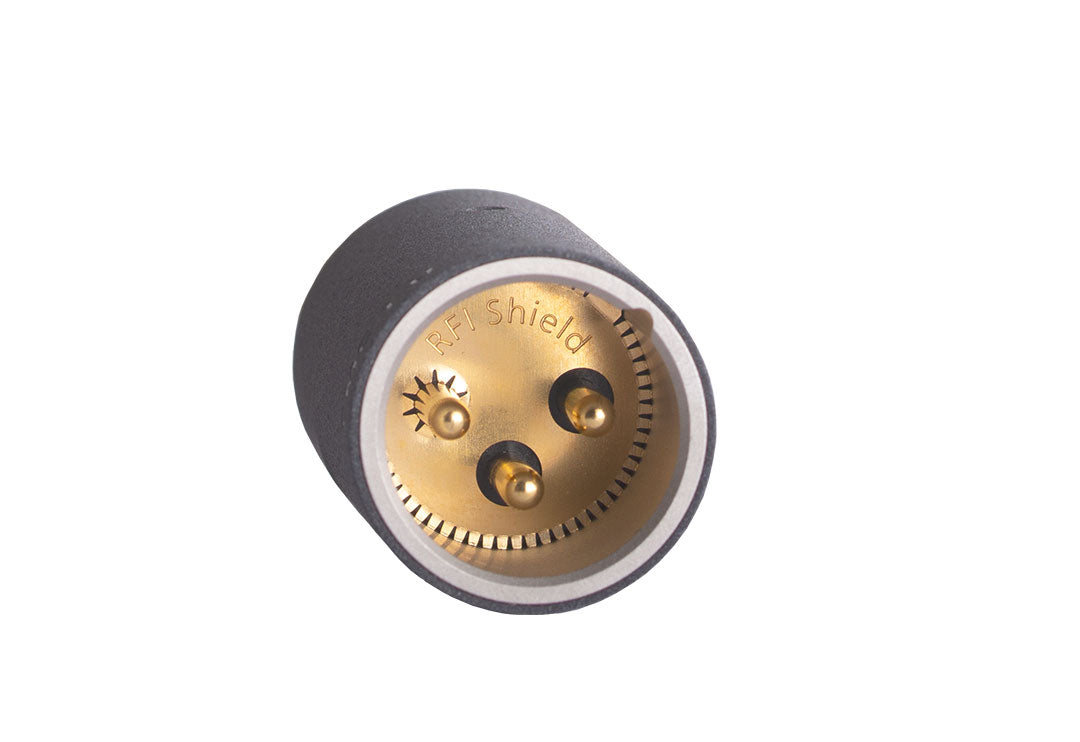

- very high immunity from RF interference with the SCHOEPS RFI Shield; high immunity to cable-induced hum and other interference (field tested with Audio Limited A 10, etc.)
- flat frequency response
- very low distortion constant output impedance across the audio frequency range
- balanced, direct-coupled, class-A output circuit
- output is filtered in the ultrasonic range to prevent interference, e.g. from camera autofocus

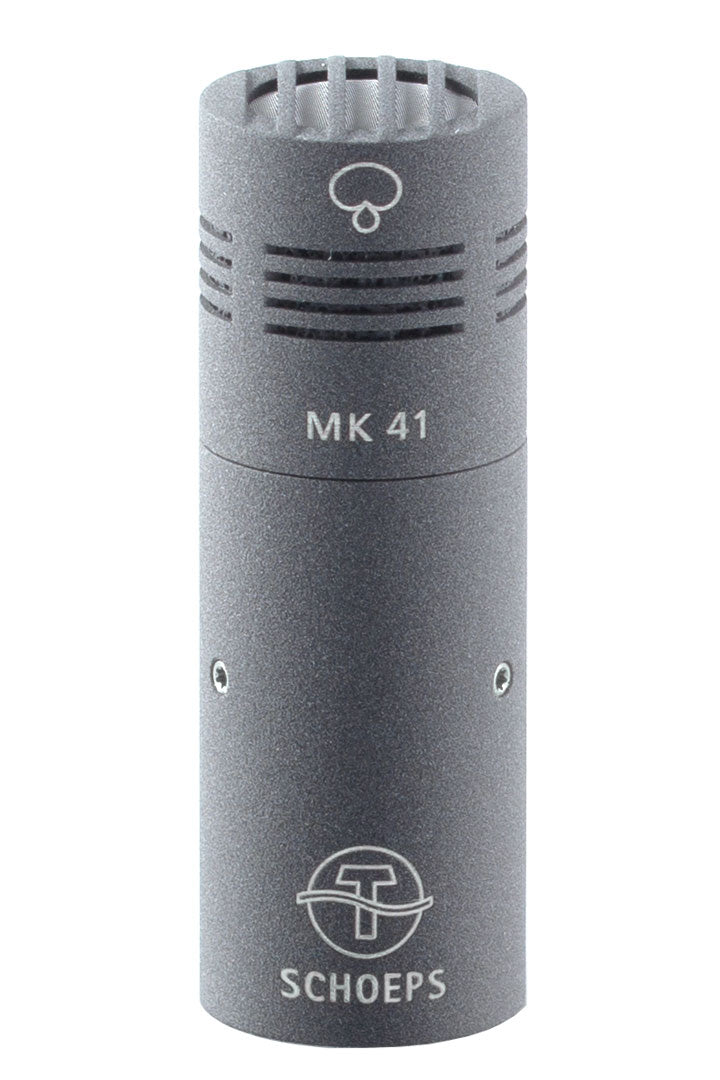

A complete Colette-series microphone consists of an MK capsule and a CMC amplifier. All capsules and active accessories of the Colette system are compatible with the CMC 1.
The CMC 1 works with standard 12-Volt or 48-Volt phantom powering. Power consumption is lower at 12 Volts--an advantage for battery-powered operation
FEATURES
- Complete alternative to the renowned CMC 6
- Fully compatible with all existing MK capsules and Colette active accessories such as the CUT 60 and RC tubes
- Suitable mounting accessories are already available, such as the CINELA E-OSIX-CMC1U and the Rycote INV-6 elastic suspensions.
Alignment of vertical capsules with the CMC 1/6:

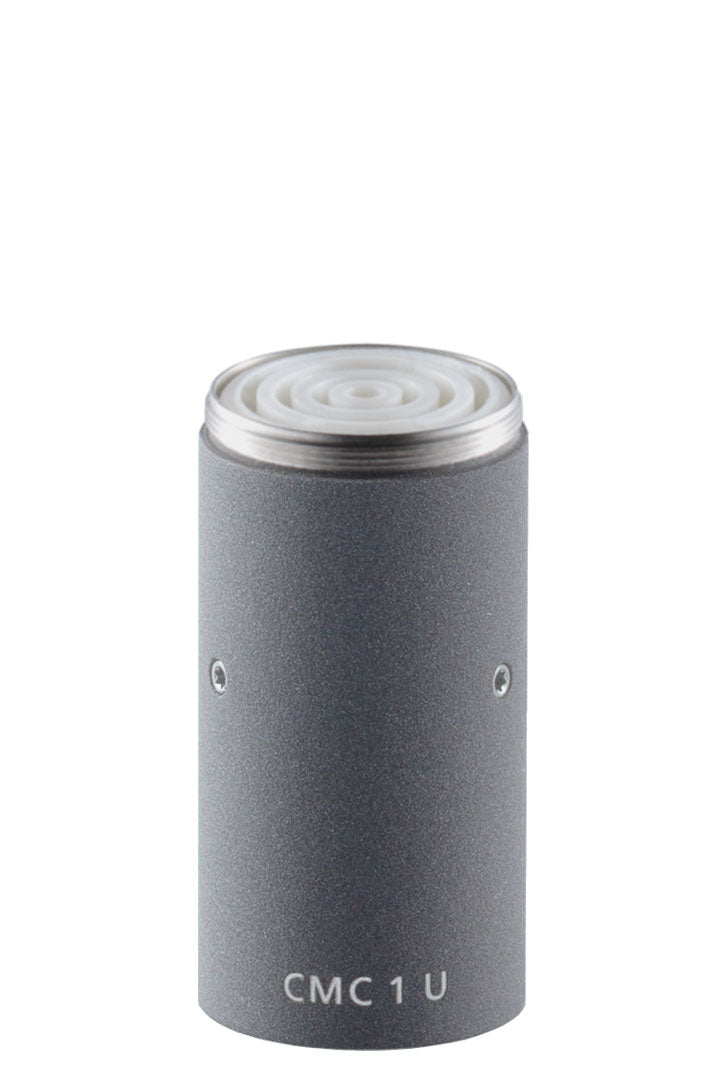

The CMC 1 U can be used in many suspensions (e.g. OSIX) that have a rigid orientation of the XLR connector and thus the amplifier. Also in the compatible MS and dual MS setups (for example, Cyclone), the alignment is fixed. As a result, the microphone cannot be rotated arbitrarily in such a suspension. For axially aligned capsules like the MK 4 this is not important, but a vertical capsule like the MK 8 has to be aligned radially.
In such cases, this accessory helps:
No. 800540: O-ring for radial alignment of a MK capsule. This O-ring is placed on the thread of the amplifier and makes the MK capsule permanently stable in any orientation. The O-ring is included with the MK 8 and all other vertical capsules (MK 4V, 41V) and can also be ordered separately.
|
20 Hz-20 kHz |
|
|
see corresponding capsule |
|
|
Maximum output voltage |
1,8 V (5 dbV) with 1 kΩ load |
|
135 dB-SPL (P48) with MK 4 |
|
|
Low cut filter |
20 Hz, 12 dB/oct |
|
Output impedance |
50 Ω +/- 1 Ω (8 Hz - 50 kHz) |
|
Minimum recommended load impedance |
1 kΩ |
|
Common mode rejection ratio (at 1 kHz) |
> 55 dB |
|
Maximum cable length |
> 400 m / ~1300 ft |
|
Yes |
|
|
Powering standard / Valid range |
P48 / 30-52 V |
|
Current consumption |
2 mA (P48) |
|
Output |
XLR-3M, analog, 1 channel |
|
Length |
36 mm / ~1.4" |
|
Diameter |
20 mm / 0.8" |
|
Weight |
36 g / 1.3 oz |
|
matte gray |
