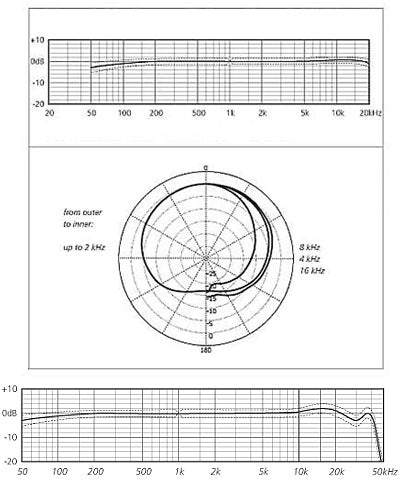

The “Open Cardioid” directional pattern, occupying a point on the spectrum between the wide cardioid and classic cardioid patterns, was developed by SCHOEPS in 2008. The response is -5 dB at 90° and there is 16 dB suppression of rear-incident sound. It is in essence a variant cardioid which balances a very natural sound quality with a good degree of directionality.
The years of experience which many recording engineers have had with the various types of SCHOEPS cardioid microphones have played a large role in the design process. The MK 4 cardioid is often relied upon as a reference microphone, even in difficult recording situations; its sonic transparency and outstanding suppression of rear-incident sound make it a universal problem-solver. The MK 21 wide cardioid offers an alternative when its lower directivity fits the recording situation, e.g. for the first desk of strings or for solo piano. This capsule type is prized for its sonic character (similar to that of a pure omnidirectional microphone) and its relative lack of proximity effect. Then the wish arose for a “middle way” which would combine these characteristics into a single capsule. The result is the MK 22 Open Cardioid.
- new kind of directional pattern: “Open Cardioid”
- optimal combination of classic cardioid directionality (MK 4) with the sonic character of the wide cardioid (MK 21)
- directional pattern largely constant throughout the frequency range
- often preferred for spot miking and as a soloist’s microphone

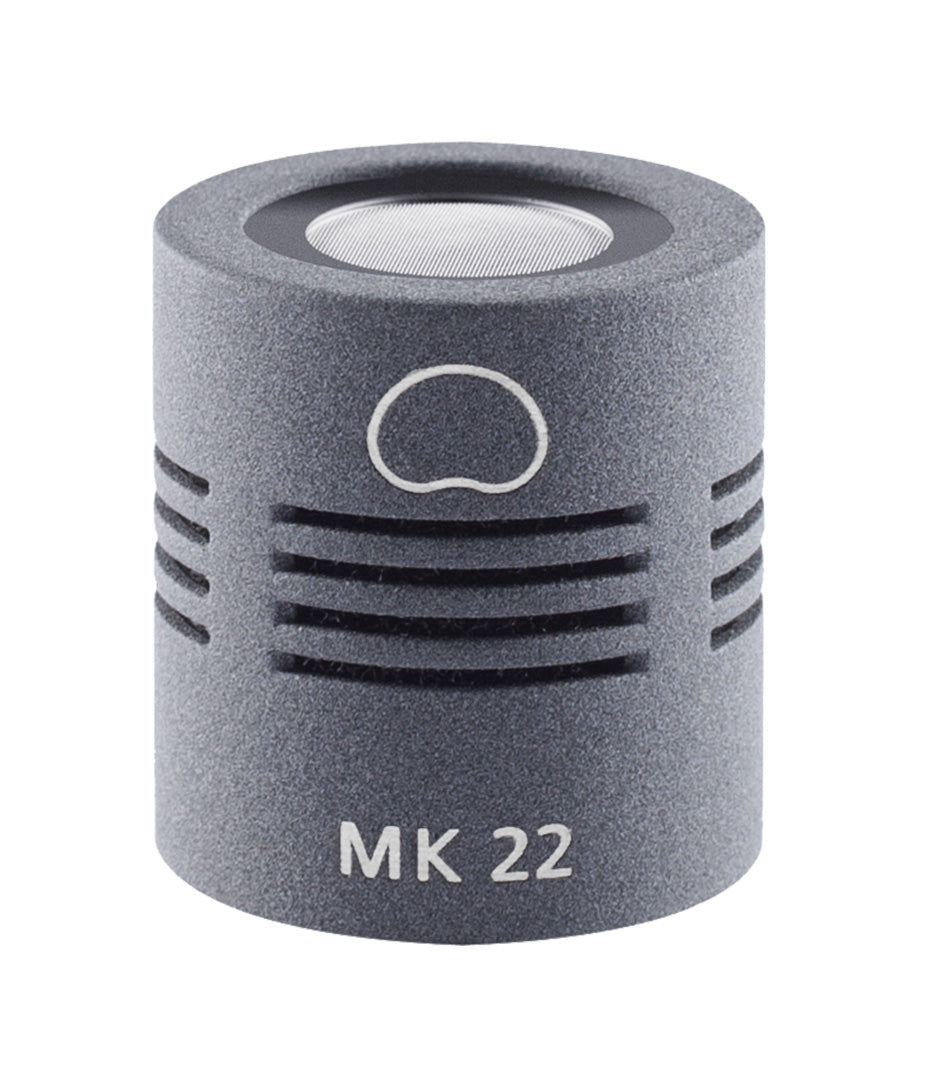

| MK 22 | |
|---|---|
| Frequency range | 40 Hz - 20 kHz |
| Sensitivity | 14 mV/Pa |
| Equivalent noise level (A-weighted) | 14 dB-A |
| Equivalent noise level (CCIR) | 23 dB |
| Signal-to-noise ratio (A-weighted) | 80 dB-A |
| Maximum sound pressure level at 0.5% THD | 130 dB-SPL |
| Length | 22 mm |
| Diameter | 20 mm |
| Weight | 17 g |
| Surface finish | matte gray (g) or nickel (ni) |
