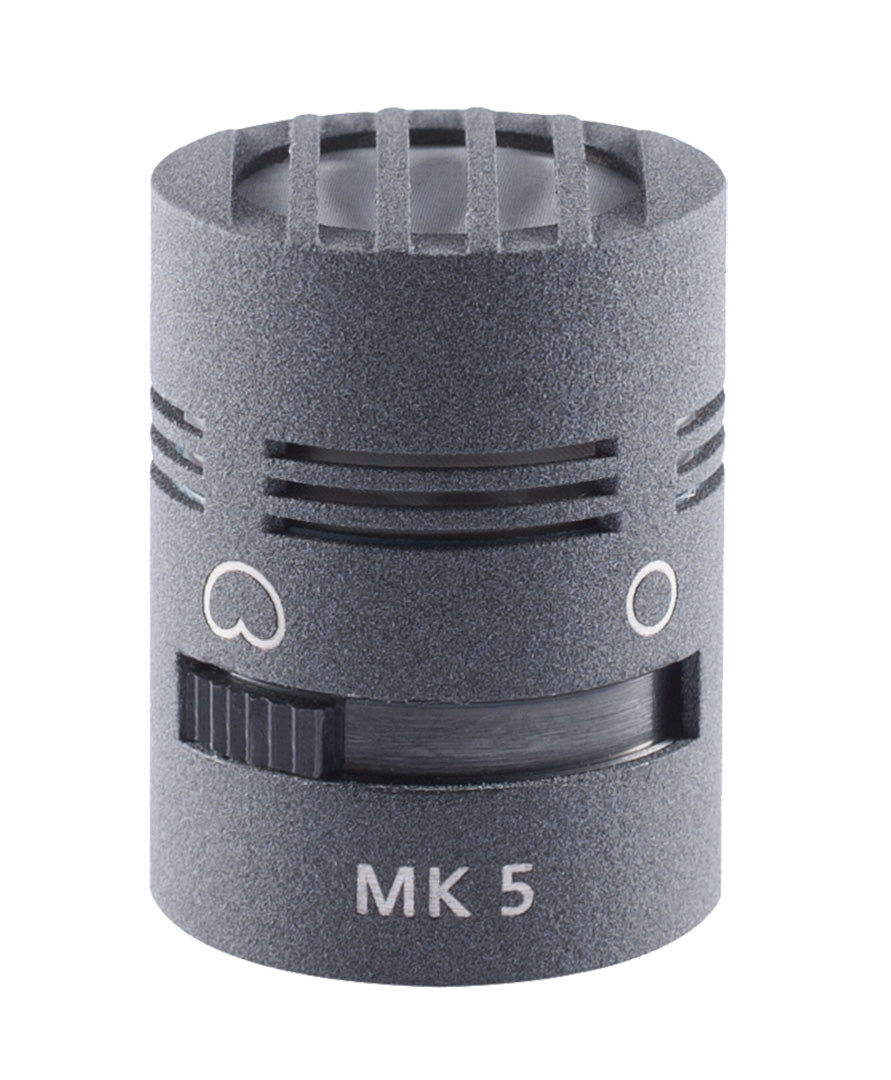

Schoeps MK 5 Switchable Mic Capsule

SchoepsSKU: 131019

Price:
Sale price €1,195.00

The MK 5 offers two selectable directional patterns, but uses only one membrane – a no-compromise approach. The fact that full response is maintained to the highest audible frequencies is unusual for a switchable-pattern microphone.

In its omnidirectional setting the MK 5 is a true pressure transducer with smooth, extended low-frequency response, low sensitivity to most wind and breath noise, handling noise or mechanical vibration, and no proximity effect.

Unlike conventional, dual-diaphragm multi-pattern microphones, its cardioid setting retains its full directionality even at very low frequencies. The benefits of this design in purity and clarity of sound are immediately audible.

The MK 5 has a slight high-frequency emphasis as compared with the corresponding single-pattern omni (MK 2) and cardioid (MK 4).

  • omni and cardioid patterns, mechanically switchable
  • slight emphasis of the high frequencies
  • broad range of applications
  • preferred uses similar to those of the MK 2 or MK 2S and the MK 4:
  • in the cardioid setting: for use with singing or speaking voices or most instruments, as a spot microphone, and for stereo recording with coincident, ORTF or M/S microphone arrangements
  • in the omni setting: for recording instruments, singers, etc. at relatively close range

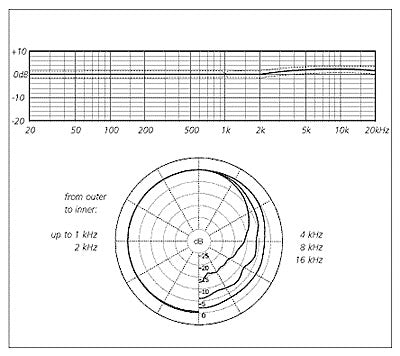

MK 5 - omni
Frequency range 20 Hz - 20 kHz
Sensitivity 10 mV/Pa
Equivalent noise level (A-weighted) 14 dB-A
Equivalent noise level (CCIR) 26 dB
Signal-to-noise ratio (A-weighted) 80 dB-A
Maximum sound pressure level at 0.5% THD 133 dB-SPL

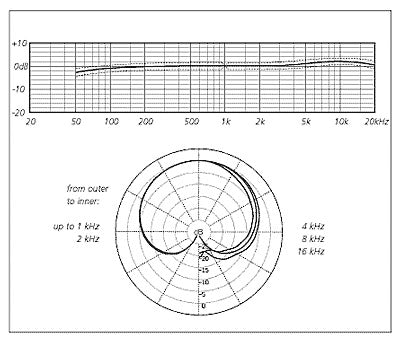

MK 5 - cardioid
Frequency range 40 Hz - 20 kHz
Sensitivity 13 mV/Pa
Equivalent noise level (A-weighted) 15 dB-A
Equivalent noise level (CCIR) 24 dB
Signal-to-noise ratio (A-weighted) 79 dB-A
Maximum sound pressure level at 0.5% THD 132 dB-SPL
Mechanical specifications
Length 27 mm
Diameter 20 mm
Weight 25 g
Surface finish matte gray (g) or nickel (ni)
