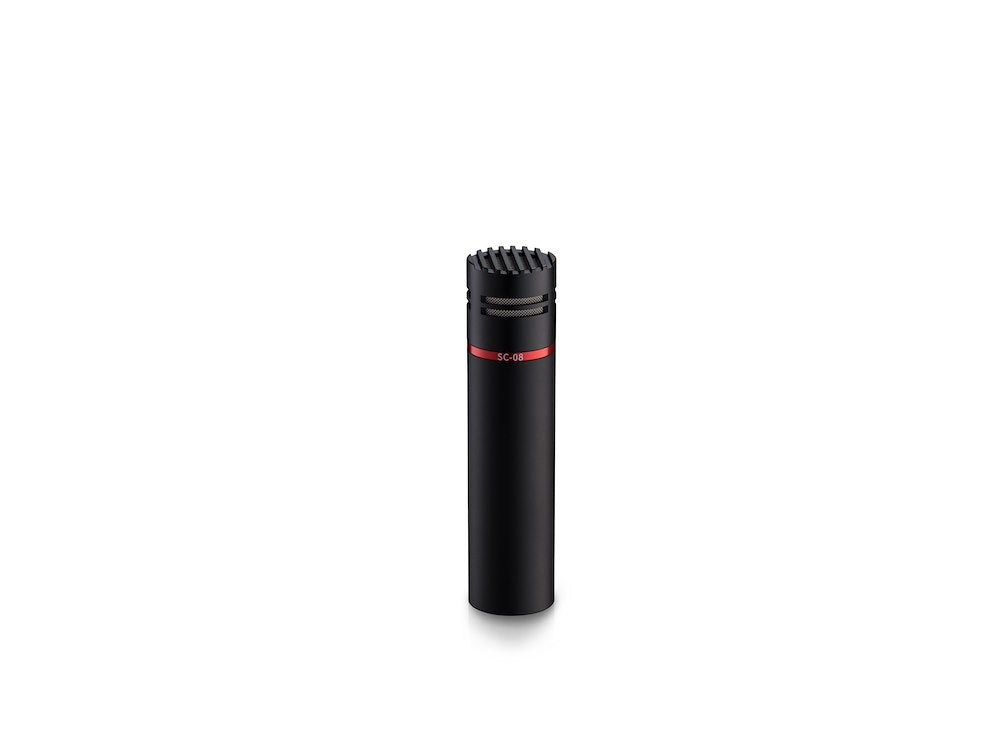

The Rycote SC-08 is a supercardioid pencil condenser microphone designed for a range of applications in studio and field recording.
The SC-08 microphones provide directionality with a virtually flat frequency response from 70Hz-20KHz, moderately dropping off below 60Hz. The mics are built on Rycote’s low self-noise preamp design and capsules which offer a consistent sonic signature that mixes well when cut together with other Rycote microphones in the range.
The SC-08 mics can be used individually or in matched stereo pairs.
Features:
- Compact design
- Ultra low noise circuitry
- Sophisticated RF shielding
- Low power consumption

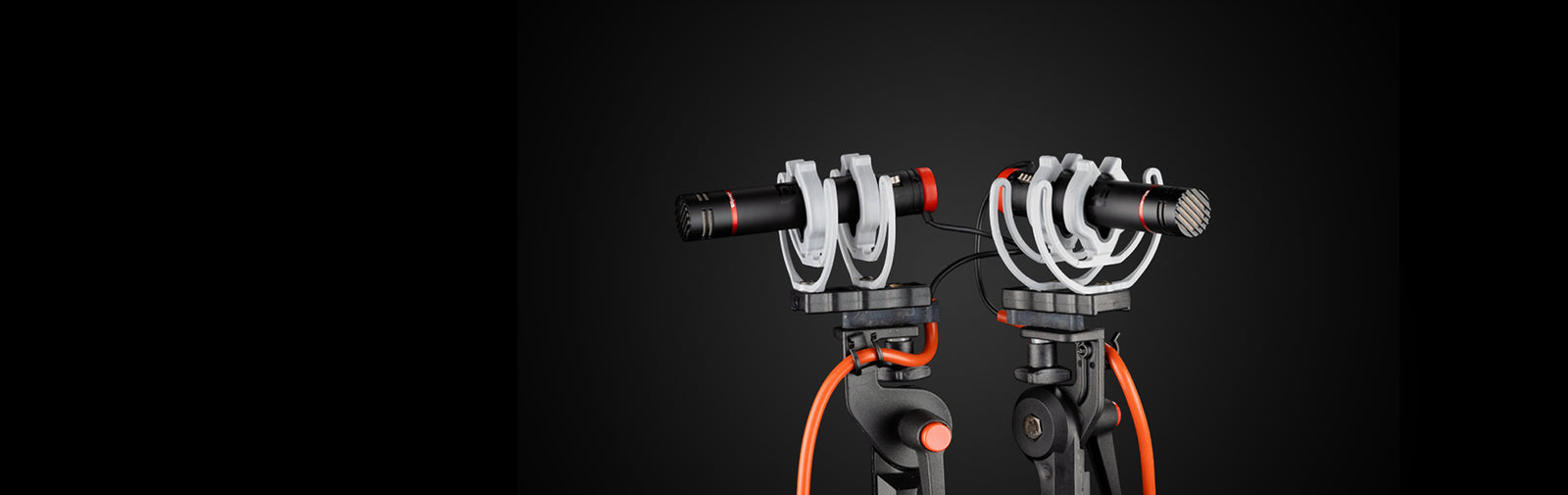

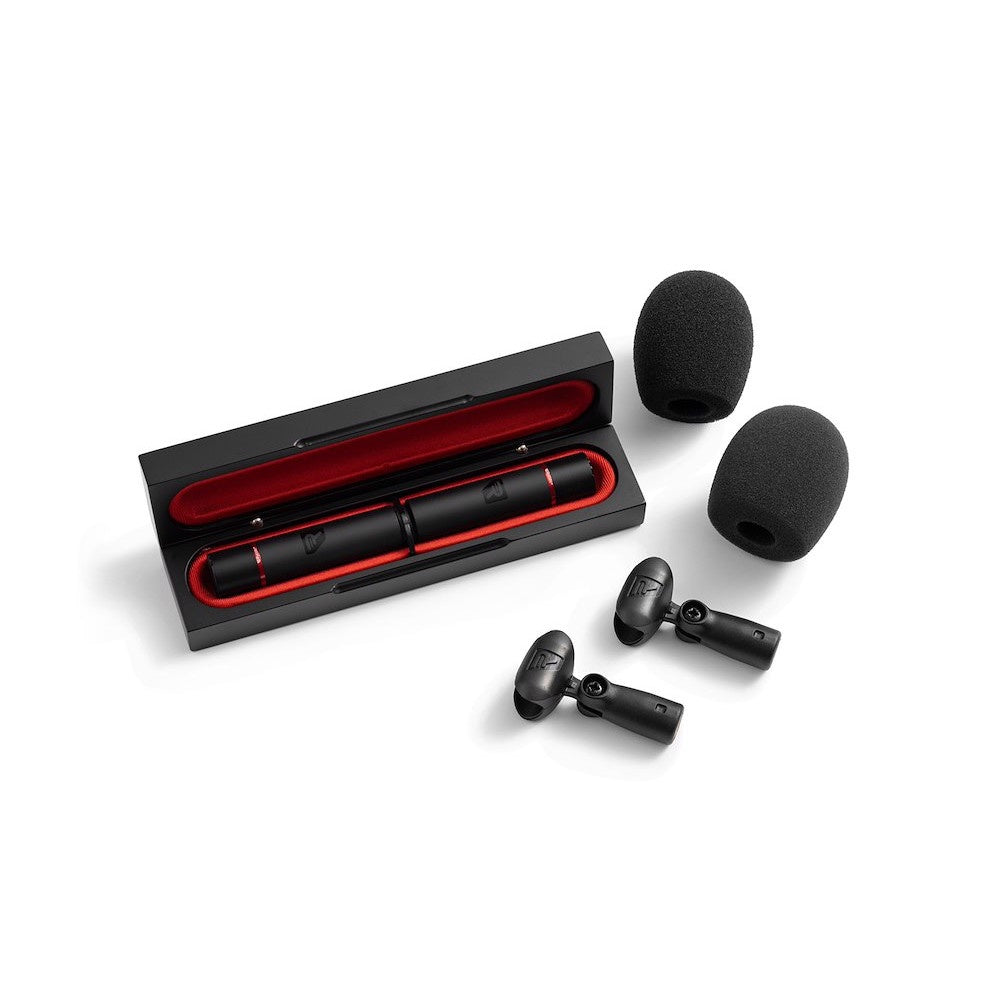

- Available individually or as a Stereo Pair
Microphone Design and Specifications:
- FREQUENCY RANGE: 20-60
- SIGNAL TO NOISE RATIO: 81 dB typical
- MAXIMUM SPL: 133 dB SPL (at 1 kHz 1.0% THD Typical) 127 dB SPL (at 1 kHz 0.5% THD Typical)
- OUTPUT SENSITIVITY: 29.7 mV/Pa (-26.9 dB)
- SELF NOISE: 12.0 dB-A (+/- 2 dB)
- POLAR PATTERN: Supercardioid
- OPERATING VOLTAGE: 4 Vp
- CAPSULE TYPE Back Electret Condenser
- OUTPUT IMPEDANCE: 100
- CMRR (@ 1 KHZ) : > 60 dB
General Specifications:
- POWER RANGE: 48-24V (Max SPL reduced at 24V)
- CABLE LENGTH: 100 m
- CURRENT CONSUMPTION: 3.0 mA
- POWERING: P-48
- RFI SHIELD: Yes
- CONNECTOR: XLR-3M
Physical Specifications:
- COLOUR: Black Matt
- WEIGHT: 0.069 Kg
