Rycote’s flagship Cyclone range features next-generation wind and handling noise isolation for discerning audio professionals. All Cyclone baskets feature our advanced 3D-Tex® material. This durable windshield system possesses outstanding, consistent performance while being easy to maintain as it does not use fur. The Cyclone is truly evolutionary, and now we have taken it a step further.
3 Sizes

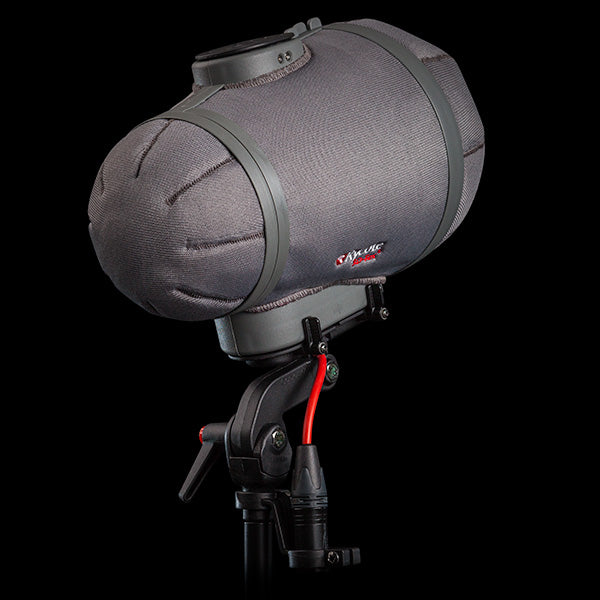

Cyclone Small

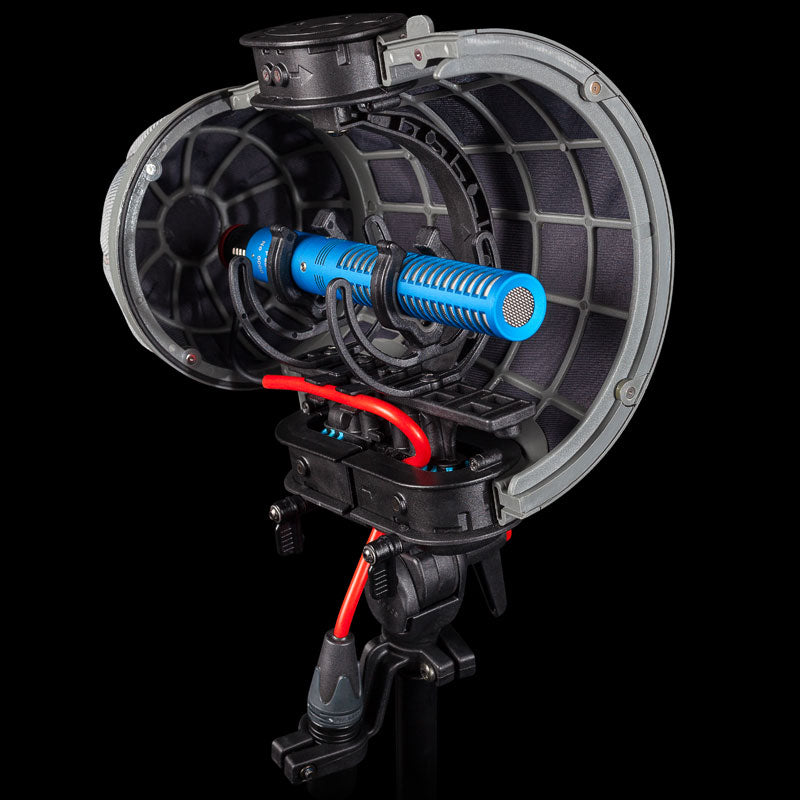

Cyclone Small delivers outstanding performance for small diaphragm condenser and short shotgun microphones alike. An Offset Link bracket is included, to provide mic axis articulation if required for ideal microphone placement.
Cyclone Small includes Short XLR, LEMO and MZL model variants.

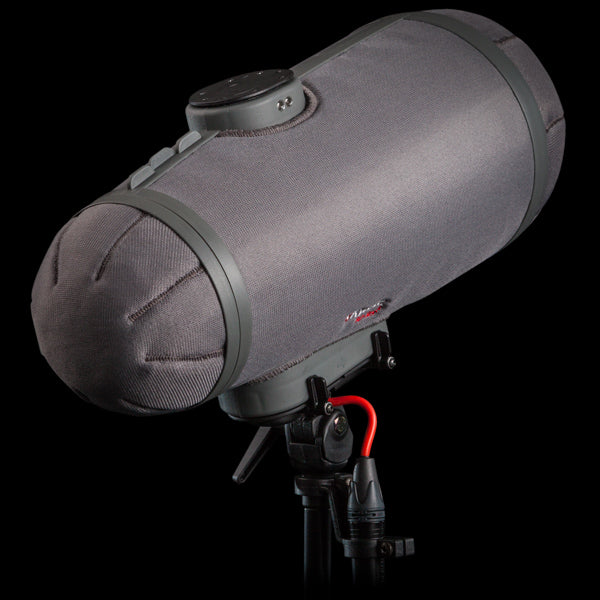

Cyclone Medium
With our new, premium, short XLR, the Cyclone Medium fits a wide range of microphone sizes.
This Cyclone family member accommodates not only short shotgun microphones, but also many popular shotgun microphones too— all in a compact chassis for maximum wind and handling performance with minimal weight.

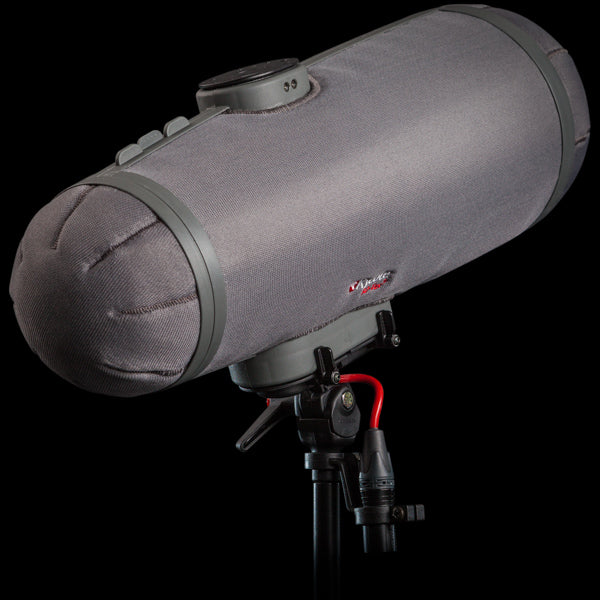

Cyclone Large
Originally introduced in 2014, the Cyclone Large has been updated with our durable, grey 3D-Tex material.
Used with many shotgun microphones, the latest Cyclone Large maintains industry-leading performance with a neutral appearance.
All Cyclone models feature our advanced 3D-Tex® material. This provides a neutral appearance and superior performance over standard basket solutions, with excellent acoustic transparency and superb attenuation of wind-noise. Covering a lightweight yet durable chassis, Cyclone models are designed to withstand the extremes of the field for reliable, daily use – to deliver the consistent results location audio professionals depend on.
Cyclone Small and Medium models accommodate a range of microphone sizes, from compact condenser to shotgun, providing premium performance for a much wider range of microphones in your arsenal.
The premium short XLR supplied with the Cyclone Small and Medium is not only lightweight: it makes these models perfect for use with longer microphones, reducing the overall size and weight of the Cyclone model required. In other words, Cyclone Medium, with its durable, lightweight chassis, houses many popular shotgun mics!

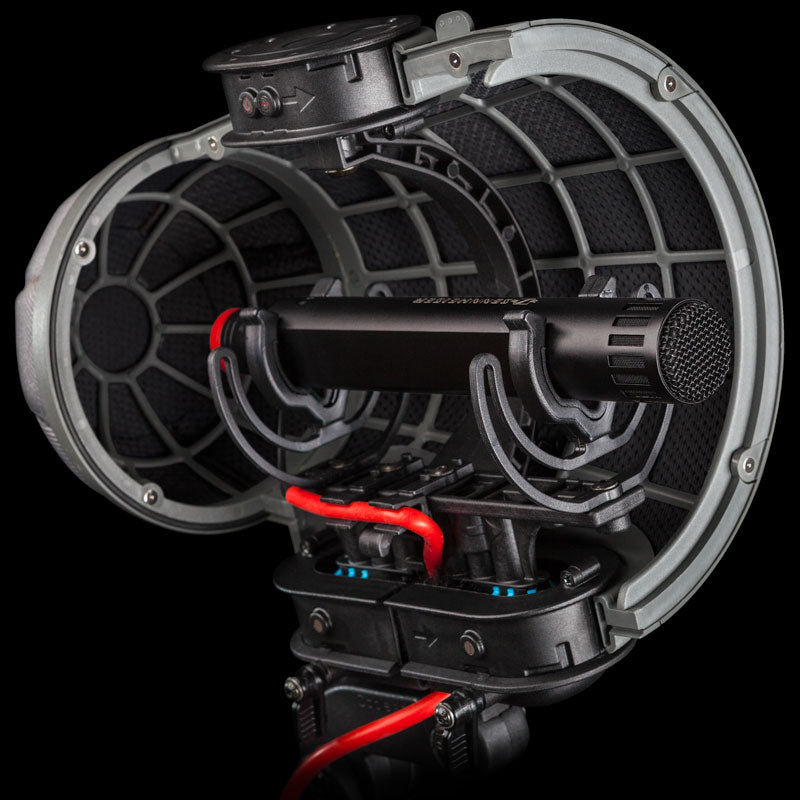

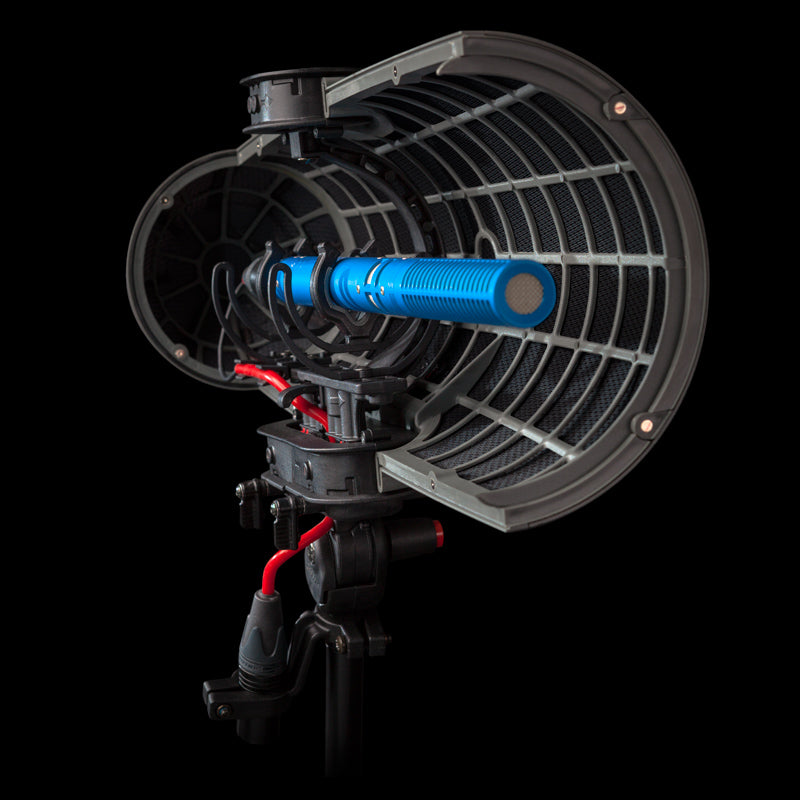

The Cyclone has superb acoustic transparency. Designed with an open shell structure consisting of curved contours and no straight or parallel surfaces, it greatly reduces room-tone effects inherent in conventional tubular windshield designs.
The unique design of Cyclone shifts the overall bulk to the basket front. This aerodynamically efficient asymmetric basket covered with 3D-Tex material provides enormous benefits in terms of surface turbulence and acoustic impedance, resulting in wind-noise reduction comparable to the combined modular-style windshield / fur cover performance. In truly extreme weather conditions, an optional Cyclone Windjammer can be used to deliver wind-noise reduction that far exceeds any other windshield system available today.

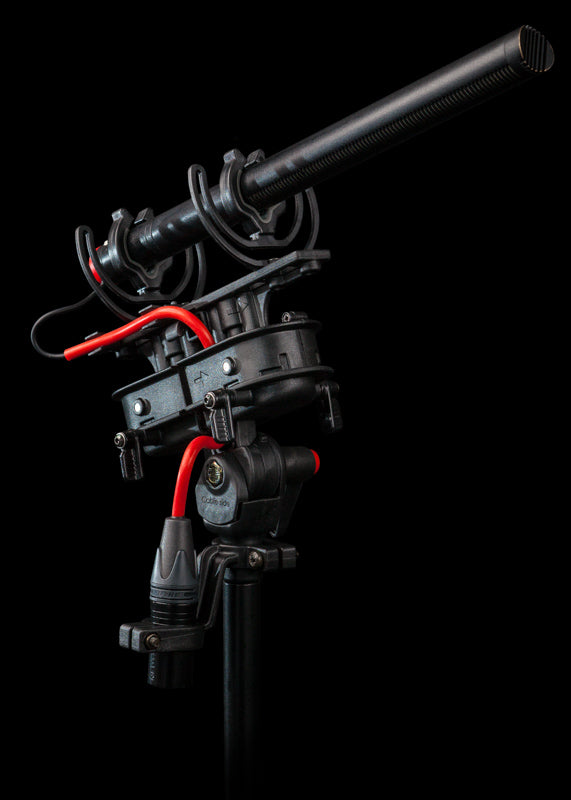

Rycote uses its industry-leading Lyre® microphone suspension to reduce the bulk of shock and handling noise, but they have taken shock and handling isolation within the Cyclone design to a new level with the exclusive, Floating Basket Suspension* (*patent pending).
Any structure can transmit mechanical vibrations and radiate them as acoustic noise. Moreover, natural resonances, dependent on materials and mass, will amplify certain frequencies and give this a characteristic spectrum. Windshield baskets are no exception, so a small proportion of handling noise links to the microphone through the air, bypassing any immediate suspension system.
The Cyclone takes the Lyre principle and incorporates it into the Floating Basket Suspension. This innovative technique provides vibration isolation between basket and pole, thus attenuating handling noise at source. Each Cyclone size is equipped with a unique basket suspension designed to maximize vibration isolation based upon the combined weight of the basket and specified microphones.
Imagine a windshield that can be removed from or attached to the suspension in an instant using just one hand – allowing audio professionals to capture the best possible audio at any moment – in any environment. This is the unique benefit of Rycote’s Z-Locking System. Reassembly is automatic, and components magnetically snap into perfect alignment.
What’s in the box?
Cyclone Small
- Cyclone Suspension, fitted with 2 x 62-shore Universal Lyres (XLR model)
- Cyclone Suspension, fitted with 1 x 62-shore Universal Lyre & 1 x 8mm Lyre (LEMO model)
- Cyclone Suspension, fitted with 2 x 62-shore Universal Lyres (MZL model)
- Cyclone cable – LEMO FVN, reduced XLR-3f or MZL connector dependant on chosen variant
- Cyclone Windshield, Small (left & right pods)
- Additional 1 x 62-shore Universal Lyre (LEMO model)
- Additional 2 x 72-shore Universal Lyre (MZL model)
- Hex key driver, for adjustment of Lyre
- Offset Link Bracket
- Quick start guide
Cyclone Medium
- Cyclone Suspension, fitted with 72-shore Universal Lyre
- Cyclone cable – reduced XLR-3f
- Cyclone Windshield, Medium (left & right pods)
- Pair of Universal Lyre 62-shore, for lightweight microphones
- Hex key driver, for adjustment of Lyre
- Quick start guide
Cyclone Large
- Cyclone Suspension, fitted with 72-shore Universal Lyre
- Cyclone cable (fitted)
- Cyclone Windshield, Large (left & right pods)
- Pair of Universal Lyre 82-shore, for heavier microphones
- Hex key driver, for adjustment of Lyre
- Quick start guide
Cyclone Windshield Kit – Small (3 variants)
Product Codes:
089103 (XLR)
089104 (LEMO)
089105 (MZL)
Microphone Compatibility
CYCLONE SMALL – XLR
DPA 4017C, 4018C
Neumann KM100 series
Schoeps CMC series, MiniCMIT
Sennheiser MKH 8040*, MKH 8050*, MKH 50
CYCLONE SMALL – LEMO
Schoeps CCM series
CYCLONE SMALL – MZL
Sennheiser MKH 8060*
Dimensions
Overall length: 297mm
Body length: 142mm
Front Diameter: 157mm
Back Diameter: 113mm
Weight:
Suspension w/o C-Arm: 277g
Cyclone Kit: 564g
Cyclone Kit & Windjammer: 716g
* Our recommendation for the Sennheiser MKH8040/8050 is the Cyclone Small (XLR) model, based on the use of the Sennheiser MZX (XLR module) with these microphones. If you wish to use either of these mics without the MZX module attached, you can do so using the Cyclone Small (MZL).
Cyclone Windshield Kit – Medium
Product Code: 089102
Microphone Compatibility
DPA 4017B, 4018A
Neumann KMR 81D, KMR 81i
Røde NTG-3, NTG-4
Sanken CS-1, CS-2
Schoeps CMIT-5u, CMC w/Cut 1, CMC w/Cut 60
Sennheiser MKH 416, MKH 8060 w/MZF
Dimensions
Overall length: 385mm
Body length: 260mm
Front Diameter: 157mm
Back Diameter: 113mm
Weight:
Suspension w/o C-Arm: 276g
Cyclone Kit: 623g
Cyclone Kit & Windjammer: 806g
Cyclone Windshield Kit – Large
Product Code: 089101
Microphone Compatibility
Røde NTG-2, NTG-4+
Sanken CS-3e
Schoeps Super-CMIT
Sennheiser MKH 60
Dimensions
Overall length: 470mm
Body length: 330mm
Front Diameter: 157mm
Back Diameter: 113mm
Weight:
Suspension w/o C-Arm: 289g
Cyclone Kit: 672g
Cyclone Kit & Windjammer: 889g
