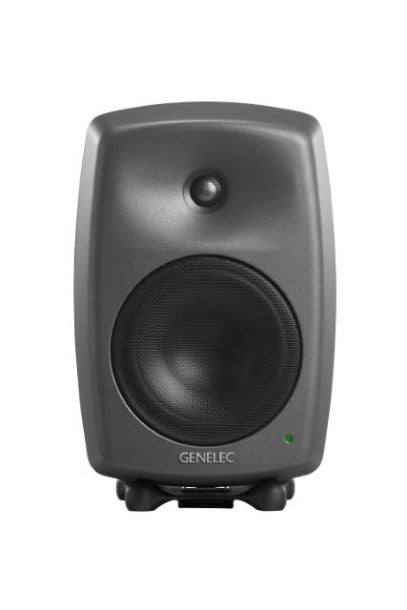

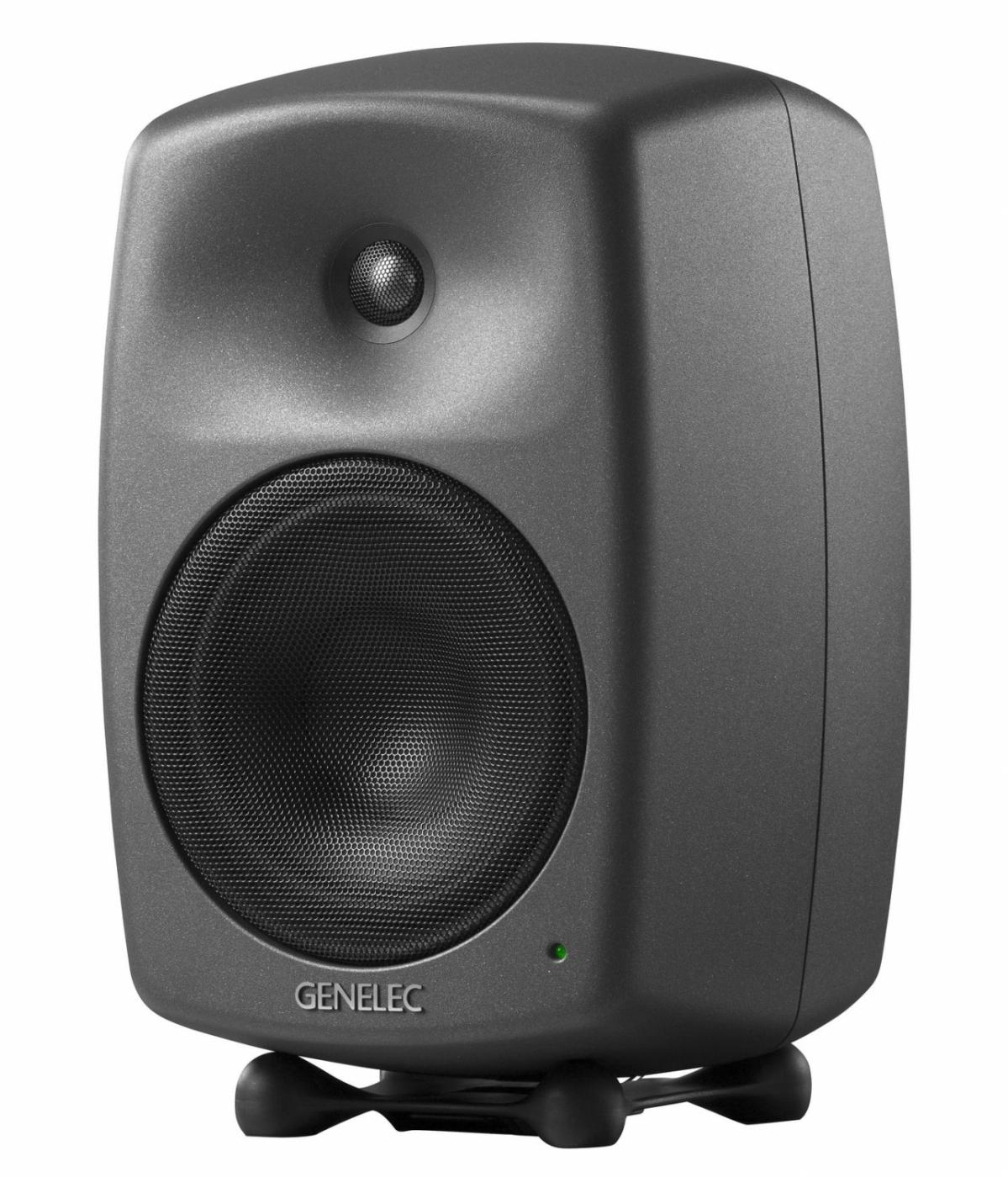

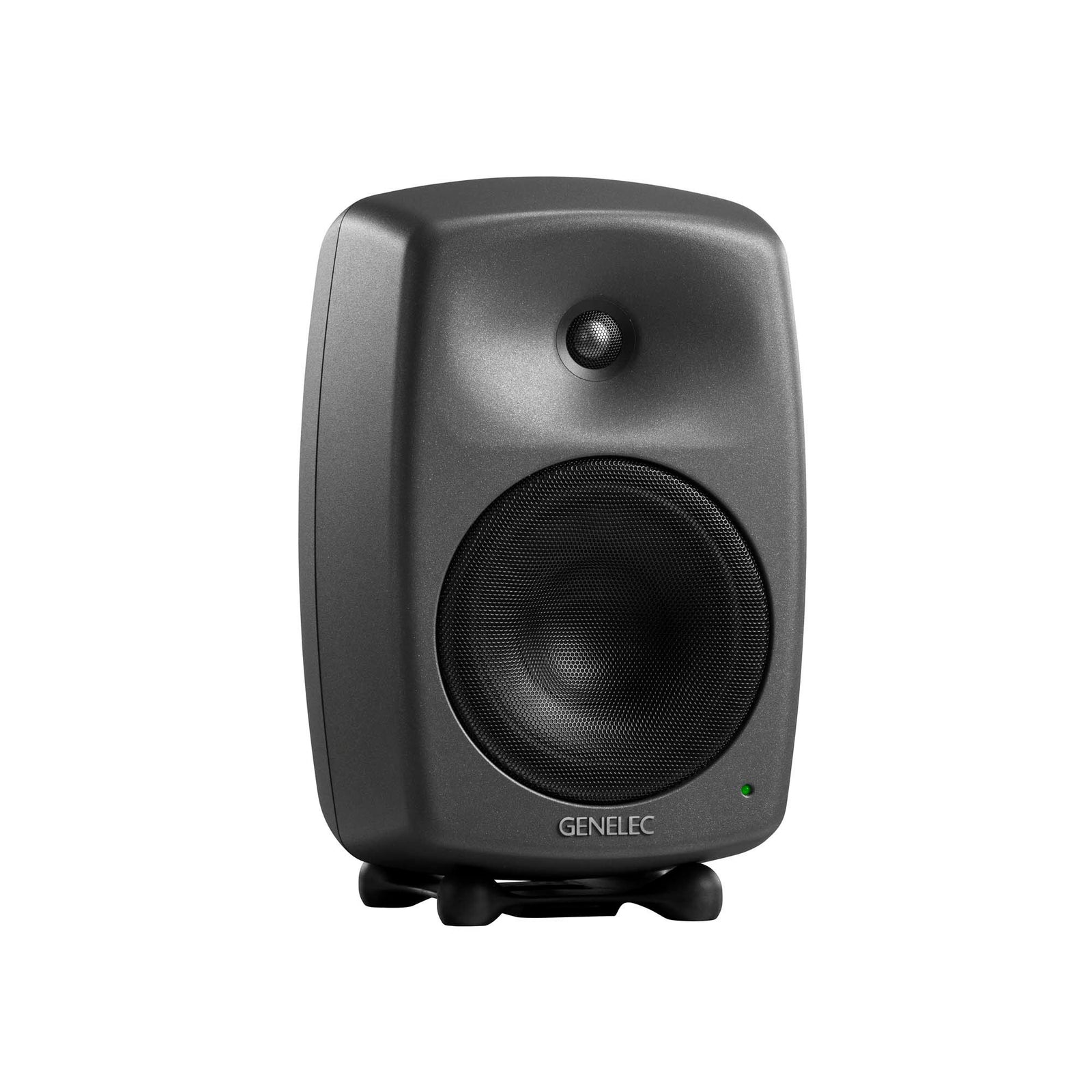

Lift the accuracy of your audio monitoring to a new level with the 8340A’s enhanced power, pin-point accuracy and advanced Smart Active Monitoring™.
The Genelec 8340A has quickly established itself as the trusted monitoring choice of facilities worldwide. Boasting a 6 1/2 inch woofer plus Genelec’s most efficient Class-D amplification to date, the two-way, Class D bi-amplified monitor represents a finely balanced union of acoustic expertise and SAM™ innovation.
At the heart of the system is an acoustic design shaped by decades of innovation and expertise. Capable of supporting extremely high sound pressure levels, the 8340A features a reflex port design for low-frequency enhancement, plus the colour-free accuracy of the Minimum Diffraction Enclosure (MDE™), and on- and off-axis precision thanks to the Directivity Control Waveguide (DCW™). All this is coupled to the versatility of SAM. Genelec Loudspeaker Manager (GLM™) 2.0 software allows for the fine adjustment of all monitor settings, while AutoCal™ compensates for detrimental room influences to perfectly calibrate your set-up for your listening environment, no matter if you work in simple stereo or ambitious immersive audio.
The result is the most advanced adaptable monitoring solution available, ideal for all applications including recording studios, post-production houses, digital edit suites, radio, TV and outside broadcasting.
Key Technologies:
- Smart Active Monitor (SAM™) Systems
- Directivity Control Waveguide (DCW™) Technology
- Minimum Diffraction Enclosure (MDE™) Technology
- Reflex Port Design
- Optimized Amplifiers
- Active Crossovers
- Protection Circuitry
- Intelligent Signal Sensing (ISS™) Technology
- Iso-Pod™ Stand
- Versatile Mountings
Visit the Genelec Virtual Showroom
Genelec has introduced its online Virtual Showroom, where you can explore a wide range of active loudspeaker systems and technologies in a set of stunningly realistic room settings. This allows customers across the Studio, AV, and Home Audio segments to instantly access valuable Genelec information and resources in a unique and visually engaging interactive environment.
Hosted on the Genelec website, visitors to the Virtual Showroom can experience the latest in VR technology to navigate separate and distinct areas for Professional Audio Monitoring, AV Installation and Home Audio, which showcase both stereo and immersive systems that comprise a carefully selected range of key loudspeaker and subwoofer models. Visitors can then access detailed product information, video content and valuable learning resources, at any time of day and from the comfort of their own environment.
Package contains:
- 1 x 8340A monitor
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:
- Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
Technical Specifications
SPL
110 dB
Amplifier Power
150 W Bass (Class D) + 150 W Treble (Class D)
Frequency Response
38 Hz - 22 kHz ("-6 dB")
Accuracy of Frequency Response
± 1.5 dB (45 Hz - 20 kHz)
Driver Dimensions
⌀ 165 mm Bass + ⌀ 19 mm Treble
Dimensions
H 365 x W 237 x D 223 mm, with Iso-Pod™
Weight
8.4 kg / 18.5 lb

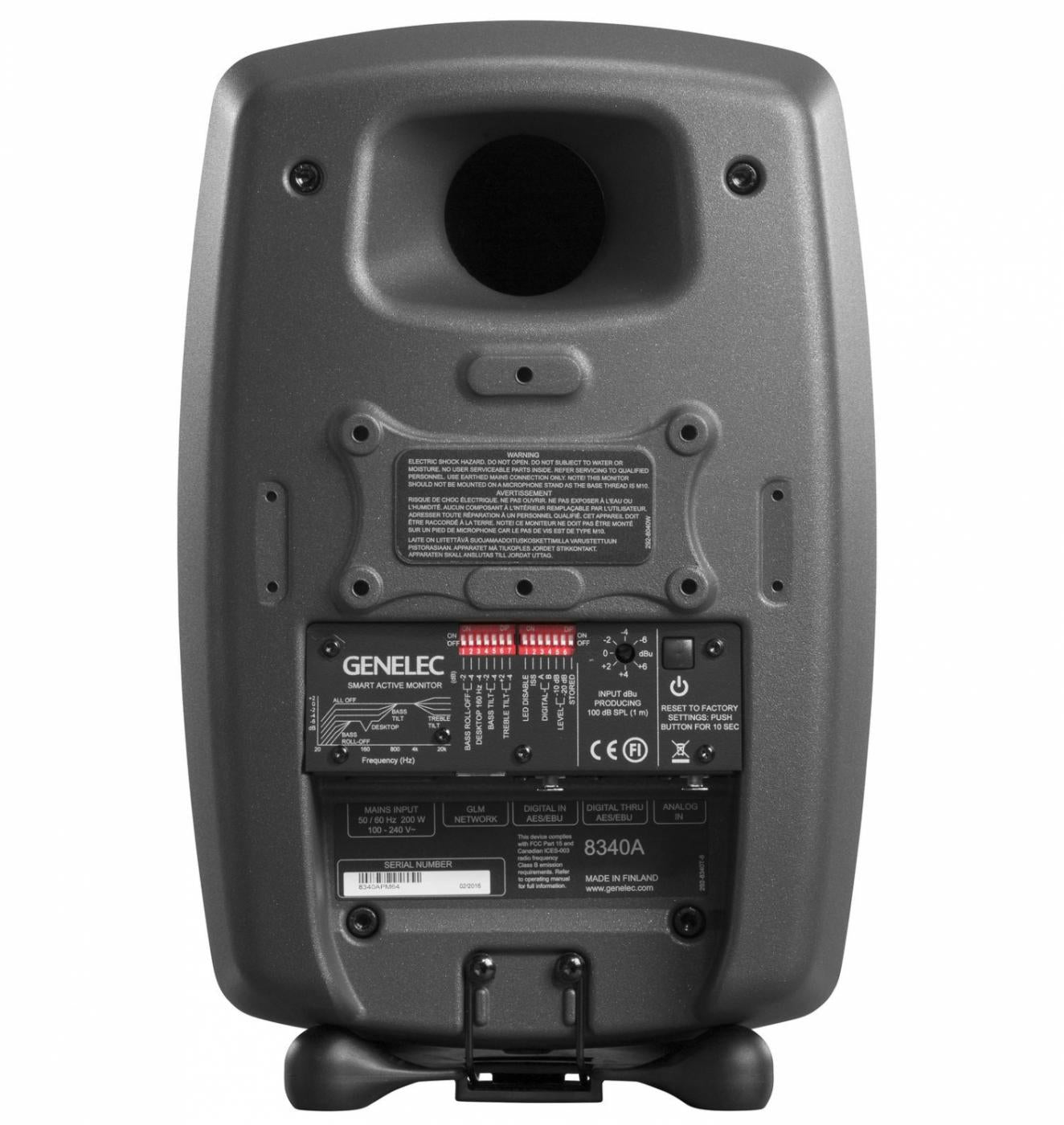

Connections
1 x XLR Analog Input
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control
