Short Adjustable Ceiling Mount suitable for various 8000, 4000 and G series models
The adjustable ceiling mount is suitable for all 8000, 4000 and G series models. The mounting system has three different height positions, at 400, 500 and 600 mm, and a down-tilt feature of up to 90 degrees. A hollow circular tube with an inside diameter of 50 mm allows you to hide cables by running them through the tube. Available in black and white powder coat finishes.
Please note that a separate T-adapter plate (8000-454) is required with the models 8320, 8330 and 8331.
Compatible with:
8000 and 8300 Series (excluding 8361)
G Series
4000 and 4400 Series (excluding 4435/36)
Order code / colour;

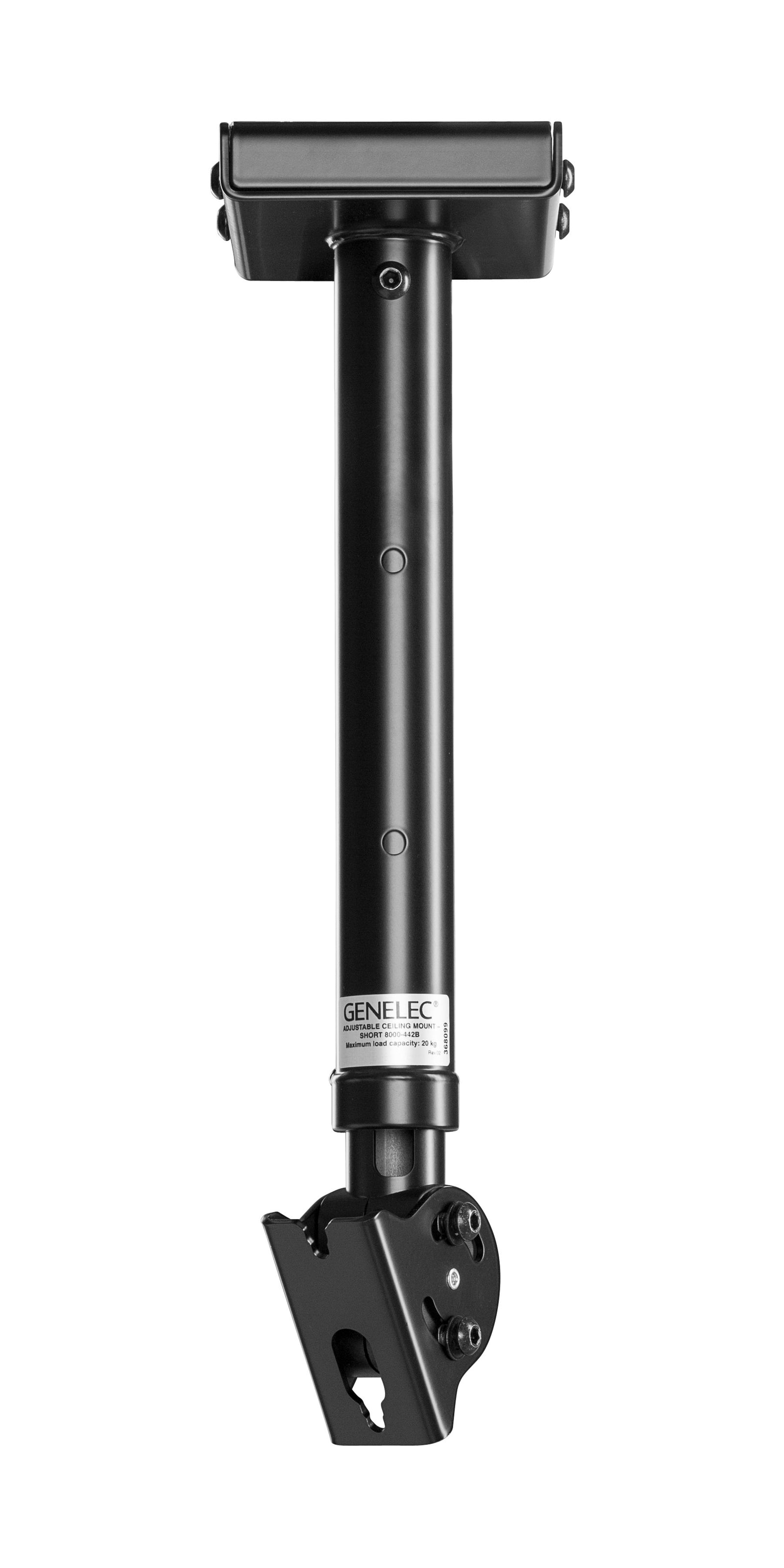

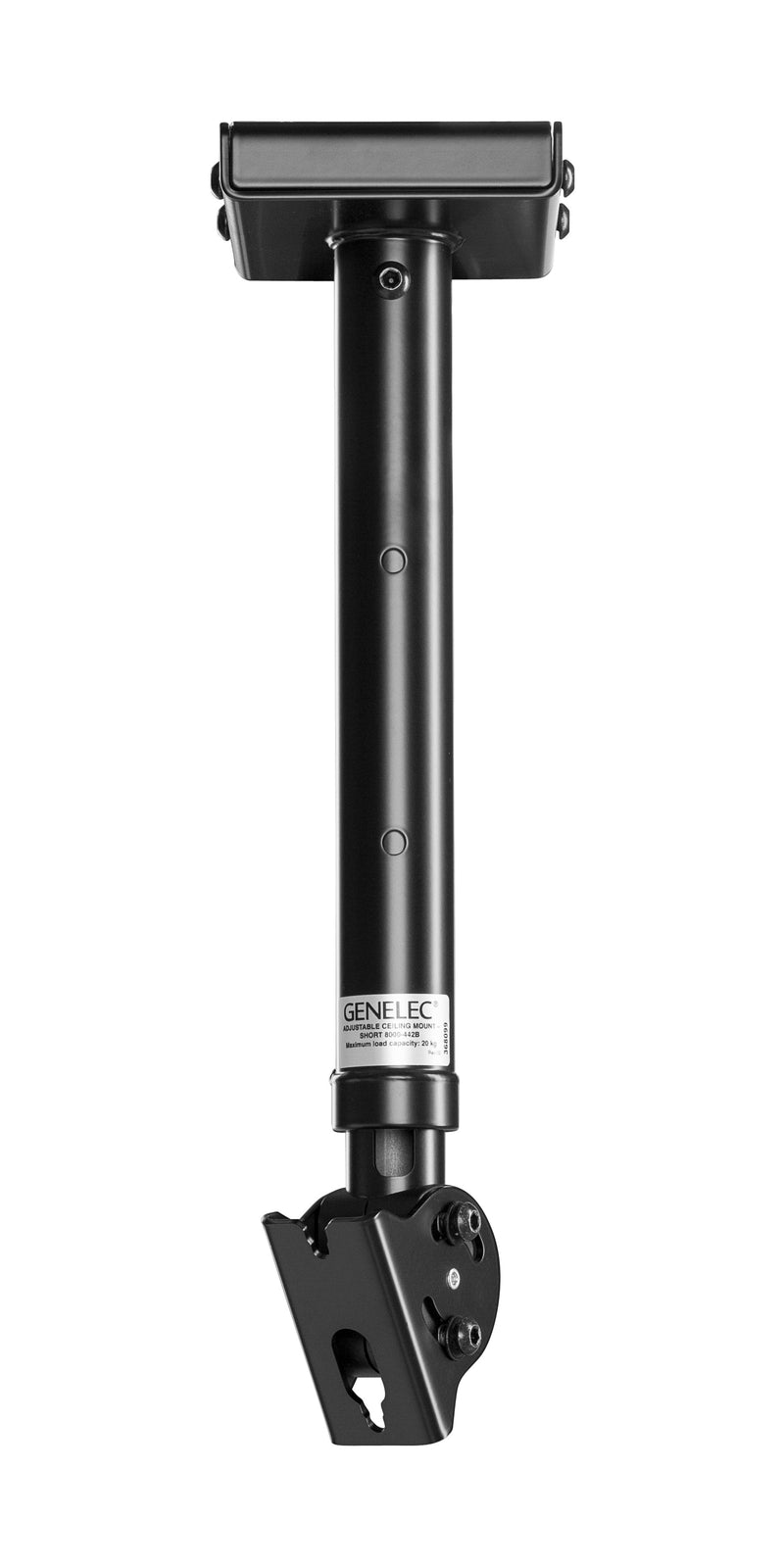

8000-442B/ black

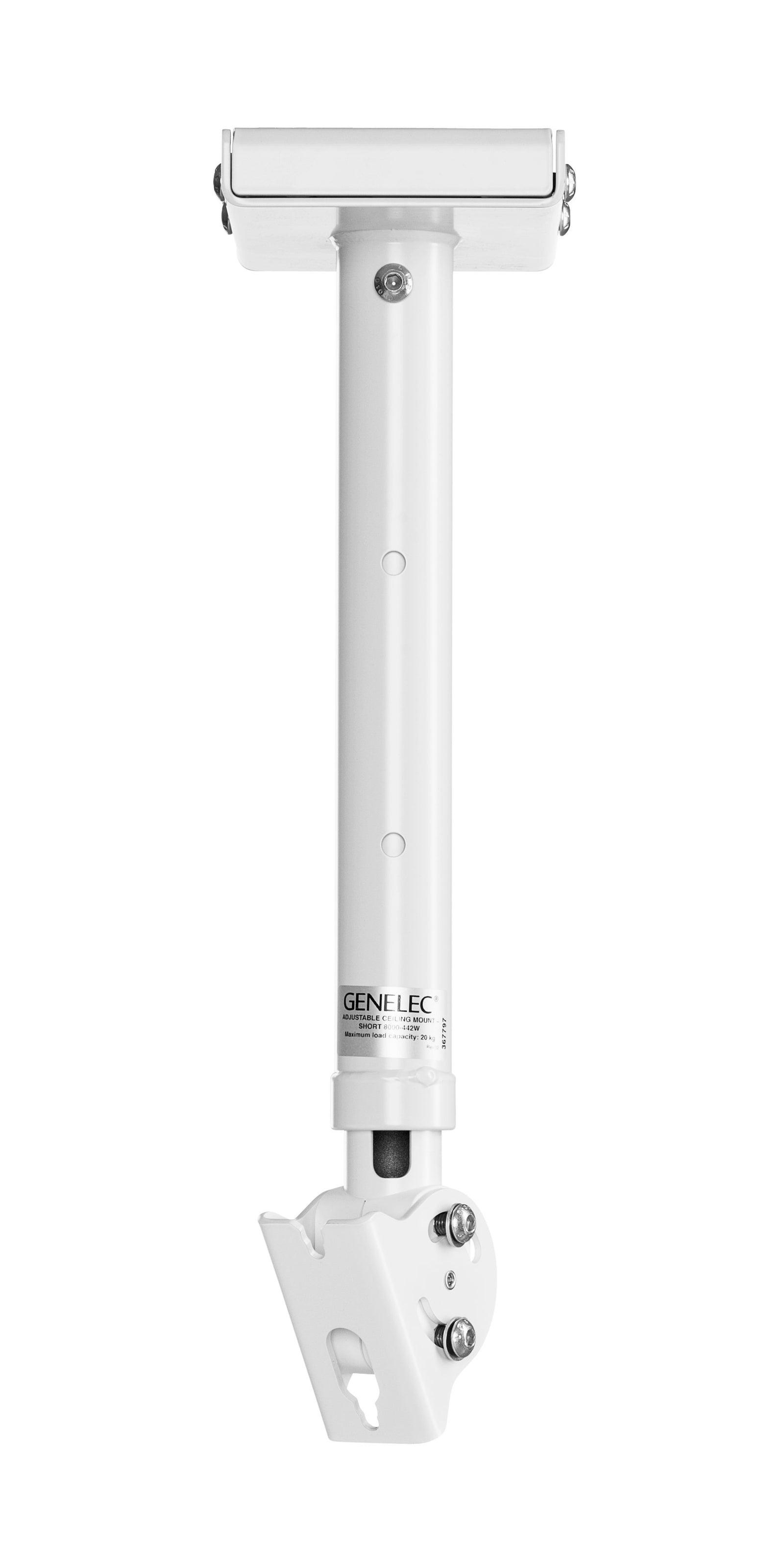

8000-442W / white
Width
- 126 mm
Length min.
- 445 mm
Depth
- 160 mm
Length min.
- 400 mm
Length max.
- 600 mm
