Ideal for facilities that need power and adaptability in a compact package, the 8330A offers colour-free reproduction and the world’s most advanced Smart monitoring solution.
The choice of professionals for whom power and flexibility go hand-in-hand, the 8330A is as acoustically impressive as it is Smart, courtesy of Smart Active Monitoring (SAM™) technology. Housing a 5 inch woofer and 3/4 inch tweeter, the Class D bi-amplified, two-way Smart monitor is compact enough to fit into studios where space is at a premium, yet still capable of exceeding even the most demanding client expectations.
Colour-free accuracy is delivered by the Minimum Diffraction Enclosure (MDE™), while the Directivity Control Waveguide (DCW™) ensures precise frequency reproduction both on- and off-axis. The 8330A is also built to adapt and assist. Genelec Loudspeaker Manager (GLM™) 2.0 software delivers functions including AutoCal™, ensuring your monitoring system is perfectly calibrated to your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. Finally, with GLM 2.0 you can manage up to 30 Smart monitors and subwoofers, easily creating fully recallable setups from stereo to immersive audio.
Key Technologies:
- Smart Active Monitor (SAM™) Systems
- Directivity Control Waveguide (DCW™) Technology
- Minimum Diffraction Enclosure (MDE™) Technology
- Reflex Port Design
- Optimized Amplifiers
- Active Crossovers
- Protection Circuitry
- Intelligent Signal Sensing (ISS™) Technology
- Iso-Pod™ Stand
- Versatile Mountings
Visit the Genelec Virtual Showroom
Genelec has introduced its online Virtual Showroom, where you can explore a wide range of active loudspeaker systems and technologies in a set of stunningly realistic room settings. This allows customers across the Studio, AV, and Home Audio segments to instantly access valuable Genelec information and resources in a unique and visually engaging interactive environment.
Hosted on the Genelec website, visitors to the Virtual Showroom can experience the latest in VR technology to navigate separate and distinct areas for Professional Audio Monitoring, AV Installation and Home Audio, which showcase both stereo and immersive systems that comprise a carefully selected range of key loudspeaker and subwoofer models. Visitors can then access detailed product information, video content and valuable learning resources, at any time of day and from the comfort of their own environment.
Package contains:
- 1 x 8330A monitor
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:
- Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
Technical Specifications
SPL
104 dB
Amplifier Power
50 W Bass (Class D) + 50 W Treble (Class D)
Frequency Response
45 Hz - 23 kHz ("-6 dB")
Accuracy of Frequency Response
± 1.5 dB (58 Hz - 20 kHz)
Driver Dimensions
⌀ 130 mm Bass + ⌀ 19 mm Treble
Dimensions
H 299 x W 189 x D 178 mm, with Iso-Pod™
5.5 kg / 12.1 lb

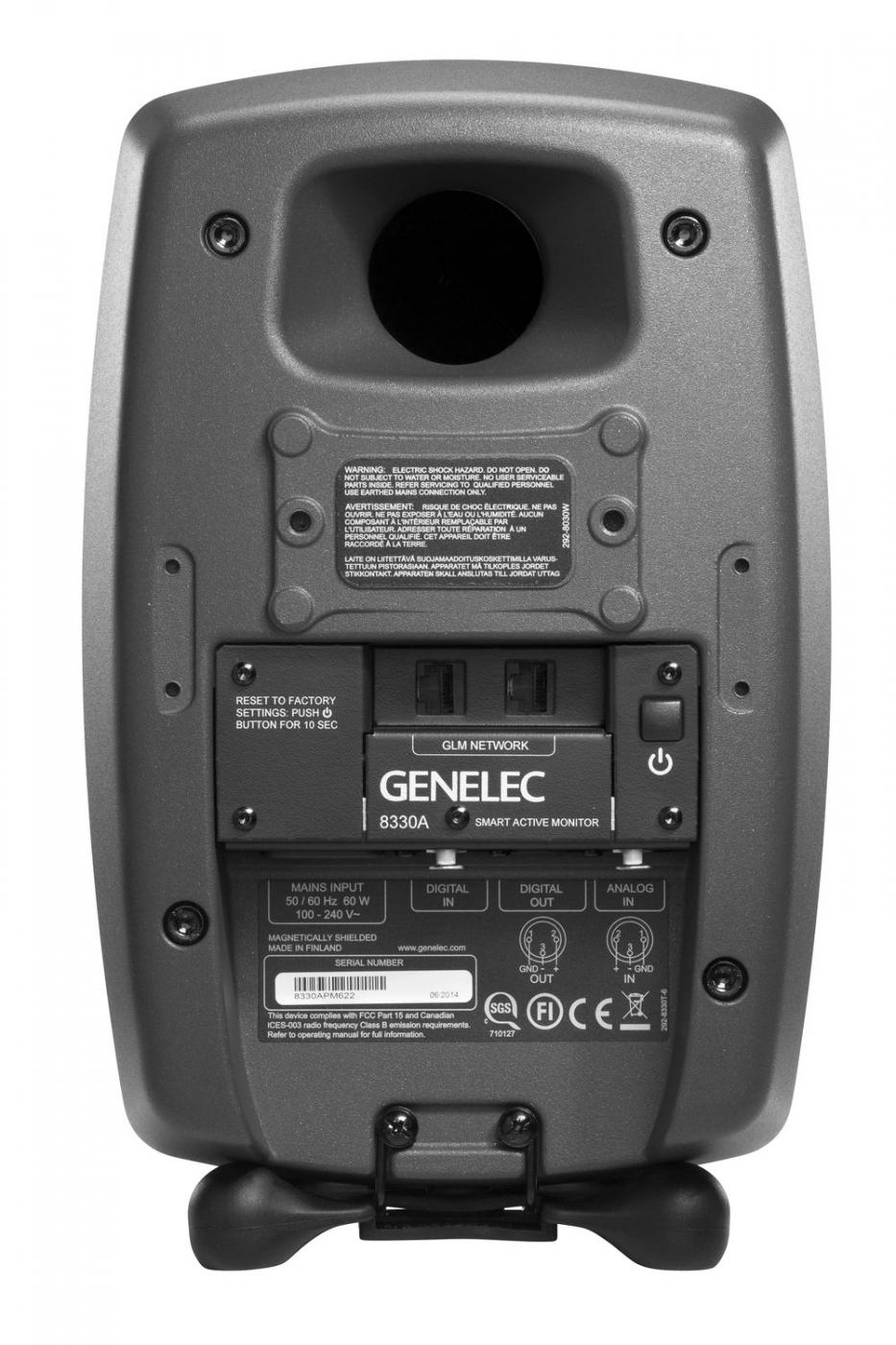

Connections
1 x XLR Analog Input
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control
