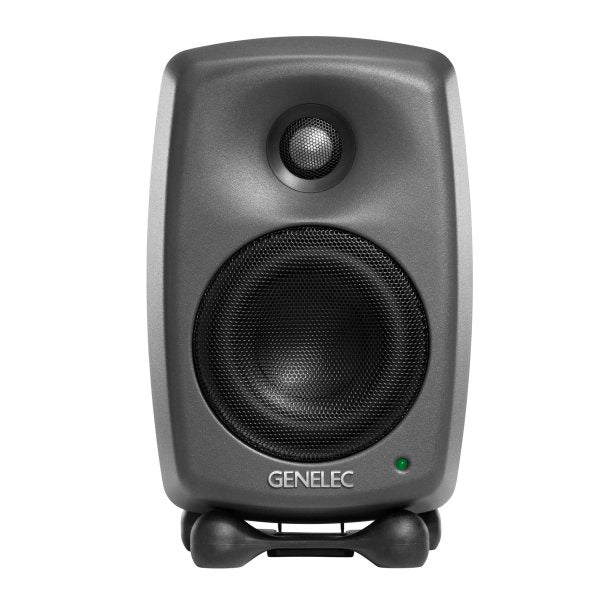

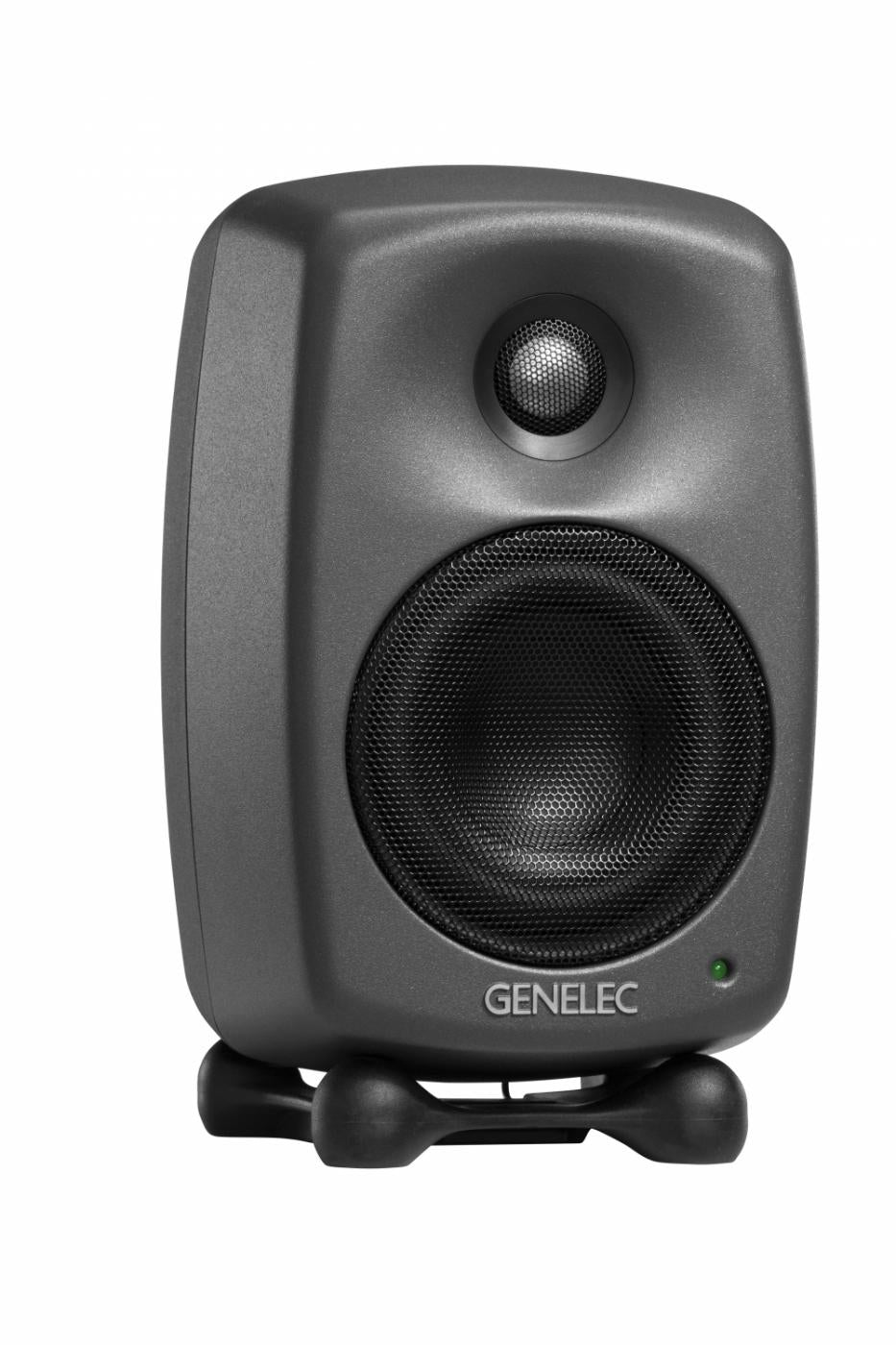

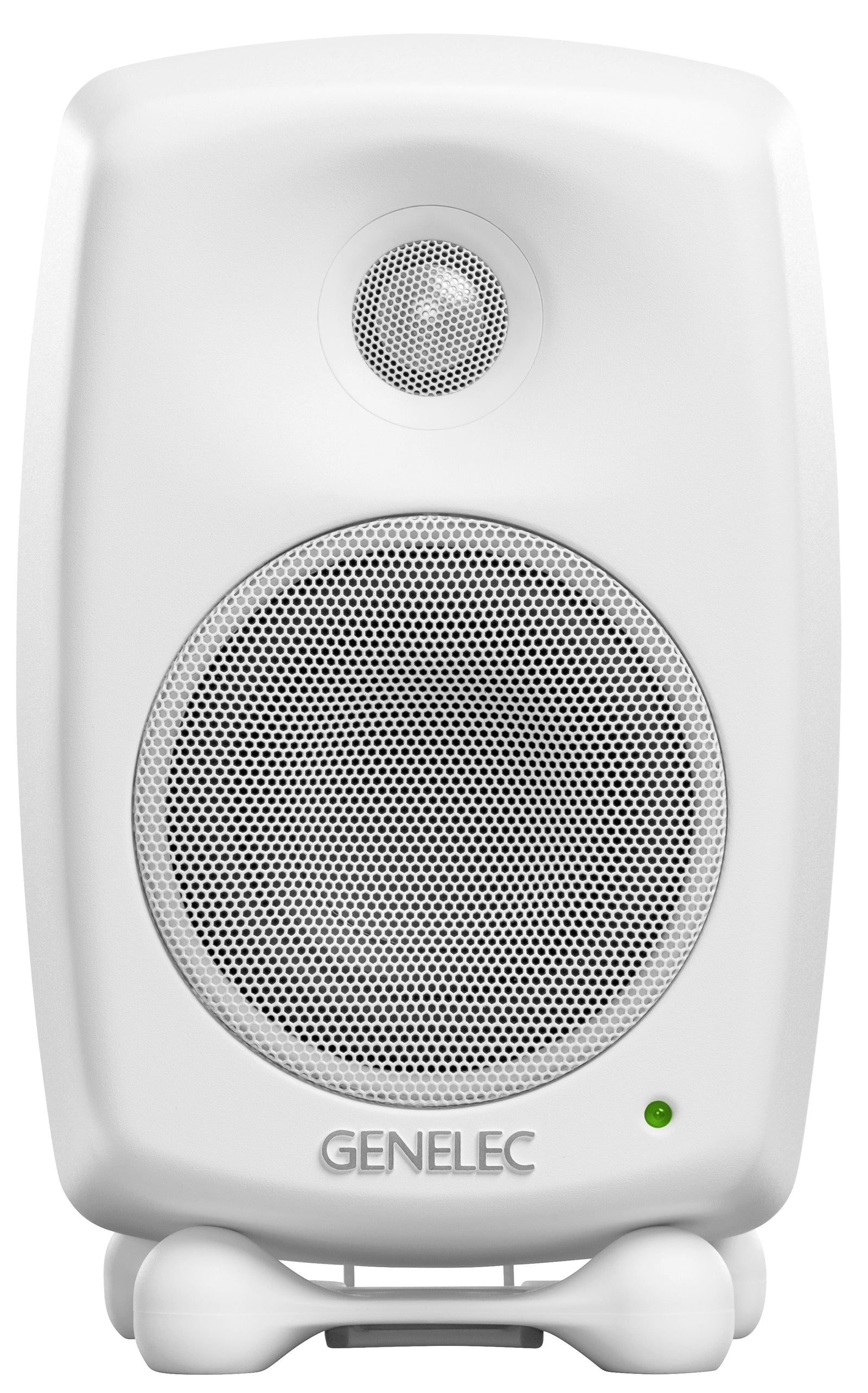

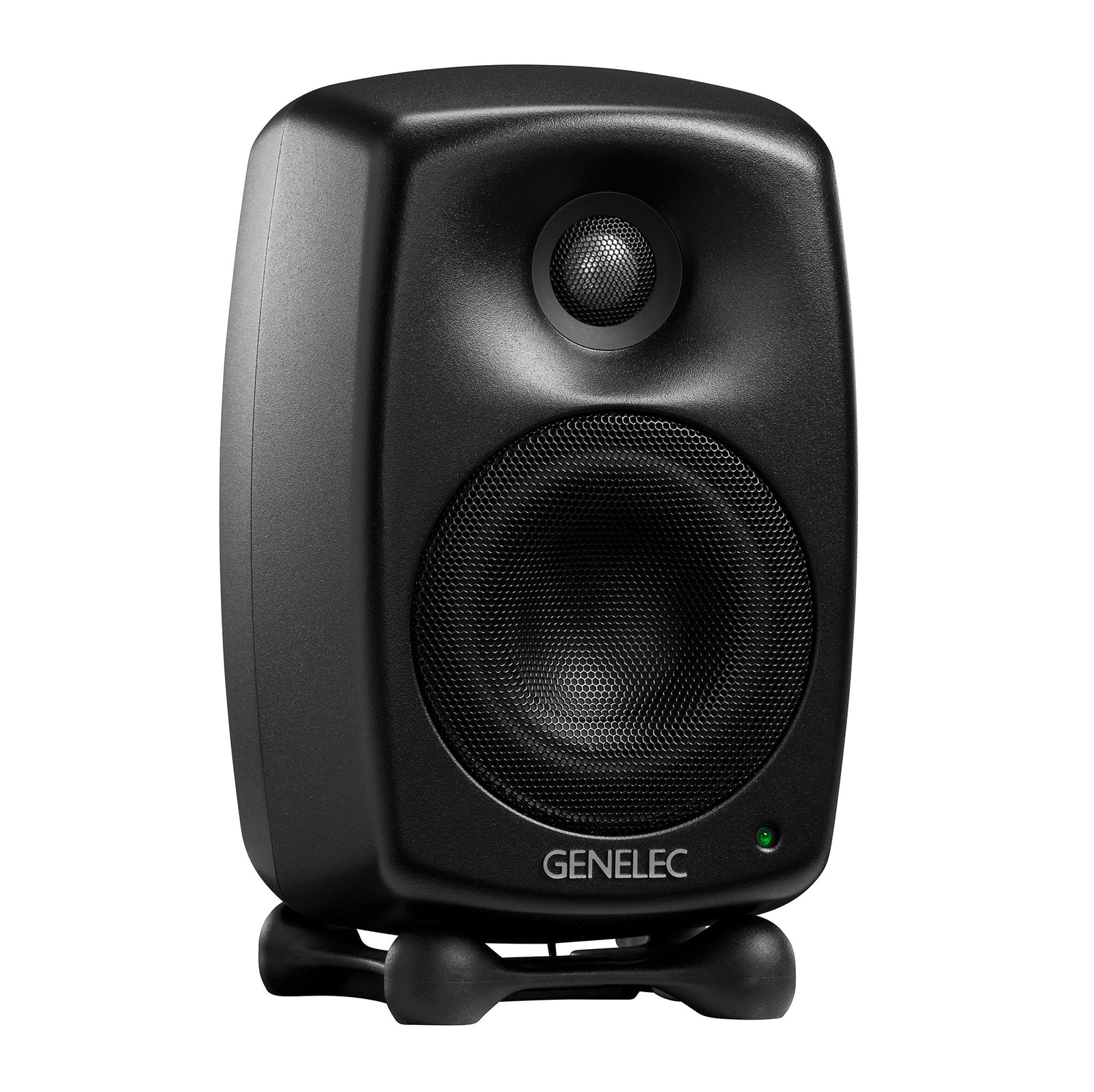

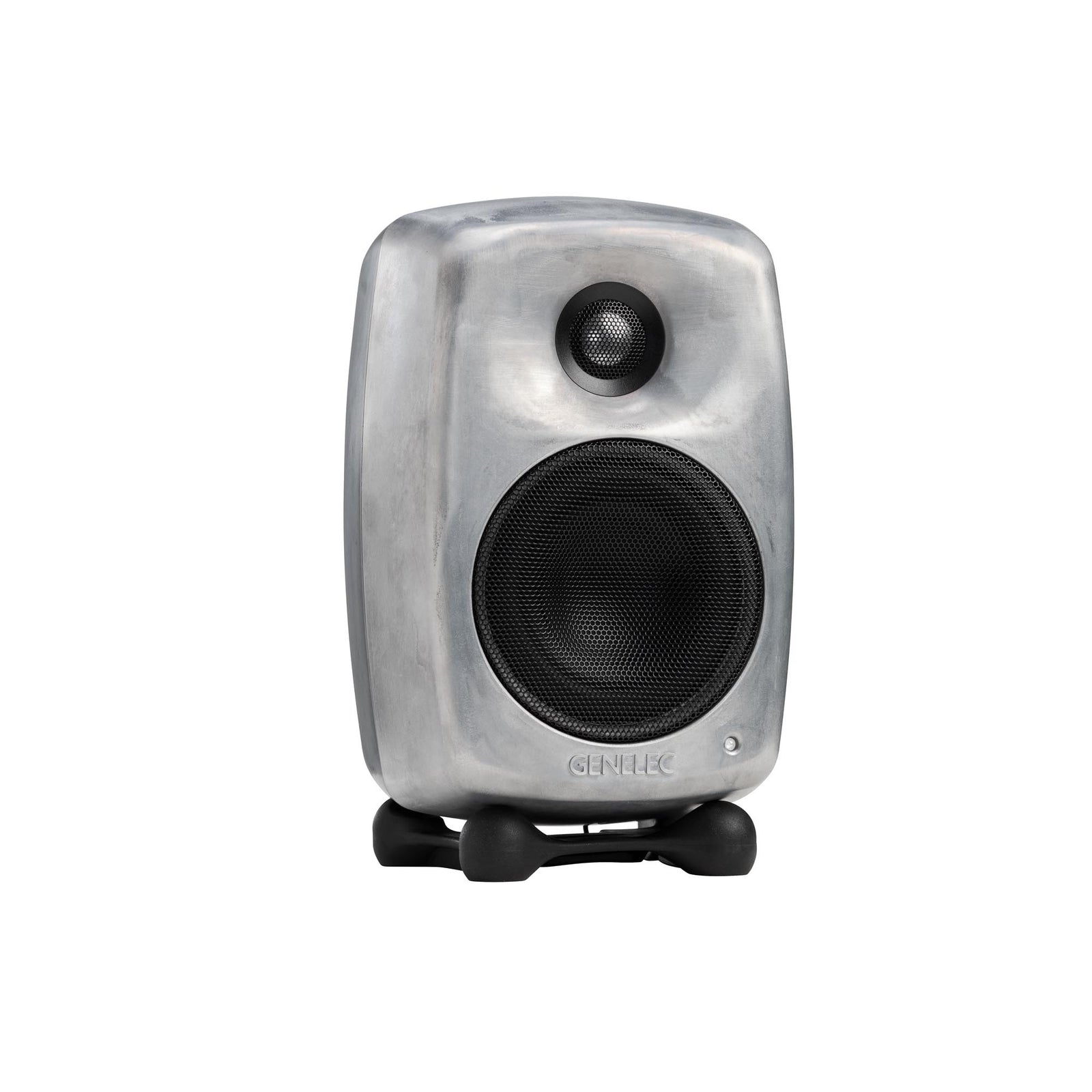

Compact to fit into the tightest of spaces yet Smart enough to optimise your recording environment, the 8320A is your entry point to the world of SAM.
Easy enough to carry with you yet packed with today’s most advanced monitoring technology, the 8320A will make the most of your recording environment, no matter where you choose to work.
Small but mighty, the two-way, Class-D bi-amplified 8320A blends a deceptively powerful 4-inch woofer with Genelec’s renowned acoustic design expertise and world-leading Smart Active Monitoring (SAM™) technology. Each SAM system is designed to adapt and assist, working with proprietary Genelec Loudspeaker Manager (GLM™) 2.0 software to deliver a suite of ground-breaking functions. Allow AutoCal™ to ensure your monitoring system is perfectly calibrated to your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. Use GLM 2.0 to manage up to 30 Smart monitors and subwoofers, allowing you to mix the way you want, from simple stereo to ambitious immersive audio setups. Delve deep into control options including full recall of settings for different listening positions.
All this combines with the colour-free accuracy of the Minimum Diffraction Enclosure (MDE™), and precise on- and off-axis frequency reproduction of the Directivity Control Waveguide (DCW™). The result is the ideal small monitor to fit the way you work.
Key Technologies:
- Smart Active Monitor (SAM™) Systems
- Directivity Control Waveguide (DCW™) Technology
- Minimum Diffraction Enclosure (MDE™) Technology
- Reflex Port Design
- Optimized Amplifiers
- Active Crossovers
- Protection Circuitry
- Intelligent Signal Sensing (ISS™) Technology
- Iso-Pod™ Stand

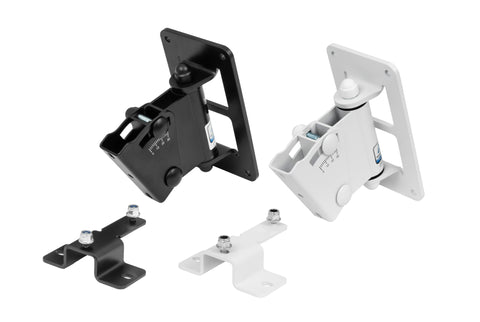

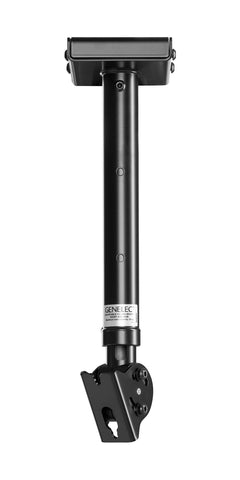

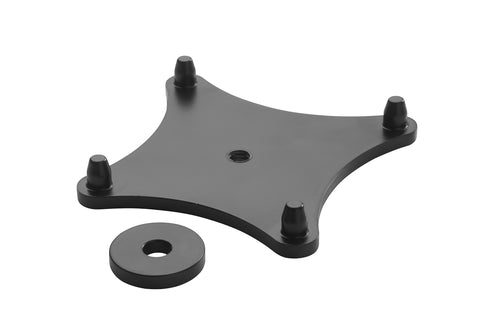

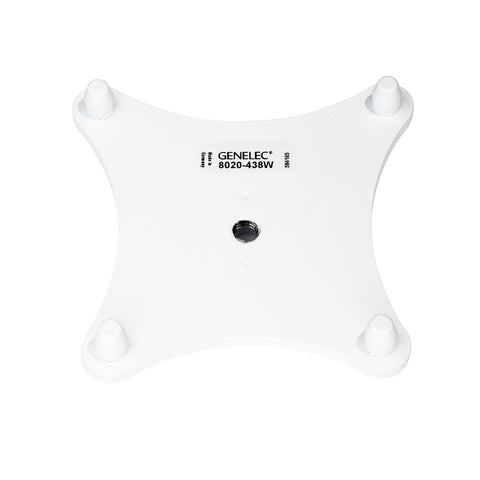

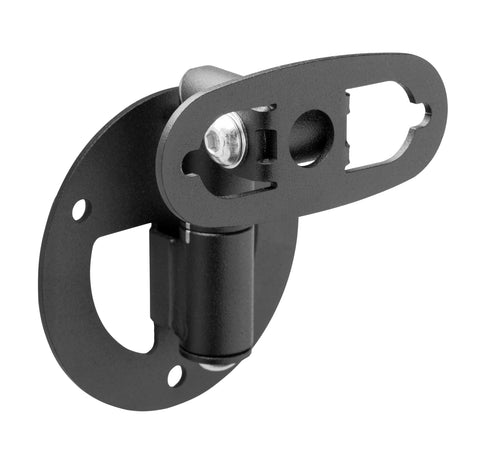

- Versatile Mountings
Visit the Genelec Virtual Showroom
Genelec has introduced its online Virtual Showroom, where you can explore a wide range of active loudspeaker systems and technologies in a set of stunningly realistic room settings. This allows customers across the Studio, AV, and Home Audio segments to instantly access valuable Genelec information and resources in a unique and visually engaging interactive environment.
Hosted on the Genelec website, visitors to the Virtual Showroom can experience the latest in VR technology to navigate separate and distinct areas for Professional Audio Monitoring, AV Installation and Home Audio, which showcase both stereo and immersive systems that comprise a carefully selected range of key loudspeaker and subwoofer models. Visitors can then access detailed product information, video content and valuable learning resources, at any time of day and from the comfort of their own environment.
Package contains:
- 1 x 8320A monitor
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:

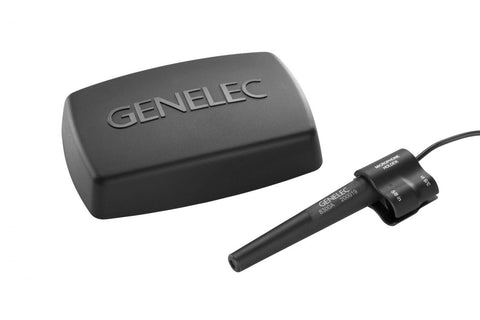

- Requires free GLM software and GLM Calibration Kit device (sold separately) for calibration.
Technical Specifications
SPL
100 dB
Amplifier Power
50 W Bass (Class D) + 50 W Treble (Class D)
Frequency Response
55 Hz - 23 kHz ("-6 dB")
Accuracy of Frequency Response
± 1.5 dB (66 Hz - 20 kHz)
Driver Dimensions
⌀ 105 mm Bass + ⌀ 19 mm Treble
Dimensions
H 242 x W 151 x D 142 mm, with Iso-Pod™
Weight
3.2 kg / 7.1 lb

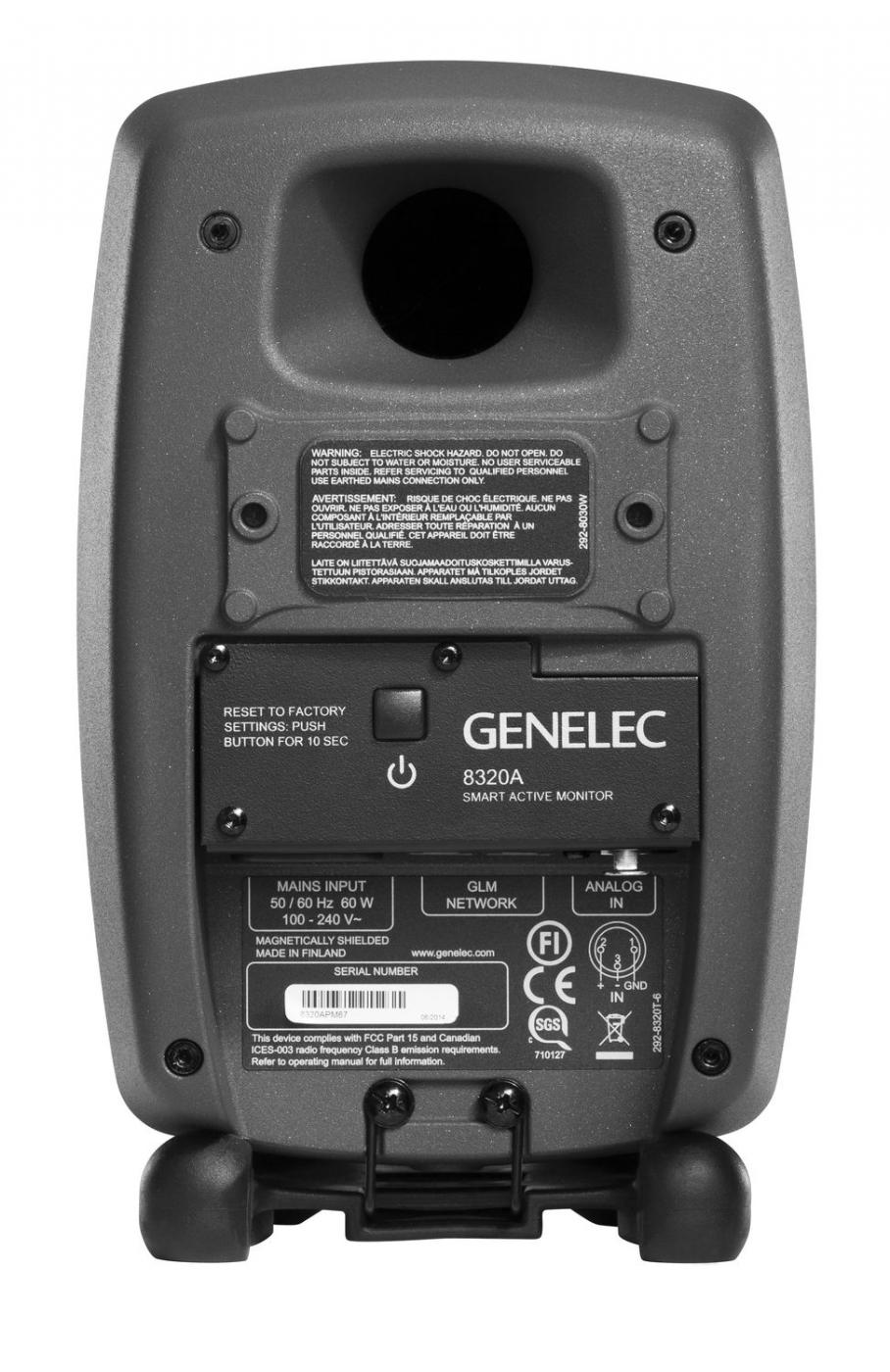

Connections
1 x XLR Analog Input
2 x RJ45 Control
