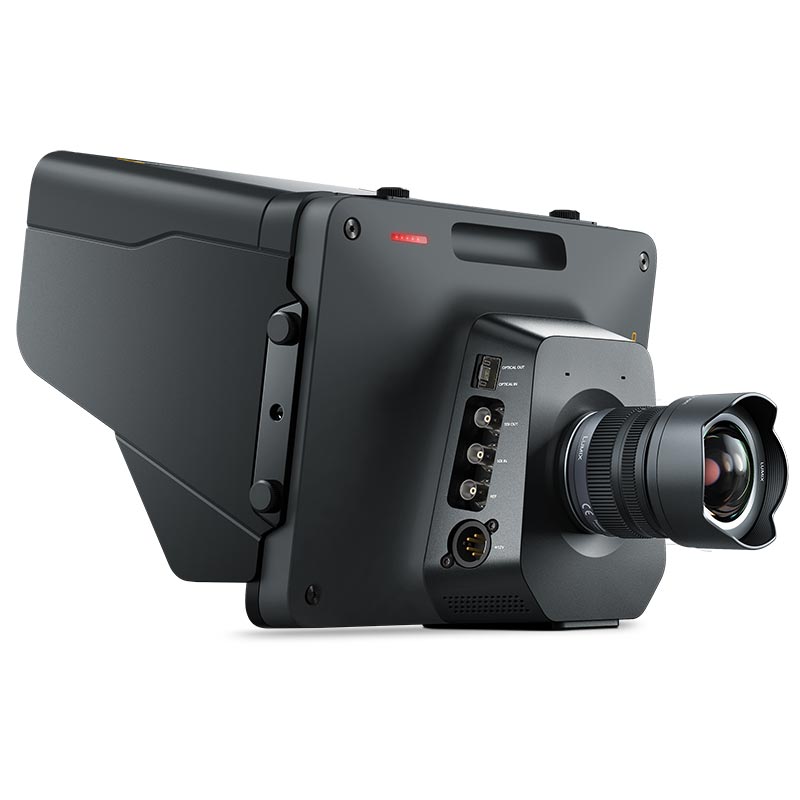

Introducing Blackmagic Studio Camera, the world’s most advanced broadcast camera for live production! Inside its incredibly tough, lightweight magnesium alloy body you get a massive 10” viewfinder, talkback, remote camera control, tally indicators, phantom powered microphone connections, and SDI or user installable optical fiber connections that let you connect to your switcher with a single cable! The Blackmagic Studio Camera is available in HD and Ultra HD models, and is packed with all the advanced features you need for multi camera production and broadcast!
Blackmagic Studio Camera is one of the most advanced broadcast cameras for live production because it includes features specifically targeted at the requirements of live production, such as large viewfinder, talkback, tally, user installable optional optical fiber and a super strong metal design.
Inside the incredibly tough and lightweight magnesium alloy body, the Blackmagic Studio Camera features a very large 10” viewfinder, talkback, tally indicators, phantom powered microphone connections and built in SDI connections. The Blackmagic Studio Camera includes a massive 10 inch screen that allows incredible creativity when framing and accurately focussing. The viewfinder’s LCD is extremely bright and has a very wide viewing angle so it is perfect for use even in direct sunlight. A standard 12V DC 4 pin XLR broadcast power connection is included for providing power to the camera from AC mains or third party battery packs.

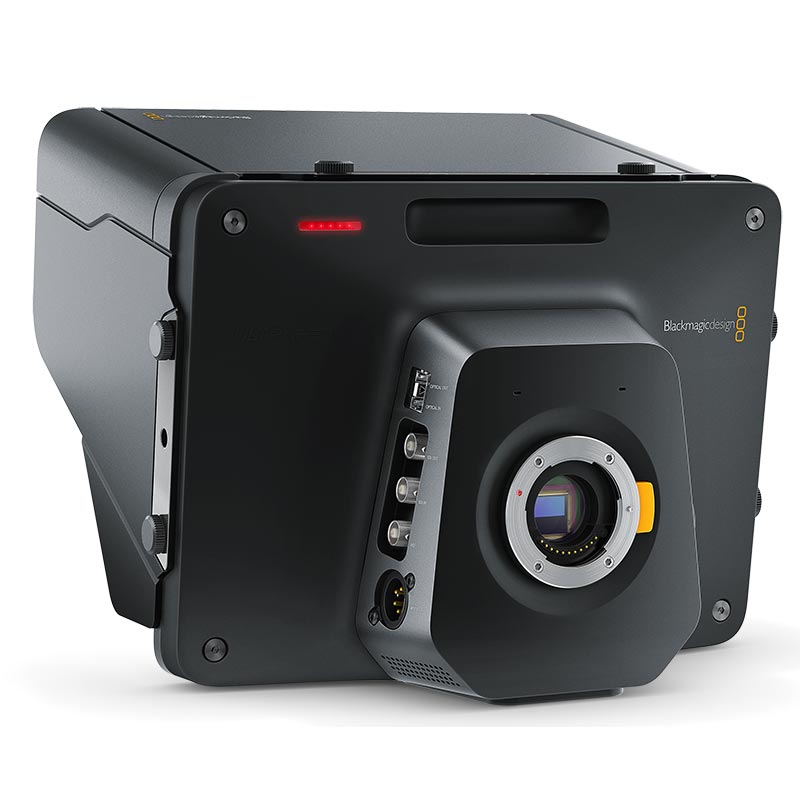

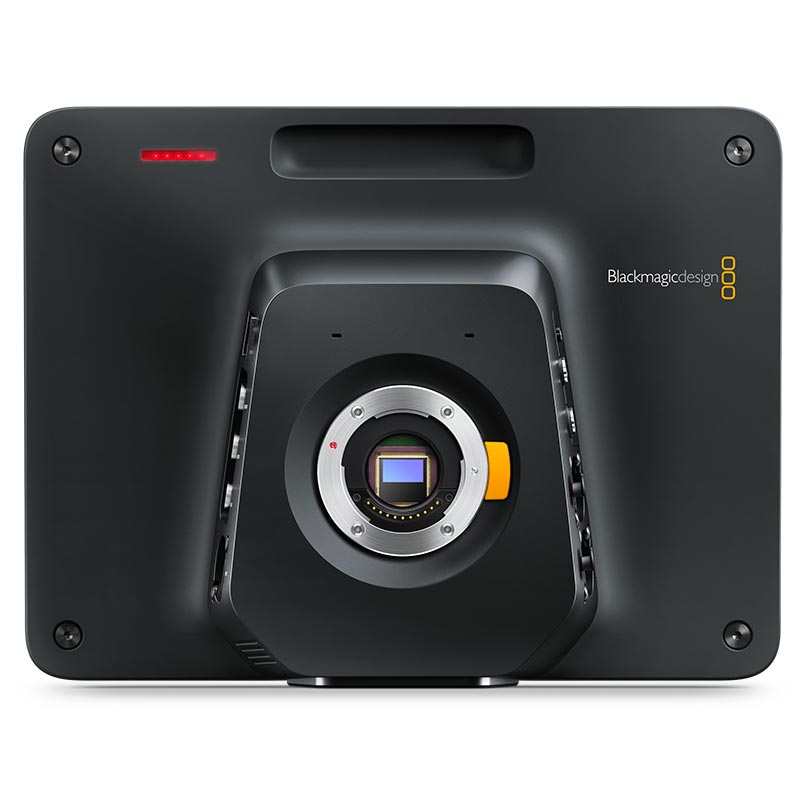

The Blackmagic Studio Camera features an active Micro Four Thirds lens mount that is compatible with an incredibly wide range of lenses and adapters. This allows customers to use high quality photo lenses for smaller setups or fixed camera use.
The Blackmagic Studio Camera supports the tally SDI standard used on the ATEM range of live production switchers and tally lights illuminate automatically with a light on the front for talent, and a light above the viewfinder for the operator, making it easy for the cast and crew to see which cameras are on air.
FEATURES
- High resolution 1920x1080 sensor in HD model and Ultra HD sized sensor in 4K model
- Built in large 10 inch super bright wide viewing angle LCD viewfinder with sun shade
- Optical SMPTE compatible SFP optical fiber socket allowing user installed optical fiber
- 3G-SDI on HD model for up to 1080p60 and 12G-SDI on 4K model for up to 2160p60
- Compatible with high quality Micro Four Thirds lenses. Compatible with other mounts via common third party adapters such as B4 broadcast lens mount
- Built in, two way digital quality talkback using high quality affordable general aviation headsets
- Includes front and rear tally indicators using tally over SDI protocol
- Built in DaVinci Resolve primary color corrector
- Remote control camera features such as color corrector, lens control, talkback, tally and more via SDI from an ATEM switcher

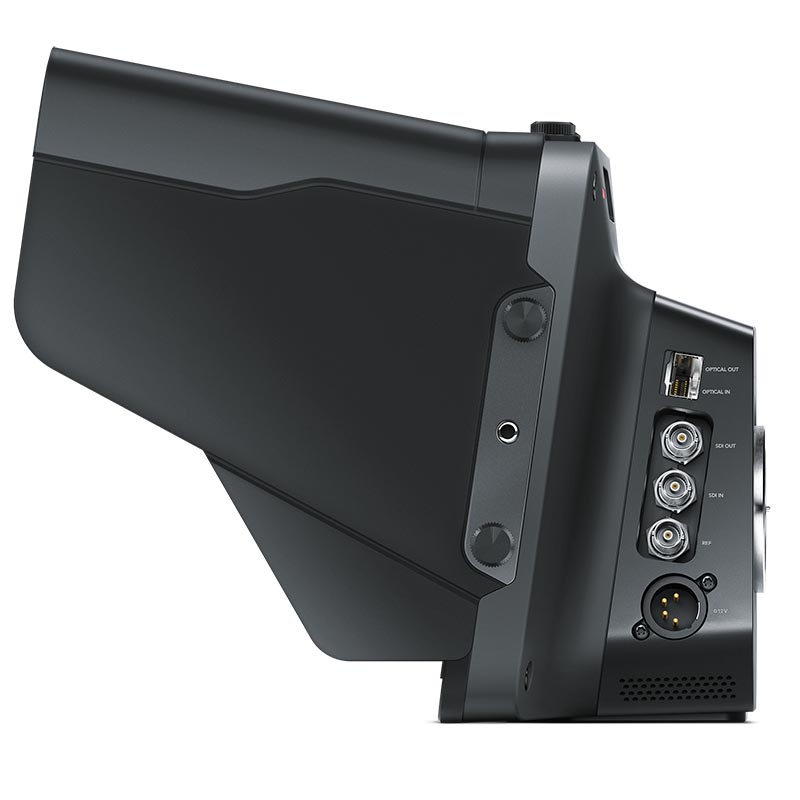

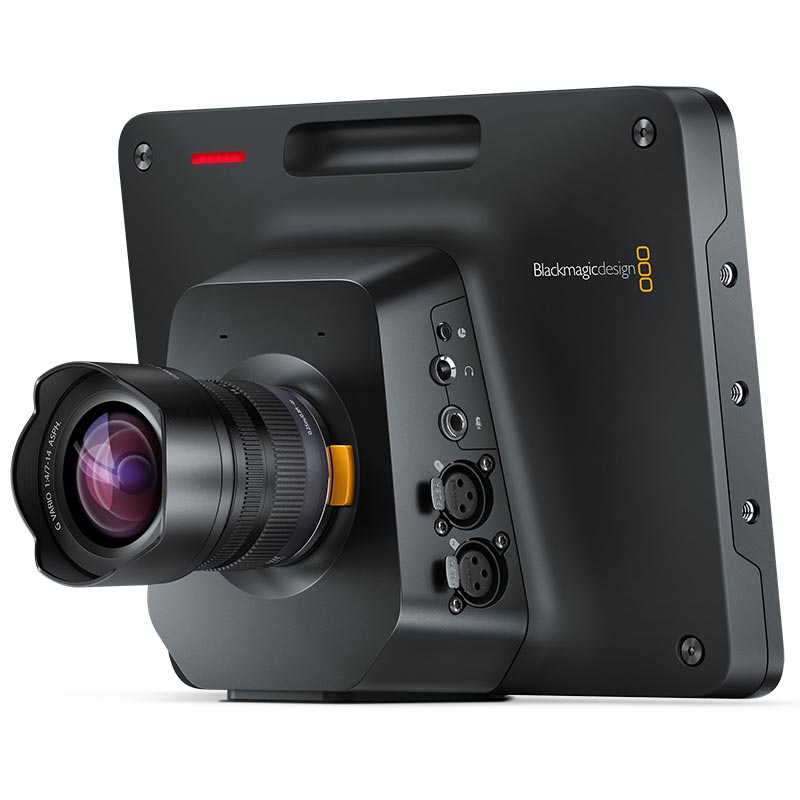

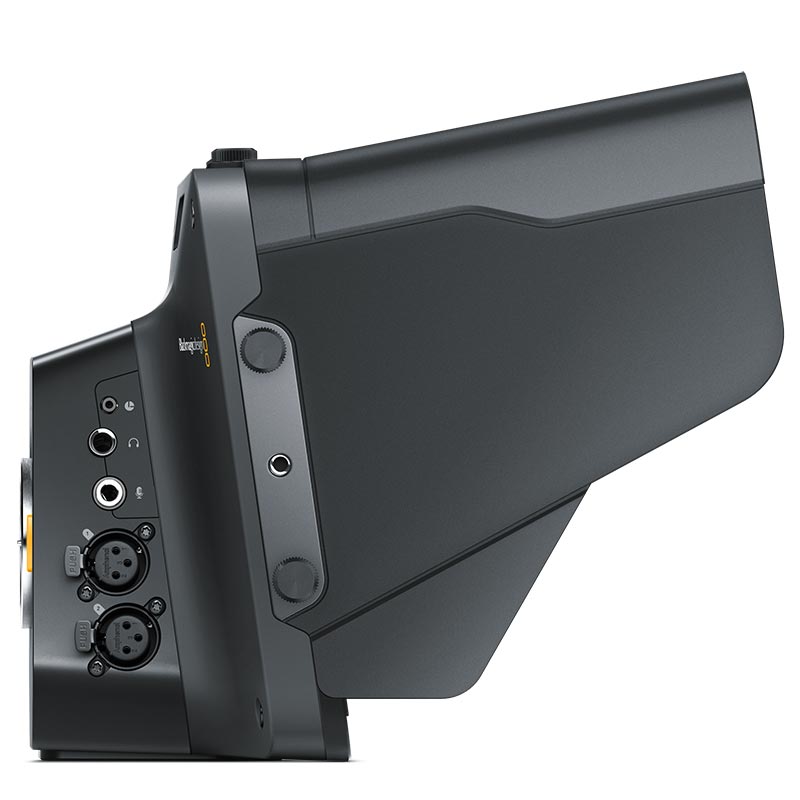

- Features all standard connections, including dual XLR balanced mic/line audio in with switchable phantom power, headphone and microphone jack for talkback, LANC remote control and standard 4 pin XLR broadcast standard DC 12V power connection
- On screen menus for all camera settings
- Supports 23.98, 24, 25, 29.97, 30 and up to 60 fps in HD model, up to 60 fps in 4K model
- Compatible with ATEM range of live production switchers
The following lenses are currently supported for Blackmagic Studio Cameras and can be controlled with a supported LANC controller (20/05/2015):
- Panasonic Lumix G X Vario PZ 14-42mm f/3.5-5.6 Power O.I.S. Lens
- Panasonic Lumix G X Vario PZ 45-175mm f/4.0-5.6 Zoom OIS Lens
- Olympus 12-50mm f/3.5-6.3 ED M.Zuiko EZ Micro 4/3 Lens
- Olympus 14-42mm M.Zuiko f/3.5-5.6 Digital ED EZ Lens
SOLD WITHOUT FIBRE SFP MODULE & BUILT IN BATTERY
Camera Features
Effective Sensor Size
12.48mm x 7.02mm
Focus
Auto focus. Peaking mode.
Lens Mount
Active MFT Mount
Lens Control
Iris, focus, zoom on supported lenses.
Dynamic Range
13 Stops.
Screen Dimensions
10.1 inch 1920 x 1200
Screen Type
10.1 inch TFT-LCD
Controls
Push button controls for navigating menus.
Mounting Options
2 x 3/8 inch tripod mount. 4 x 1/4 inch 20 UNC thread mounting points on top of camera, 3 x 1/4 inch 20 UNC thread mounting points left on right of camera
Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI
SDI Rates
1.5G, 3G.
Optical SDI
Supports optional SMPTE optical module.
Optical Fiber Inputs/Outputs
3G Optical Fiber Input and Output.
Optical fiber SFP module sold separately.
Analog Audio Inputs
2 x XLR analog switchable between mic and line levels. Phantom power support.
Analog Audio Outputs
Aviation headphone (Fixed Wing Plugs) output for talkback and audio monitoring.
Reference Inputs
Tri-Sync or Black Burst.
SDI Audio Outputs
2 channels in 3G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16.
Remote Control
1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM.
Computer Interface
USB 2.0 Mini-B port for software updates.
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
None.
Standards
SD Video Standards
None.
HD Video Standards
720p50, 720p59.94, 720p60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, and 1080i60
Ultra HD Video Standards
None.
SDI Compliance
SMPTE 292M. SMPTE 424M Level B
SDI Audio Sampling
48 kHz and 24-bit
Media
Media
None.
Media Format
None.
Supported Codecs
Codecs
None.
Control
External Control
Blackmagic SDI Control Protocol. 2.5mm LANC connection for lens control.
Color Corrector
DaVinci YRGB
Talkback And Tally
Live Tally Indicator
1 x for talent, 1 x for operator.
Talkback
SDI Channels 15 and 16.
Software
Software Included
Blackmagic Camera Setup for Mac OS X and Windows.
Operating Systems
Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra or later.
Windows 8.1 or Windows 10.
Power Requirements
1 x External 12V power supply
Optional Accessories
SMPTE compatible SFP Optical Module
ATEM Talkback Converter 4K
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Studio Camera
Sun Shield and attaching screws
Turret Dust Cap
12V AC Adapter
SD card with software and manual
Warranty
12 Month Limited Manufacturer's Warranty.
