SDI Video Inputs
1 x 3G-SDI BNC.
- Perfect match for Blackmagic URSA digital film cameras
- High resolution 1920 x 1080 colour OLED display matched with precision glass optics
- Adjustable diopter
- Built in digital focus chart so you get perfect focus every time
- URSA Viewfinder is adjustable so it can be used on both the left or the right eye
- Built in record light
Connections
Power Input
1 x 4 pin XLR 12V.
Computer Interface
USB 2.0 Mini-B port for software updates.
Features
Display Resolution
Full 1920 x 1080.
Frame Rate
Up to 60fps
Display Type
OLED
Display Pixels
6.22 Million Pixels
Color Precision
24 bit RGB, 16.7 million colors
Focus
4 Element diopter.
Diopter Range
-4 to +3
Controls
Buttons for settings, short cut features and navigating menus.
Overlays
Built in overlay display processor and top mounted buttons.
Eyepiece
Can be tilted vertically and extended for left or right eye use.
Tally
LED tally light.
Mounting Options
Camera mount with adjustment.
Metadata Support
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
Operating Systems
macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.
Windows 8.1 or Windows 10.
Power Requirements
12V power input via 4 pin XLR connected via 12v power output.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included

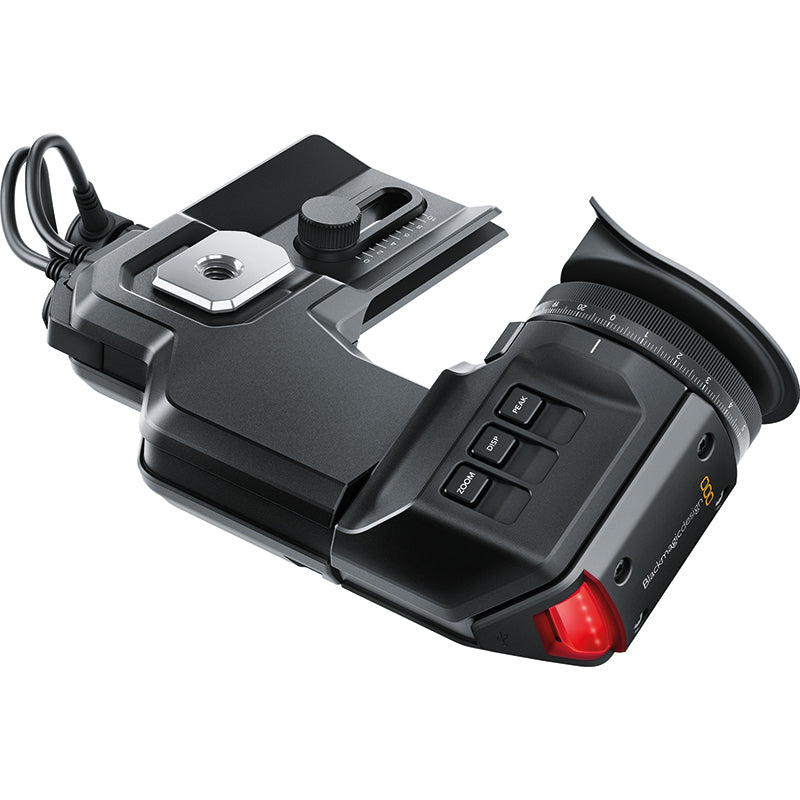

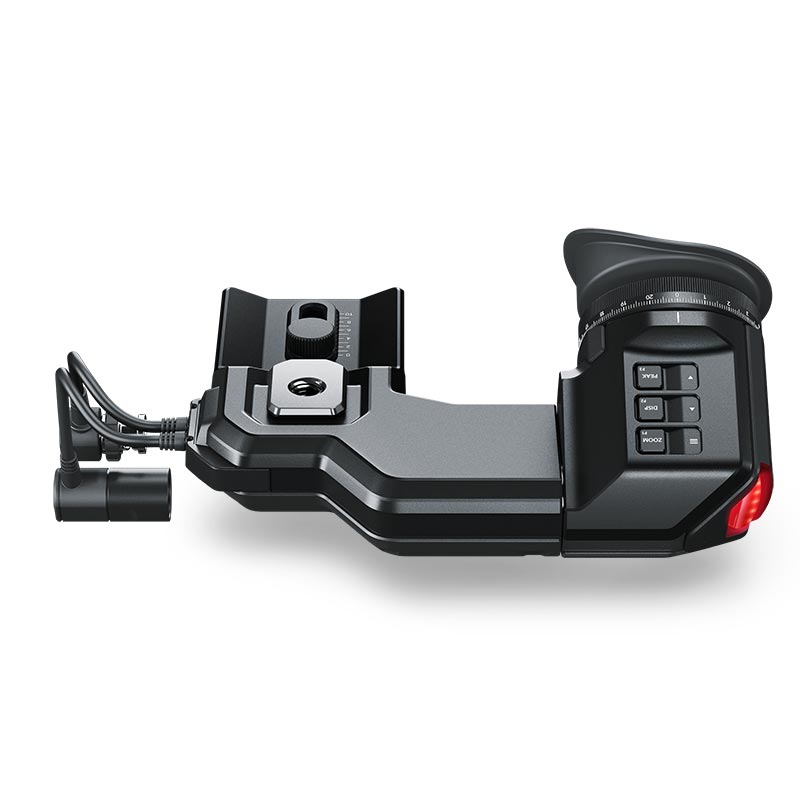

Blackmagic URSA Viewfinder
3/8 inch viewfinder mounting thumb screw for URSA
Recommended Accessories
Blackmagic URSA Mini Shoulder kit is required for mounting URSA Viewfinder on URSA Mini or URSA Mini Pro.
Warranty
12 Month Limited Manufacturer’s Warranty.
