The Zoom Q8n-4K is designed to capture professional-grade audio with 4K video in a versatile, all-in-one handy recorder. It is the perfect video production and livestreaming solution for today’s musicians, filmmakers, podcasters and more.
Features:
- 4K video and 4-track audio recorder
- High-quality 150º wide-angle lens with 5 field of views
- Interchangeable Zoom mic capsule system
- Two XLR mic/line input (with phantom power)
- Full-color flip LCD for self-movie capture
- USB interface for livestreaming / data transfer
- iOS/Android apps for remote control*
*Optional BTA-1 Bluetooth adapter required
VIDEO PRODUCTION BEYOND THE LIMITS OF A SMARTPHONE
The Q8n-4K is designed for creators to showcase your best sound and look, elevating your videos with four audio tracks, along with 4K UHD video.
LIGHT WEIGHT, LIGHT ON THE WALLET
Compared to a mirrorless or DSLR, this camera’s size is meant to seamlessly fit into your production while its price ensures that it fits into your budget.
4-Track Minded
With the included X/Y mic capsule and two XLR inputs, you can capture up to four tracks of simultaneous, crystal-clear audio.
In the Mix
Capture every instrument and voice of your band by running the main outputs of a mixing board right to your Q8n-4K.
Capturing Performances
Take advantage of the Q8n-4K’s compact size, vivid imagery, and high-quality audio, recording your genuine look and sound during live or studio performances.
Easy on the eyes
Record in 4K resolution at 30fps. With the F2.8/150º wide-angle lens, five field of view (FOV) settings, and brightness adjustments, the Q8n-4K produces vivid video quality at every shoot.
Livestreams
Easily connect via USB to your computer and stream to your favourite platforms.
Set the Scene
Get the right look in any setting using Scene presets for Indoor, Outdoor, Nighttime and Concert Lighting. Alternatively, the Auto setting will optimise lighting based on your environment.
Listen Up
Use the stereo headphone output jack and on-screen level meters to monitor your sound.
Independent Filmmaking
The Q8n-4K is compact and mobile, perfect for run-and-gun shoots while operating handheld or with a gimbal.

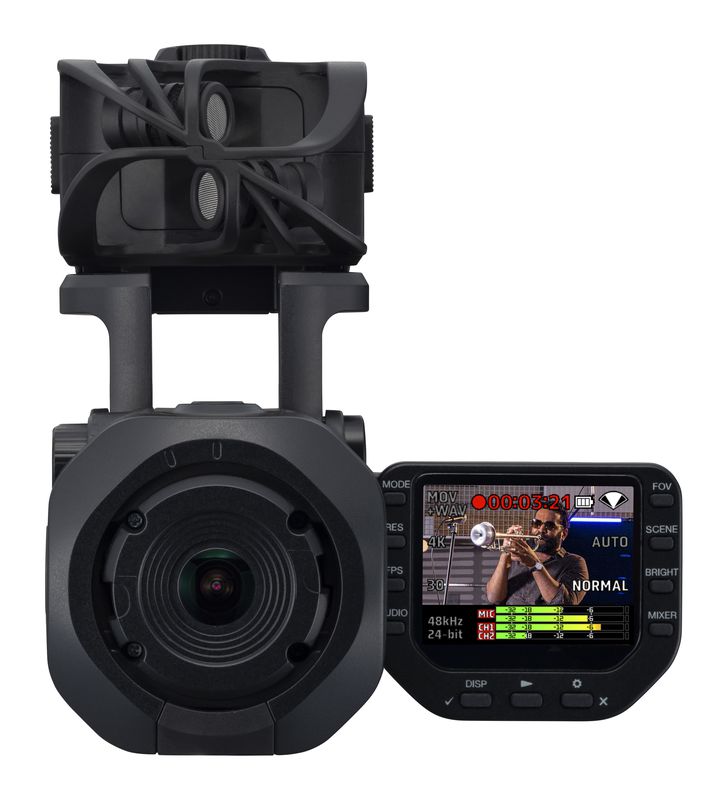

Selfie Mode
Be the star of your own production. Use the flip-out screen to view yourself while operating the Q8n-4K.
Power Your Shoots
Choose the right power source for your shoot by using the camera’s rechargeable Li-ion battery, charge via USB or with an optional AC adapter, all while recording to a mini-SD card up to 1 TB.
You’re in Control
The Q8n Control app (for iOS / for Android) allows you to remotely monitor your levels and start and stop recording.
*BTA-1 Bluetooth adapter required
In the Box:
- Q8n-4K Handy Video Recorder
- BT-03 Battery
- Lens Cover
- Lens Hood
- Windscreen
- USB Cable
- Quick Guide
Specs
|
Image sensor |
1/2.3" 16 M-pixel CMOS sensor |
|
Lens |
F 2.8, 150° FOV |
|
Video format |
MPEG-4 AVC/H.264 (MOV) |
|
Video resolutions |
4K/30, 25, 24 |
|
|
1080/60, 50, 30, 25, 24 |
|
|
720/60, 50, 30, 25, 24 |
|
Audio formats |
WAV: |
|
|
96 kHz/24-bit, 16-bit |
|
|
48 kHz/24-bit, 16-bit |
|
|
44.1 kHz/24-bit, 16-bit |
|
Audio functions |
LoCut: Off / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz |
|
|
Fx: Off / Limiter / Compressor / Leveler / DeEsser / NoiseGate |
|
|
Level: −∞ dB – +10 dB |
|
|
Pan: L100 - Center - R100 |
|
|
Delay: 0 ms, 10 ms … 300 ms (only during web camera use) |
|
|
Direct Monitor: On/Off (only during web camera and USB mic |
|
|
|
|
Image functions |
|
|
FOV |
5 steps |
|
SCENE |
AUTO / INDOOR / OUTDOOR / NIGHT / CONCERT LIGHT |
|
Self timer |
OFF / 3 sec / 5 sec / 10 sec |
|
BRIGHT |
LOW / NORMAL / HIGH |
|
Audio inputs |
MIC |
|
MIC |
XY Mic: XYQ-8 (120° XY stereo mic） |
|
|
Maximum sound pressure: 120 dBSPL |
|
|
Input gain: −∞ dB – 43 dB |
|
INPUT 1/2 |
Input connector: XLR |
|
|
Input gain (PAD OFF): −∞ dB – 55 dB |
|
|
Input impedance : 1.8 kΩ or more |
|
|
Maximum permissible input level: +26 dBu (PAD ON) |
|
|
Phantom power: +12 V / +24 V / +48 V |
|
|
Equivalent input noise: –120 dBu or less |
|
Output connector |
Combined line/headphone stereo mini jack |
|
|
HDMI micro Type D |
|
Built-in speaker |
300 mW 8 Ω mono speaker |
|
Recording media |
microSD / microSDHC / microSDXC (1 TB maximum) |
|
USB USB Type-C < WEBCAM > Class: UVC 1.0 + UAC 1.0 Formats: 720 p, 1080 p WVGA video |
|
|
48 kHz/16-bit audio < CARD READER > |
|
|
up stereo |
|
|
|
|
|
Class: USB Mass Storage < USB MIC > Class: UAC 1.0, Format: 44.1 kHz/16-bit |
Up: 2 ch, Down: 2 ch |
|
|
|
|
Note: card reader and USB mic functions support iOS devices |
|
|
Note: |
|
|
supports USB bus power operation |
|
|
|
|
|
Note: Use USB cable that supports data transfer. REMOTE ZOOM BTA-1 or other dedicated wireless adapter |
|
|
Power |
Lithium-ion battery: DC 4.2 V maximum voltage, DC 3.7 V nominal voltage, 1600 mAh capacity AC adapter (ZOOM AD-17): DC 5 V/1 A Recharging times By USB 2.0 port: about 4 hours and 30 minutes By USB 3.0 port: about 3 hours and 00 minutes Using ZOOM AD-17: about 3 hours and 00 minutes Battery operation time 4K/30: 1 hour and 20 minutes 1080/30: 2 hour and 30 minutes |
|
|
Note: MOV mode, 48 kHz/24-bit, XYQ-8 connected, no XLR input, Power Saving enabled |
|
External dimensions Main unit (when mic arm lowered): 159 mm (D) × 68 mm (W) × 65 mm (H) Main unit (when mic arm raised): 134 mm (D) × 68 mm (W) × 135 mm (H) Mic: 45 mm (D) × 66 mm (W) × 51 mm (H) Weight 367 g (including battery) |
|
