The Q8 comes with its own specially designed detachable X/Y microphone, yet it’s compatible with most Zoom microphone capsules. If you already use an H5 or H6, you can swap their capsules with the Q8 too.*
* EXH-6 TRS/XLR Combo Capsule is not compatible with the Q8.

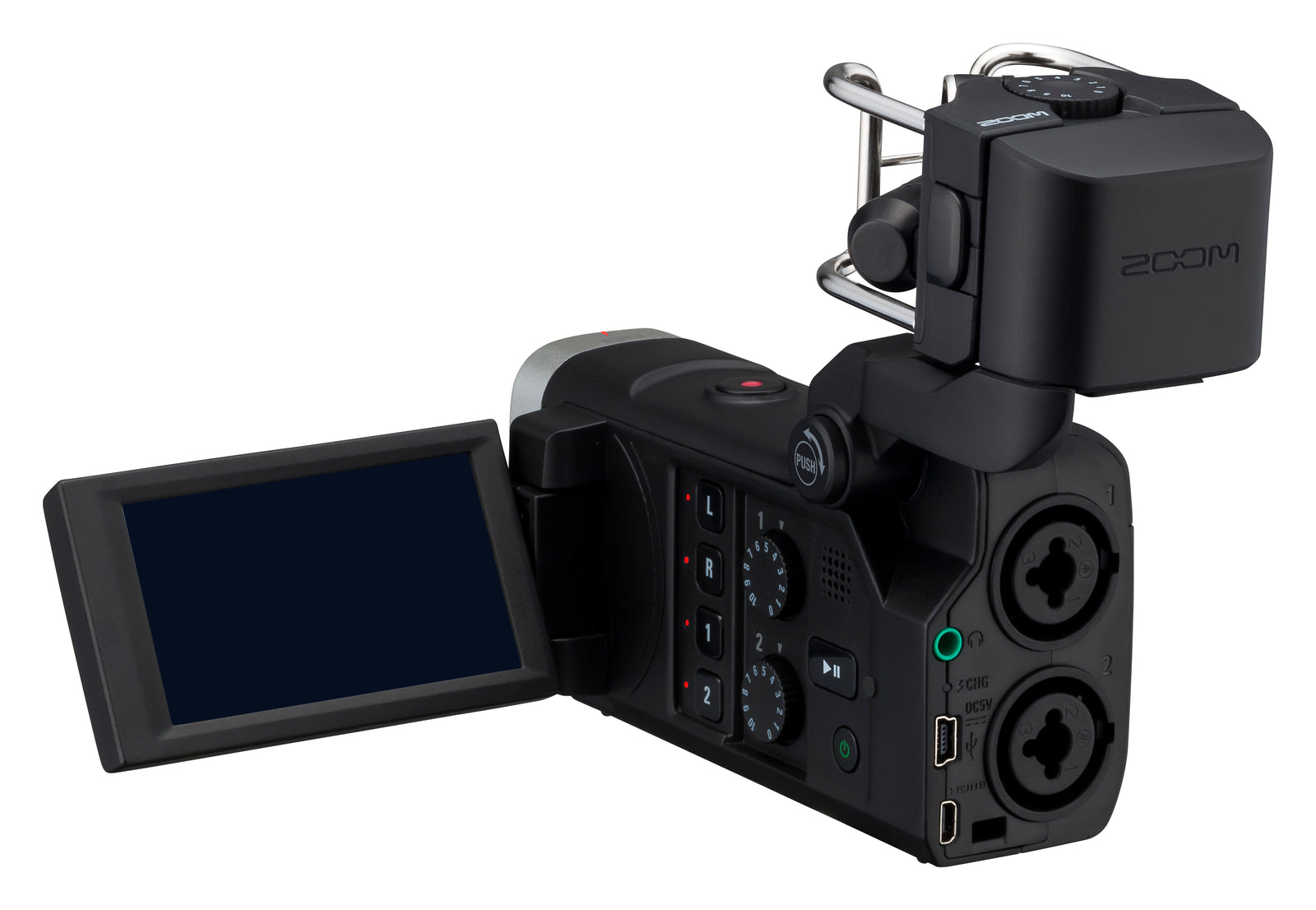

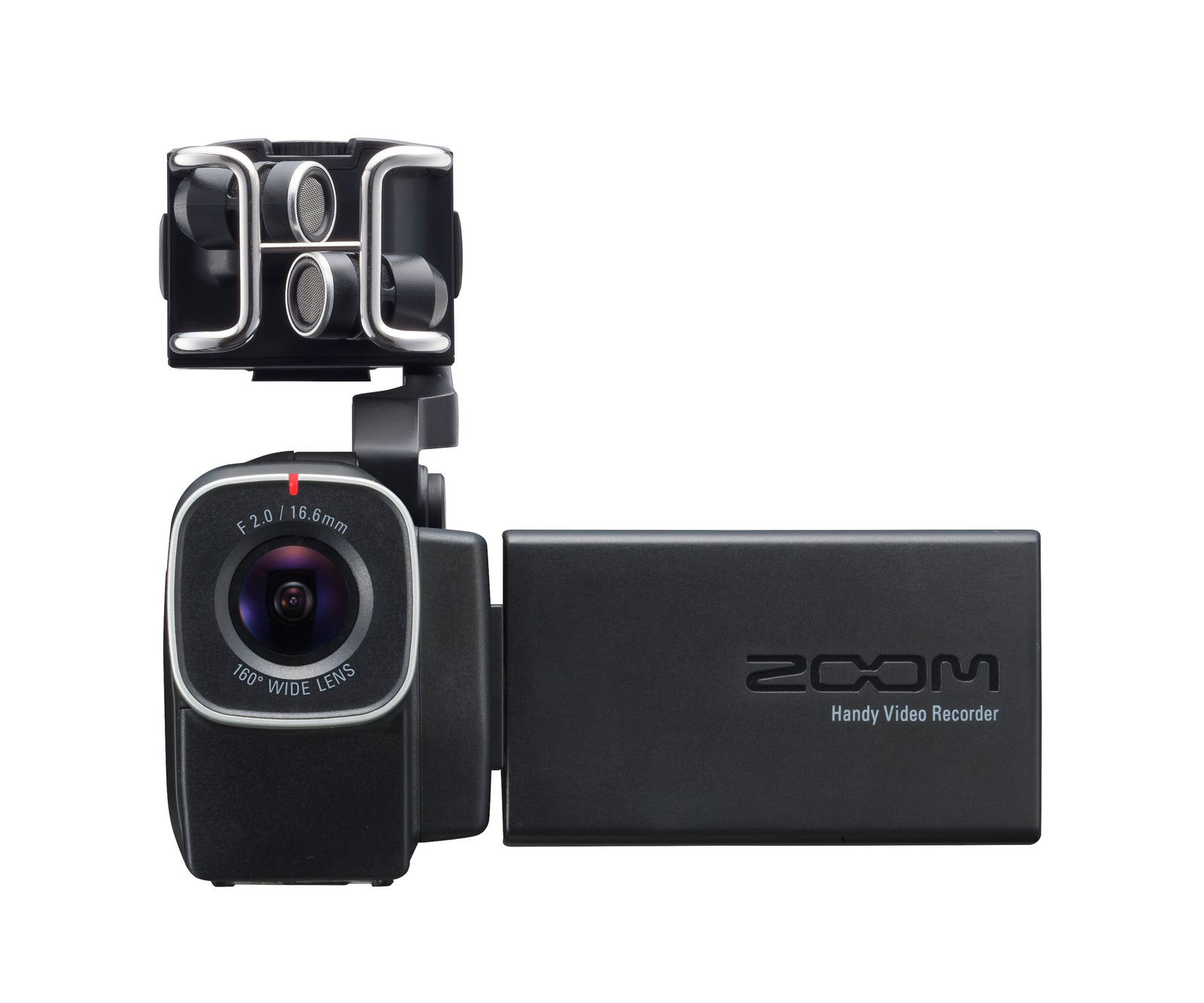

The Q8 offers a large full-color LCD touchscreen for ease of use, along with a wealth of advanced features. Dual combo XLR/TRS inputs allow the connection of external microphones and line-level sources, and a built-in speaker and stereo Headphone/Line Out jack provide audio monitoring; there’s even an HDMI output for video monitoring.
Its high-quality 160-degree wide-angle lens and flexible mounting options mean that you can shoot high-def video anywhere you go. Plus there’s a USB output that allows the Q8 to be interconnected with your computer so you can use it with your favourite streaming or editing software.
The Q8 goes beyond standard HD, offering 3M HD (2304 x 1296 pixels @ 30fps /24mbps) as well as two kinds of HD (24mbps and 16mbps for increased storage capability) at frame rates of up to 60 fps at 720p for capturing fast action video. Support for both standard and HD video file formats assures that you’ll have plenty of options when it comes to storage and streaming.

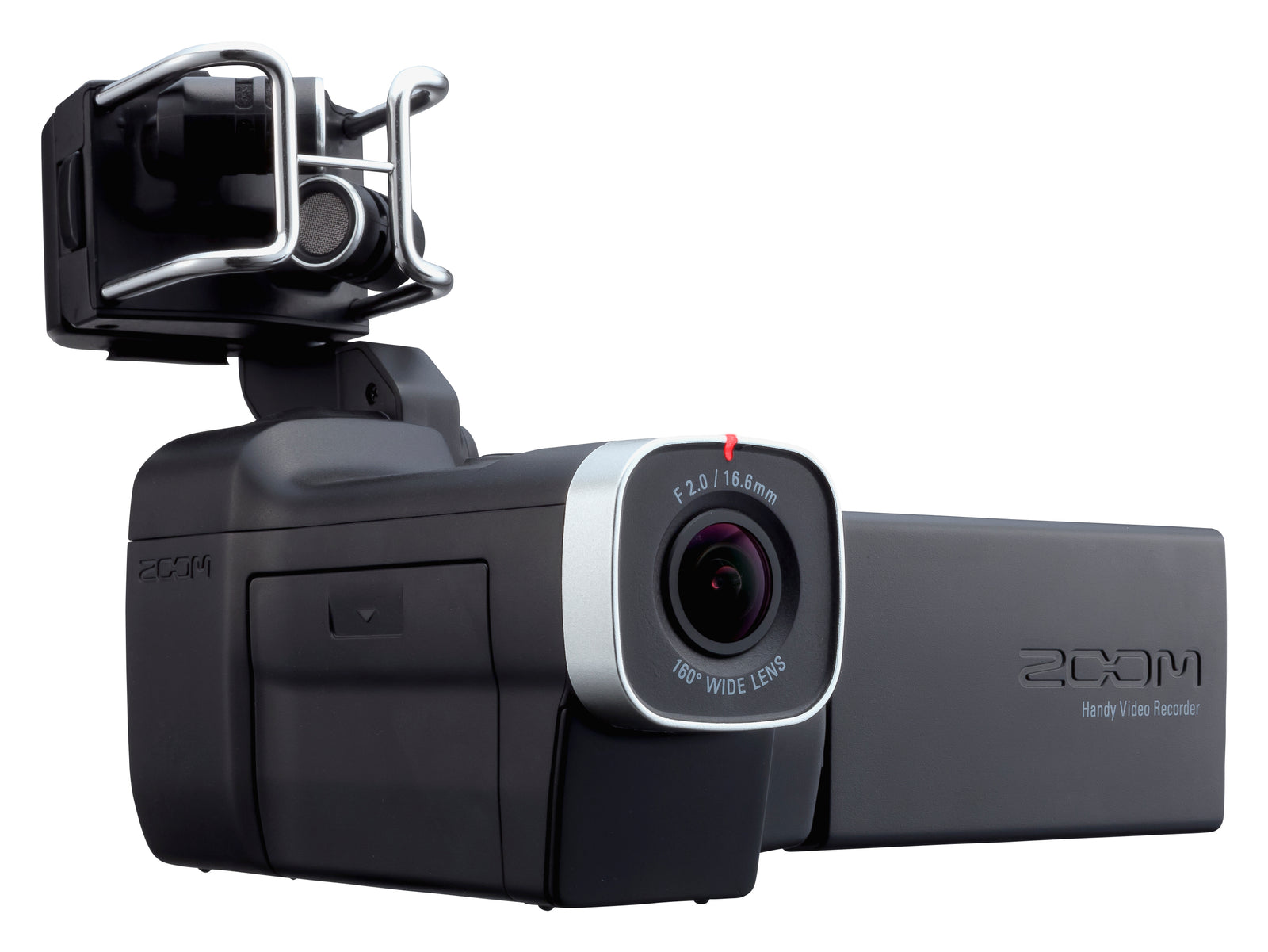

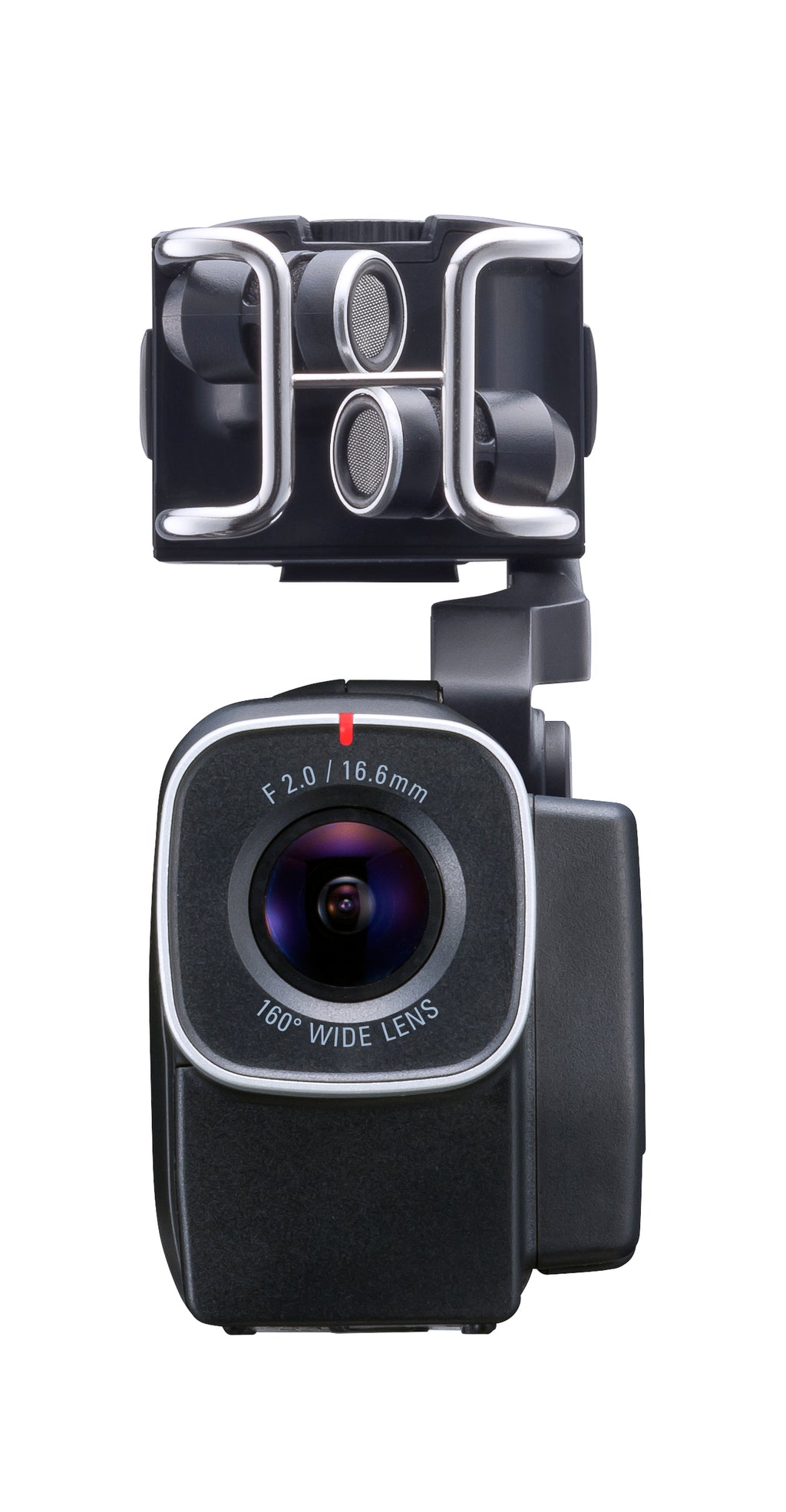

Its F2.0 aperture / 160˚ wide-angle lens ensures that you’ll capture every moment with full realism and sharp definition. The Q8 comes with 10 “Scene” presets which allow you to use it in a variety of lighting conditions, from direct sunlight to low-light. These presets include "Concert Lighting" (which can be adjusted for lighting conditions that can drastically change) and "Concert Low-Light," both designed for dimly lit locations. More specific settings allow you to tailor the camera for shooting in jazz clubs, rehearsal studios, and the outdoors.
Need a different POV? The Q8’s got you covered. Not only can it be attached to any standard tripod, it comes with a tripod-to-three-prong converter, so you can use it with every kind of action camera mount, too.
Take your Q8 onstage and mount it to your mic stand, amp, or drum kit. Shoot video from front row center and use the supplied stereo X/Y microphone to capture the audience experience. Or use the Q8 at the mixing position and record the feed from the board, as well as the sound of the room. Use multiple Q8s for a dramatic mix of different angles — the full-color touchscreen LCD is fully rotatable so you can always view your image regardless of camera positioning.
A built-in USB port enables live streaming and allows the Q8 to be used as a webcam or USB microphone. It also allows connection with other equipment and computer software — even an iPad* — for post-production capability.
*Apple Camera Connection Kit required.
The supplied lithium-ion battery that powers the Q8 can be recharged easily in the studio or in the field, using either an optional AC adapter or via USB. Battery life is more than two hours when shooting at 720p/30fps. In audio recording-only mode, battery life is extended further still.
The Q8 records directly to SD, SDHC, and SDXC cards, up to 128GB. Video is stored in MOV file format, with various HD settings for maximum video quality, or you can shoot in standard definition (SVGA) when space or streaming bandwidth is at a premium. Recorded audio can be integrated directly into the MOV file, or audio can be saved separately from the video data.
Accessories
Here’s what comes included with the Q8:
- Detachable stereo X/Y microphone capsule (XYQ-8)
- Foam windscreen
- Rechargeable Li-ion battery
- USB cable (50 cm)
- Tripod to three-prong action camera mount adapter
- Lens cover
- Lens hood
- Strap
- Operation manual
Optional Q8 Accessories:
- XYH-5 X/Y mic capsule
- XYH-6 X/Y mic capsule
- MSH-6 Mid-Side mic capsule
- SGH-6 Shotgun mic capsule
- SSH-6 Stereo Shotgun mic capsule
SPECS
|
|
|||||||||||||
|
Recording media: |
SD/SDHC/SDXC cards (up to 128GB) |
||||||||||||
|
Image sensor: |
1/3-inch 3-megapixel CMOS sensor |
||||||||||||
|
Lens: |
Fixed focus (36cm - ∞) F2.0, focal distance approx. 16.6 mm (35mm equivalent) |
||||||||||||
|
Video format: |
MPEG-4 AVC/H.264 (MOV) |
||||||||||||
|
Video resolutions: |
3M HD (2304 x 1296 pixels) 30fps HD (1080 pixels) 30fps HD (720 pixels) 60fps HD (720 pixels) 30fps WVGA 60fps WVGA 30fps |
||||||||||||
|
Audio formats: |
WAV (16/24-bit quantization, 44.1/48/96kHz sampling frequency) AAC (64-320kbps bit rate, 48kHz sampling |
||||||||||||
|
Audio functions: |
Low-cut filter, Auto Gain (Concert/Solo/Meeting), compressor, limiter |
||||||||||||
|
Image functions: |
Digital zoom (1.0x-4.0x) Scene selection (Auto/Concert Lighting/Night) Self timer (Off, 3 seconds, 5 seconds, 10 seconds) |
||||||||||||
|
Display: |
2.7" full-color LCD touchscreen |
||||||||||||
|
Built-in speaker: |
400mW 8 Ω mono speaker |
||||||||||||
|
L/R inputs: |
|||||||||||||
|
|
|
||||||||||||
|
INPUT 1/2 Input connectors: |
TRS/XLR combo jacks |
||||||||||||
|
|
|
||||||||||||
|
Output connectors: |
Combined line/headphones stereo mini-jack Type D micro HDMI |
||||||||||||
|
USB: |
|||||||||||||
|
|
|
||||||||||||
|
Power supply: |
Lithium ion battery DC 4.2V maximum voltage, DC 3.7V nominal voltage, 1700mAh capacity |
||||||||||||
|
Battery recharging times: |
|||||||||||||
|
|
|
||||||||||||
|
Battery operation time: |
More than 2 hours (when recording 720p/30fps) |
||||||||||||
|
AC adapter: |

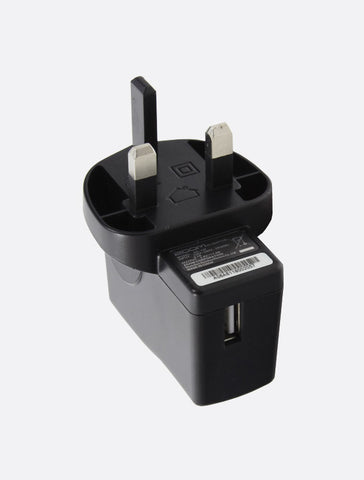

ZOOM AD-17, sold separately: DC 5V/1A |
||||||||||||
|
Dimensions: |
Mic lowered: 158mm (L) x 48mm (W) x 69mm (H) Mic raised: 158mm (L) x 48mm (W) x 119mm (H) X/Y mic (XYQ-8): 50mm (L) x 37mm (W) x 32mm (H) |
||||||||||||
|
Weight: |
Recorder: 260g / 9.2oz (without battery, capsule) XYQ-8 Mic Capsule: 40g / 1.4oz Battery: 40g / 1.4oz |
||||||||||||
