Features at a glance
- Five built-in microphones and four recording modes: Mid-Side (MS) stereo, 90° X/Y stereo, and both 2-channel and 4-channel surround
- Analog-type input gain control
- Auto Gain provides three preset recording levels
- Stereo ⅛" Mic/Line In mini phone jack with Plug-in power (2.5V)
- Stereo ⅛" Phone/Line Output jack with dedicated volume control
- Built-in reference speaker for fast monitoring
- Large 1.8 inch backlit LCD display
- Records directly to SD and SDHC cards up to 32GB
- Supports up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record and Pre-record features
- WAV to MP3 conversion
- Internal mixdown: four-track surround to stereo
- Up to 99 marks per recording
- Built-in effects, including compression/limiting and low-cut filtering
- Onboard MS decoding
- Normalize and Divide functions
- Chromatic tuner and metronome
- Loop playback with user-defined start and stop points
- Variable playback speed, from 50% to 150% for phrase training
- Variable pitch without affecting playback speed
- USB port for data exchange to and from computer and use as a USB microphone
- 2-in/2-out USB audio interface for PC/Mac computers
- SD card reader function
- Data recovery function automatically saves data if power fails or card is removed
- Mounts directly to tripod or DSLR
- Runs on only 2 standard AA alkaline or NiMH rechargeable batteries, or AC adapter (AD-17, USB to AC type)
- Over 20 hours of operation with 2 AA alkaline batteries
The H2n Handy Recorder is the only portable recording device to come with five built-in microphones and four different recording modes: X/Y, Mid-Side, 2-channel surround and 4-channel surround. Other advanced features include automatic gain control and onboard MS decoding, plus effects like compression, limiting and low cut filtering. You can even use the H2n as a multi-purpose USB microphone!
Using the H2n
With its multiple microphones and recording modes, the H2n can handle just about every kind of application. Here are just a few ways it can be used:
- Live recording of concerts and rehearsals, in either stereo or surround sound
- Location videography—the H2n gives you plenty of options in postproduction
- Creating audio for YouTube videos
- Generating lasting audio documents of important events
- As a USB microphone providing input to recording software

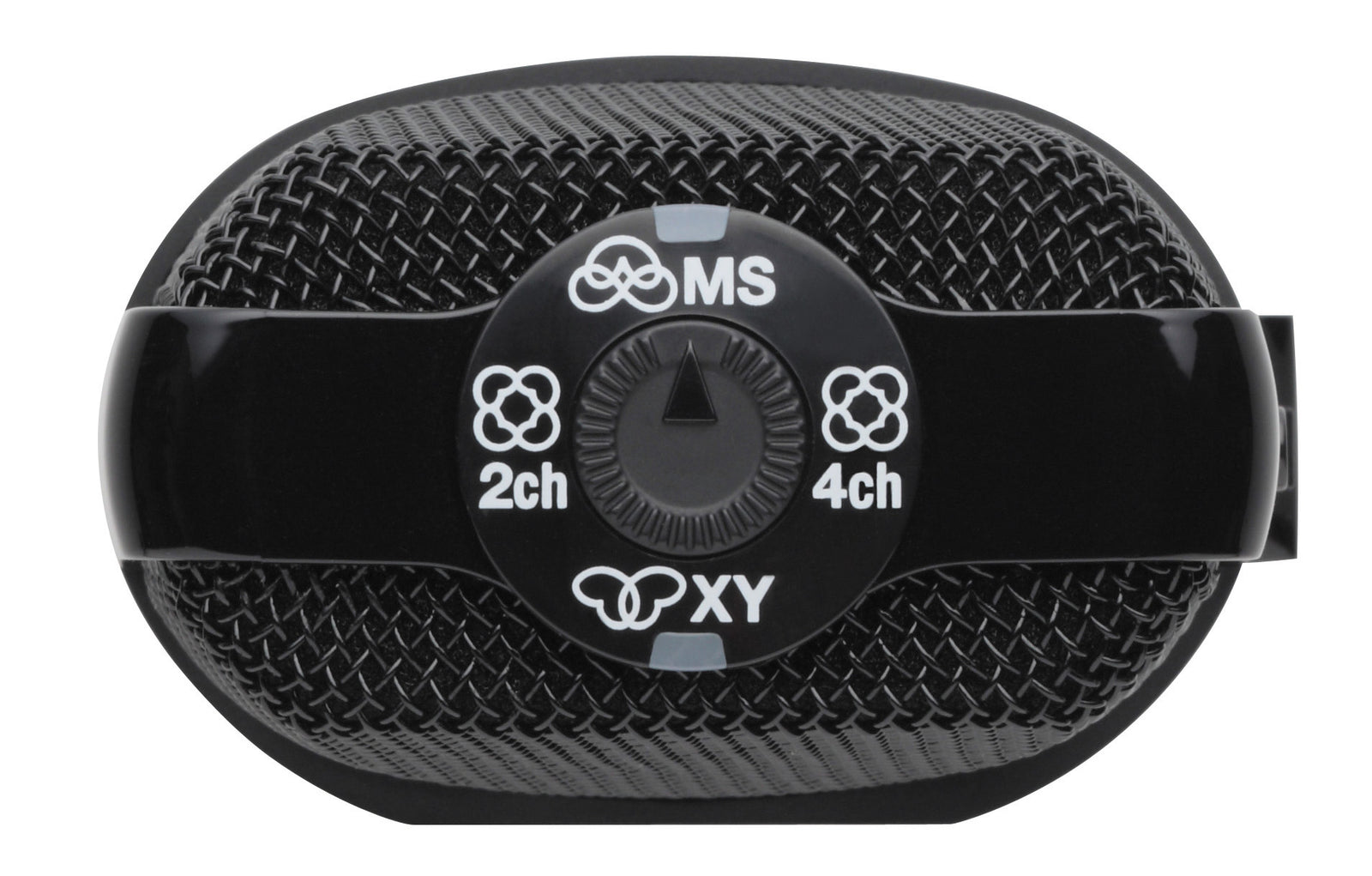

Five microphones, four ways of recording

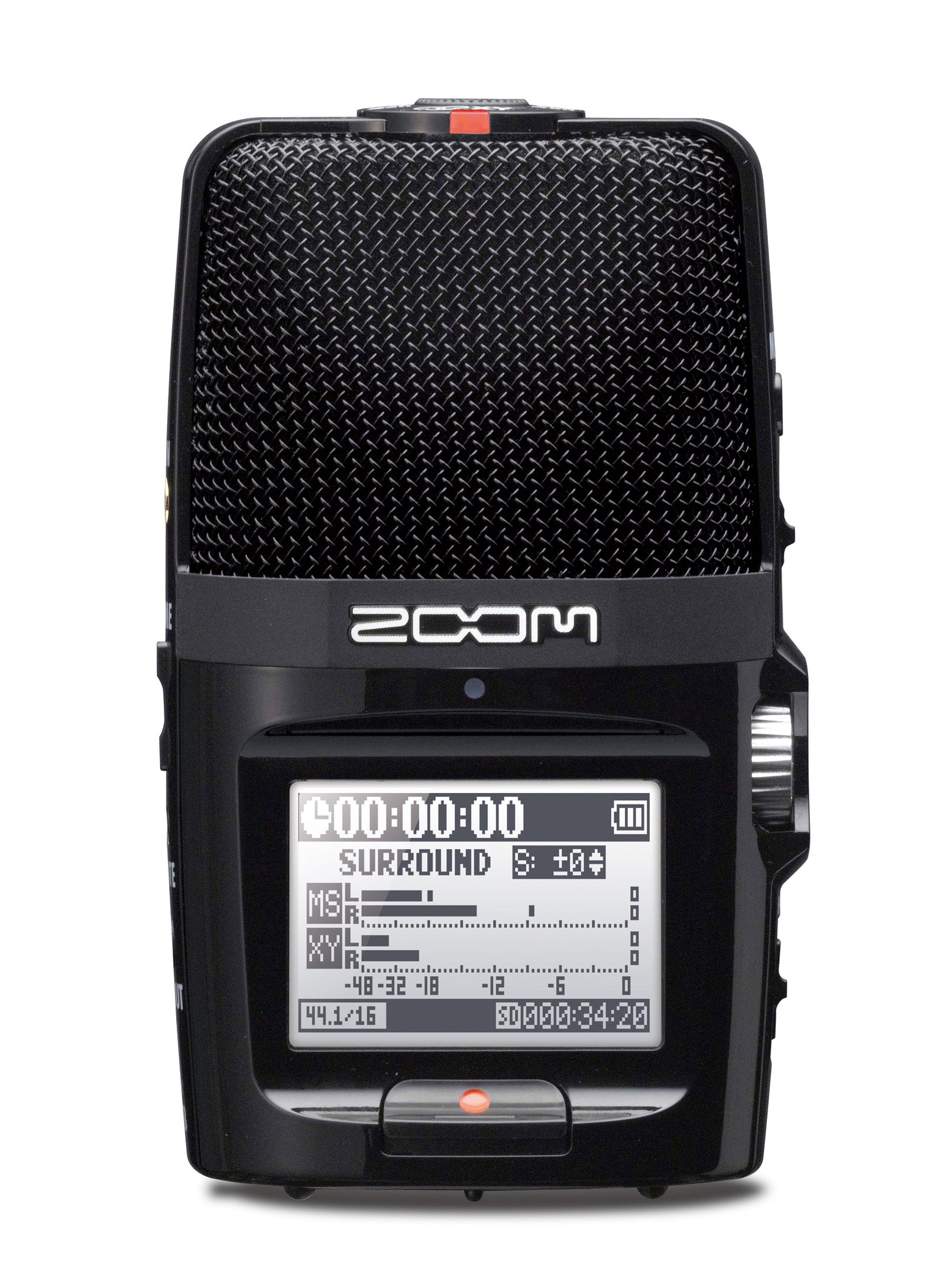

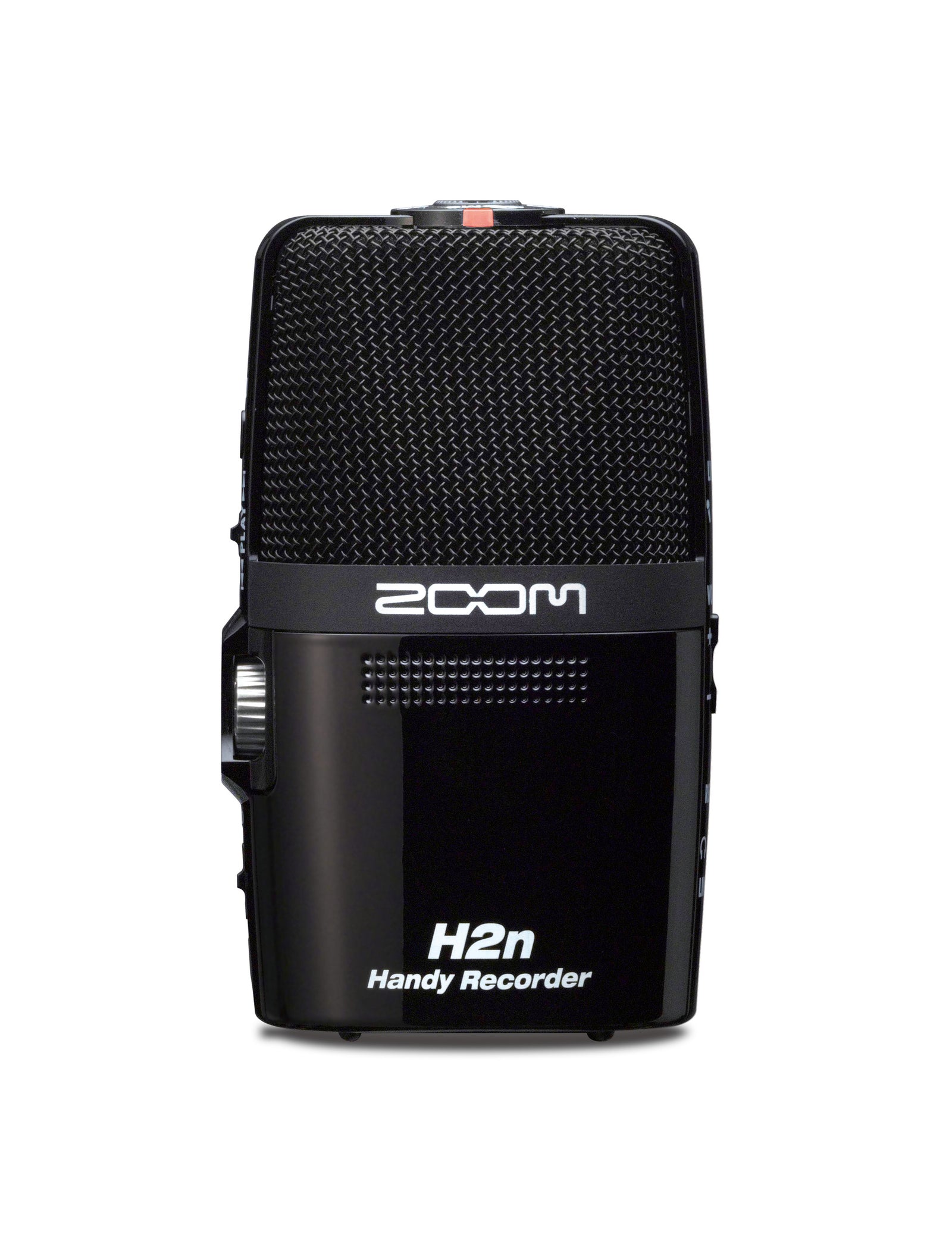

The H2n offers not one, not two, but five built-in microphones. Two of them are arranged as an X/Y pair, while the other three are configured in an MS ("Mid-Side") pattern. They can be used separately for X/Y or MS stereo recording, or combined to create stunning 2- or 4-channel surround sound.

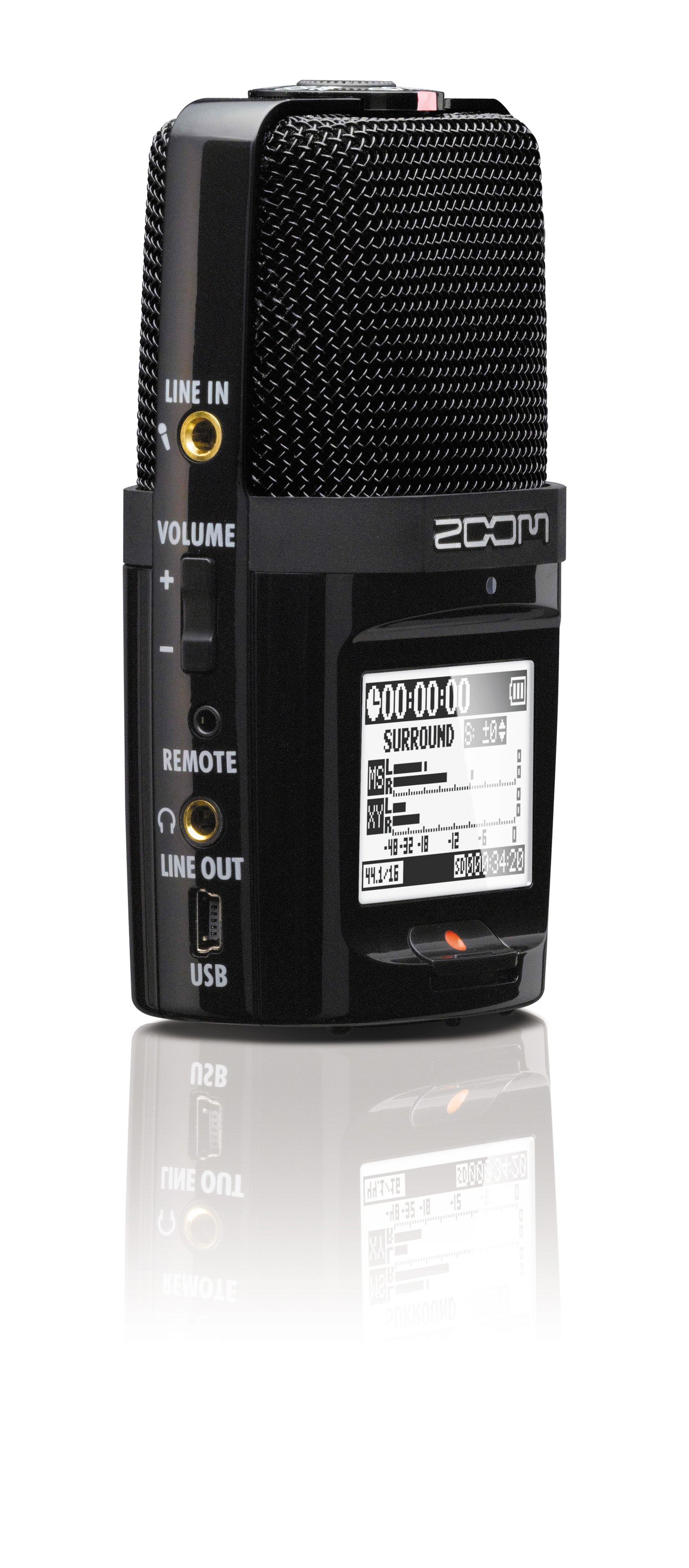

The Ins and Outs
The H2n Line In is a stereo ⅛" mini phone jack that can accept two channels of mic- and/or line-level signals. Condenser microphones requiring Plug-In Power (2.5 volts) can be connected to this jack. An analog-type Mic Gain dial allows you to manually set input level, or you can choose one of the three Auto Gain presets to automatically set the optimum recording level.
The H2n Line Out is a stereo ⅛" phone jack with dedicated volume control. Headphones can be connected to this jack for private monitoring of the input or recorded signal. There's also a built-in speaker on the back panel for fast monophonic monitoring of the recorded signal without the need to make any connections.
The H2n USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. From there, it can be imported into editing software such as the supplied WaveLab LE. USB also enables the H2n to be used as a 2-in/2-out audio interface or as a USB microphone.
SPECS
|
GENERAL |
|
|
Recording media: |
16MB–2GB SD cards, 4GB–32GB SDHC cards |
|
Built-in memory: |
Up to 1 minute in 96kbps MP3 format |
|
Mic arrangements: |
90˚ X/Y stereo, MS stereo with adjustable side mic level |
|
Recording modes: |
MS, XY, MS+XY (2ch), MS+XY (4ch) |
|
Microphone types: |
Directional (XY, MS mid mics) |
|
Maximum sound pressure input: |
120 dB spl (directional) |
|
FILE FORMATS |
|
|
Stereo uncompressed PCM: |
44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) |
|
Compressed MP3 (recording): |
44.1kHz, 48kHz |
|
Compressed MP3 (playback): |
44.1kHz, 48kHz |
|
4ch uncompressed PCM: |
44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) |
|
DIGITAL PROCESSING |
|
|
A/D conversion: |
24-bit 128× oversampling |
|
D/A conversion: |
24-bit 128× oversampling |
|
Signal processing: |
32-bit |
|
Recording time (2GB card): |
3:08:00 (44.1kHz/16bit WAV), 34:43:00 (128kbps MP3) |
|
ADDITIONAL FEATURES |
|
|
Lo cut: |
80Hz high-pass filter |
|
Comp/Limiter: |
3 types of compressors and 3 types of limiters |
|
Auto gain: |
Automatic input gain adjustment (3 levels) |
|
Pre rec: |
2 seconds of pre-recording |
|
Auto rec: |
Automatic recording start/stop, continuous standby |
|
Tuner: |
Chromatic, guitar, bass and alternate (A/E/G/D/DADGAD) tunings with automatic string detection |
|
Metronome: |
40–250 BPM range, five tones, pre-count |
|
Speed: |
Playback speed adjustable between 50–150% |
|
Key control: |
Playback pitch adjustable ±6 semitones |
|
AB repeat: |
Repeats playback between selected points in a file |
|
File divide: |
Divides a file into two |
|
File normalize: |
Maximizes file volume |
|
File MP3 encode: |
Converts WAV files to MP3 formats at fixed bit rates |
|
Mark: |
Up to 99 marks |
|
Surround mixer: |
Adjusts mix balance when playing back 4ch surround recordings |
|
OTHER |
|
|
Display graphic: |
128×64 pixels backlit LCD |
|
Input gain: |
0 to +39 dB |
|
Input jack: |
Line/mic stereo mini jack with plug-in power |
|
Output jack: |
Line/headphone stereo mini jack |
|
Rated output level: |
−10 dBm (output impedance 10 kΩ or more) |
|
Headphones: |
20 mW + 20 mW (into 32 Ω load) |
|
Built-in speaker: |
400mW, 8Ω, mono |
|
USB: |
Mini-B type |
|
USB 2.0 high speed: |
Audio interface operation |
|
USB 1.0 full speed: |
Supports 44.1 / 48kHz sampling rates and 16-bit rate |
|
Power: |
Two AA batteries, AD-17 USB to AC adapter (DC 5V 1A) |
|
Physical features: |
Tripod mounting socket, strap attachment |
|
Dimensions: |
67.6mm (W) × 113.85mm (H) × 42.7mm (D) |
|
Weight: |
130 g (without batteries) |
