BUILT FOR BIG THINGS

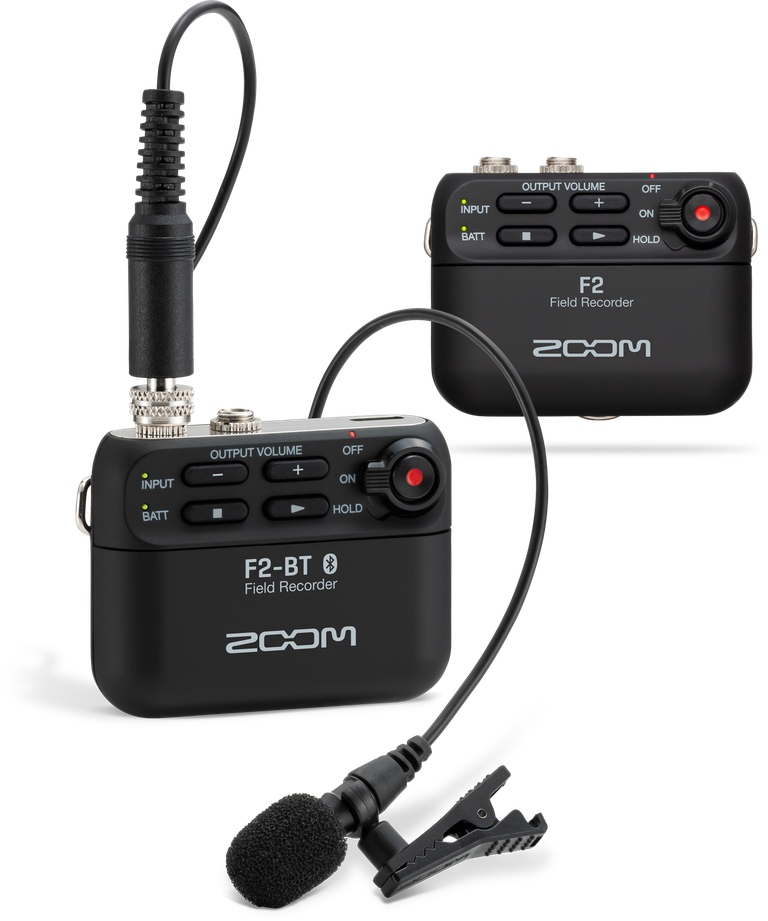

For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.
*F2 is available with or without Bluetooth
The F2 features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don’t have to worry about setting the gain. Just plug in the lav and hit record.

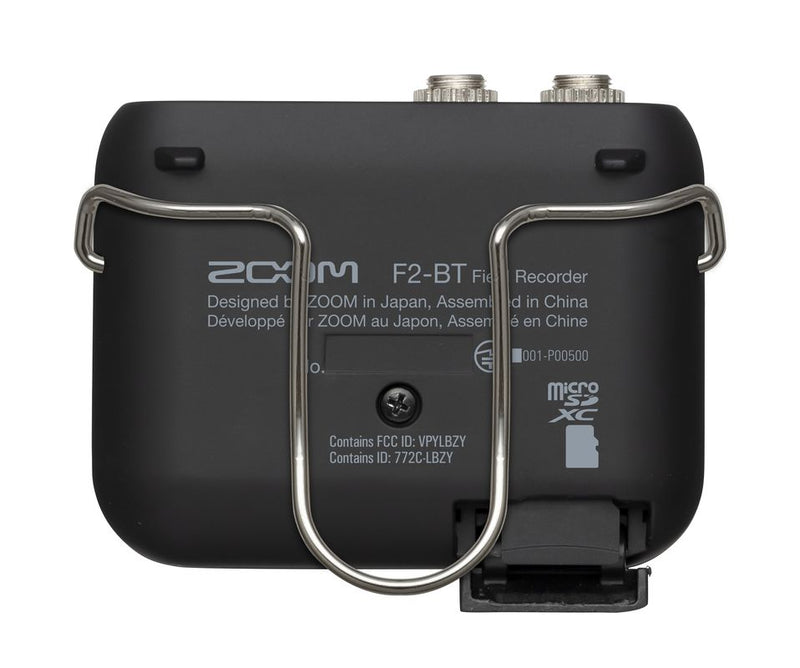

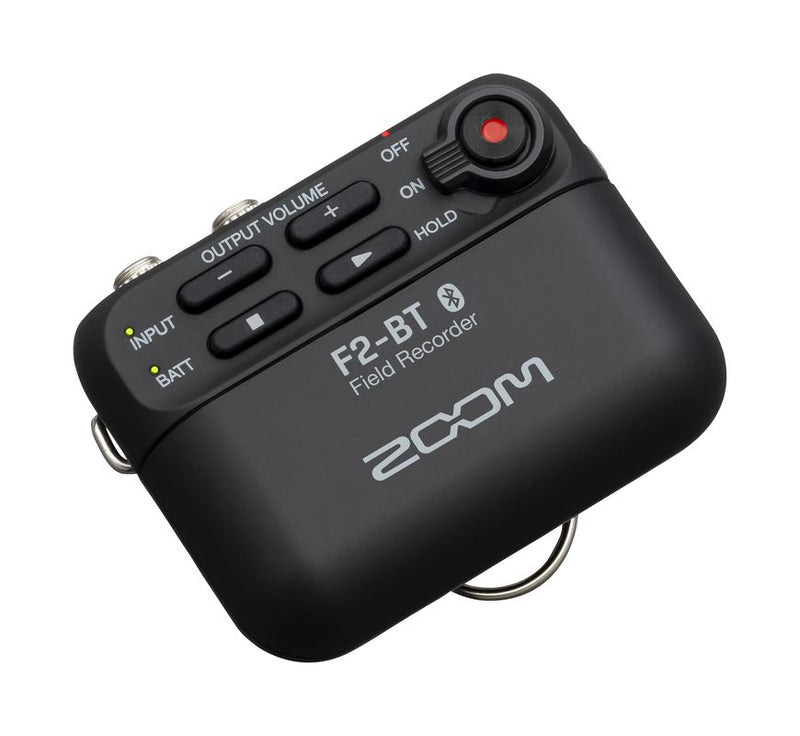

ALSO AVAILABLE WITH BLUETOOTH CONTROL
The F2-BT comes with built-in Bluetooth. And with the free Zoom F2 Control app the F2-BT can wirelessly start/stop recordings, display battery levels, adjust output volume, control lo-cut and more.
You can also pair the F2-BT with a Bluetooth timecode synchronisation device to receive and write timecode to recorded files.
THE F2 EDITOR
The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer.
POWER
The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.
STORAGE
Record on microSD, microSDHC, and microSDXC cards up to 512GB.

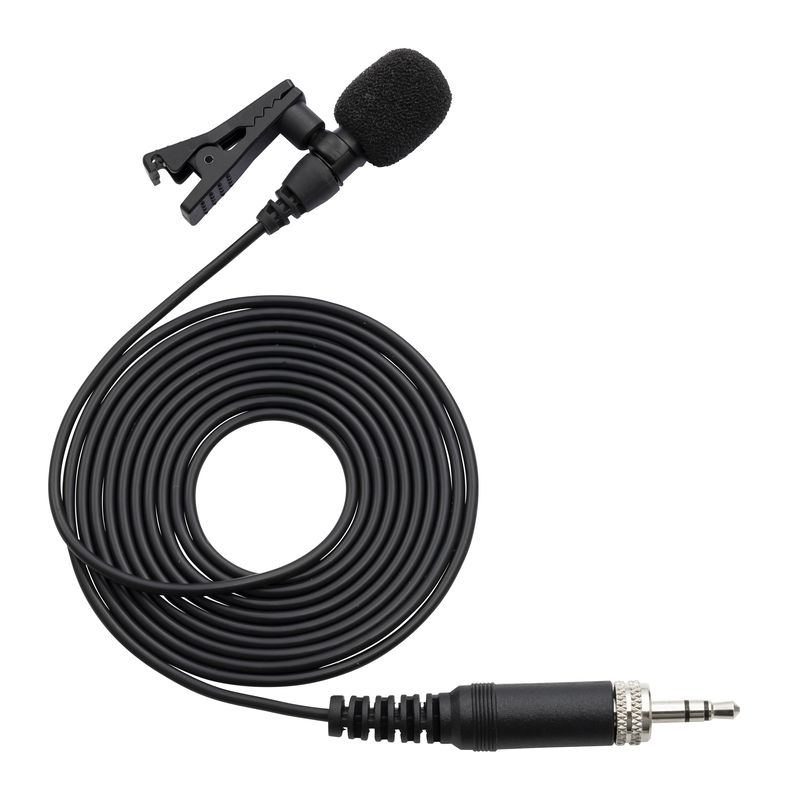

LAVALIER INCLUDED
The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.
RECORDING FORMATS
The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.
FREE EDITING SOFTWARE
The Zoom F2 comes with a free download license for Steinberg’s WaveLab Cast software. WaveLab Cast helps you finalise your project with a wide range of comprehensive editing, mixing, and refinement tools.
IN THE BOX
- F2 or F2-BT Field Recorder
- LMF-2 Lavalier Microphone
- 3 - WSL-1 Windscreen
- MCL-1 Mic Clip
- 2 - AAA Batteries
- WaveLab Cast Software
- F2/F2-BT Operation Manual
F2 FEATURES
- Light and compact audio recorder
- 32-Bit Float recording for full dynamic range and clip free recording
- No gain adjustment necessary
- Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
- Rec Hold function to avoid accidental operation of buttons
- 1/8" Mic In mini phone jack with Plug-in power (2.5V)
- Stereo ⅛" Phone/Line Output jack with dedicated volume control
- 80 Hz low cut filter
- High precision internal clock to avoid audio and video syncing issues
- Wireless timecode synchronisation (F2-BT model only)*
- Records directly to micro SD and SDHC cards up to 512 GB
- USB-C for connection to F2 Editor for settings
- Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries
SPECS
F2/F2-BT
INPUT
|
CONNECTOR: |
3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V) |
|
INPUT GAIN: |
None (dual AD conversion system) |
|
INPUT IMPEDANCE: |
2 kΩ or more |
|
MAXIMUM INPUT LEVEL: |
−5.5 dBu |
OUTPUT
|
CONNECTOR: |
3.5 mm stereo mini (with screw lock) |
|
MAXIMUM OUTPUT LEVEL: |
20 mW + 20 mW (into 32Ω load) |
RECORDING MEDIA
|
CARDS COMPATIBLE WITH MICROSD/MICROSDHC/MICROSDXC SPECIFICATIONS (CLASS 4 OR HIGHER, 512 GB MAXIMUM) |
|
RECORDING FORMAT
|
WAV: |
44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported |
USB
|
USB TYPE-C |
|
|
MASS STORAGE OPERATION |
USB 2.0 High Speed |
|
PC APP OPERATION |
USB 2.0 High Speed |
POWER
|
2 AAA BATTERIES (ALKALINE, LITHIUM OR RECHARGEABLE NIMH BATTERIES) AC ADAPTER (ZOOM AD-17): DC 5 V/1 A |
|
MISCELLANEOUS
|
BLUETOOTH: |
Bluetooth Ver4.2 (F2-BT only) |
|
CONTINUOUS RECORDING TIME WHEN USING LAVALIER MIC (48KHZ/32-BIT FLOAT): |
Alkaline batteries: about 14 hours |
|
|
NiMH batteries (750 mAh): about 10 hours Lithium batteries: about 18 hours |
|
|
• The above values are approximate. |
|
EXTERNAL DIMENSIONS: |
57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D) |
|
WEIGHT (MAIN UNIT ONLY): |
32 g |
LMF-2 LAVALIER MIC
|
CONNECTOR: |
3.5 mm stereo mini (with screw lock) |
|
DIRECTIONALITY: |
Omnidirectional |
|
SENSITIVITY: |
–32 dB/Pa at 1 kHz |
|
MAXIMUM SOUND PRESSURE INPUT: |
115 dB SPL |
|
CABLE LENGTH: |
160 cm |
