Maximise Your F8 and F4
F-Control works intuitively with the F8 and F4 to give you additional mastery over sound design and mixing, as well as broaden your creative possibilities. It connects to your F8 or F4 with a single USB cable, so you can keep your setup clutter-free and be ready to record in seconds.

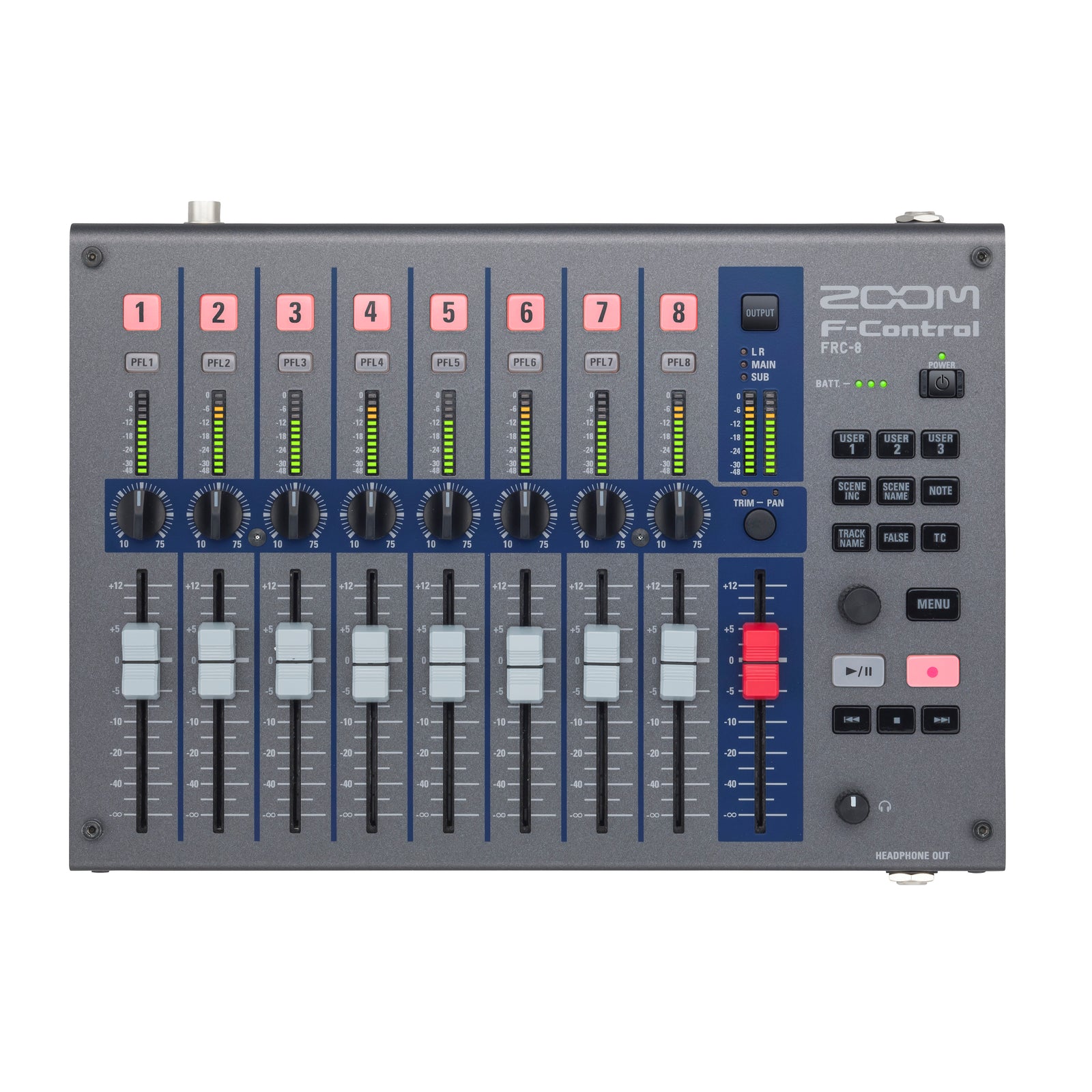

F-Control makes recording and mixing easy with nine 60 mm faders (eight + Master) and hands-on input/output control for trim, pan, and track arming. Monitoring channel and output levels is simple with 12-segment LED meters, three user-programmable buttons, and a dedicated time code button.
You can also organise recordings using the Track Scene edit buttons for metadata entry. F-Control gives you the option to connect an external USB keyboard so you can enter information for “Track Name”, “Scene Increment”, “Scene Name”, “Notes”, and “False Take.”
Connect Your Field Recording Gear

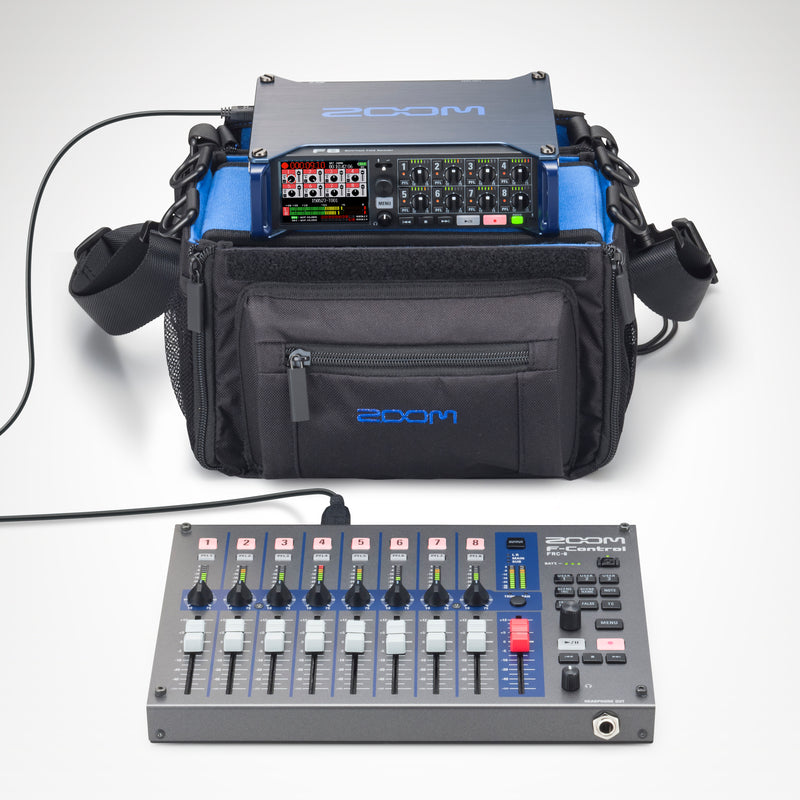

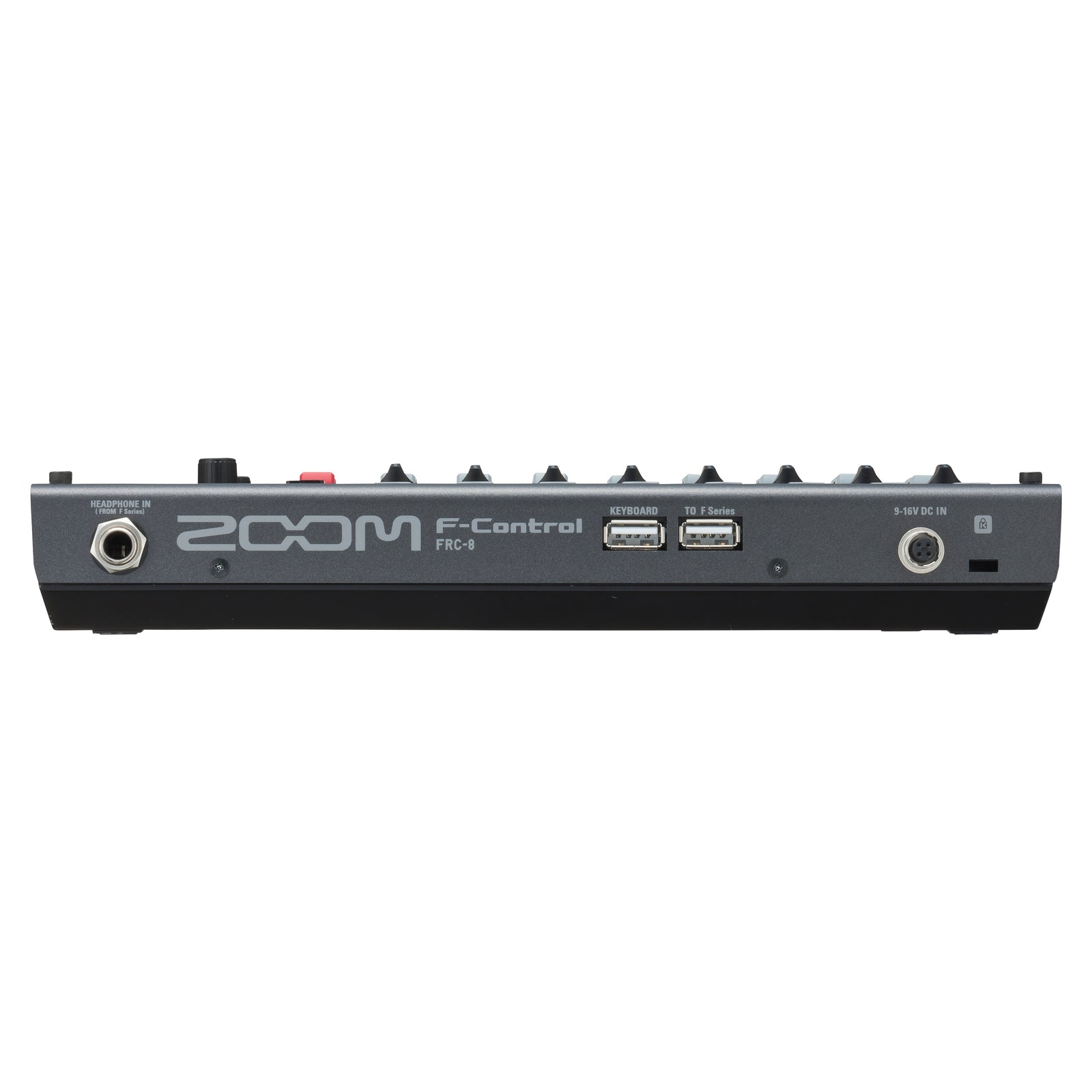

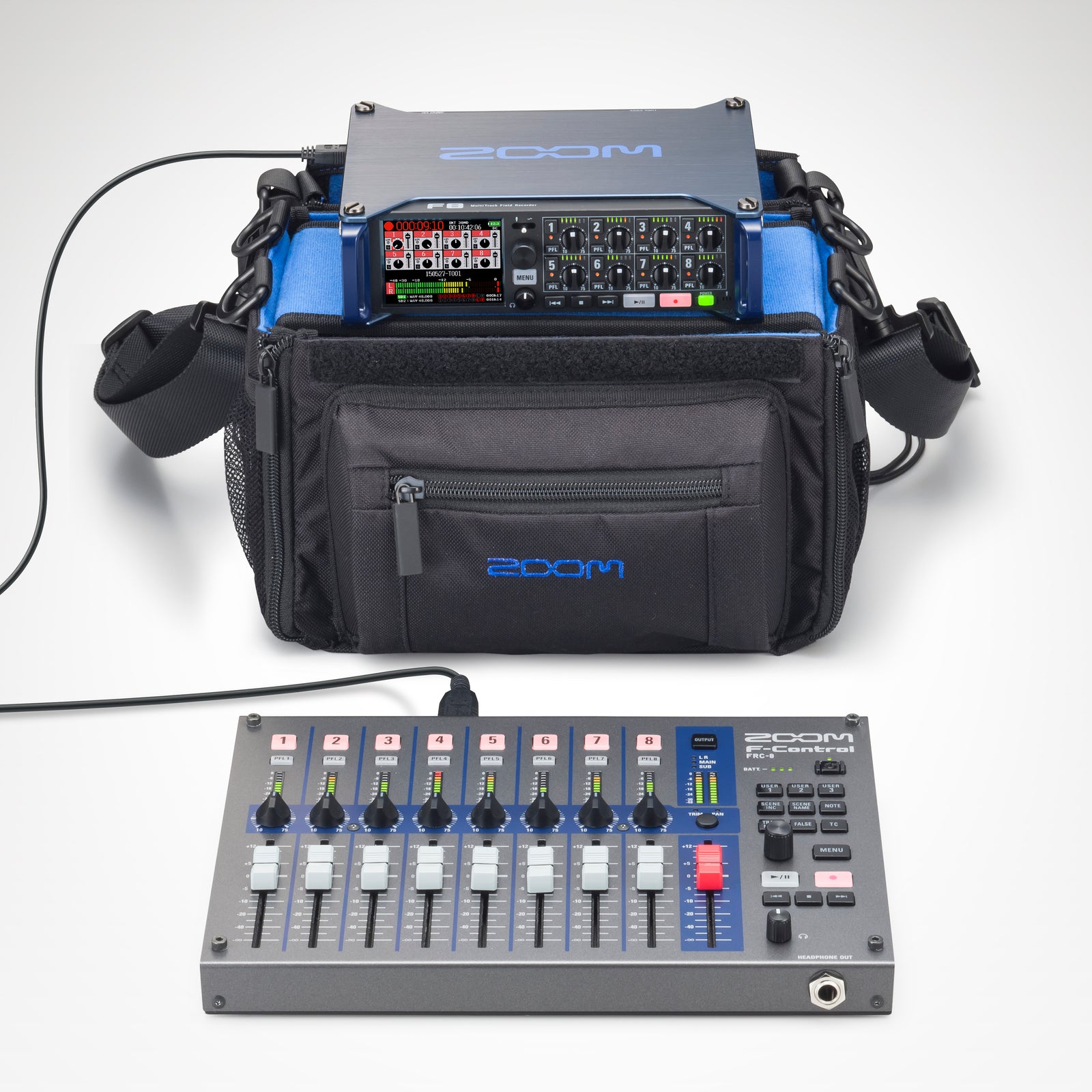

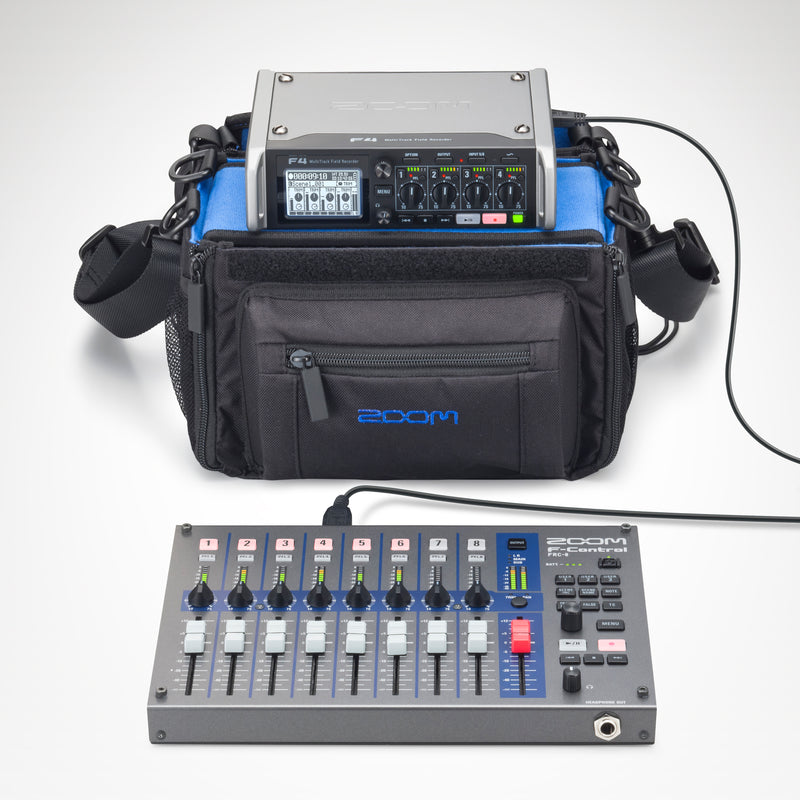

Connect your F8 or F4 to F-Control via one of two USB ports. The Keyboard USB port lets you connect an external keyboard so you can quickly enter metadata when you’re out in the field.
A 1/4” stereo cable connects the F8 or F4 headphone out to F-Control's headphone in, so you can monitor audio via F-Control’s headphone jack.
Power Anywhere You Go
F-Control has two main power options: four AA batteries (for up to 9 hours of operation) or power it with a 4-pin HIROSE connector with an external battery
pack. An additional USB bus power option is available when using the F4 (not available with the F8).
Built For the Toughest Productions

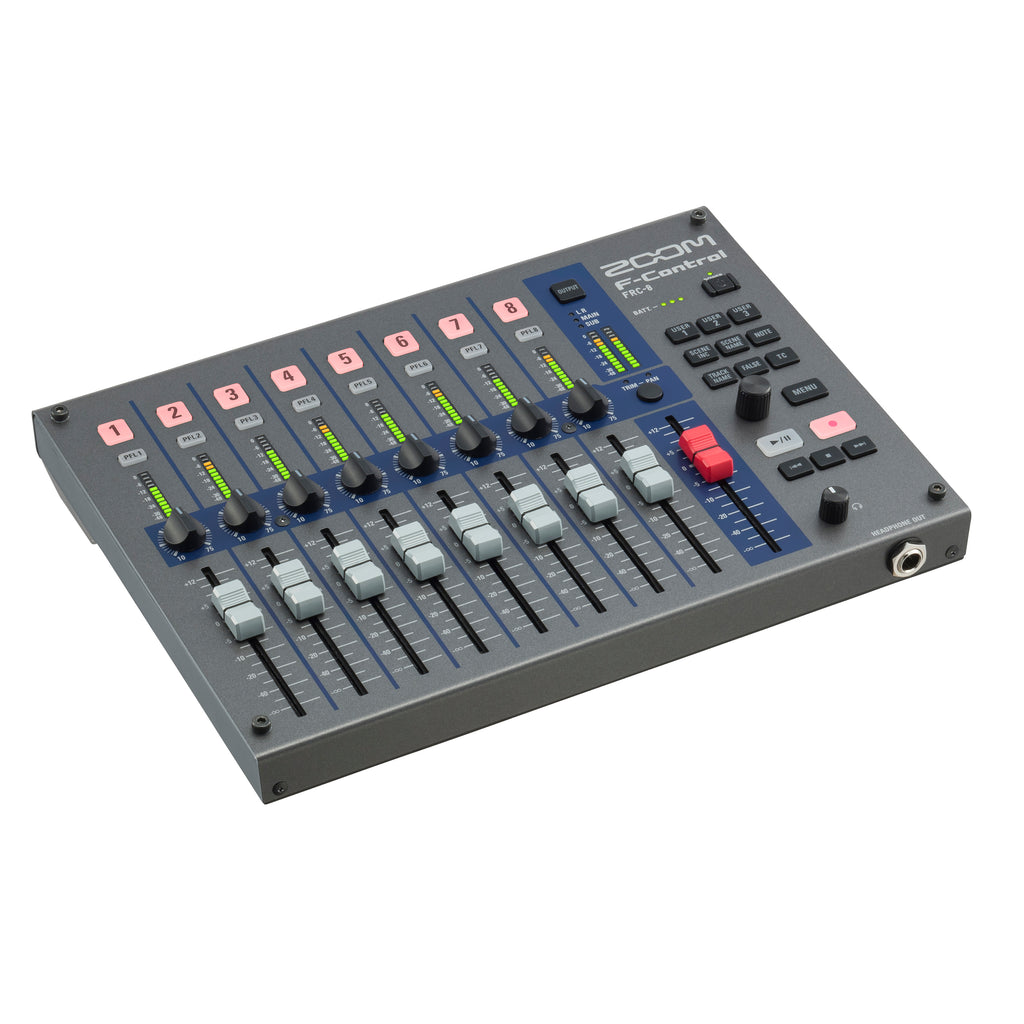

Its metal chassis makes F-Control suitable for all production locations. Plus, the F-Control is small and light enough to fit into your gear bag or backpack, so you can take it on any shoot.
Features at a Glance
- 9 faders (eight + Master), each 60mm
- 1/4" Headphone jack
- USB port for external keyboard connection
- Hands-on input/output control for trim, pan,
and track arming - 12-segment LED meters for monitoring channel
and output levels - Dedicated time code buttons
- Track Scene edit buttons: Shortcut commands
to Track Name, Scene Increment, Scene Name,
Notes, and False Take screens - Power options: 4 x AA batteries, 4-pin HIROSE
connector with external battery pack, and USB
bus power via the F4 (not available with the F8) - Durable metal chassis
- Compatible with Zoom F8 and F4 MultiTrack
Field Recorders
What's Included:
- 1.5m stereo cable
- 1.5m USB cable
- 4 x AA batteries
SPECS
|
|
|
|
Power Requirements: |
AA size (LR6) battery x 4 |
|
Battery Operation Time: |
<When using 8 channels at once, LED Brightness=60, without keyboard> |
|
Connectors: |
TO F Series: USB (Type A) |
|
Power Consumption: |
2.5 W |
|
Dimensions: |
245.0 mm (W) x 180.7 mm (D) x 47.4 mm (H) |
|
Weight: |
980 g (without batteries) |
