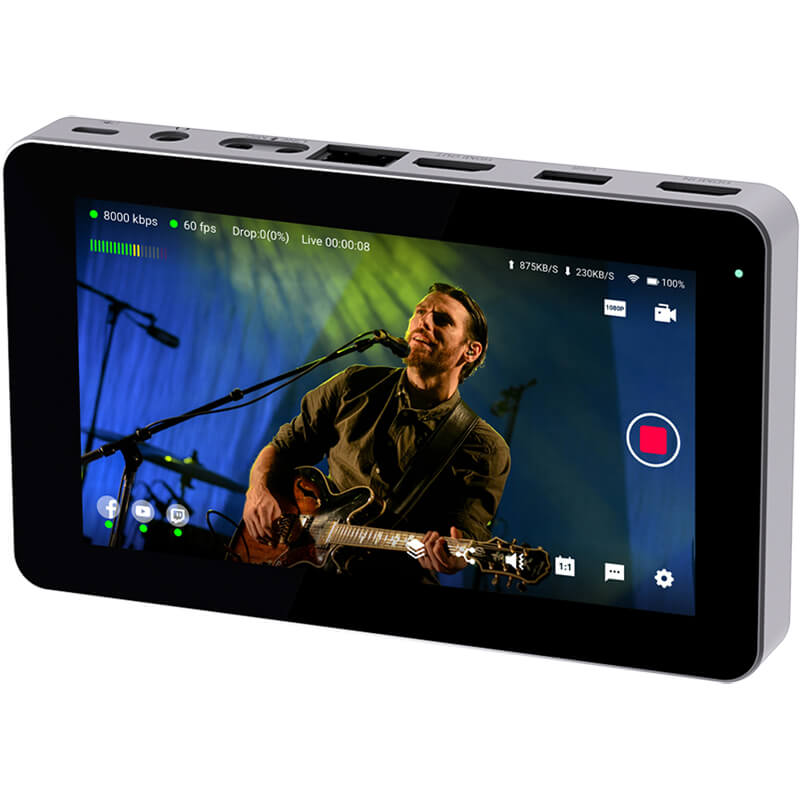

MINI, MOBILE, MIGHTY

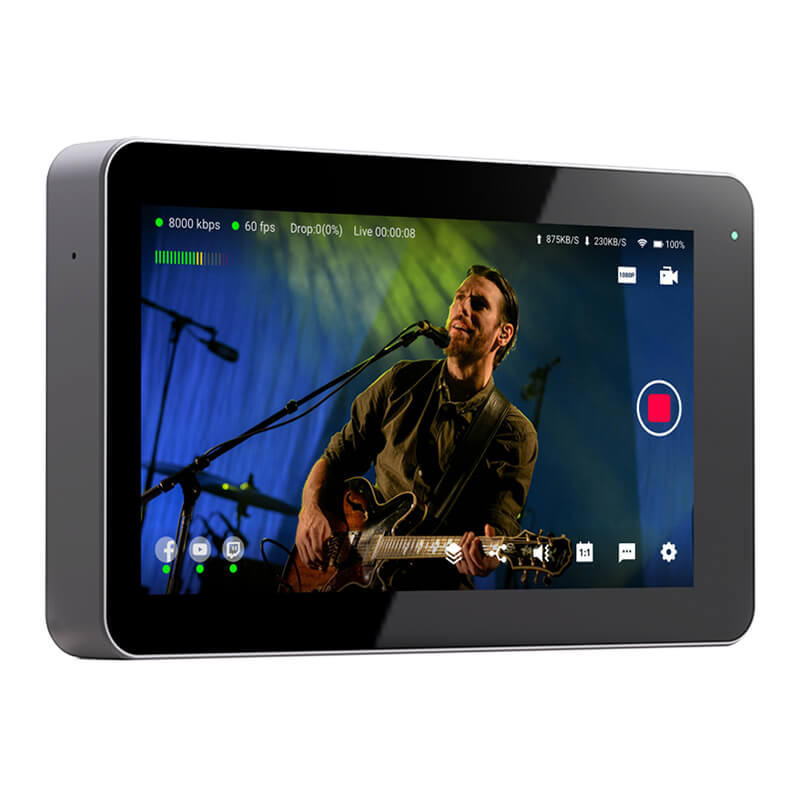

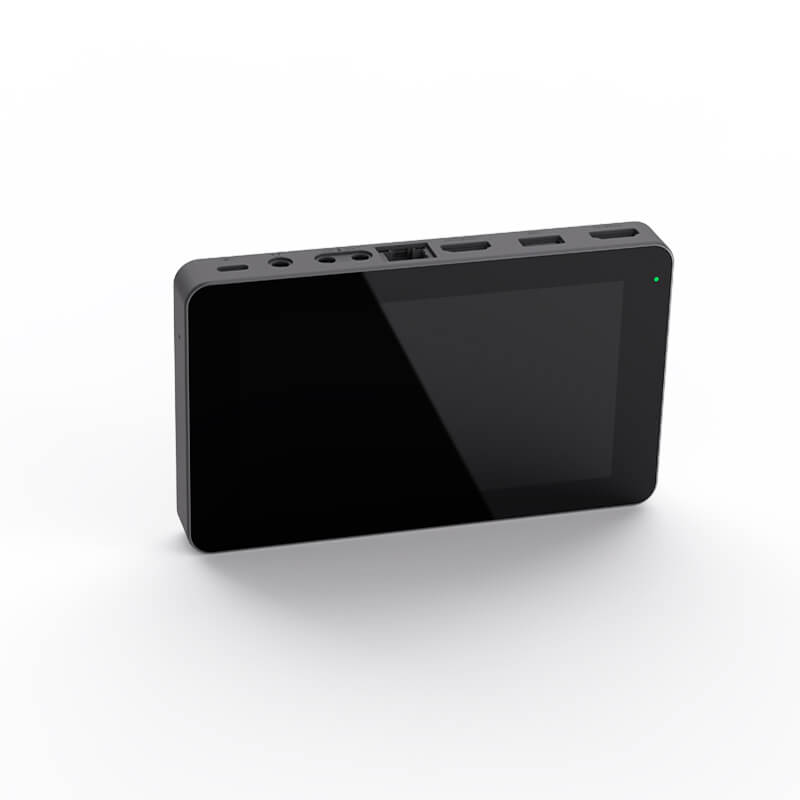

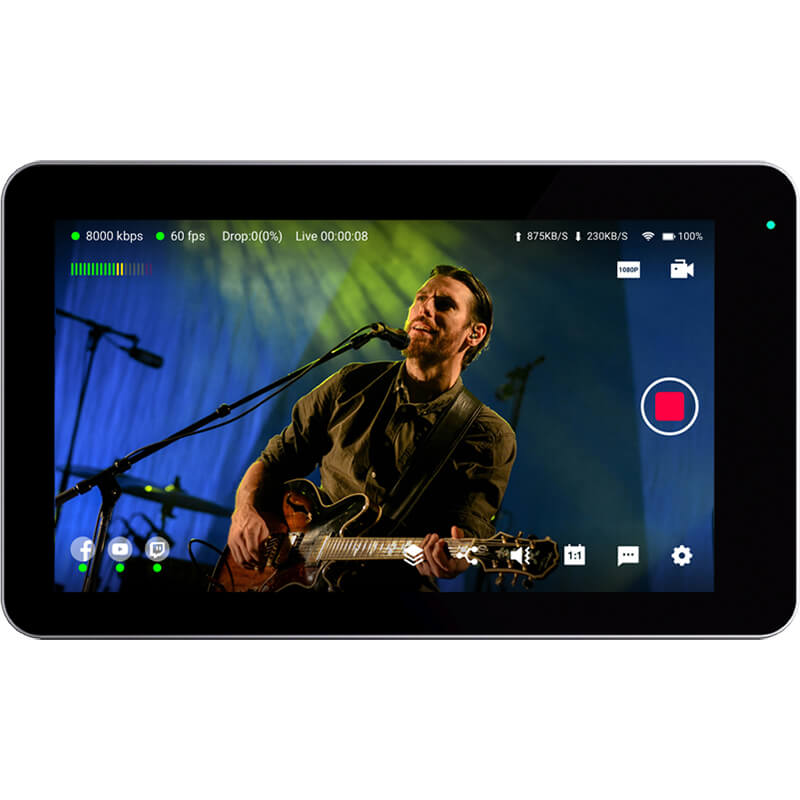

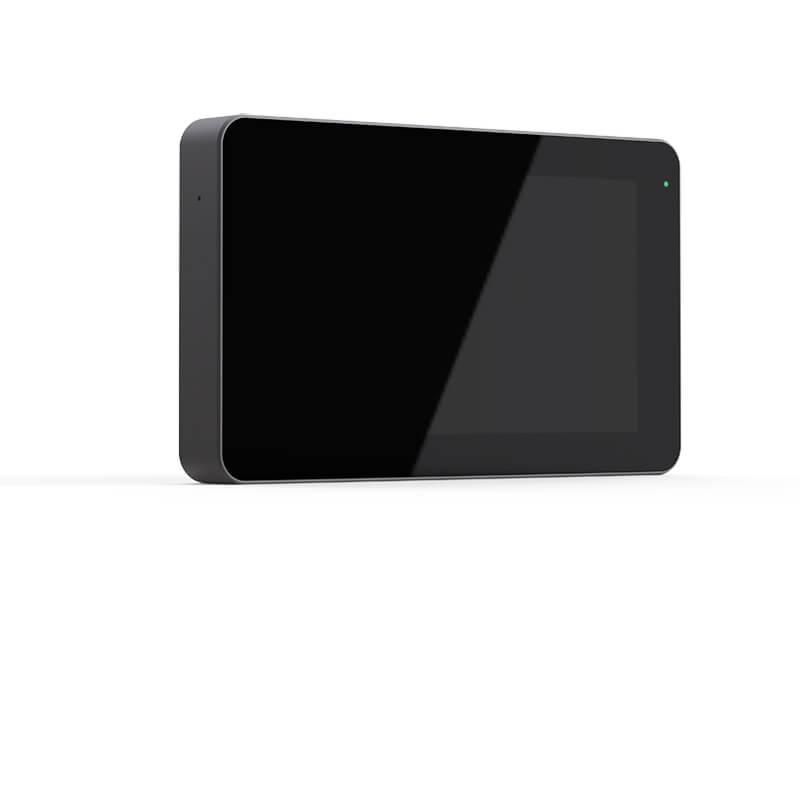

YoloBox Mini is a super portable live streaming encoder, monitor and recorder that is capable of incorporating many powerful features for high end work! As the name suggests, it’s very small compared to almost all other live-streaming solutions. You can fit it in your pocket, especially perfect for live events that require high mobility. If you’re looking for a mini but mighty live streaming solution for mobile live streaming needs, YoloBox Mini is your best choice.
WHY YOLOBOX MINI
Small in size, big in capabilities.
-
LIVE STREAM WHEREVER YOU GO
The compact encoder, monitor and recorder for live streaming on-the-go. A small-sized, cost-effective reliable h.264 encoder for transmitting high-quality video from anywhere. -
START STREAMING WITHIN SECONDS
A user-friendly live streaming solution that makes it accessible to people of all skill levels. Just plug in your camera and go live at the tap of a button. No need for a large crew or technical streaming expertise. -
DELIVER ROCK-SOLID RELIABLE VIDEOS
By gauging all available signals, including cellular, WiFi and Ethernet to connect to the most reliable network, and deliver the most compelling live productions at only a fraction of the cost of traditional live streaming methods. -
PORTABLE, AFFORDABLE & RELIABLE
If you’re considering a portable live streaming system, YoloBox Mini is the most economical solution, offering incredible value and professional capabilities. By inheriting all the functionalities implemented on all other YoloLiv products, it helps you get started in a professional and affordable manner. -
BEST FOR ONE-MAN CREW
With its quick setup and simple interface, YoloBox Mini makes it easier for people to get up and running saving hours of setup and teardown time. That makes it a perfect option for live streaming when it comes to a one-man crew.
FEATURES:
- Portable and Versatile Streaming Hardware Encoder
-
Go Live in 1080/60
Anybody can stream live online, but not everyone can make it professional. Bring your live productions to the next level with broadcast-quality 1080p60 video -
Stream to Multiple Destinations
Distribute your content to more viewers and streamline your workflow by simultaneously streaming to your favorite platforms, including Facebook, Youtube, Twitch or others through RTMP -
Graphic Overlays
Make your video productions stand out by adding custom scoreboards, text, logos, countdown timer and more. Creating proper stream graphics helps you convey your brand and keep your audiences engaged -
Monitor Mode
Utilize the device even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency -
4G LTE Support
Stream over all available networks from Ethernet, WiFi, 4G LTE modems and hotspots. Making sure you can always live stream with confidence even if you’re out with no Ethernet or WiFi around
YOLOBOX COMPARISON
| YoloBox | YoloBox Pro | YoloBox Mini | |
|---|---|---|---|
| Display | 7 inch LCD | 8 inch LCD | 5.5 inch LCD |
| Brightness | 350 nits | 400 nits | 500 nits |
| HDMI Input | 2 HDMI Inputs | 3 HDMI Inputs | 1 HDMI Input |
| USBC | Only one for charging | One for charging; Another full-featured USBC | Only one for charging |
| Total physical inputs | 3 (2 HDMI + 1 USB) | 5 (3 HDMI + 1 USB+1 USBC) | 2 (1 HDMI + 1 USBA) |
| Audio inputs | Audio In | Line In & Mic In | Line In & Mic In |
| USB Out | N/A | Yes! Recognised as a webcam by a computer | Yes! Recognised as a webcam by a computer |
| CPU | QualComm 625 | QualComm 660 | QualComm 660 |
Dimensions & Weight
- Height: 20 mm
- Width: 92.6 mm
- Length: 155 mm
- Weight: 320 g

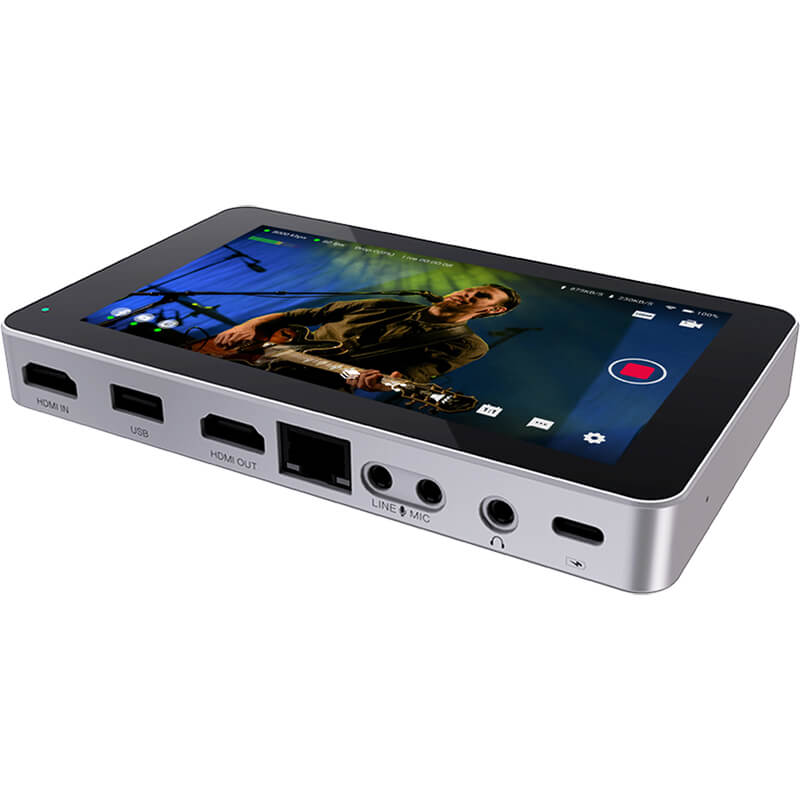

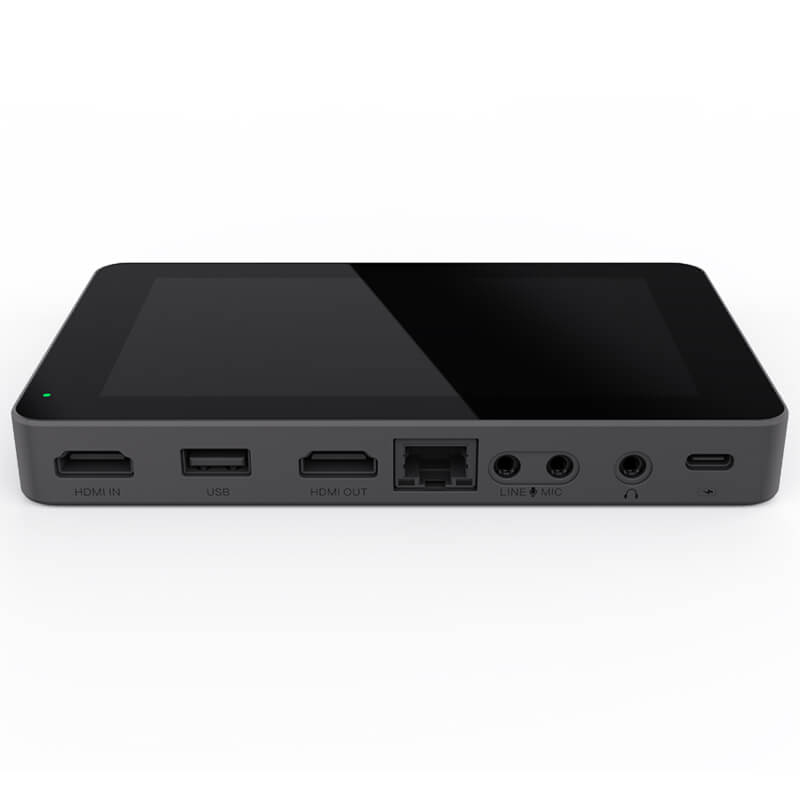

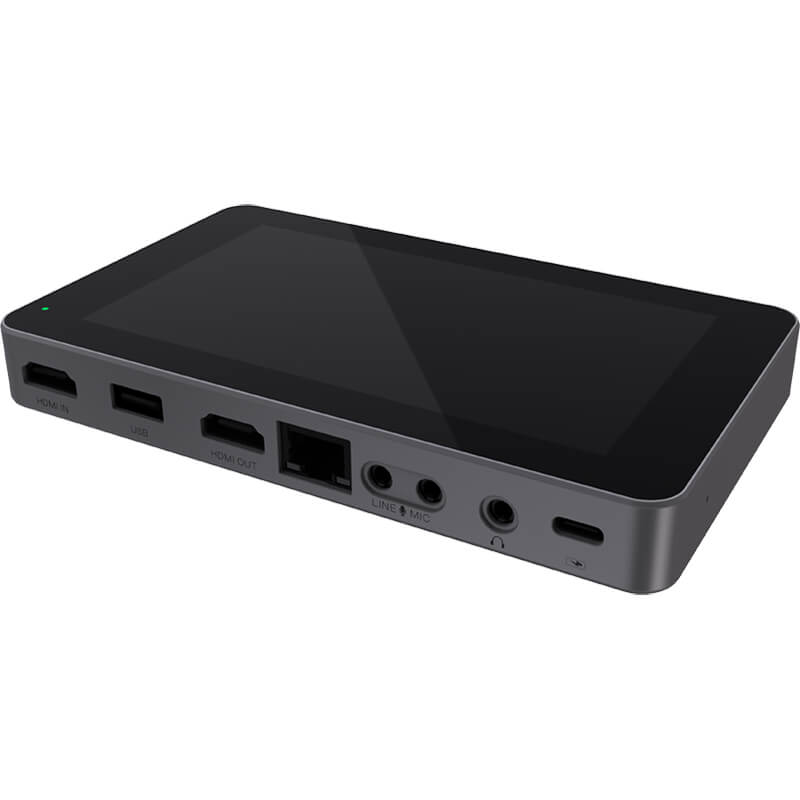

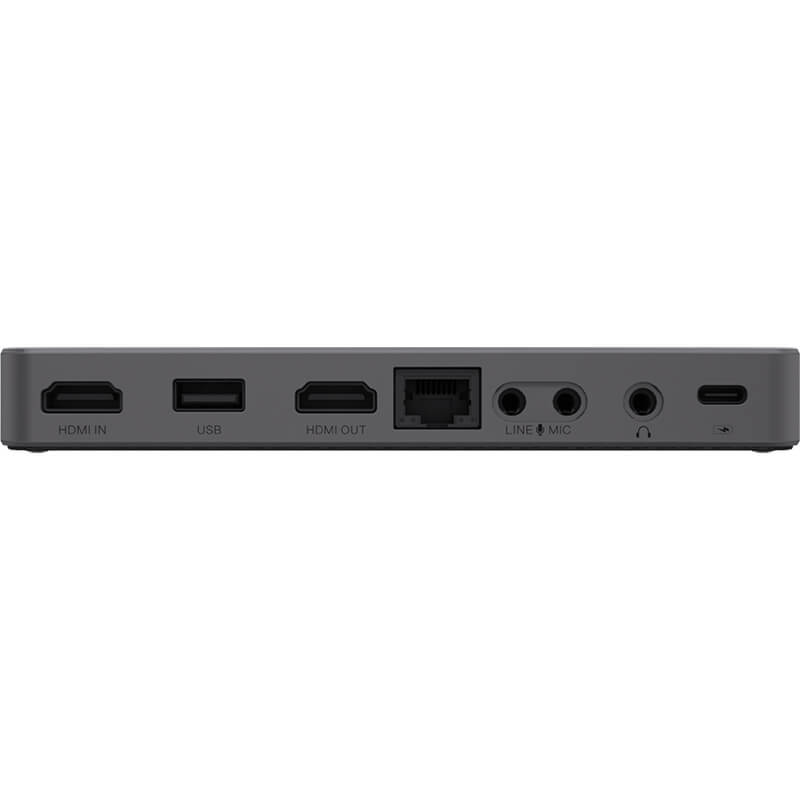

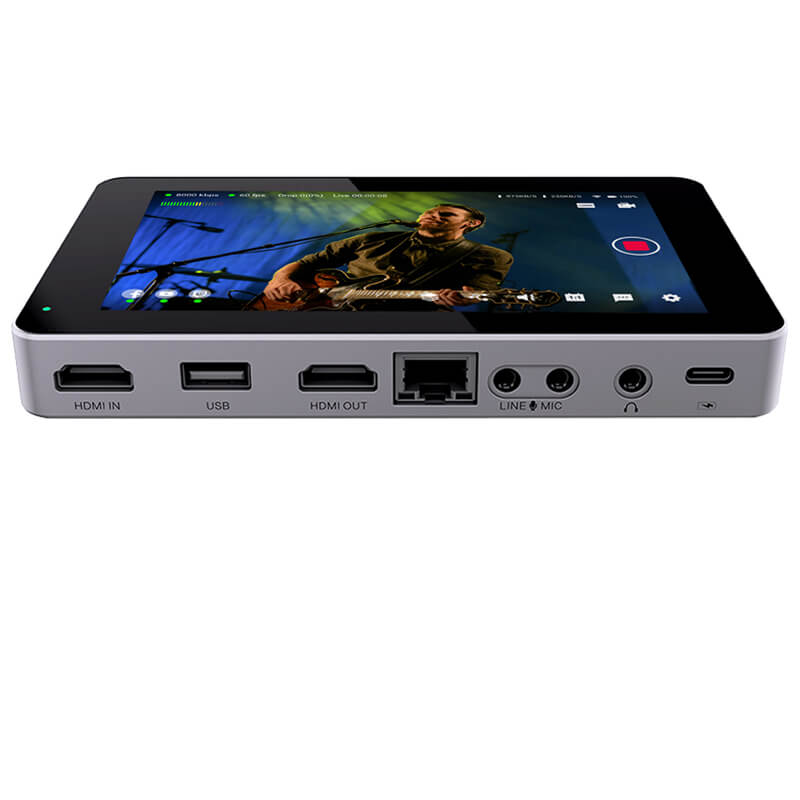

Ports
- 1 HDMI IN: Video input
- 2 USB IN: Video input
(Please note in some USB webcams, only video can be captured. Also, HDMI IN and USB IN sources cannot be used at the same time) - 3 HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
- 4 ETHERNET PORT: Connect to Internet by Ethernet cable
- 5 LINE IN: Stereo, connect to electric guitar or synthesizer
- 6 MIC IN: Mono, connect to microphone for recording
- 7 AUDIO OUT: Connect with 3.5mm monitor headphones
- 8 USB-C/TYPE-C: Power connector
- 9 1/4" Screw Hole: Mount YoloBox Mini with camera

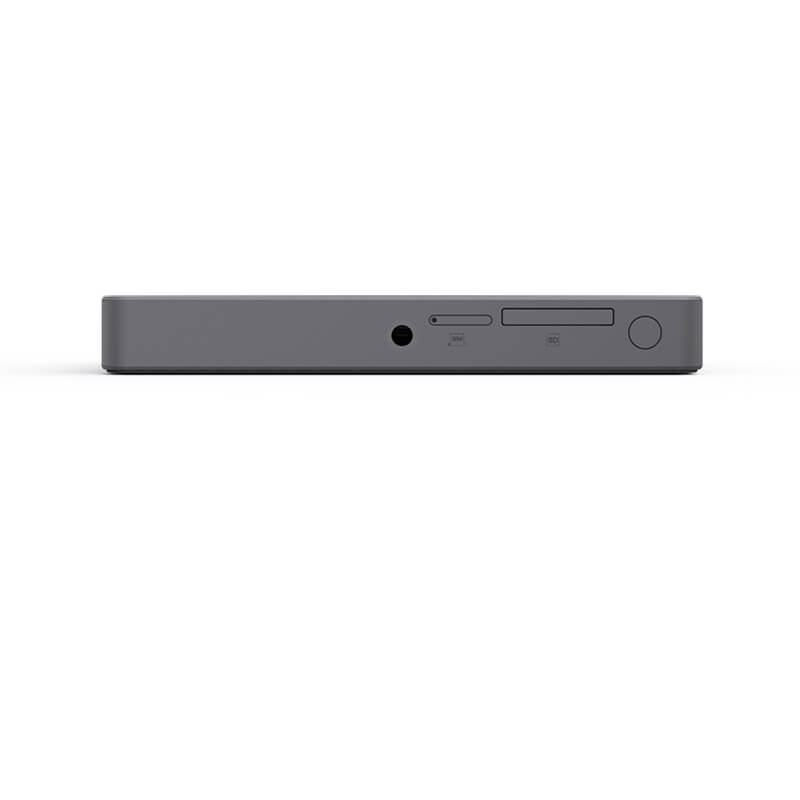

- 10 SIM Card Slot: Insert SIM card to connect to Internet
- 11 SD Card Slot: It's used for recording only
- 12 Power Button: Turn on and turn off
Encoded Format
- Video Encoded Format：H.264
- Audio Encoded Format：AAC (44.1k)
- Video Recorded format：MP4
- Audio Input Format：32kHz/44.1kHz/48kHz/16-bit/16kHz
- Video Input Format：1080i/720p/1080p
- Live Broadcast Resolution：480P/720P/1080P
- Frame Rate: Up to 60 fps
Video Storage
- Storage Card Type：SD Card
- Storage Card Capacity：Up to 1TB
- File System for SD Card: FAT32, exFAT, NTFS
Network Connection
- WiFi：2.4G/5G
- 4G Network Countries & Frequency Band For
Users：[NA：Variant for North America（US/Canada/Mexico）]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes：Mexico B4
- For Non-US/Canada/Mexico Users：（EM:Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin America/Australia/New Zealand）
Users：B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
Notes：Thailand B7
Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.
- SIM Card Size：Nano card
Power
- Power Interface：Type C, Quick Charge 3.0
- Battery Capacity：4700mAh
- Input power rating: 5V-2.5A;9V-2A;12V-1.5A;
- Output power rating: 5V@1.5A
Transmission
- Network Protocol：RTMP/RTMPS
Working Environment
- Operating Temperature：0℃-40℃
- Operating Humidity: 15%-85%, No Condensation
