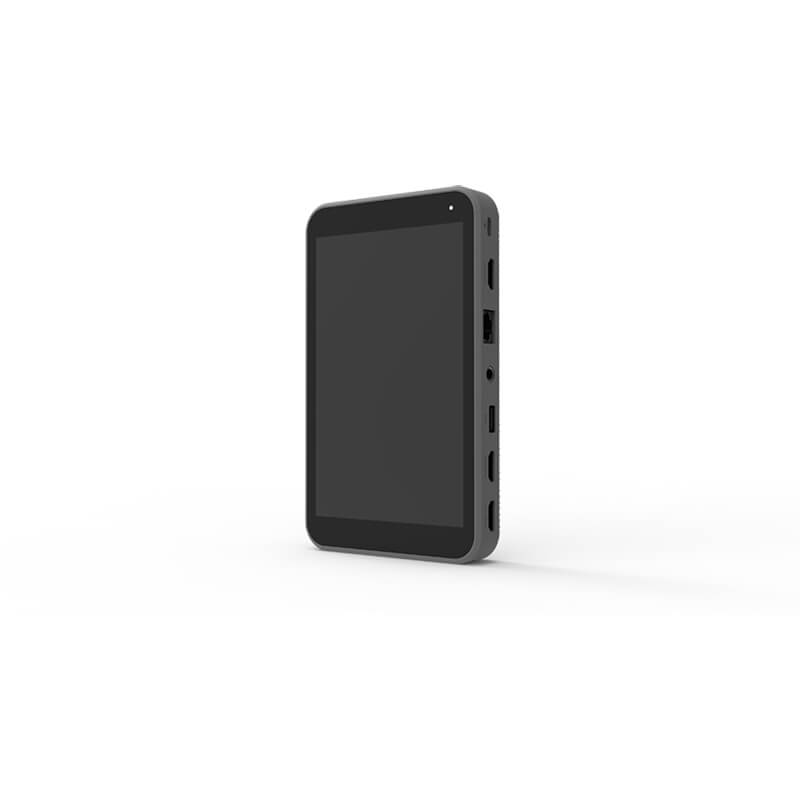

- All-in-One Multicam Vertical Live Streaming Studio
- Create better content for Instagram, TikTok & more
-
All in One
Encoder, switcher, recorder, monitor -
Multiple Capture Sources
2 HDMI In + 1 USB In + SD Card -
Running On Android OS
No computer/OBS required -
3 Ways to Connect
Wifi, 4G LTE, Ethernet -
Total Touch Screen Control
Operate intuitively as your smartphone -
Internal Battery
Lasts for 3+ hours -
Portability & Mobility
Compact size, fits into backpack -

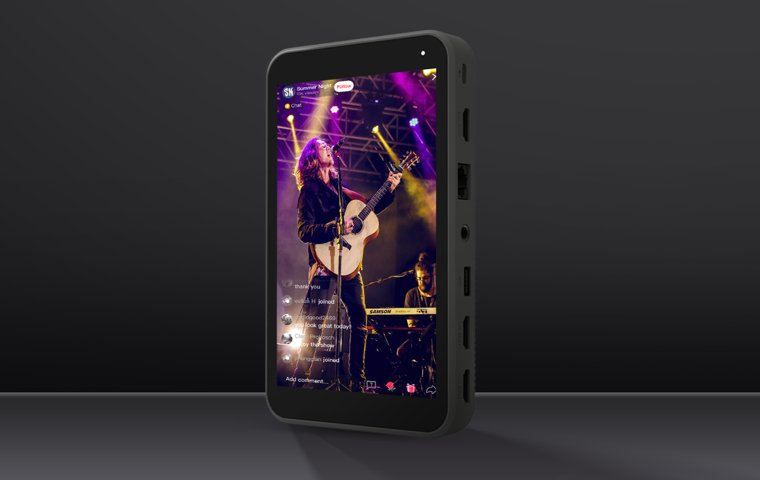

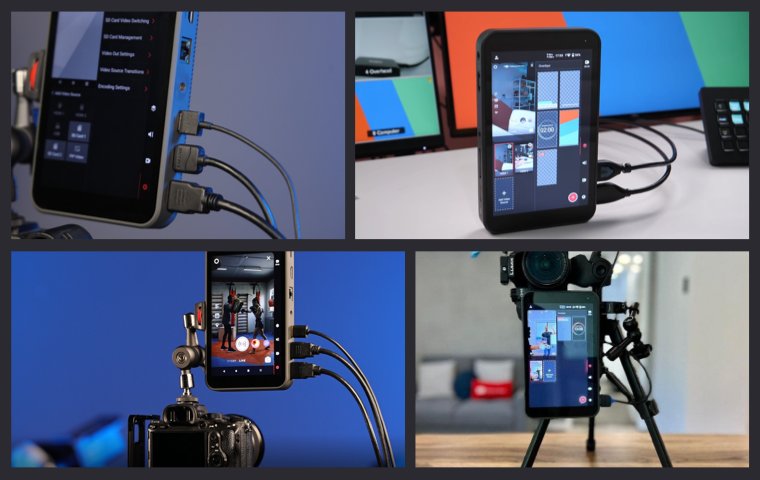

Live On the Go
Entire mobile live stream studio in one box
ALL PRO SOFTWARE FEATURES BUILT-IN
- Countdown Timers
- Picture In Picture
- Graphic Overlays
- Lower-Thirds
- Chroma Key
Dimensions & Weight
- Height: 25mm
- Width: 112.5mm
- Length: 188mm
- Weight: 600g

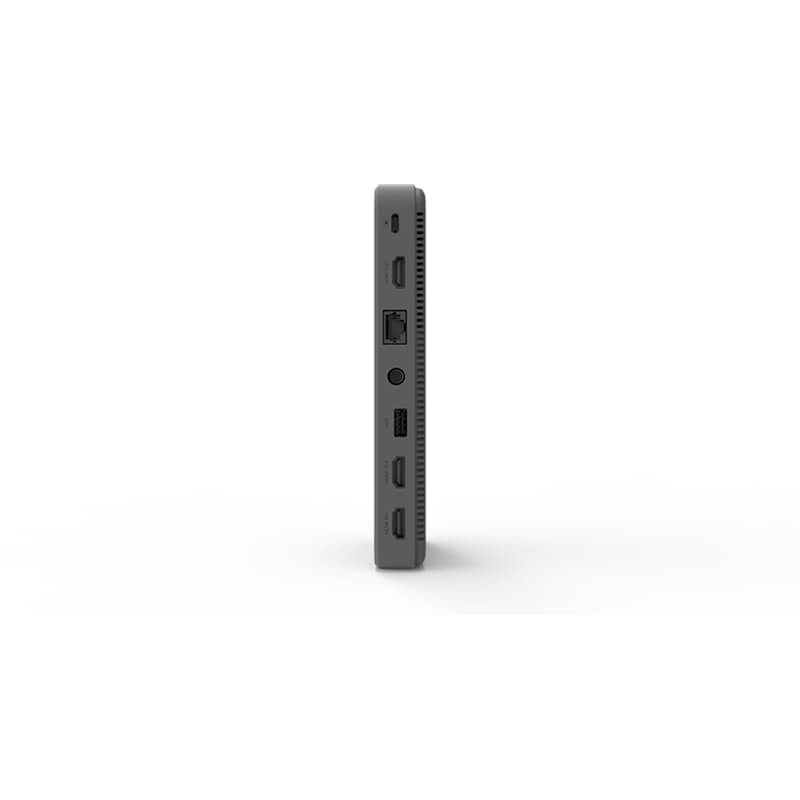

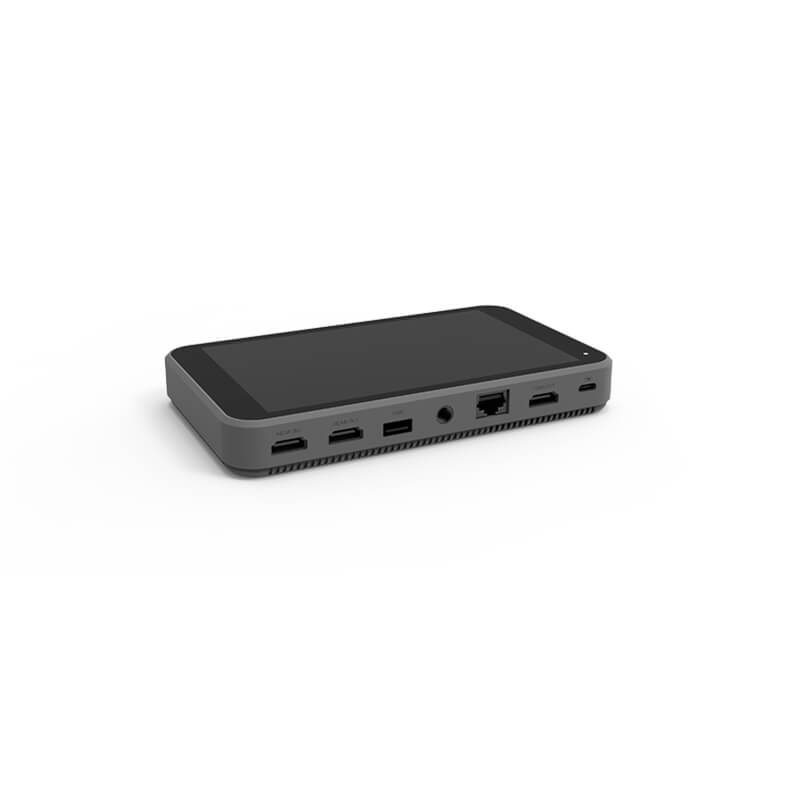

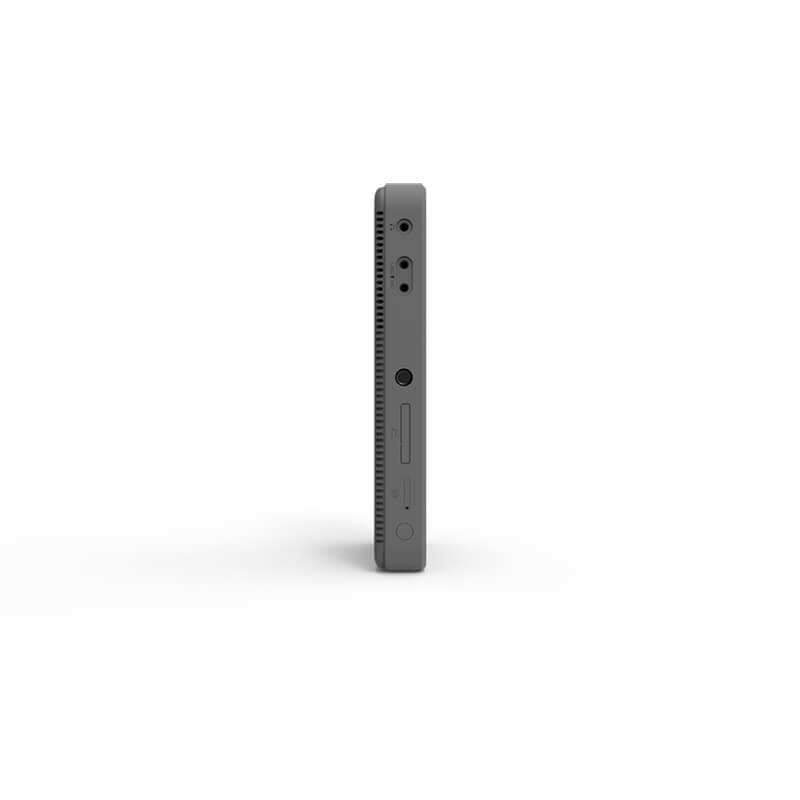

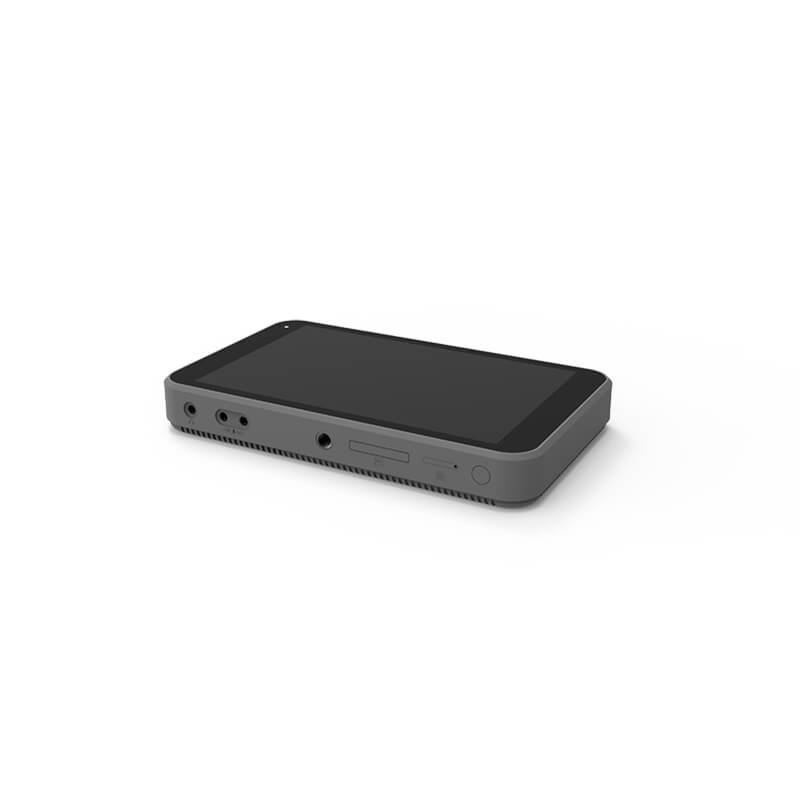

Ports
- 1HDMI IN: Video input
- 2HDMI IN: Video input
- 3USB-C: Video input
(Please note in some USB webcams, only video can be captured.) - 41/4" Screw Hole: Mount Instream Mini with camera
- 5ETHERNET PORT: Connect to Internet by Ethernet cable
- 6HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
- 7USB-C: Only for charging
- 8AUDIO OUT: Connect with 3.5mm monitor headphones
- 9LINE IN: Stereo, connect to electric guitar or synthesizer
- 10MIC IN: Mono, connect to microphone for recording
- 11SD Card Slot: Used for recording and loading graphics
- 12SIM Card Slot: Insert SIM card to connect to Internet
- 13Power Button: Turn on and turn off
Encoded Format
- Video Encoded Format:H.264
- Audio Encoded Format:(AAC)44.1K 2Ch 16bit
- Video Recorded format:MP4
- Audio Input Format:32KHZ/44.1KHZ/48KHZ :16bit
- Live Broadcast Resolution:480P/720P/1080P
- Frame Rate: Up to 60 fps
Video Storage
- Storage Card Type:SD Card
- Storage Card Type:SD Card
- File System for SD Card: FAT32, exFAT, NTFS
Network Connection
- WiFi: 2.4G/5G
- 4G Network: Global standard
- SIM Card Size: Nano card
CPU
- QualComm Snapdragon 845, 8-core Processo
Even more powerful than YoloBox Pro
Power
- Power Interface:Type C, Quick Charge 3.0
- Battery Capacity:10000mAh
- Input power rating: DC5V 3A,9V 2A,12V 1.5A
- Power Consumption: <18W
Transmission
- Network Protocol:RTMP/RTMPS
Working Environment
- Operating Temperature:0℃-40℃
- Operating Humidity: 15%-85%, No Condensation
- Network Protocol:RTMP/RTMPS
Working Environment
- Operating Temperature:0℃-40℃
- Operating Humidity: 15%-85%, No Condensation
