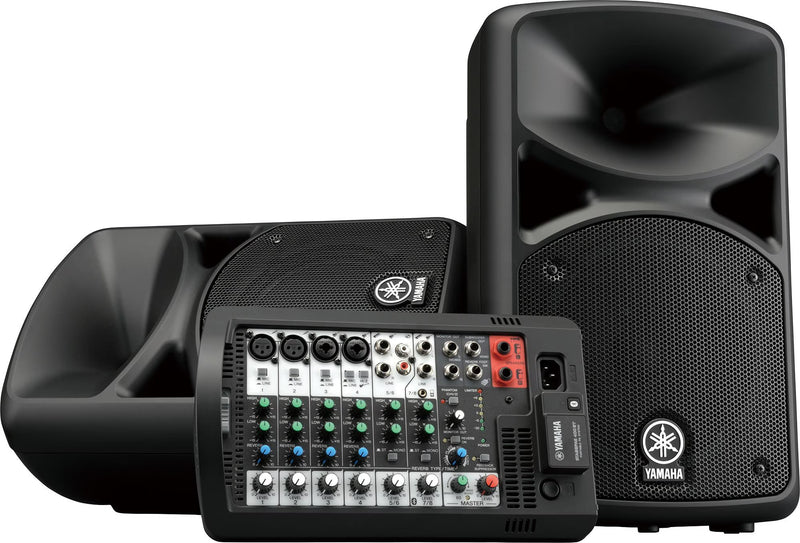

400-watt, portable PA system with 8-channel powered mixer, two 8" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
- 400W (200W + 200W) power output
- High quality speakers (LF:8" woofer/ HF:1" voice coil compression driver)

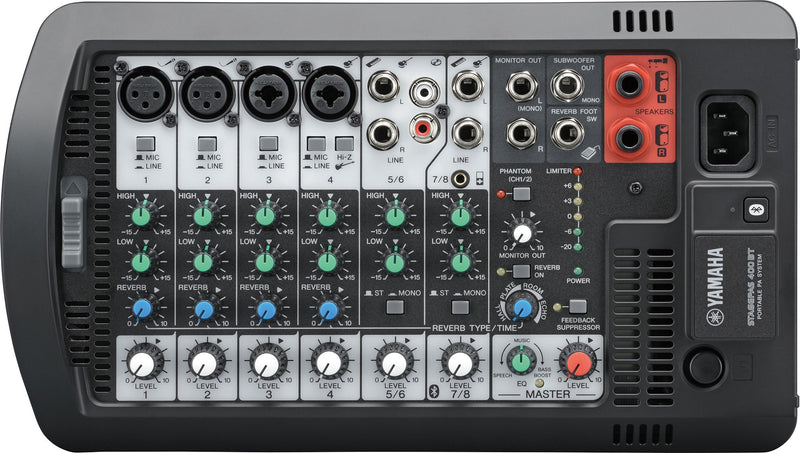

- Detachable 8-channel mixer (4 mono/line + 4 mono / 2 stereo line)
- Bluetooth® audio streaming
- 1-Knob Master EQ™ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 2-band channel EQ
- Switchable stereo/ mono inputs
- Hi-Z (high impedance) inputs
- Phantom power
- Monitor and Subwoofer outputs
When it comes to portable live sound solutions, it doesn't get any better than STAGEPAS. With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth® wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal stage.
The Ultimate All-in-One Portable PA System

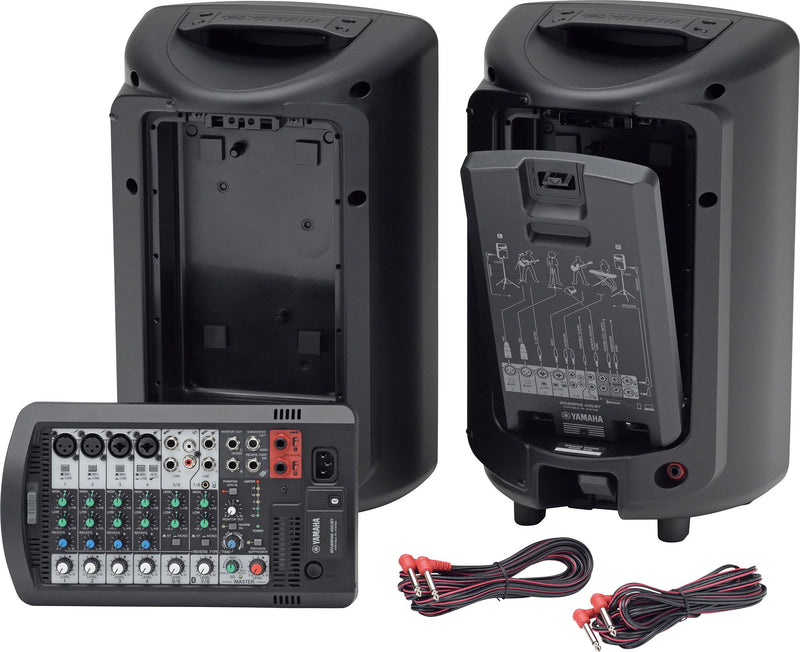

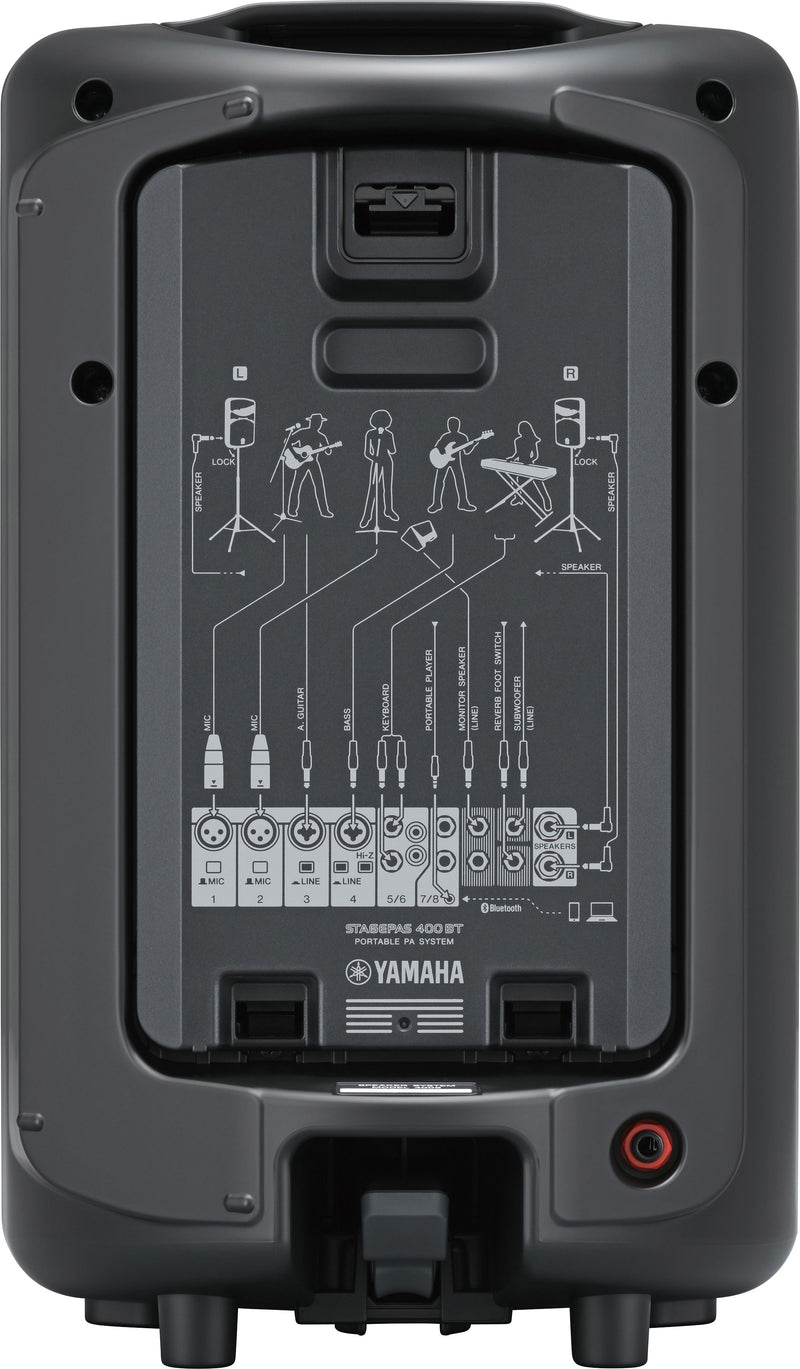

You can take literally anywhere the all-in-one PA system STAGEPAS which is compact and light enough to carry by hand. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.
Fast and easy set-up
With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute.
A PA for any occasion
Flexible enough to be used in a truly impressive range of environments and applications, STAGEPAS systems can be set up in a variety of PA and monitoring configurations.
Bluetooth® Wireless Audio Streaming
Equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets, the STAGEPAS-BT models let you seamlessly play backing tracks for gigs, or set the tone of parties, conferences, or events with the audio playback of your choice.
SPX digital reverb
One knob gives you access to four different high-quality reverb settings, perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.
1-Knob Master EQ™
This new function gives you instant mastery of your mix, allowing you to match your sound to your surroundings. Simply turn the knob to optimize the EQ for speaking engagements, musical performances, or just to kick in more bass; getting your sound right has never been so easy.
Feedback suppressor
Avoid the uncomfortable feedback that plagues so many sound reinforcement novices and professionals alike. Usually found only on high-end gear, this intelligent function removes feedback automatically with the push of a button, giving you a clear, professional sound.
Same sonic experience throughout a wider coverage area
For use in larger spaces with a sizable audience, STAGEPAS is capable of delivering consistent high-quality sound throughout a greater coverage area than ever before with custom-designed speaker components that ensure the entire audience shares the same sonic experience.
Intelligent DSP for peak performance that lasts
STAGEPAS utilises digital signal processing (DSP) to consistently produce high-quality, distortion-free sound at any volume level, whether you’re giving a business presentation or cutting loose in a club. What’s more, Yamaha’s intelligent DSP incorporates the use of advanced limiter circuits to protect vital STAGEPAS components, ensuring that you get the most out of your gear for years to come.
|
|
STAGEPAS 400BT |
STAGEPAS 600BT |
|
|
Outline |
|||
|
Type |
Powered mixer with 2 passive speakers |
Powered mixer with 2 passive speakers |
|
|
Mixing capability |
Mixing channels |
8 |
10 |
|
Input channel functions |
Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8 |
Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10 |
|
|
Output channel functions |
Feedback suppressor, 1-Knob Master EQ™ |
Feedback suppressor, 1-Knob Master EQ™ |
|
|
I/O |
Inputs |
4 mono mic / line + 4 mono / 2 stereo line |
4 mono mic / line + 6 mono / 3 stereo line |
|
Phantom power |
+30V (CH1, 2) |
+30V (CH1, 2) |
|
|
Outputs |
SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF |
SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF |
|
|
Bluetooth |
Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m |
Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m |
|
|
Control and others |
Reverb foot switch |
Reverb foot switch |
|
|
Input Channel Function |
Hi-Z |
CH4 |
CH4 |
|
EQ HIGH |
HIGH Shelving: 8 kHz |
HIGH Shelving: 8 kHz |
|
|
EQ LOW |
LOW Shelving: 100 Hz |
LOW Shelving: 100 Hz |
|
|
EQ MID |
- |
MID peaking: 2.5 kHz |
|
|
On-board processors |
DSP |
SPX digital reverb (4 program, parameter control) |
SPX digital reverb (4 program, parameter control) |
|
On-board amplifiers |
Maximum output power @4ohms |
400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous) |
680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous) |
|
General specifications |
|||
|
Speaker type |
Two-way bass-relfex speakers |
Two-way bass-relfex speakers |
|
|
Frequency range (-10dB) |
55 Hz - 20 kHz |
55 Hz - 20 kHz |
|
|
Nominal coverage |
H |
90° |
90° |
|
V |
60° |
60° |
|
|
Floor Monitor Angle |
50° |
50° |
|
|
Components |
LF |
8" (20 cm) cone |
10" (25 cm) cone |
|
HF |
1" (2.54 cm) voice coil compression driver |
1.4" (3.56 cm) voice coil compression driver |
|
|
Maximum output level (1m; on axis) |
125 dB SPL / speaker |
129 dB SPL / speaker |
|
|
Power requirements |
100 V - 240 V 50 Hz/60 Hz |
100 V - 240 V 50 Hz/60 Hz |
|
|
Power consumption |
30 W (Idle), 70 W (1/8 Power) |
35 W (Idle), 100 W (1/8 Power) |
|
|
Pole socket |
34.8-35.2 mm pole socket with StageLok™ |
34.8-35.2 mm pole socket with StageLok™ |
|
|
Accessories |
Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties |
Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties |
|
|
Options |
Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF |
Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF |
|
|
Others |
Handle: 1 x Top |
Handle: 1 x Top |
|
|
Dimensions (W x H x D) |
Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm |
Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm |
|
|
Weight |
18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg) |
25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg) |
|
