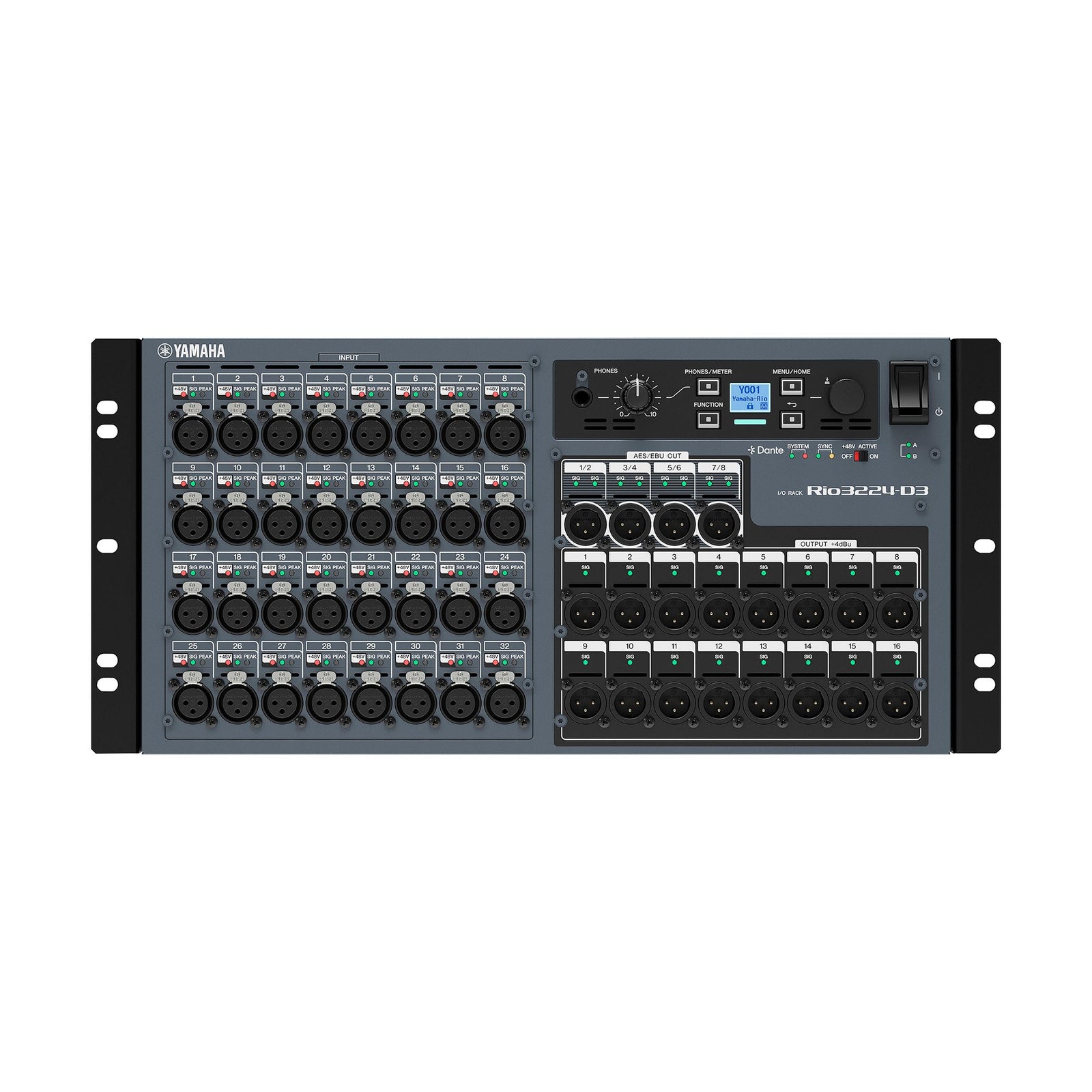

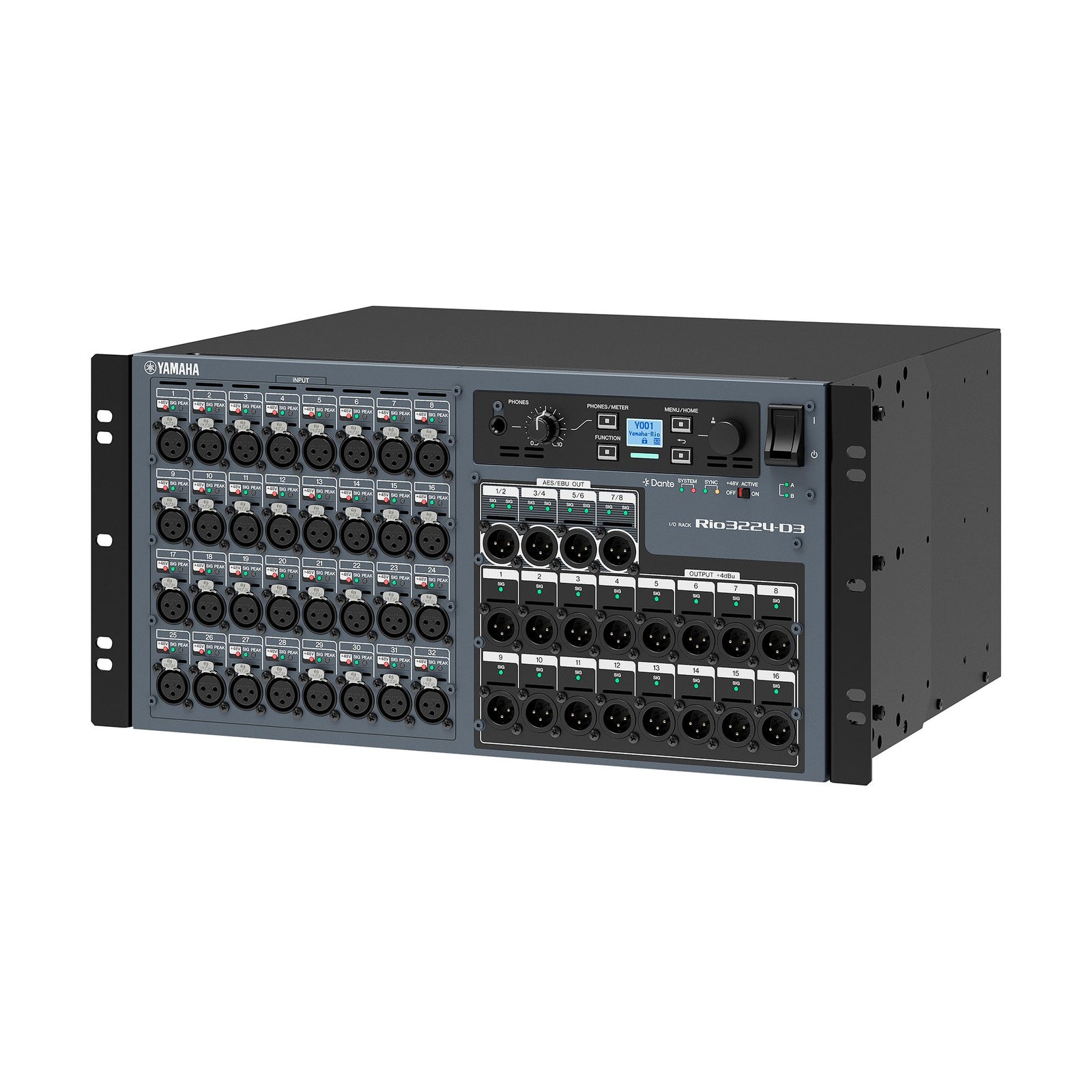

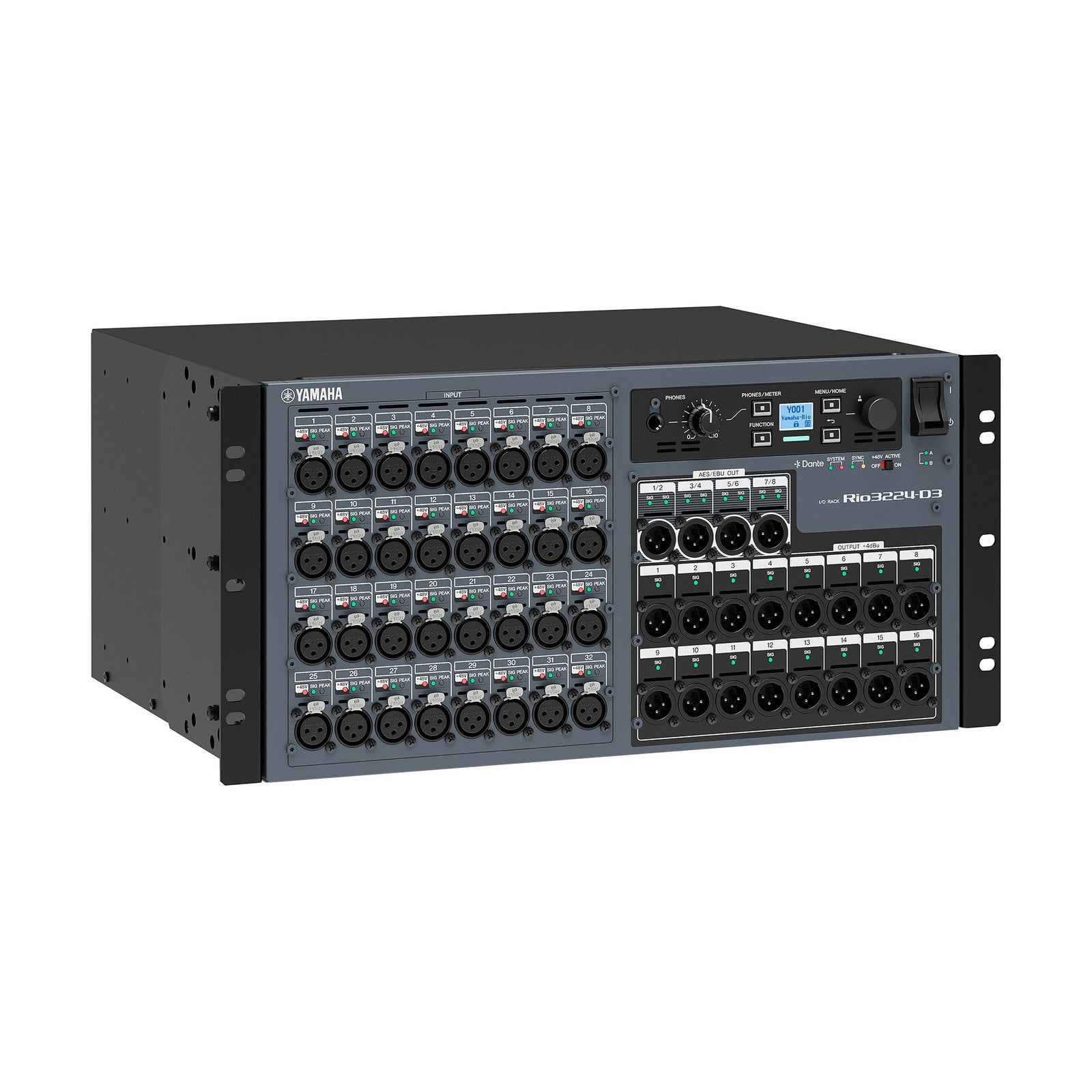

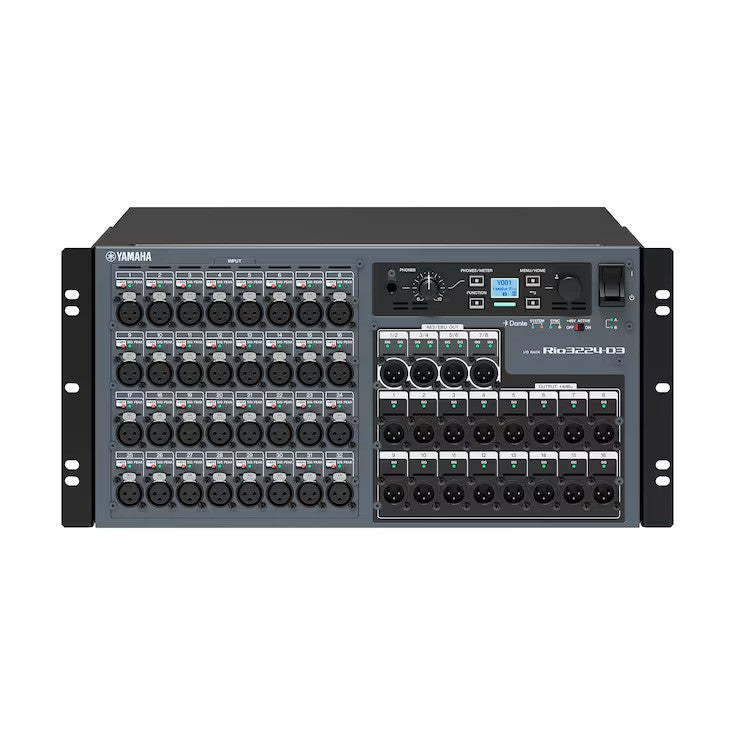

Yamaha Rio3224-D3 Digital Stagebox

YamahaSKU: CRIO3224D3

Price:
Sale price €14,999.00

This Dante-compatible unit features 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio3224-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.

  • Analog I/O: 32 inputs / 16 outputs
  • AES/EBU: 8 outputs
  • Dante: 26 receive / 32 transmit channels
  • Comprehensive display and local control of gain, delay and other parameters.
  • Dual power supply units are built in for high reliability.
  • Onboard headphone socket
  • Power consumption: 100 W
  • Dimensions (WxHxD): 480 x 220 x 370 mm (18.9” x 8.7” x 14.6”)
  • Net Weight: 13.2 kg (29.1 lb)

Refined acoustic performance meets ultimate flexibility

The third generation Rio3224-D3 and Rio1608-D3 are premium-quality, Dante-compatible I/O racks that deliver improved overall performance and come equipped with a newly added headphone socket, output delay, and a phase function, further expanding an already impressive range of potential applications. Both models are compatible with a wide range of Yamaha consoles, from our high-end RIVAGE PM and DM7 series digital mixers, to our industry standard CL and QL series consoles, playing a crucial role in configuring new systems or adding flexibility and depth to an existing sound reinforcement solution.

Discover True Sound

Throughout Yamaha’s history of digital mixer development, we’ve sought to capture every note played, every word spoken, with absolute fidelity at the input stage; sound that reproduces the intricacies, nuance and emotion of a performance with stunning accuracy. This gives audio engineers an ideal sonic foundation to build upon to ensure their sound is delivered and received exactly as intended using the versatile tools of our mixers and processors. The Rio3224-D3 and Rio1608-D3 inherit this legacy of “True Sound” by further diminishing noise levels and delivering sound with an even wider dynamic range than their predecessors.

    Yamaha R Series (AD/DA): 3rd-generation "Valuable features for added convenience"

    Valuable features for added convenience

    The Rio3224-D3 and Rio1608-D3 I/O racks come equipped with a headphone socket on the main unit allowing users to check the input/output audio locally, which is particularly useful for systems requiring complex network connections.

    In addition to local input and output, audio assigned to the two channels behind the Dante receive channel can also be selected as an audio source, enabling usage as a direct line of communication with the sound engineer.

    Both models also feature new delay, phase, and level control functions which will provide significantly more flexibility and convenience for RIVAGE PM series system users in particular.

      Yamaha R Series (AD/DA): 3rd-generation "Dante Network Protocol for Flexible System Setup"

      Dante Network Protocol for Flexible System Setup

      Audinate’s Dante network protocol offers considerable flexibility and convenience during system configuration and setup in particular, by reducing the number of connections, cabling, and even personnel required for more sizeable systems. Dante gives users the freedom to add, and place just about any combination of compatible devices in the most convenient location or position specific to their application. Dante-enabled systems also allow for redundancy that will keep the system running even if a problem with the primary network occurs. Audinate’s user-friendly Dante Controller software makes setting up and managing patching of Dante-enabled devices faster and more efficient.

      A separate network port for system monitoring and device control is provided from the Dante network port, giving users additional flexibility when configuring a system specific to a particular venue or application.

      In addition to supporting the AES67 standard for audio over IP interoperability, Dante offers other crucial features for professionals, such as Dante Device Lock to prevent unauthorised operation, and the Dante Domain Manager for efficient user authentication and role-based security.

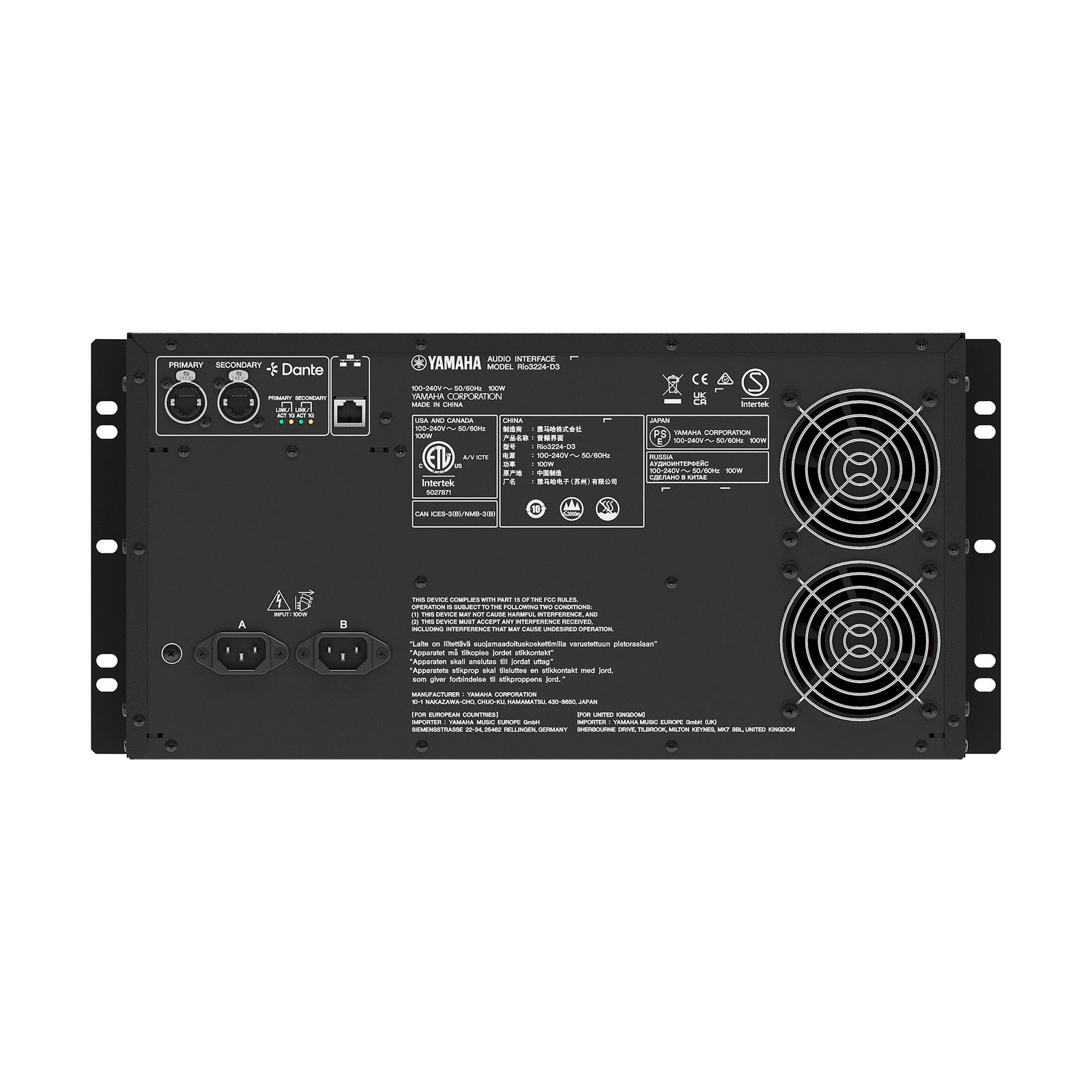

      Dual Redundant Power Supplies and Improved, Quiet Operation

      I/O device power failure during live operation of a PA system can wreak untold havoc on a performance or event, negatively impacting performers, engineers, and audience alike. Both the Rio3224-D3 and Rio1608-D3 I/O racks feature dual power supply units in order to significantly reduce the likelihood of power loss that would result in downtime during a show. If one power source is compromised, operation will continue unaffected as long as the secondary power source is active. Additionally, a redesign of the internal airflow of each model has resulted in notably quieter operation by reducing fan noise.

        Yamaha R Series (AD/DA): 3rd-generation "Digital Compensation for Analog Gain Changes"

        Digital Compensation for Analog Gain Changes

        When operators using separate mixing consoles connected to one I/O rack make analog gain changes, the results can be unpredictable and often undesirable. To combat the potential for such issues, the Rio3224-D3 and Rio1608-D3 feature a Gain Compensation function that automatically adjusts gain at the digital stage to compensate for analog gain changes from separate consoles, ensuring consistent, worry-free sound.

        Yamaha Rio 3rd Generation Specs:



        Rio3224-D3

        Rio1608-D3

        General specifications

        Sampling frequency rate

        External

        44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)

        44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)

        Signal delay

        Less than 1.7 ms, Rio-D3 INPUT to Rio-D3 OUTPUT connect with DM7 using Dante, Fs=96 kHz. Dante Receive Latency set to 0.25 msec

        Less than 1.7 ms, Rio-D3 INPUT to Rio-D3 OUTPUT connect with DM7 using Dante, Fs=96 kHz. Dante Receive Latency set to 0.25 msec

        Total harmonic distortion

        Less than 0.05% +4 dBu@20 Hz - 20 kHz, GAIN : -6 dB into 600 Ω, Less than 0.15% +4 dBu@20 Hz - 20 kHz, GAIN: +66 dB into 600 Ω

        Less than 0.05% +4 dBu@20 Hz - 20 kHz, GAIN: -6 dB into 600 Ω, Less than 0.15% +4 dBu@20 Hz - 20 kHz, GAIN: +66 dB into 600 Ω

        Frequency response

        +0.5, –1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @1 kHz, input to output, Fs= 48 kHz or 96 kHz

        +0.5, –1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @1 kHz, input to output, Fs= 48 kHz or 96 kHz

        Dynamic range

        120 dB typ., DA Converter, 115 dB typ., Input to Output, GAIN: -6 dB

        120 dB typ., DA Converter, 115 dB typ., Input to Output, GAIN: -6 dB

        Hum & noise level

        Equivalent input noise

        -128 dBu typ., GAIN: +66 dB

        -128 dBu typ., GAIN: +66 dB

        Residual output noise

        -93 dBu, main stereo channel off

        -93 dBu, main stereo channel off

        Crosstalk

        INPUT: -100 dB, adjacent inputs, GAIN: -6 dB, @1 kHz, OUTPUT: -100 dB, input to output, @1 kHz

        INPUT: -100 dB, adjacent inputs, GAIN: -6 dB, @1 kHz, OUTPUT: -100 dB, input to output, @1 kHz

        Power requirements

        100 - 240 V, 50/60 Hz

        100 - 240 V, 50/60 Hz

        Power consumption

        100 W

        60 W

        Dimensions

        W

        480 mm (18.9")

        480 mm (18.9")

        H

        220 mm (8.7")

        132 mm (5.2")

        D

        370 mm (14.6")

        370 mm (14.6")

        Net weight

        13.2 kg (29.1 lb)

        9.4 kg (20.7 lb)

        Accessories

        Owner’s Manual, AC power cord×2, Open-Source Software License

        Owner’s Manual, AC power cord×2, Open-Source Software License

        Others

        NC Value: Fan Speed LOW: NC=20 / HIGH: NC=30 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C

        NC Value: Fan Speed LOW: NC=15 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C

        • Total Harmonic Distortion is measured with 18 dB/octave filter @80 kHz
        • Hum & Noise are measured with A-Weight filter.
        • Crosstalk is measured with a 30 dB/octave filter @22 kHz

        Analog Input Characteristics

        Input Terminals

        GAIN

        Actual Load Impedance

        For Use With Nominal

        Input Level

        Connector

        Sensitivity*1

        Nominal

        Max. before clip

        INPUT 1-32 (1-16)

        +66 dB

        7.5 kΩ

        50-600 Ω Mics & 600 Ω Lines

        –82 dBu (0.062 mV)

        -62 dBu (0.616 mV)

        -42 dBu (6.16 mV)

        XLR 3-hole chassis (Balanced)*2

        -6 dB

        –10 dBu (245 mV)

        +10 dBu (2.45 V)

        +30 dBu (24.5 V)

        0 dBu = 0.775 Vrms.
        +48 V DC (phantom power) is supplied to the [INPUT] 1-32 (1-16) connectors via each individual software-controlled switch.
        *1. Sensitivity is the minimum level needed to output +4 dBu (1.23 V) or the specified level when the gain is set to maximum. (All faders and level controls are set to maximum.)
        *2. 1=GND, 2=HOT, 3=COLD

        Analog Output Characteristics

        Output Terminals

        Actual Source Impedance

        For Use With Nominal

        Output Level*1

        Connector

        Nominal

        Max. before clip

        OUTPUT 1-16 (1-8)

        75 Ω

        600 Ω Lines

        +4 dBu (1.23 mV)

        +24 dBu (12.3 mV)

        XLR 3-pin chassis (Balanced)*2

        PHONES

        10 Ω

        8 Ω Lines

        60 mW*3

        60 mW

        TRS PHONE (6.3 mm) (STEREO PHONE) (Unbalanced)

        40 Ω Lines

        60 mW*4

        100 mW

        0 dBu = 0.775 Vrms.
        *1. You can change the output level for the [OUTPUT +4dBu] 1-16 (1-8) connectors. Contact your Yamaha dealer.
        *2. 1=GND, 2=HOT, 3=COLD
        *3. The [PHONES] level knob is set to 12 dB below maximum.
        *4. The [PHONES] level knob is set to 10 dB below maximum.

        Digital Input & Output Characteristics

        Terminals

        Format

        Data Length

        Level

        Audio

        Connector

        PRIMARY/SECONDARY

        Dante

        24-bit or 32-bit

        1000BASE-T

        32ch (Rio3224-D3 to other devices)

        26ch (Other devices to Rio3224-D3)

        etherCON CAT5e

        16ch (Rio1608-D3 to other devices)

        10ch (Other devices to Rio1608-D3)

        AES/EBU 1/2, 3/4, 5/6, 7/8*1

        AES/EBU Professional use

        24-bit

        RS422

        2ch output

        XLR 3-pin chassis (Balanced)*2

        *1. Implemented only on the Rio3224-D3.
        *2. 1=GND, 2=HOT, 3=COLD

        Control I/O Standards

        Terminals

        Format

        Connector

        NETWORK

        IEEE802.3

        1000BASE-T/100BASE-TX

        RJ-45

        Use STP cables for connections.
