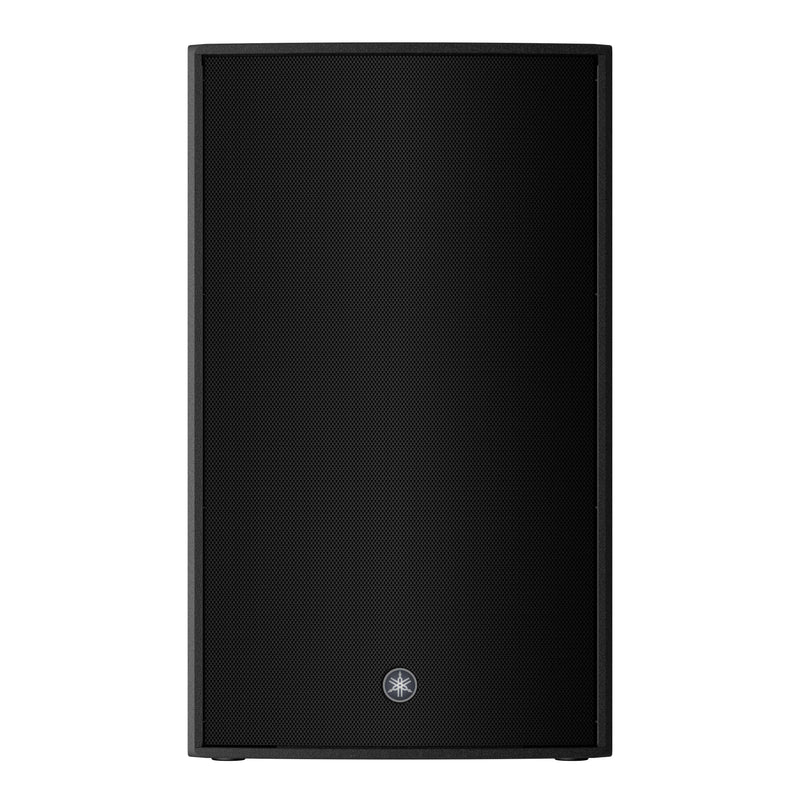

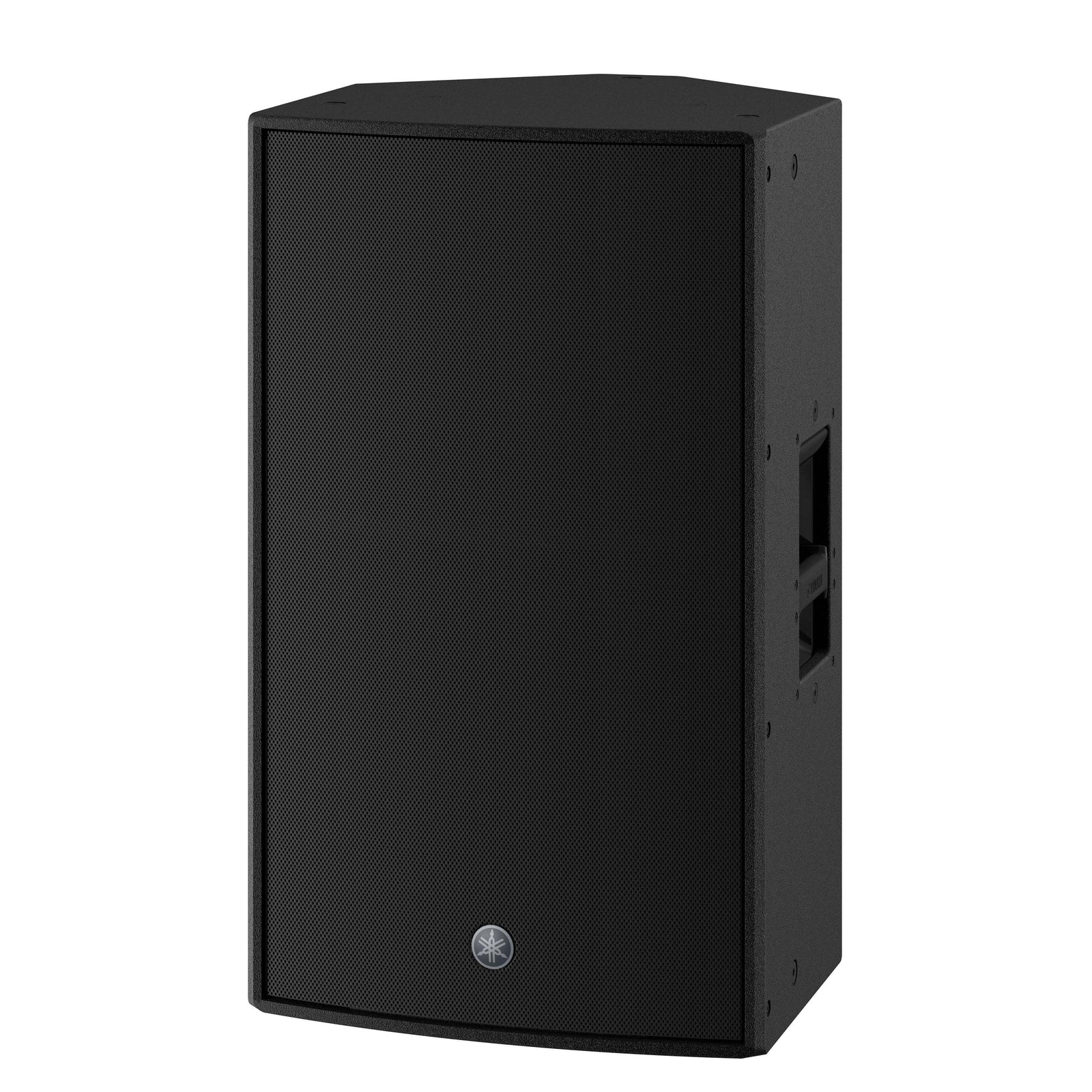

The CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
- 2-way loudspeaker with a 2” HF and a 15" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 800W(PGM) power handling and Bi-amp capable

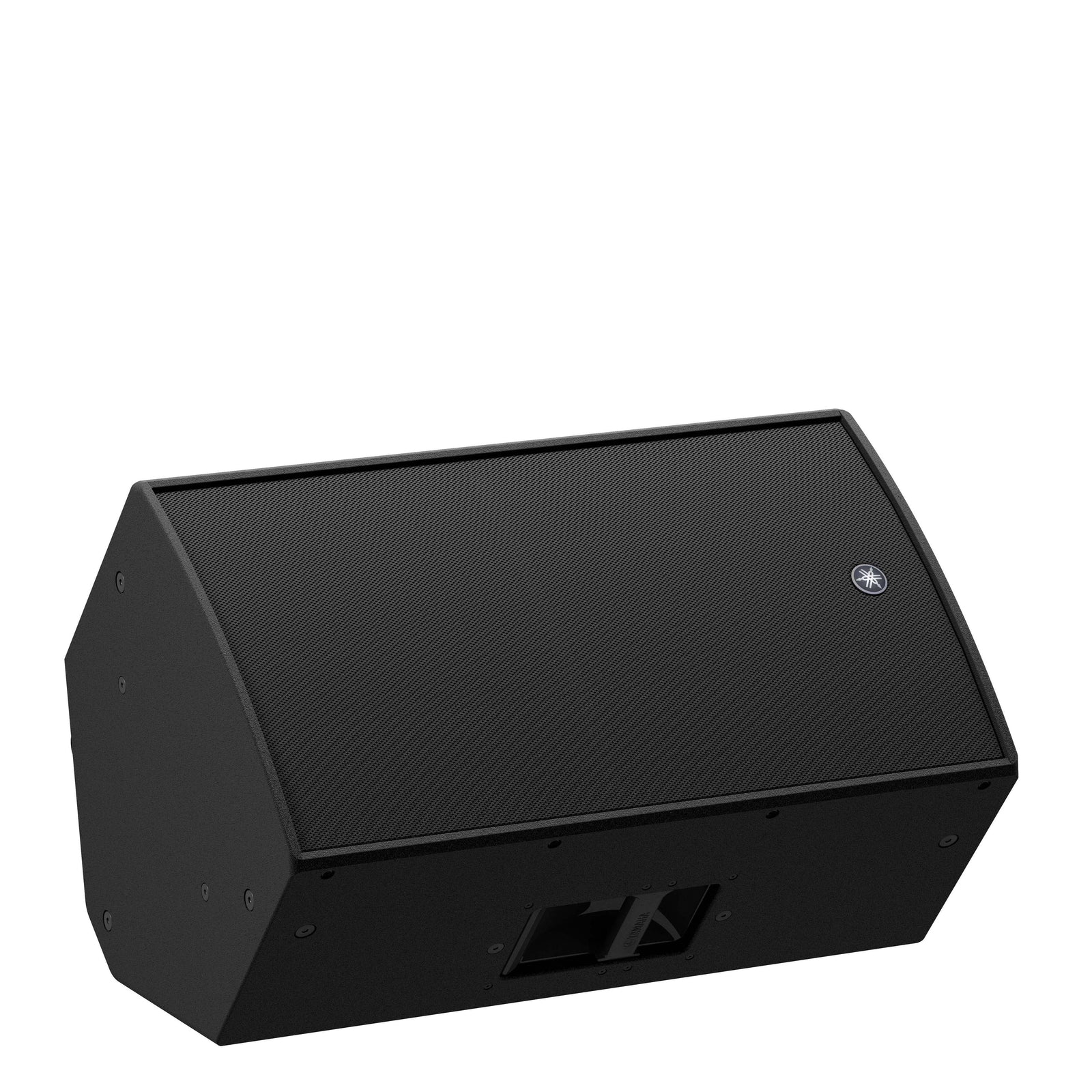

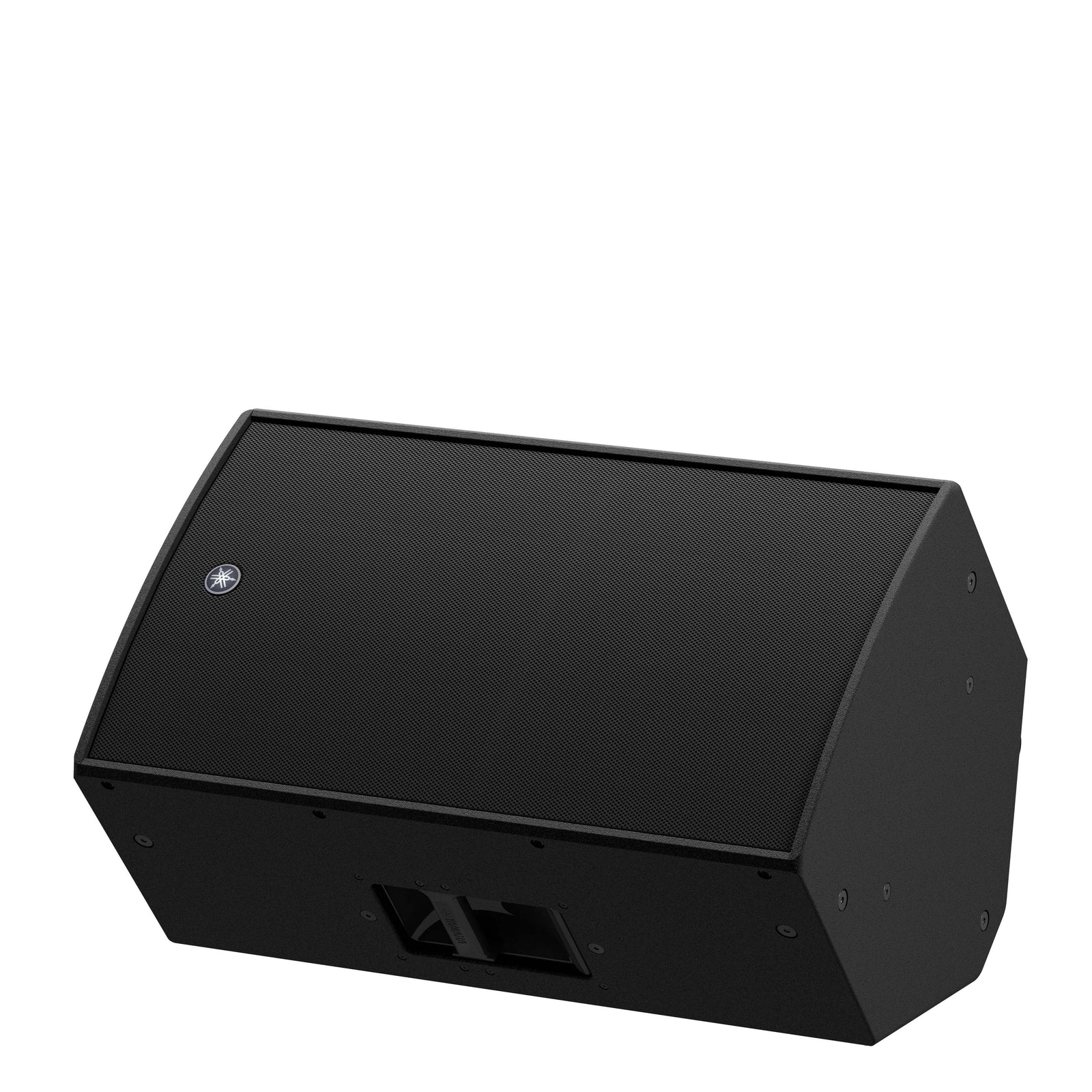

- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR15)
- Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement

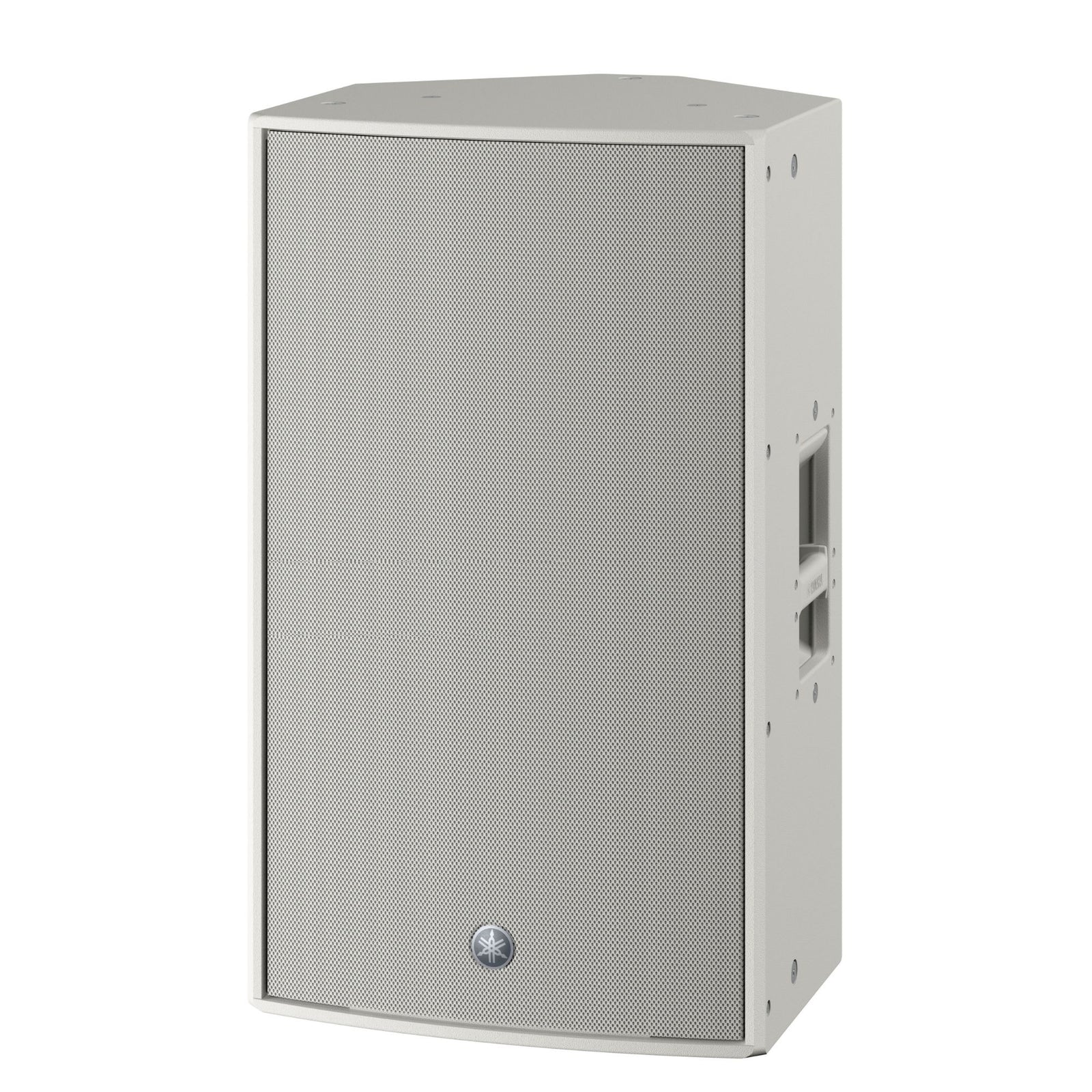

- Durable Black or white finish
The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments — from live bands at outdoor festivals to DJ’s in clubs — these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
Focused sound for flexible installation

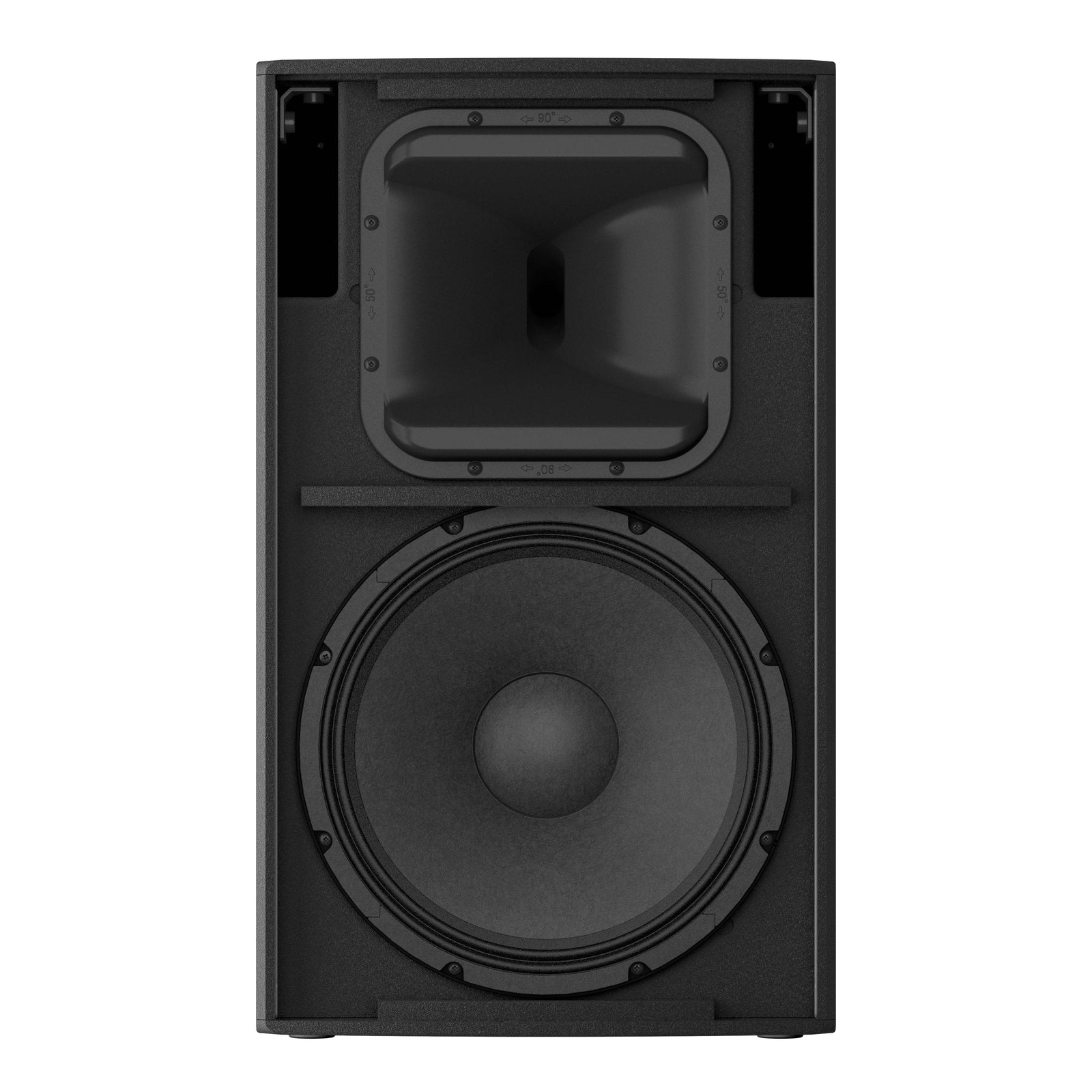

The CZR Series features 15˝, 12˝ and 10˝ models with transducers with die-cast aluminium frames with a 3˝ voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2˝ voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally.
Best in Class SPL performance
The CZR15 and CZR12 can both produce 129dB SPL with a power rating of 800W for the CZR15 and CZR12, and 700W for the CZR10 in passive mode. Every CZR model is also equipped with Biamp mode to maximise performance.
Intelligent processing to maximise system performance
When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings.
Premium materials. Road-tested toughness
The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level.
Flexible Deployment Options
CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts*. Specialised U brackets are also available for convenient flying/hanging installation.
*Eyebolts not included.
CZR Series Specifications:
|
|
CZR15 / CZR15W |
CZR12 / CZR12W |
CZR10 / CZR10W |
|
|
General specifications |
||||
|
Speaker type |
2-way Speaker, Bass-reflex |
2-way Speaker, Bass-reflex |
2-way Speaker, Bass-reflex |
|
|
Frequency range (-10dB) |
Passive: 43 Hz - 20 kHz, Normal (*1): 34 Hz - 20 kHz, FOH (*1): 33 Hz - 20 kHz |
Passive: 43 Hz - 20 kHz, Normal (*1): 42 Hz - 20 kHz, FOH (*1): 38 Hz - 20 kHz |
Passive: 43 Hz - 20 kHz, Normal (*1): 46 Hz - 20 kHz, FOH (*1): 43 Hz - 20 kHz |
|
|
Coverage area |
H90ﾟ x V50ﾟ Rotatable Constant Directivity Horn |
H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn |
H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn |
|
|
Floor Monitor Angle |
50° Symmetrical |
50° Symmetrical |
50° |
|
|
Components |
LF |
15" Cone, 3" Voice Coil, Neodymium magnet |
12" Cone, 3" Voice Coil, Neodymium magnet |
10" Cone, 3" Voice Coil, Neodymium magnet |
|
HF |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
|
|
Crossover |
2.0 kHz |
2.0 kHz |
2.5 kHz |
|
|
Power rating |
NOISE |
Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W |
Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W |
Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W |
|
PGM |
Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W |
Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W |
Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W |
|
|
PEAK |
Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W |
Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W |
Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W |
|
|
Nominal impedance |
Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
|
|
SPL |
Sensitivity (1W; 1m on axis) |
Passive: 97dB SPL, Bi-amp: LF: 99dB SPL, HF: 108dB SPL |
Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL |
Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL |
|
Peak (Calculated) |
Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL |
Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL |
Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL |
|
|

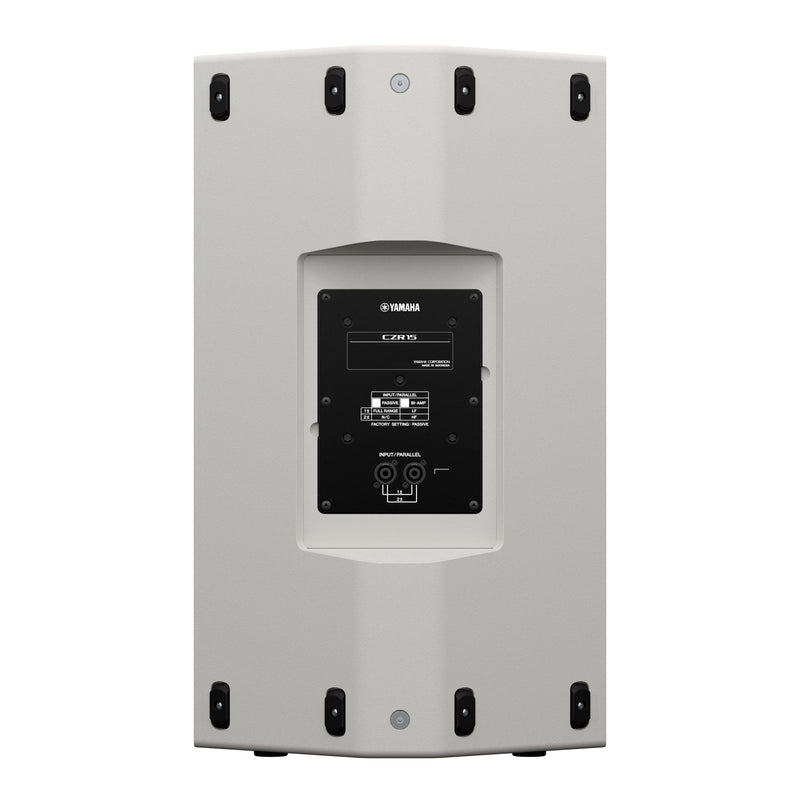

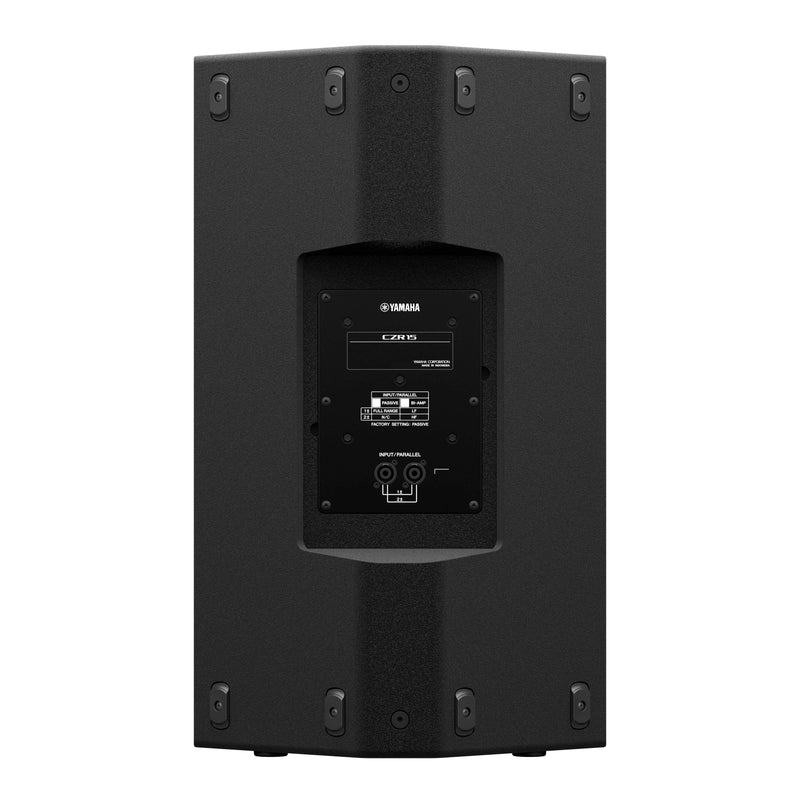

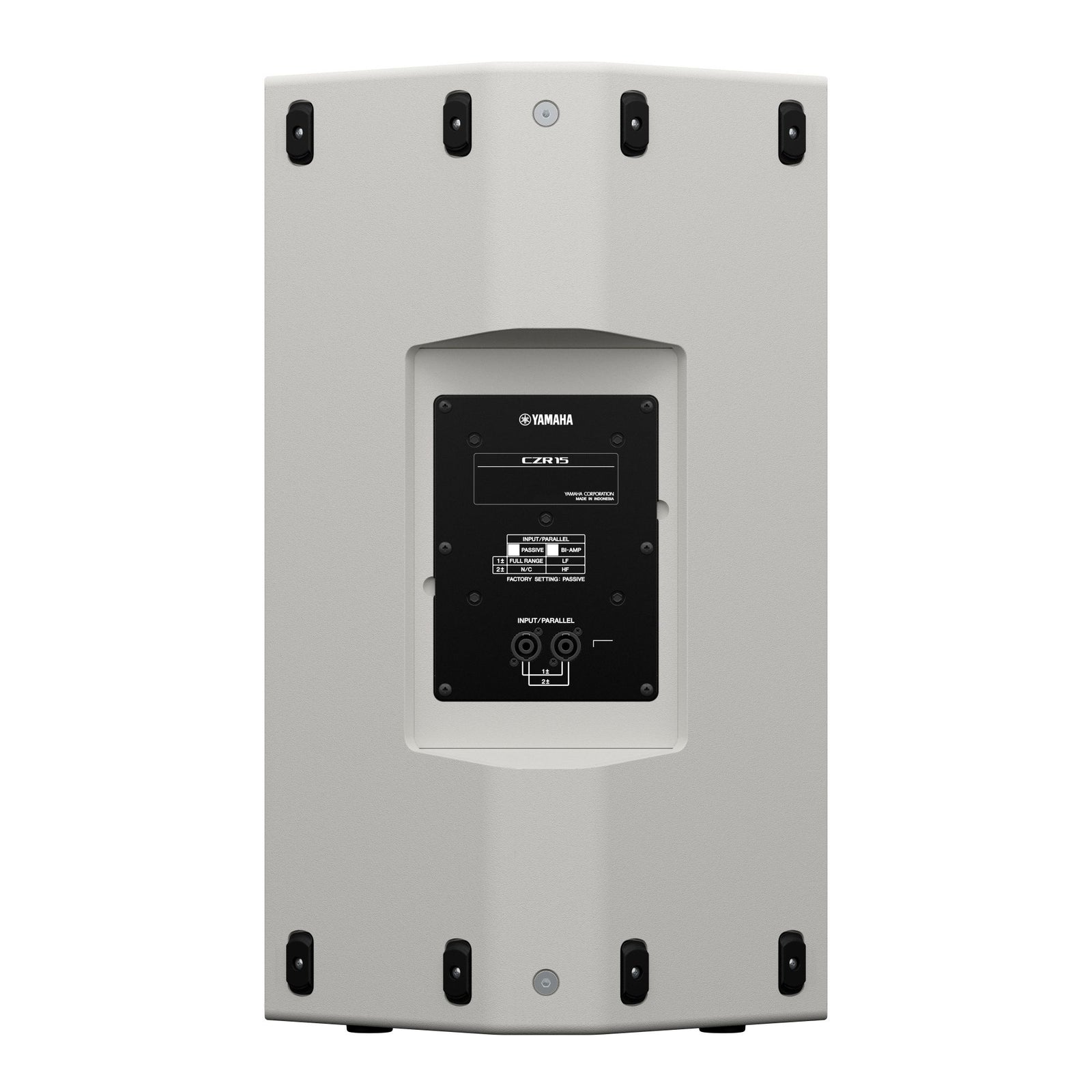

I/O connectors |

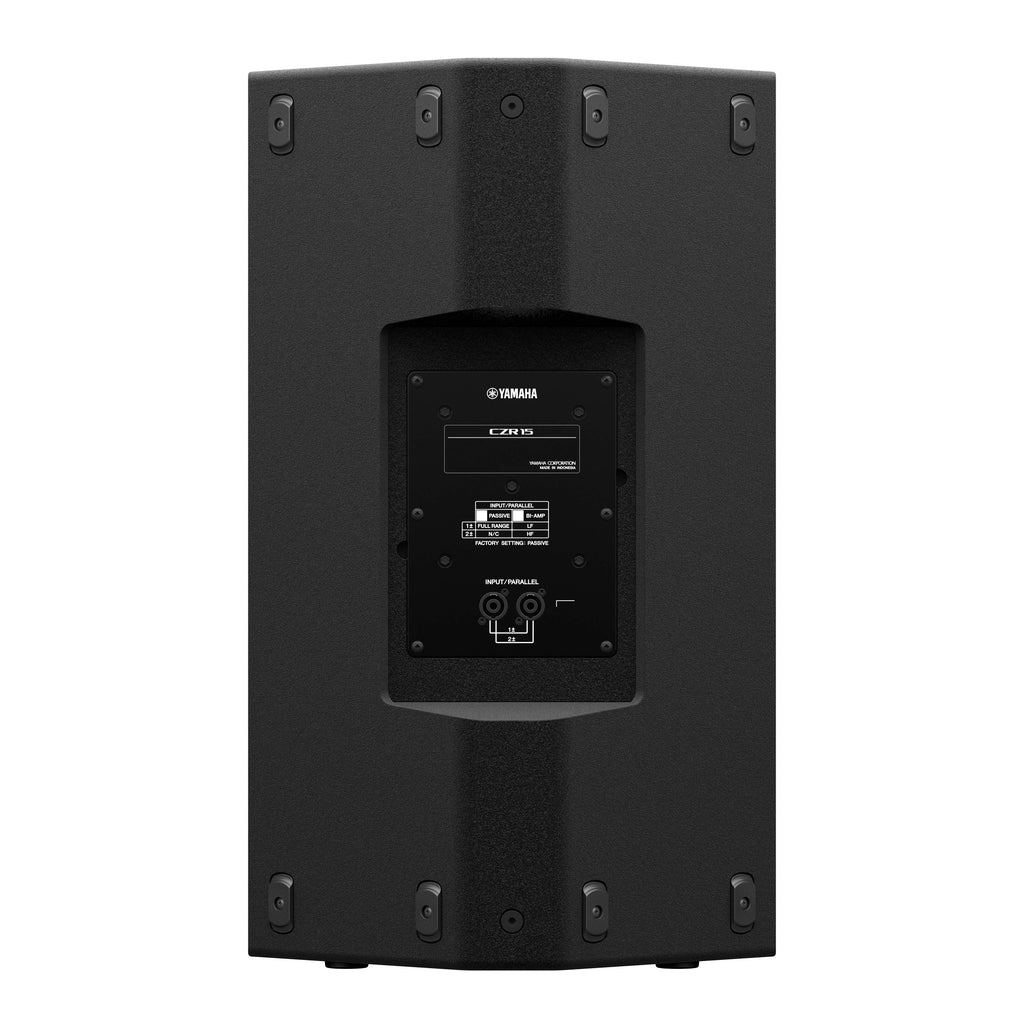

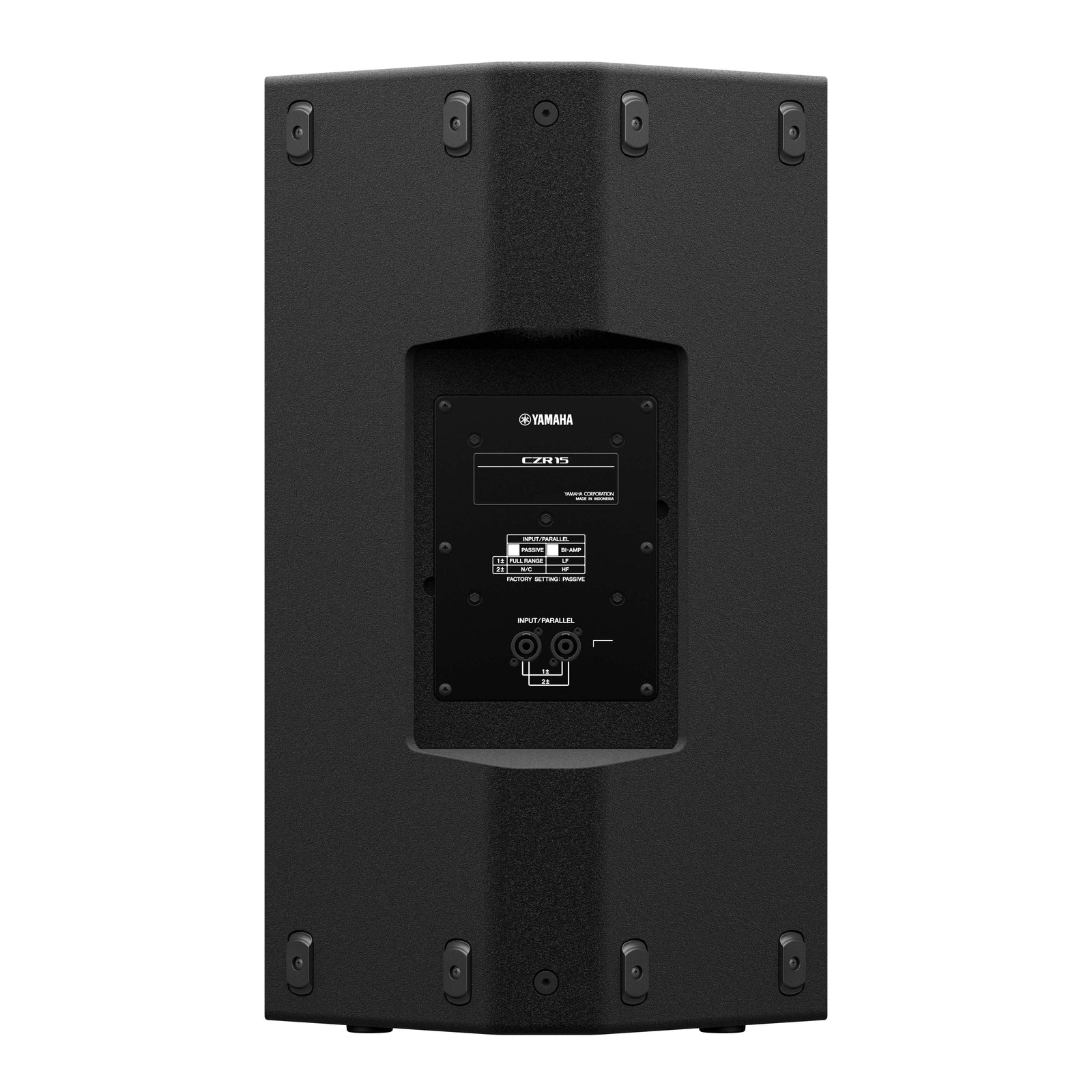

SpeakON NL4MP x 2 (Parallel) |
SpeakON NL4MP x 2 (Parallel) |
SpeakON NL4MP x 2 (Parallel) |
|
|
Handle |
Aluminium die-cast, Side x2 |
Aluminium die-cast, Side x2 |
Aluminium die-cast, Top x1, Side x1 |
|
|
Pole socket |
Φ35 mm x2 (0° or -7°) |
Φ35 mm x2 (0° or -7°) |
Φ35 mm x2 (0° or -7°) |
|
|
Rigging |
M10 x 12 |
M10 x 12 |
M10 x 8, M8 x 2 |
|
|
Dimensions |
W |
450 mm (17.7") |
410 mm (16.1") |
315 mm (12.4") |
|
H |
761 mm (30.0") (with rubber feet) |
646 mm (25.4") (with rubber feet) |
537 mm (21.1") (with rubber feet) |
|
|
D |
460 mm (18.1") |
394 mm (15.5") |
345 mm (13.6") |
|
|
Net weight |
21.3 kg (47.0 lbs) |
18.0 kg (39.7 lbs) |
14.0 kg (30.9 lbs) |
|
|
Options |
Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15 |
Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12 |
Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 |
|
|
Others |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White |
|
- *1: With recommended DSP processing.
