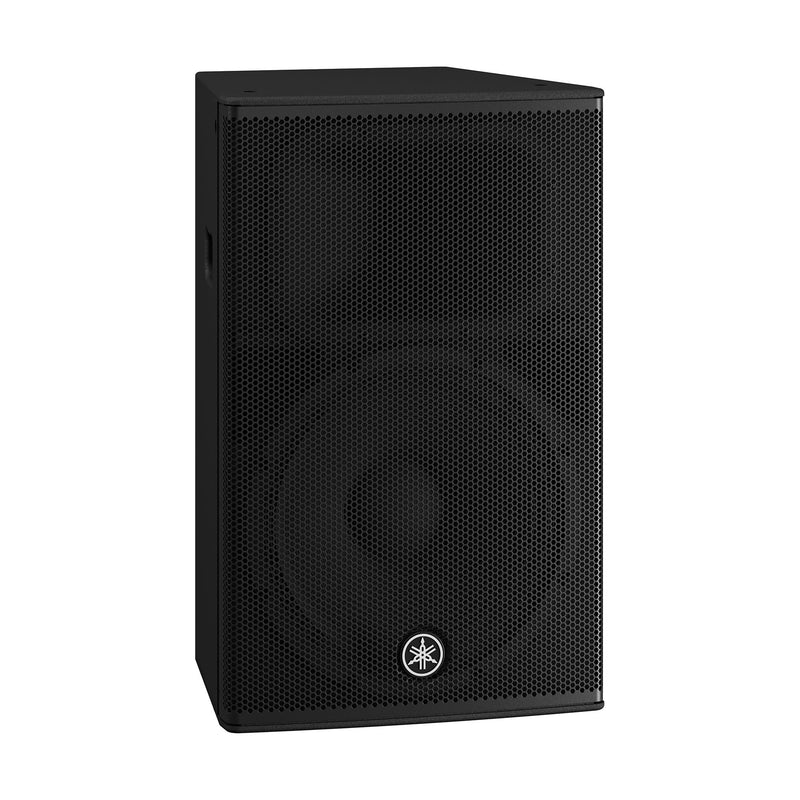

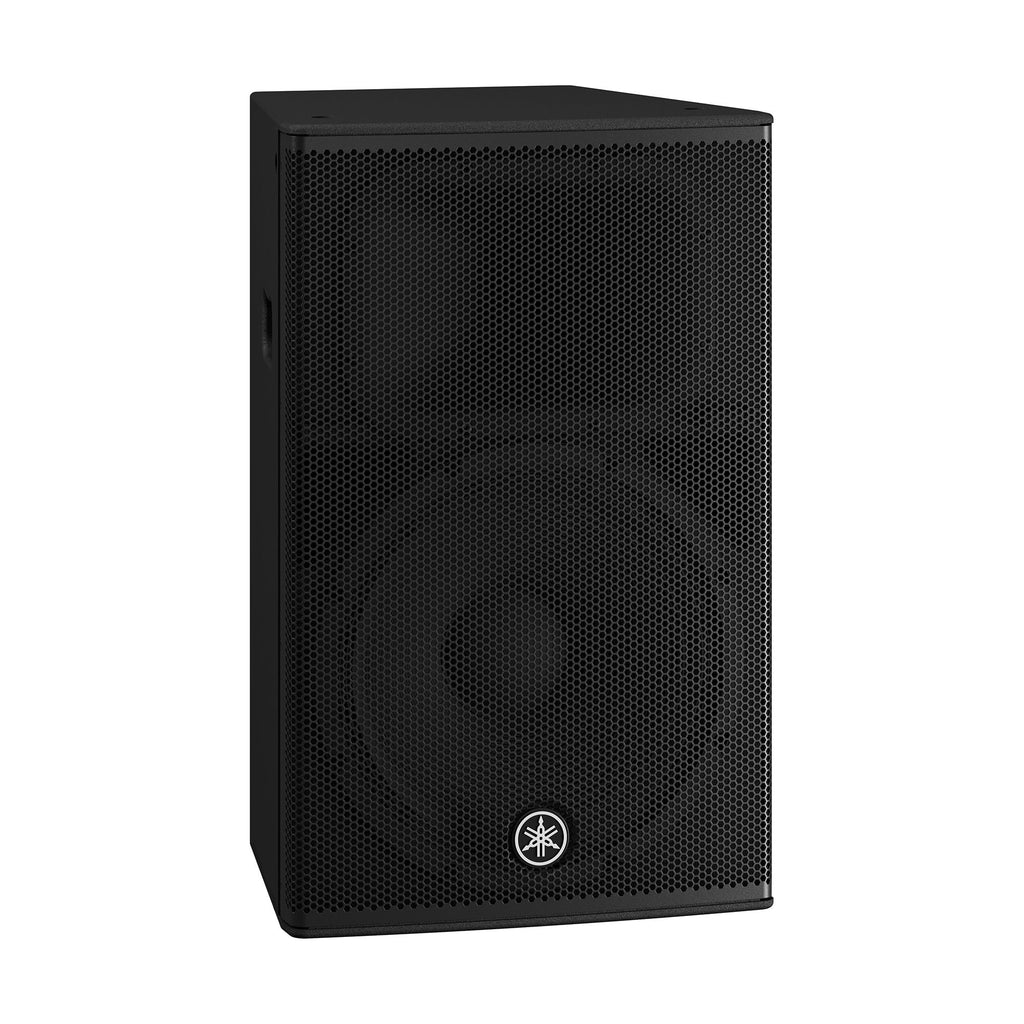

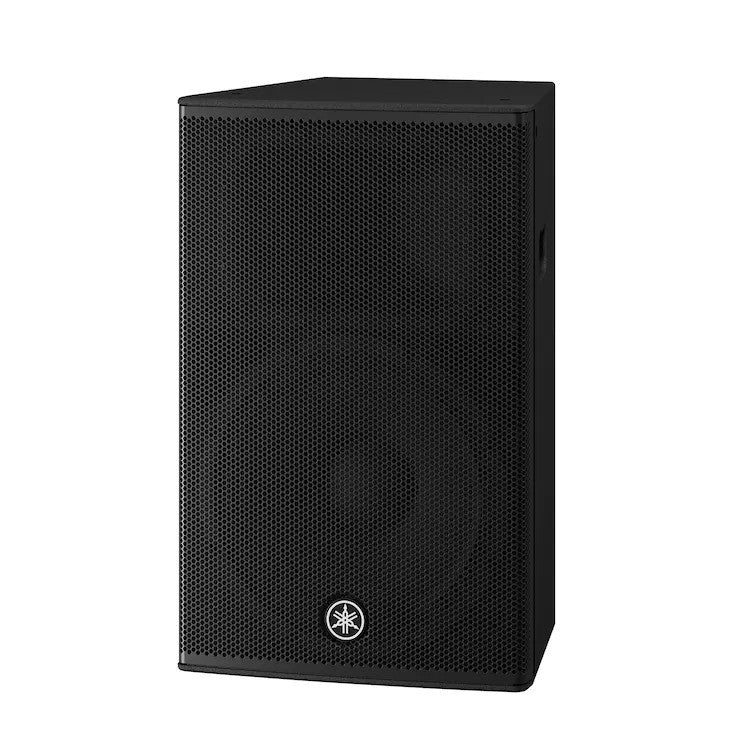

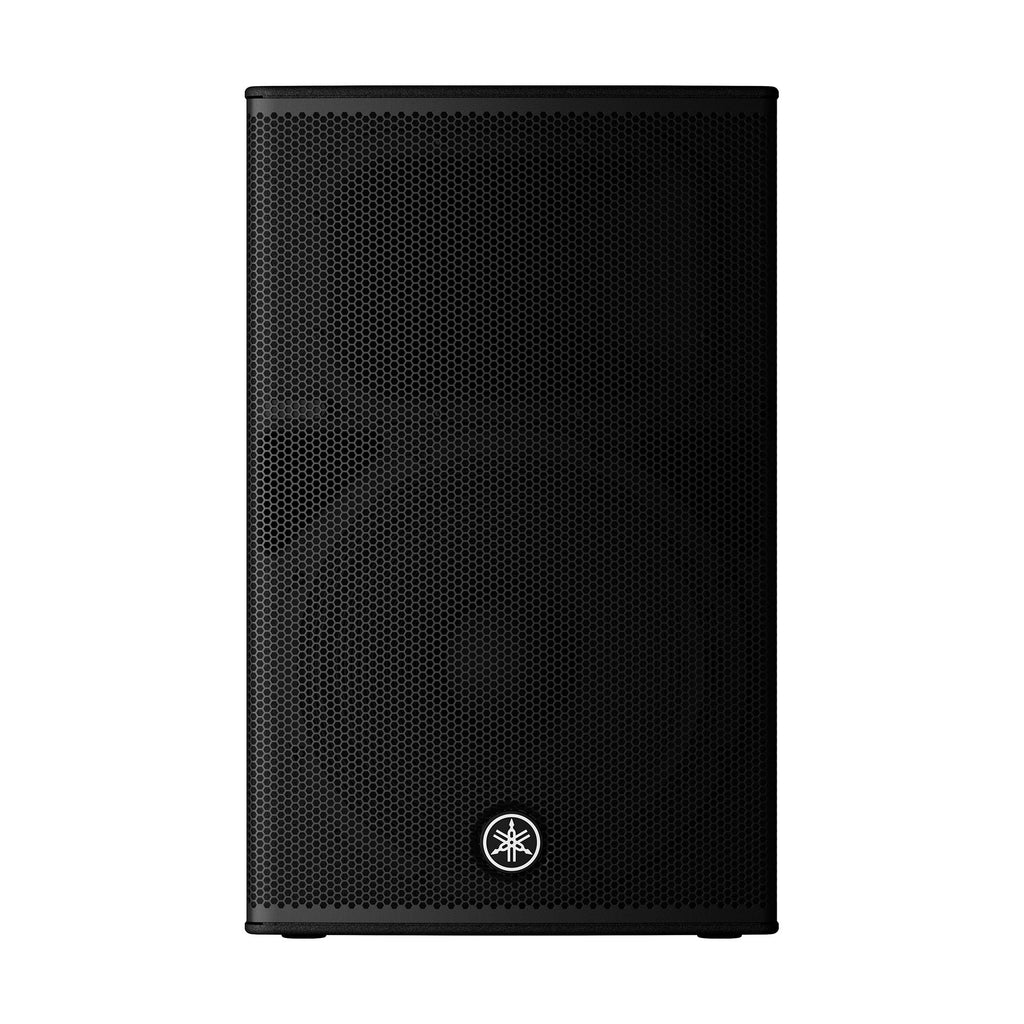

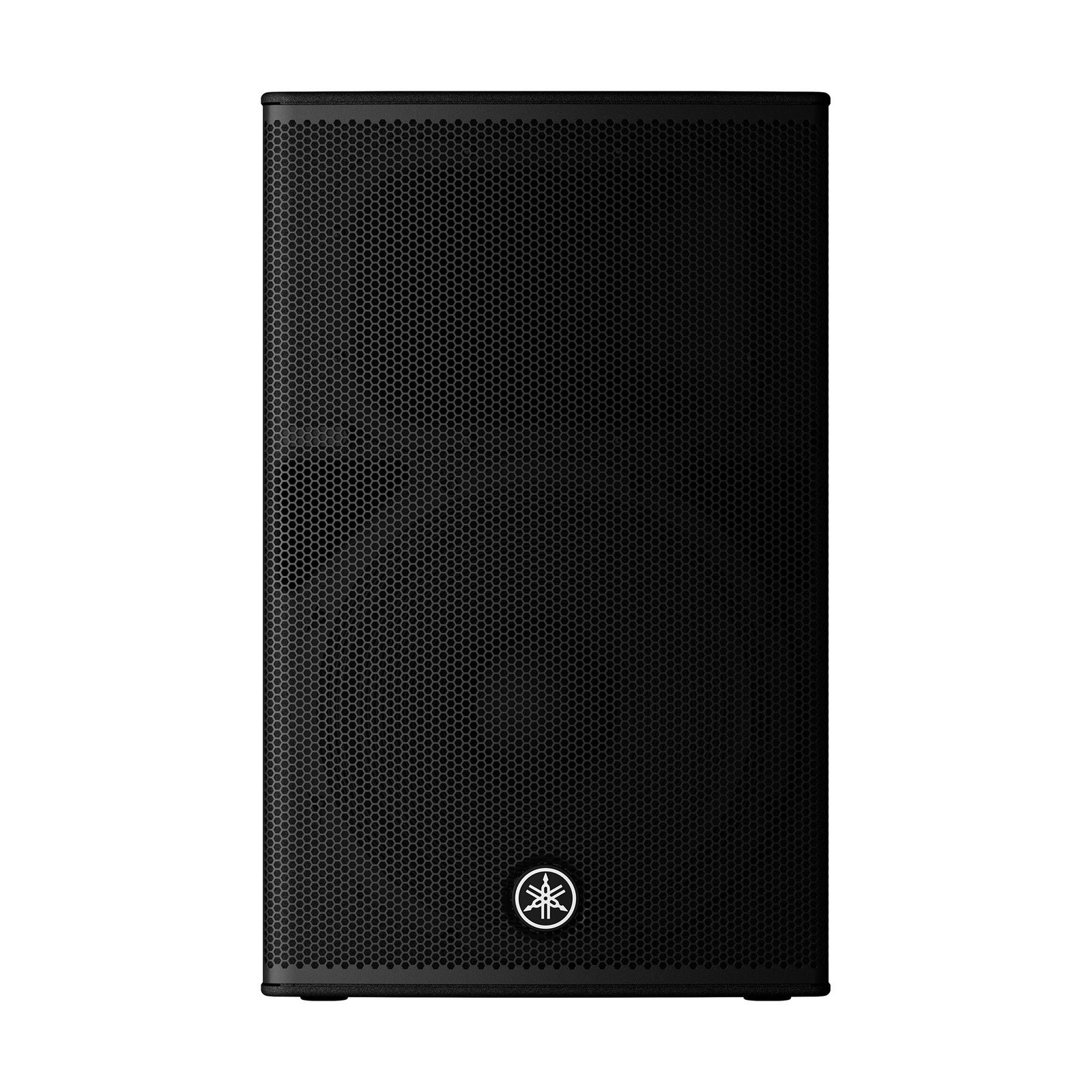

Yamaha CHR15 15" Passive PA Speaker

YamahaSKU: CCHR15

Price:
Sale price €599.00

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximise system performance

The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimised to meet the demands of a variety of sound reinforcement applications, with CHR12 and CHR10 for fixed installation and utilities, CHR15M and CHR12M designed for use as floor monitors, and CHR15 for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the CHR series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

Cabinet designs optimised for a range of audio environments

The CHR Series features a comprehensive lineup of loudspeakers with cabinets optimised to meet the demands of specific applications.

CHR10 and CHR12 are equipped with rotating horns and a dedicated U-bracket for use in fixed installations and utility, while CHR12M and CHR15M feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by CHR15, which features rigging points for use in fixed installations. CHR12 and CHR15 also feature dual-angle pole sockets, allowing them to be used as temporary main speakers for sound reinforcement.




Custom Designed Transducers

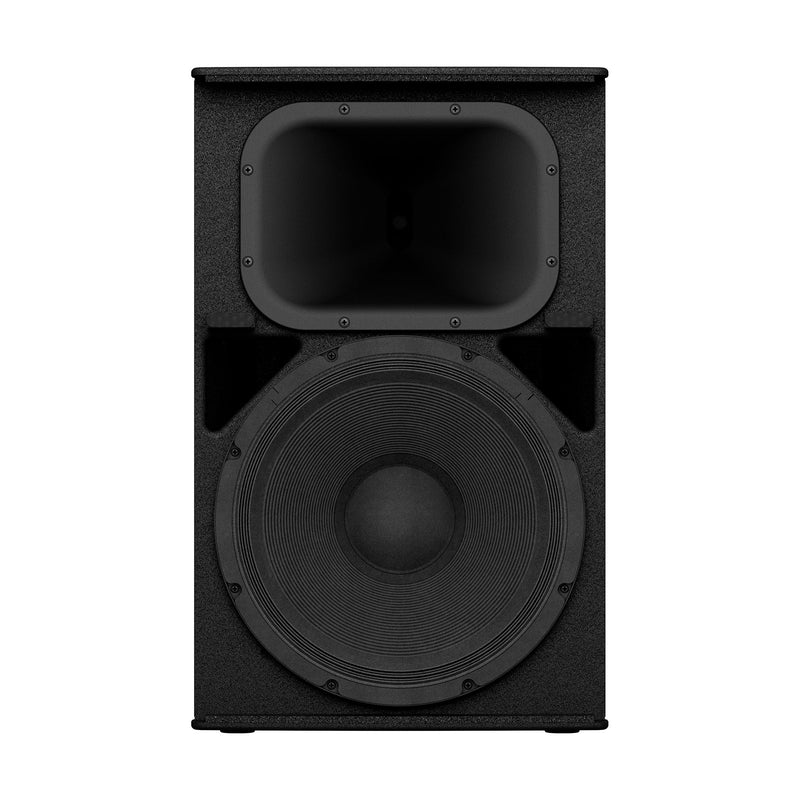

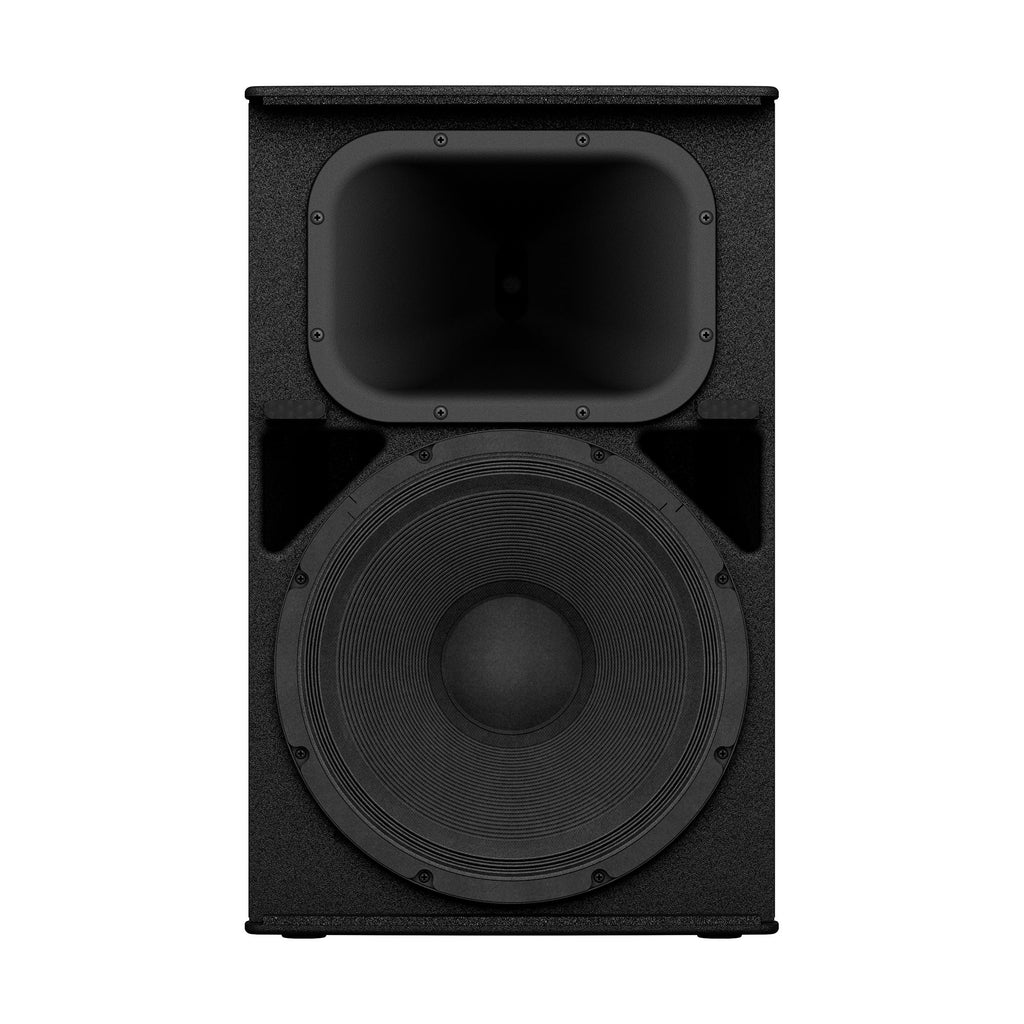

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4” precision compression driver* produces accurate mid-range and high frequencies. (* CHR12M and CHR15M feature a 1.75" coaxial compression driver).





A Rugged, Highly Portable Cabinet

Yamaha CHR Series: A Rugged, Highly Portable Cabinet

The CHR series feature plywood enclosures like our acclaimed CZR loudspeakers to deliver outstanding durability and acoustic performance.

Intelligent processing to maximise system performance

Yamaha CHR Series: Intelligent processing to maximize system performance

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CHR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. (*Supported firmware is Ver1.63 or later.)

Dual-Angle Pole Mount Socket (CHR15, CHR12)

Yamaha CHR15/CHR12: Dual-Angle Pole Mount Socket

Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The CHR15 and CHR12's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.

CHR Series Specifications:



CHR15M

CHR12M

CHR15

CHR12

CHR10

General specifications

Speaker type

2-way Speaker, Bass-reflex

2-way Speaker, Bass-reflex

2-way Speaker, Bass-reflex

2-way Speaker, Bass-reflex

2-way Speaker, Bass-reflex

Frequency range (-10dB)

58 Hz - 20 kHz

61 Hz - 20 kHz

49 Hz - 20 kHz

54 Hz - 20 kHz

55 Hz - 20 kHz

Coverage area

H65゚ x V75゚

H90゚ x V90゚

H90゚ x V60゚

H90゚ x V60゚

H90゚ x V60゚ (Rotatable)

Crossover

2.0 kHz

1.5 kHz

2.0 kHz

2.0 kHz

2.5 kHz

Nominal impedance

8 Ω

8 Ω

8 Ω

8 Ω

8 Ω

SPL

Sensitivity (1W; 1m on axis)

95 dB SPL

93 dB SPL

95 dB SPL

94 dB SPL

93 dB SPL

Peak (Calculated)

125 dB SPL

123 dB SPL

125 dB SPL

124 dB SPL

122 dB SPL

Components

LF

Diameter: 15" cone, Voice Coil: 3", Magnet: Ferrite

Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite

Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite

Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite

Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite

HF

Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite

Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite

Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite

Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite

Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite

Power rating

NOISE

275 W

250 W

250 W

250 W

175 W

PGM

550 W

500 W

500 W

500 W

350 W

PEAK

1,100 W

1,000 W

1,000 W

1,000 W

700 W

I/O connectors

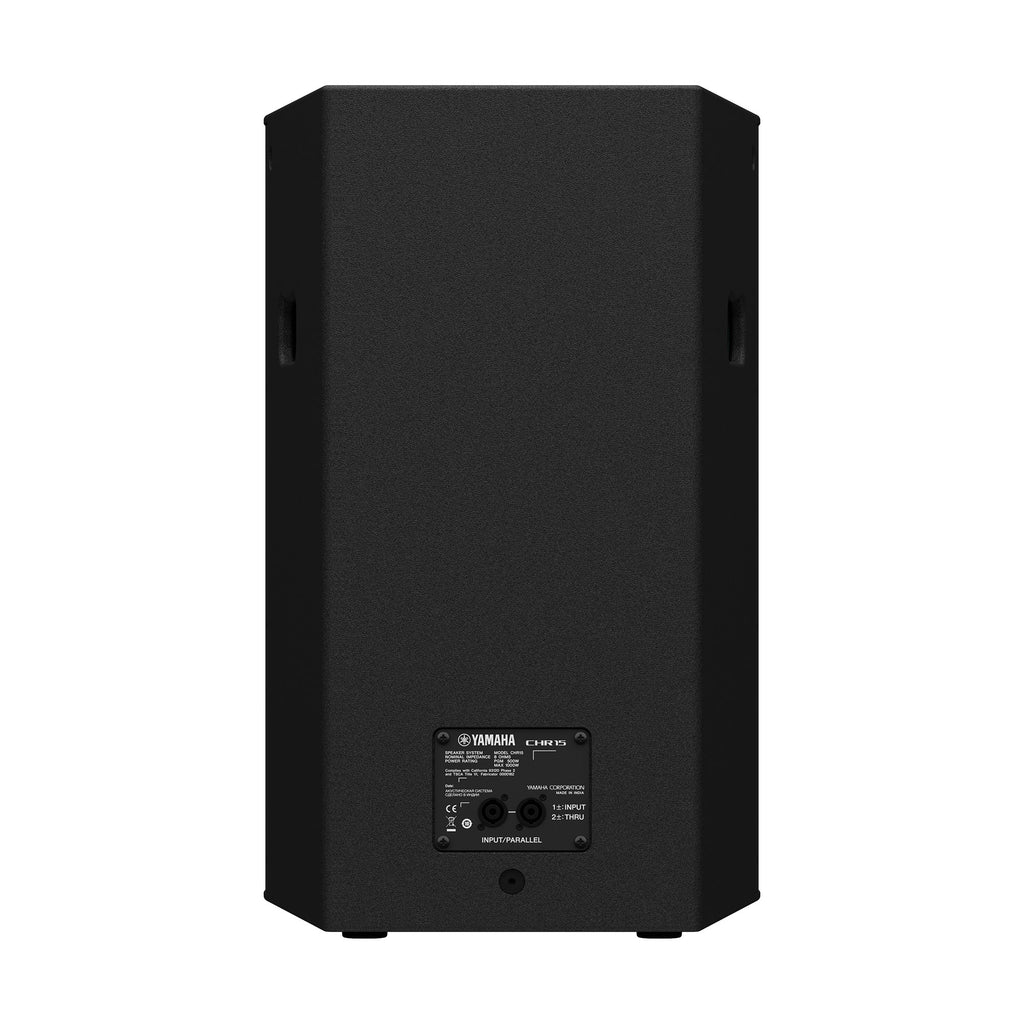

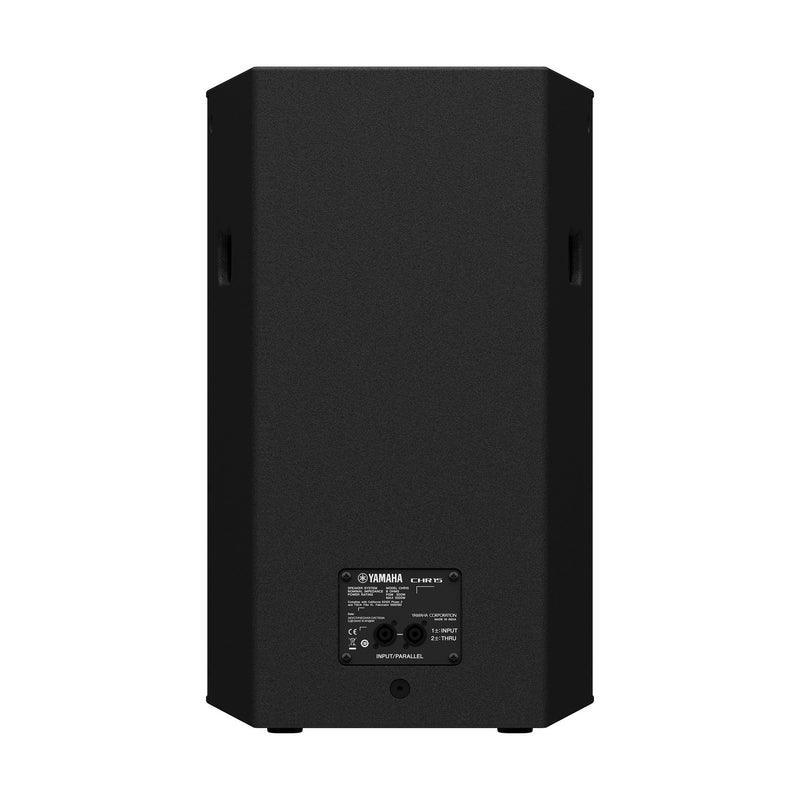

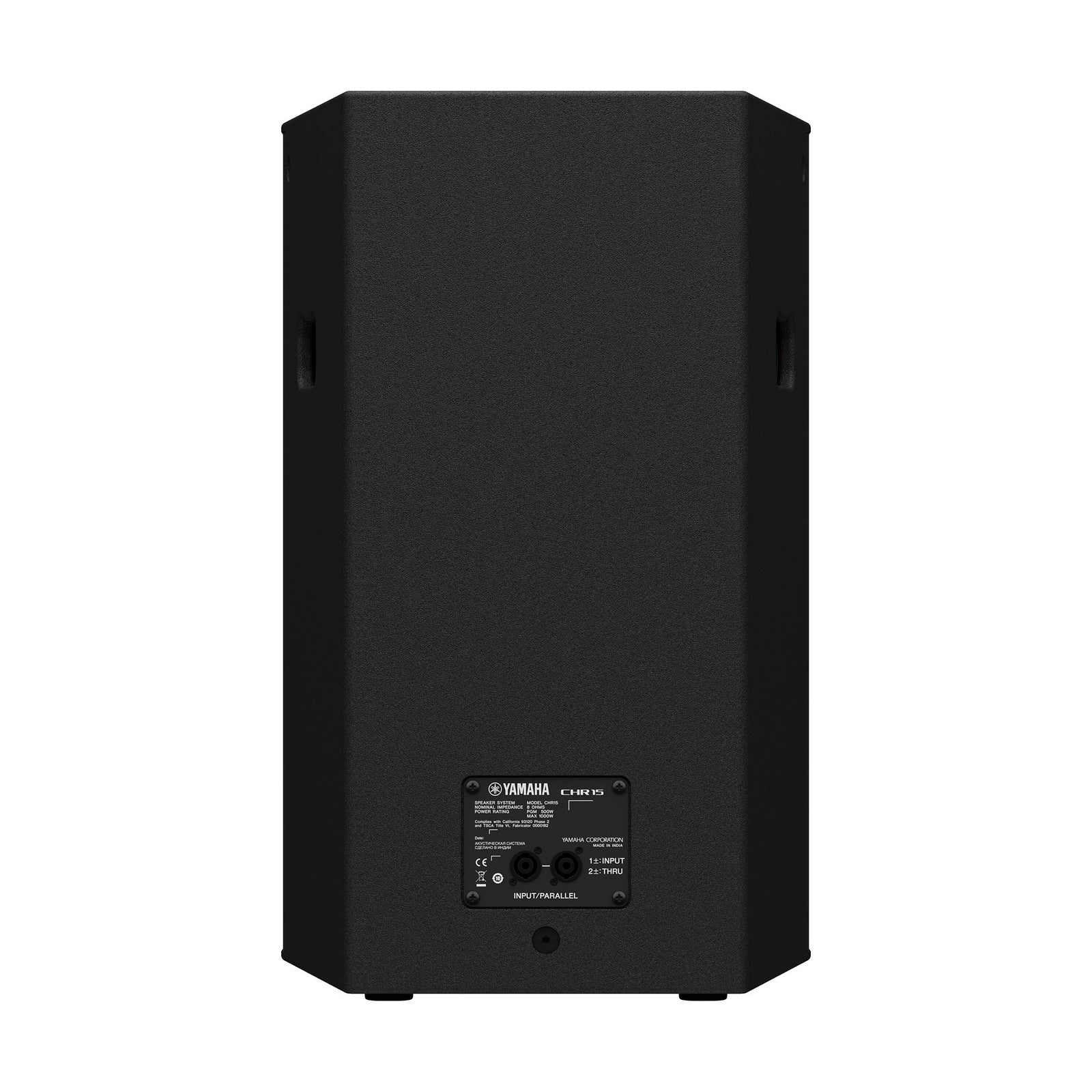

SpeakON NL4MP x 3 (Parallel)

SpeakON NL4MP x 3 (Parallel)

SpeakON NL4MP x 2 (Parallel)

SpeakON NL4MP x 2 (Parallel)

SpeakON NL4MP x 2 (Parallel)

Cabinet material

Plywood

Plywood

Plywood

Plywood

Plywood

Finish

Durable Polyurea Painting, Black

Durable Polyurea Painting, Black

Durable Polyurea Painting, Black

Durable Polyurea Painting, Black

Durable Polyurea Painting, Black

Handle

Side x1

Side x1

Side x2

Top x1, Side x2

Top x1

Pole socket

Φ35 mm x1 (Side)

Φ35 mm x1 (Side)

Φ35 mm x2 (Bottom, 0° or -7°)

Φ35 mm x2 (Bottom, 0° or -7°)

Φ35 mm x1 (Bottom)

Rigging

-

-

Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)

Top x 2, Rear x 1 (Fit for M10 x 30~50 mm Eyebolts)

Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)

Floor Monitor Angle

57°

57°

-

-

-

Dimensions

W

642 mm (25.3")

500 mm (19.7")

432 mm (17.0")

359 mm (14.1")

305 mm (12.0")

H

369 mm (14.5") (with rubber feet)

343 mm (13.5") (with rubber feet)

692 mm (27.2") (with rubber feet)

578 mm (22.8") (with rubber feet)

494 mm (19.5") (with rubber feet)

D

505 mm (19.9")

454 mm (17.9")

405 mm (15.9")

340 mm (13.4")

300 mm (11.8")

Net weight

21.3 kg (47.0 lbs)

15.6 kg (34.4 lbs)

22.0 kg (48.5 lbs)

17.1 kg (37.7 lbs)

13.7 kg (30.2 lbs)

Options

-

-

-

U-bracket: UB-DXRDHR12

U-bracket: UB-DXRDHR10
