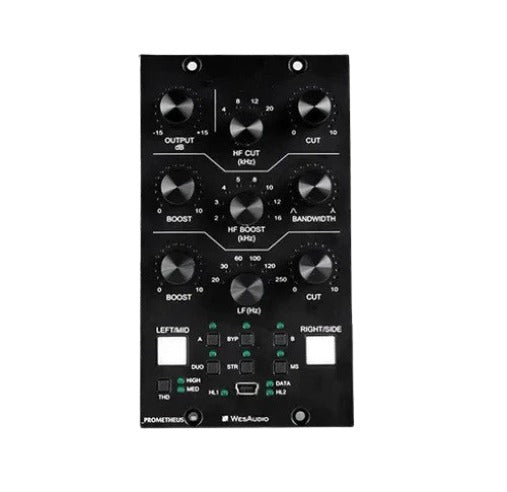

NG500 fully analog passive equalizer with digital recall with new limited Black edition with fully redesigned plugin interface.
PROMETHEUS ECPLIPSE is fully analog passive EQ with +24dBu of headroom. Featuring a Pultec-style warm sound with a lot of innovative improvements its modern approach to design allows instant recall of your classic vibe through very flexible plugin. PROMETHEUS ECLIPSE as all ng500 products, integrates with your DAW environment via front panel USB socket or TITAN chassis.
Main Features:
- Limited edition) Black Faceplate
- New Redesigned GUI interface
- +24dBu headroom for high dynamic range.
- Operates in Stereo, Dual Mono, and Mid/Side modes for flexible audio applications.
- Passive equalizer design based on Pultec-style inductors.
- Analog inductor for classic tone-shaping.
- Proprietary THD implementation for harmonic distortion control.
- Flexible DAW/Live plug-in control with instant recall functionality.
- 6 touch-sensitive encoders for recording automation.
- True bypass for signal integrity.
- In and Out metering with clip detection for accurate monitoring.
- A/B compare feature for quick preset comparisons.
Specifications:
|
Frequency response |
10Hz-150kHz (-2dB) |
|
THD+N < 0.01% |
(1kHz,0dBu) |
|
Input impedance |
10kohm |
|
Output impedance |
< 100ohm |
|
Max signal level |
+24dBu |
|
Crosstalk |
< -100dB |
|
THD (MID switch) |
1% |
|
THD (HIGH switch) |
2.5% |
|
Power consumption |
70mA per rail |
|
Unit dimensions |
76x133x158 mm |
|
Box dimensions |
105x162x234 mm |
|
Unit weight |
0,7 kg |
|
Box weight |
0,9 kg |
|
Warranty |
2 years |
