NG500 Class A preamplifier with digital recall
Experience the most iconic style of microphone preamplifiers now seamlessly integrated into a modern digital workflow. Featuring a dual-amp vintage design with cutting-edge features, we proudly introduce PHOEBE — an NG500 fully analog, Class A microphone, line, and instrument preamplifier with digital recall.
The audio signal is processed purely through analog components, ensuring warm, pristine sound with the ease of digital recall.
Main Features:
- 100% analog microphone/line preamp with +28dBu of headroom.
- Class A fully analog design, inspired by famous British dual amp topology.
- Microphone gain up to 75dB.

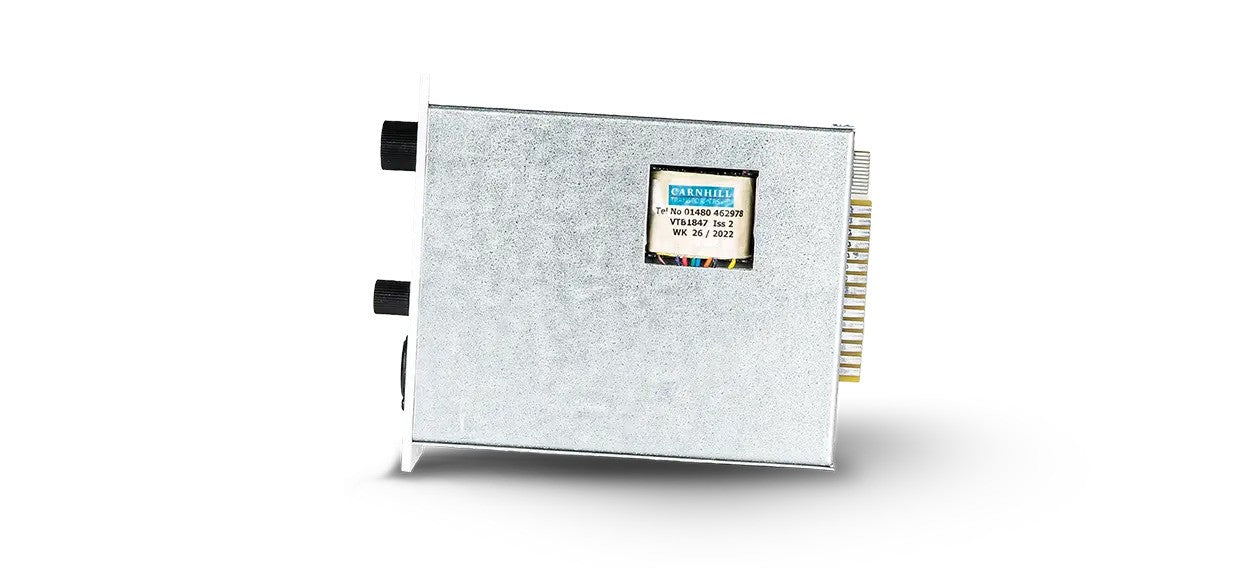

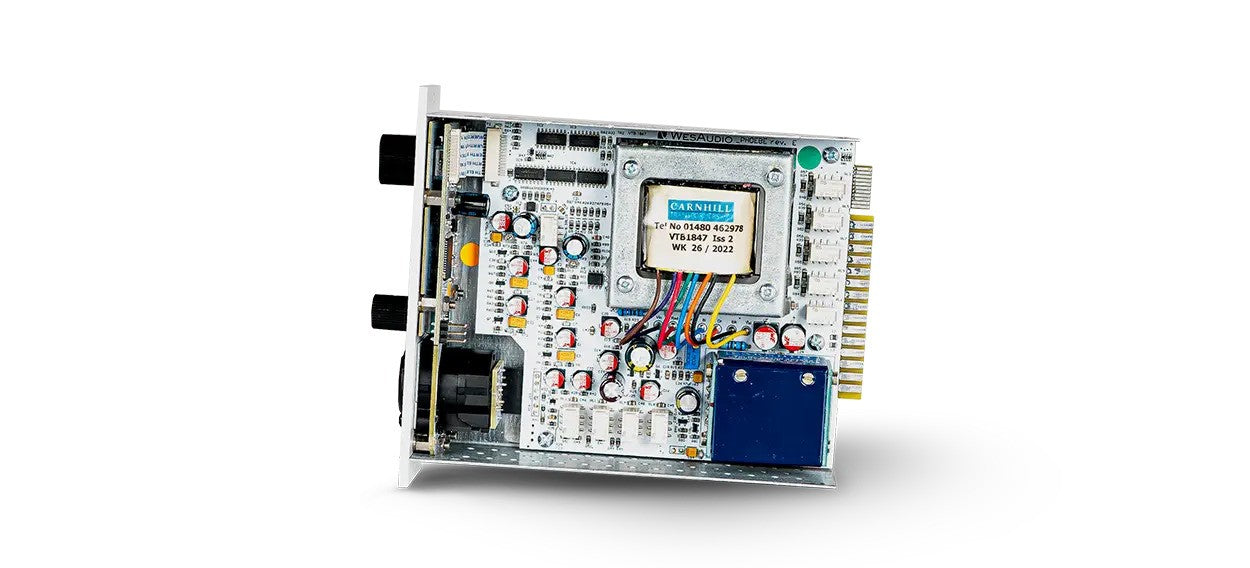

- Carnhill Transformers for input and output.
- Output signal metering with clip detection on the front panel.
- Phantom power and phase invert control.
- Switchable impedance input: 1200/300Ohm.
- All settings fully manageable via the WesAudio GCon DAW plug-in.
- 15dB OUTPUT PAD: passive output attenuation circuit in 1 dB steps (after the output transformer).

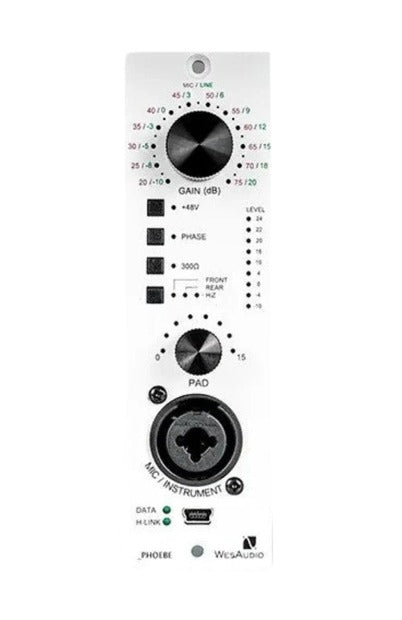

- Front panel XLR/TS socket supports HiZ instrument input (TS), line input (XLR), and microphone input (XLR).
- Recallable signal source: choose between back XLR socket or front panel XLR/TS socket.
- Fully digitally controlled with an isolated analog circuit.
- Digital recall available through the front panel mini USB socket or via _TITAN chassis integration.
- Accurate analog output signal metering with clip detection, along with a precise simulation implemented directly in the plug-in.
- Free software and firmware upgrades.
+28 dBu of Analog Headroom
+28 dBu of analog headroom, Class A fully analog design, inspired by the renowned British dual amp topology.

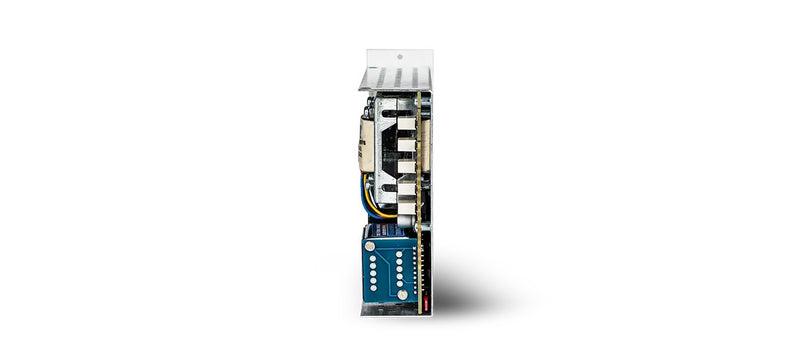

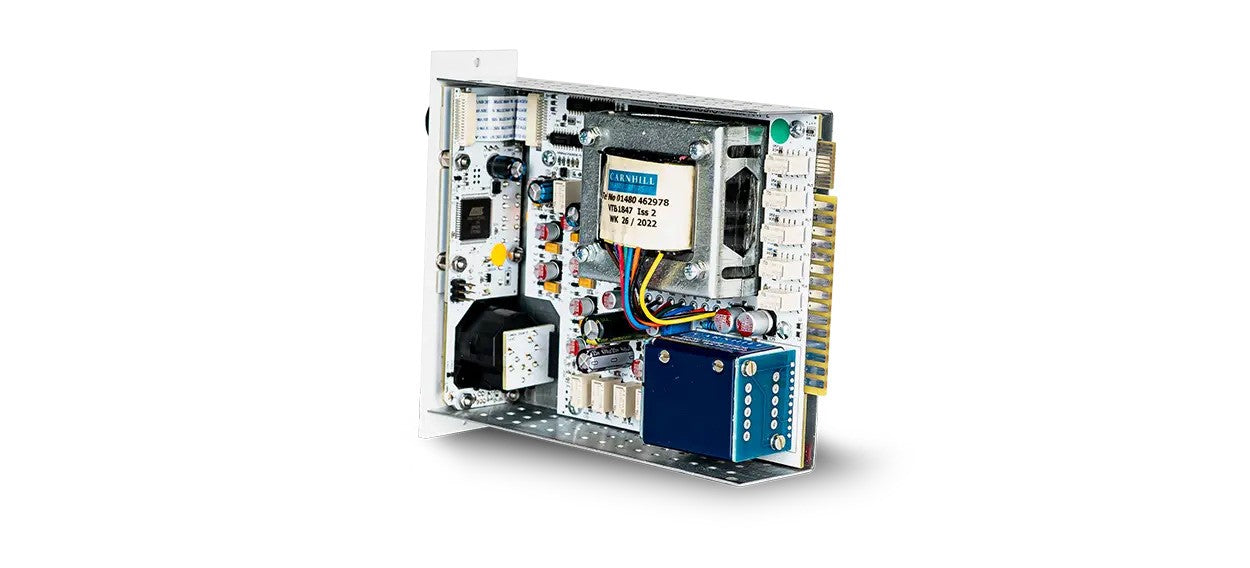

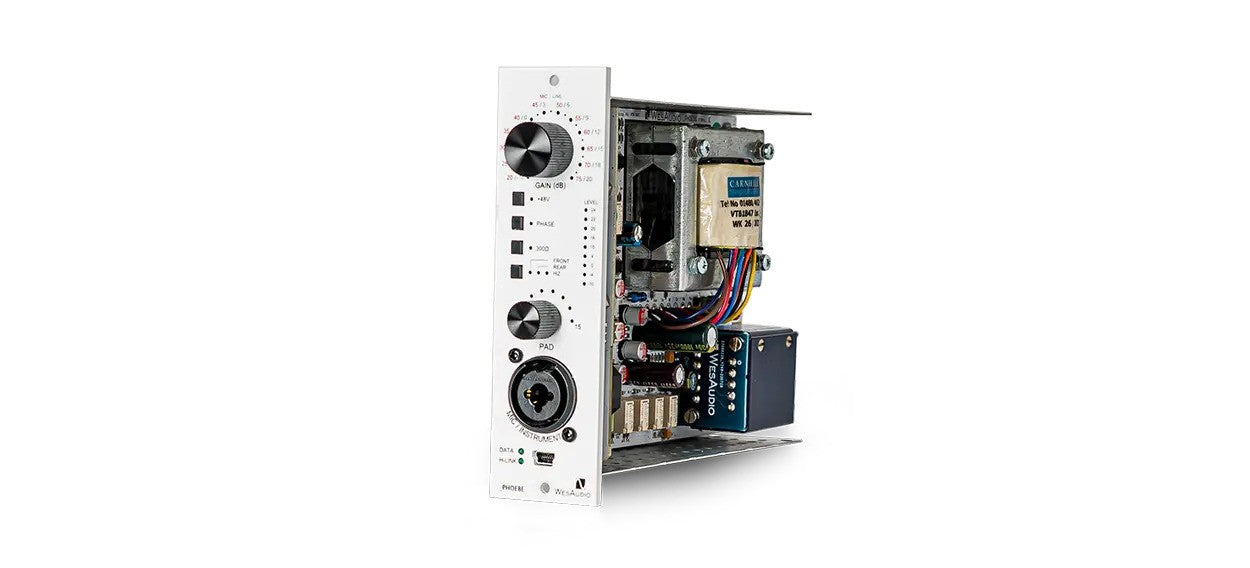

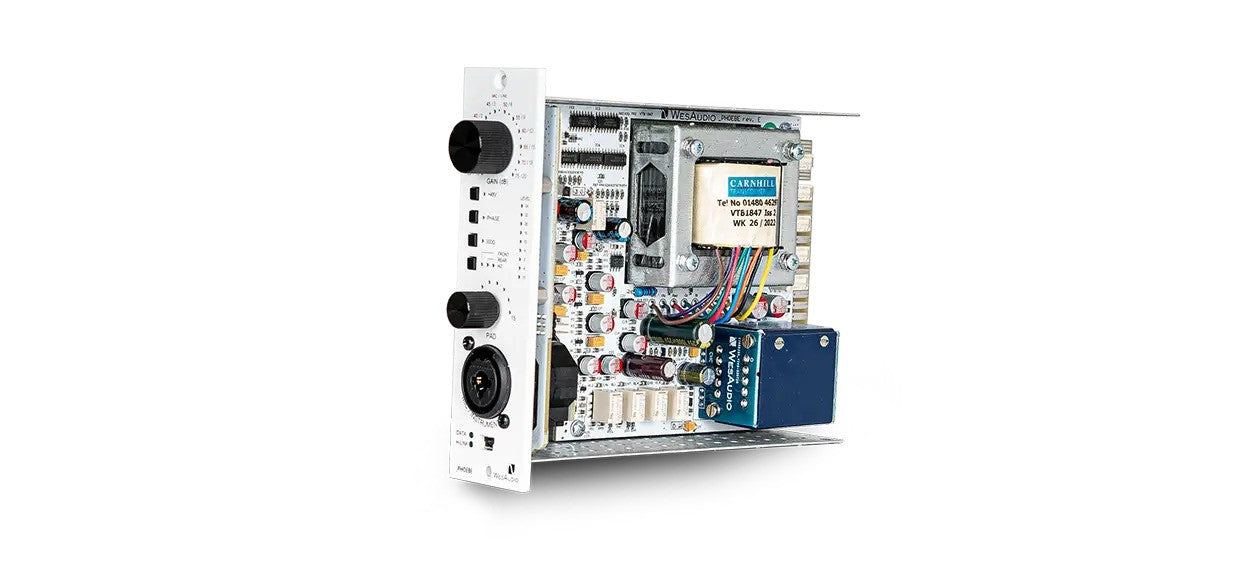

Input and Output Transformers

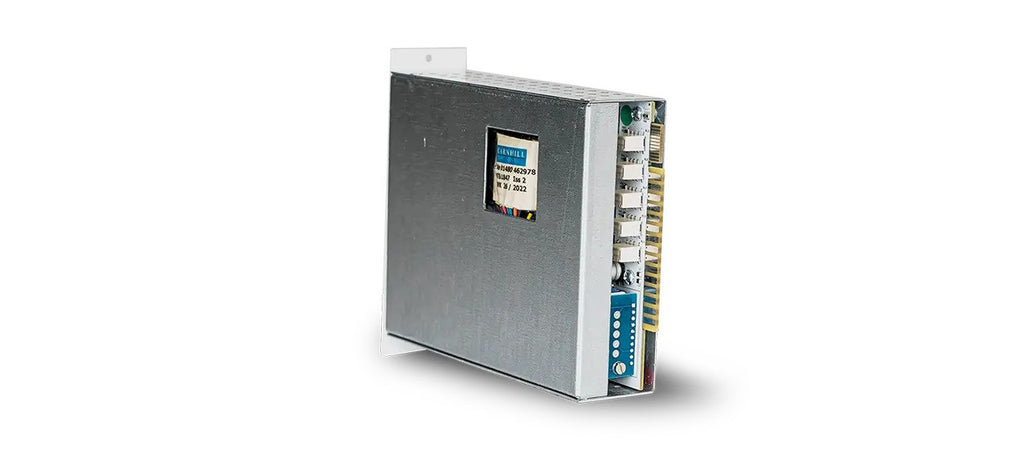

PHOEBE is a fully transformer-balanced unit, staying true to its vintage heritage.
Crank Up the Gain!
Microphone gain up to 75dB — providing high gain, ideal for low-level microphones!
Recallable Signal Source
Keep two sources connected and easily switch between the XLR socket (LINE/MIC) or front panel XLR/TS socket (LINE/MIC/Instrument) via the DAW plug-in for quick recall.
Output Passive Attenuation up to 15dB!
PAD – A passive output attenuation circuit with 1 dB steps, managed via a relay cascade, located after the output transformer for precise level control.
Switchable Input Impedance
The input impedance can be switched between 1200 ohms and 300 ohms, ensuring optimal integration with vintage microphones for enhanced performance and sound quality.
Precise Signal Metering
Fully integrated with DAW plug-in, featuring output signal metering and CLIP detection for precise monitoring and control.
Full Remote Control
Now you can place your preamplifier wherever it’s most convenient, and manage everything effortlessly from your sweet spot!
Specifications:
|
Frequency response |
+/- 0.5dB 20Hz-20kHz; -3dB at 50kHz |
|
Distortion |
0.005% at 1kHz at +20dBu output |
|
Line input impedance |
5.5k ohm bridging |
|
Microphone input impedance |
300/1200 ohm |
|
Noise |
unity gain (better than -100dbU) Max gain +75dB (better than -70dbU) |
|
EIN |
better than -120dB |
|
Max power consumption |
170mA(+16V); 100mA(-16V) |
|
Unit dimensions |
38x133x145mm |
|
Box dimensions |
105x162x234mm |
|
Unit weight |
1 kg |
|
Box weight |
1,2 kg |
|
Warranty |
2 years |
