Wes Audio Hyperion Fully Analog Parametric EQ with Digital Recall

Wes AudioSKU: HYPERION

Price:
Sale price €1,449.00

NG500 Fully Analog Parametric Equalizer with Digital Recall

Hyperion is a fully analog parametric EQ offering +24dBu of headroom, boasting innovative features not found in other processors on the market. Its advanced design utilises 15 VCAs per channel, ensuring nearly noiseless parameter adjustments while maintaining a highly musical sound. As part of the NG500 series, the Hyperion integrates total recall functionality, accessible via the front panel USB socket or through the Titan chassis

Main Features:

  • +24dBu headroom for superior dynamic range.
  • Operates in Stereo, Dual Mono, or Mid-Side modes for flexible applications.
  • 4-band EQ with switchable gain ranges, offering 5dB or 15dB of boost or cut per band.
  • High-pass filter (HPF) with 12dB/Oct or 6dB/Oct slopes for precise low-end control.
  • Each band has an independent bypass switch for quick, isolated adjustments.
  • Noiseless parameter changes, thanks to a highly efficient VCA design.
  • Features proprietary THD control for adjustable harmonic distortion.
  • Instant recall with flexible DAW or live plug-in control.
  • 12 touch-sensitive encoders enable real-time automation recording.
  • Includes a true bypass option to preserve signal integrity.
  • In/Out metering with clip detection for accurate monitoring.
  • A/B compare function for quick comparisons between settings.

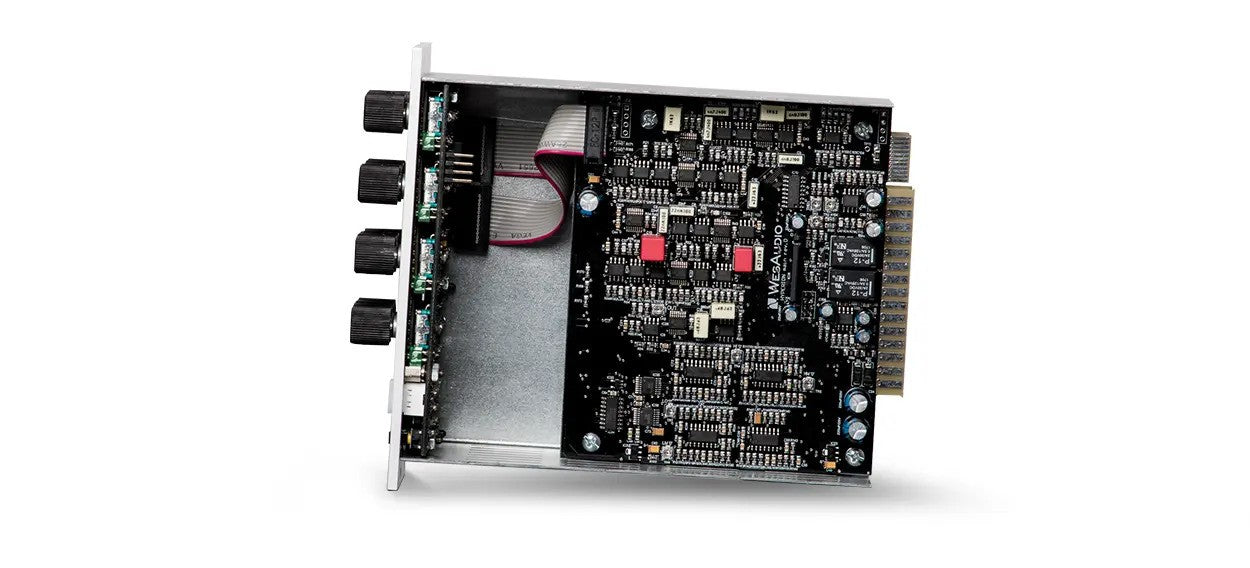

Innovative Hardware Circuit

Hyperion is a fully analog device with +24 dBu of headroom. Its innovative design incorporates 18 VCAs per channel, ensuring precise control and minimal noise for superior audio performance.

4-BAND EQ

4-band EQ with selectable gain ranges, offering 5dB or 15dB of boost or cut per band:

  • High band: 2kHz to 25kHz, selectable between bell or shelf modes.
  • High-Mid band: 600Hz to 8kHz with full Q control for precise adjustments.
  • Low-Mid band: 200Hz to 2.5kHz, also featuring full Q control.
  • Low band: 30Hz to 350Hz, with options for bell or shelf filtering.

Stereo/Dual Mono/Mid-Side Operation Modes

HYPERION can operate in three distinct modes, including Mid-Side (MS), making it an ideal solution for a wide range of applications.

High Pass Filter

HPF with selectable slopes of 12dB/Oct or 6dB/Oct

Each Band Features its Own Bypass Switch

Each band on the Hyperion can be bypassed independently, making it easier than ever to experiment with new sounds and compare adjustments quickly.

THD – Add Colour to Your Mixes

Total Harmonic Distortion (THD), allows you to introduce analog warmth and saturation to your signal, adding a beautiful richness and musical character that enhances the overall sound quality.

Instant Recall with Flexible DAW/Live Plug-In Control

  • Stereo plugin: Handles all modes of operation – Stereo, Dual Mono, and Mid-Side.
  • Mono plugin: Two separate instances can connect to the same hardware, allowing independent channel management.
  • IN/OUT metering: Includes clip detection for precise monitoring.
  • Flexible parametric EQ GUI: Designed for intuitive control and visual feedback.
  • Plugin formats: Available in AAX, AAX DSP, VST3, VST2, and AU for broad compatibility.

Specifications:

Frequency response

10Hz-150kHz (-2dB)

THD+N all bands gain “0”

0.03% (1kHz,0dBu)

THD+N +15dB band boost

<0.15% (1kHz,0dBu)

Input impedance

10kohm

Output impedance

< 100ohm

Max signal level

+24dBu

Crosstalk

< -100dB

THD (MID switch)

1%

THD (HIGH switch)

2.5%

Power consumption

150mA per rail

Unit dimensions

76x133x158 mm

Box dimensions

105x162x234 mm

Unit weight

0,7 kg

Box weight

0.9 kg

Warranty

2 years
