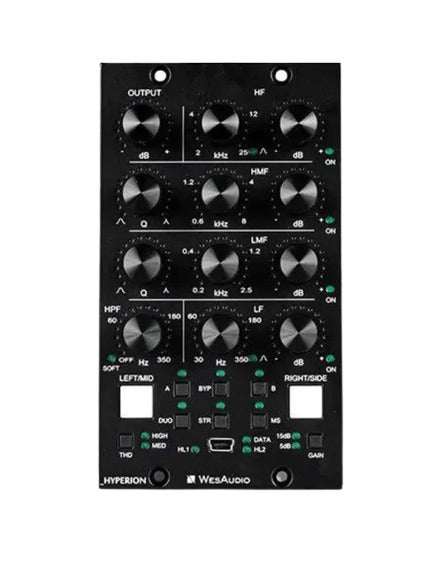

NG500 fully analog parametric equalizer with digital recall with new limited Black edition with fully redesigned plugin interface

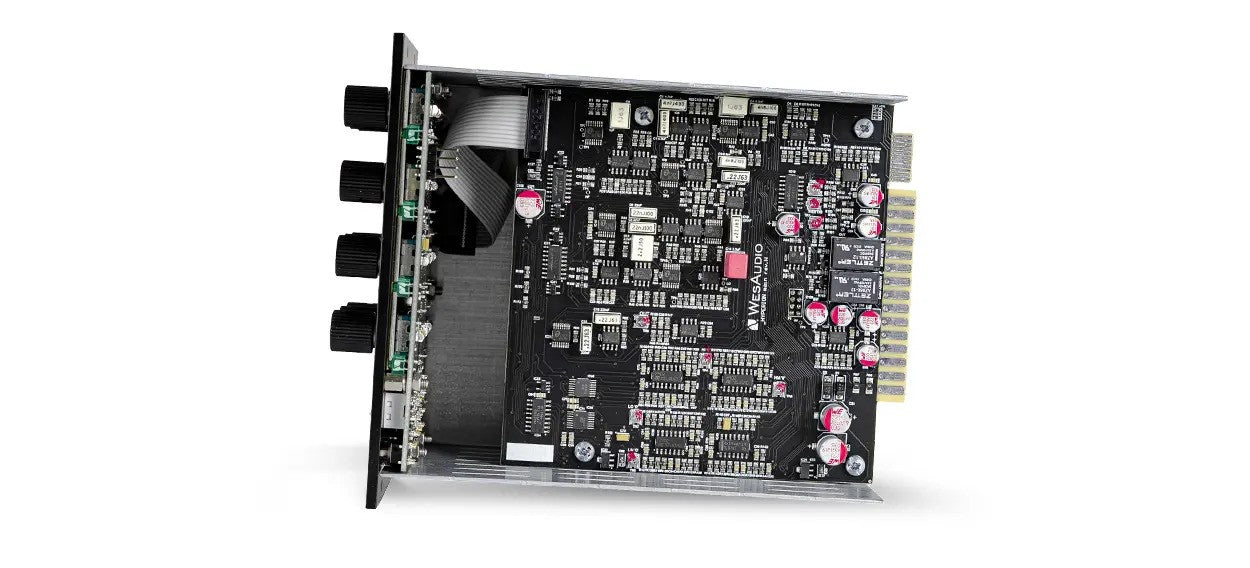

HYPERION ECLIPSE is fully analog parametric EQ with +24dBu of headroom. It features a lot of innovative improvements that no other processor on the market provides. Its innovative design utilizes 15 VCAs per channel to provide essentially noiseless parameter changes and very musical nature. HYPERION ECLIPSE is next product in NG500 line where total recall is implemented through front panel USB socket or TITAN chassis.
Main Features:
- (Limited edition) Black Faceplate
- New Redesigned GUI interface
- +24dBu headroom for superior dynamic range.
- Operates in Stereo, Dual Mono, or Mid-Side modes for flexible applications.
- 4-band EQ with switchable gain ranges, offering 5dB or 15dB of boost or cut per band.
- High-pass filter (HPF) with 12dB/Oct or 6dB/Oct slopes for precise low-end control.
- Each band has an independent bypass switch for quick, isolated adjustments.
- Noiseless parameter changes, thanks to a highly efficient VCA design.
- Features proprietary THD control for adjustable harmonic distortion.
- Instant recall with flexible DAW or live plug-in control.
- 12 touch-sensitive encoders enable real-time automation recording.
- Includes a true bypass option to preserve signal integrity.
- In/Out metering with clip detection for accurate monitoring.
- A/B compare function for quick comparisons between settings.
Specifications:
|
Frequency response |
10Hz-150kHz (-2dB) |
|
THD+N all bands gain “0” |
0.03% (1kHz,0dBu) |
|
THD+N +15dB band boost |
<0.15% (1kHz,0dBu) |
|
Input impedance |
10kohm |
|
Output impedance |
< 100ohm |
|
Max signal level |
+24dBu |
|
Crosstalk |
< -100dB |
|
THD (MID switch) |
1% |
|
THD (HIGH switch) |
2.5% |
|
Power consumption |
150mA per rail |
|
Unit dimensions |
76x133x158 mm |
|
Box dimensions |
105x162x234 mm |
|
Unit weight |
0,7 kg |
|
Box weight |
0.9 kg |
|
Warranty |
2 years |
