The WA-84 is a cardioid, vintage-style, small diaphragm condenser microphone based on classic microphone circuit topology. The WA-84 sports a fully discrete signal path, a CineMag USA transformer, Fairchild transistors and Wima capacitors. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.
The WA-84 has a very LARGE sound for it’s small size and uniquely uses a heavy Nickel CineMag signal transformer in it’s signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease and lower-cost manufacturing. When designing the WA-84, however, we chose to go the extra mile and take the classic route by tackling a more boutique design known for it’s it’s crystal clear, yet smooth, LARGE sound.
We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that we feels sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.
A Look Inside The WA-84
The Capsule
The WA-84 utilises a custom vintage-style capsule designed to emulate classic componentry and design techniques. The WA-84’s capsule is carefully manufactured by an Australian capsule supplier and is precisely reproduced to vintage specs. We are pleased to offer such a high quality capsule in this microphone which allows us to nail the sonics of the most important component of any microphone.
The Circuit
The WA-84 is a fully discrete Class A design that utilises a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET.
The Transformer
The WA-84 utilises an American made CineMag USA transformer that contributes to the legendary creamy smooth top-end and the BEEFY mid to bottom-end one would hope to get from an 84-style small diaphragm condenser microphone.
The Capacitors
The WA-84 proudly utilises Wima, polystyrene and tantalum through-hole capacitors throughout.

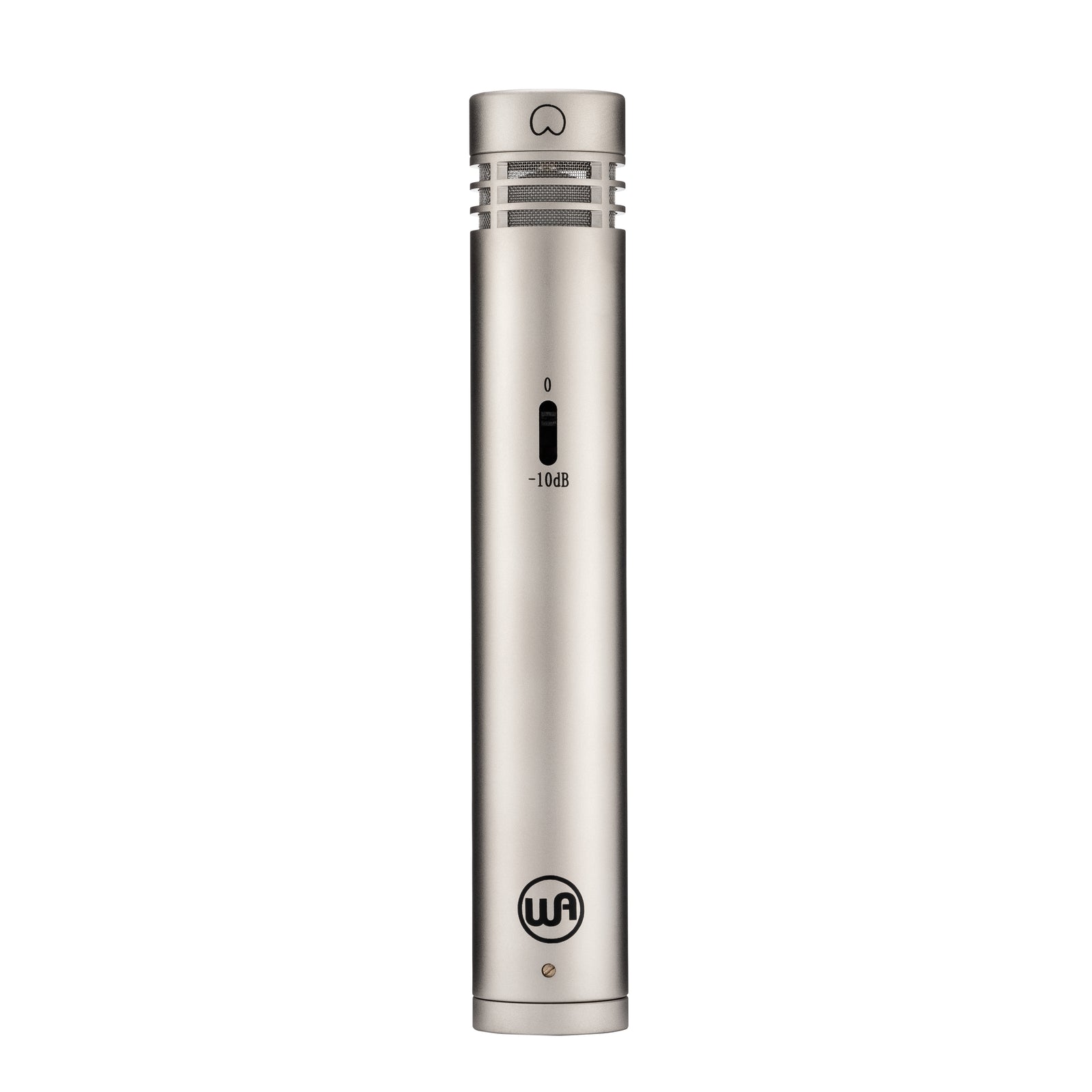

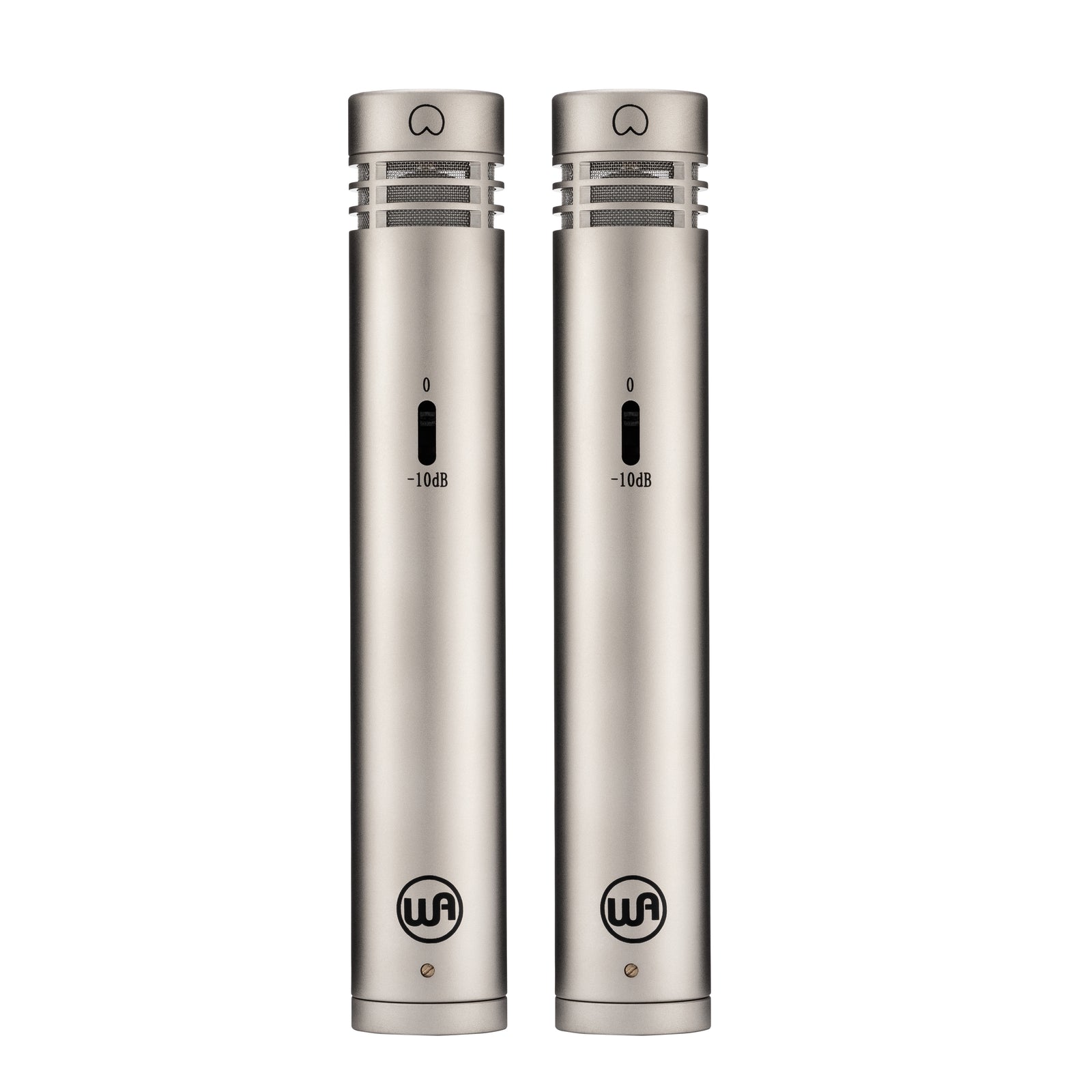

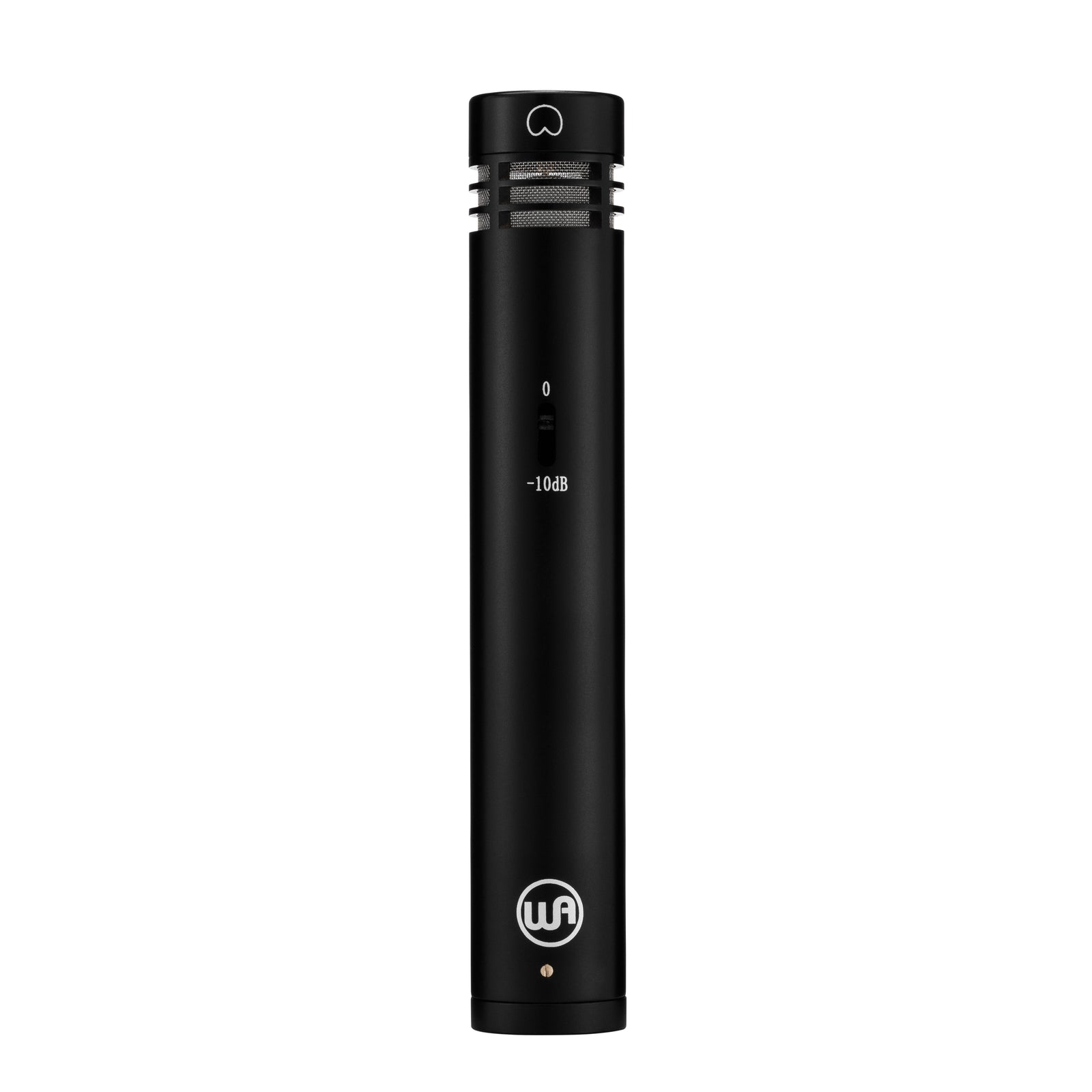

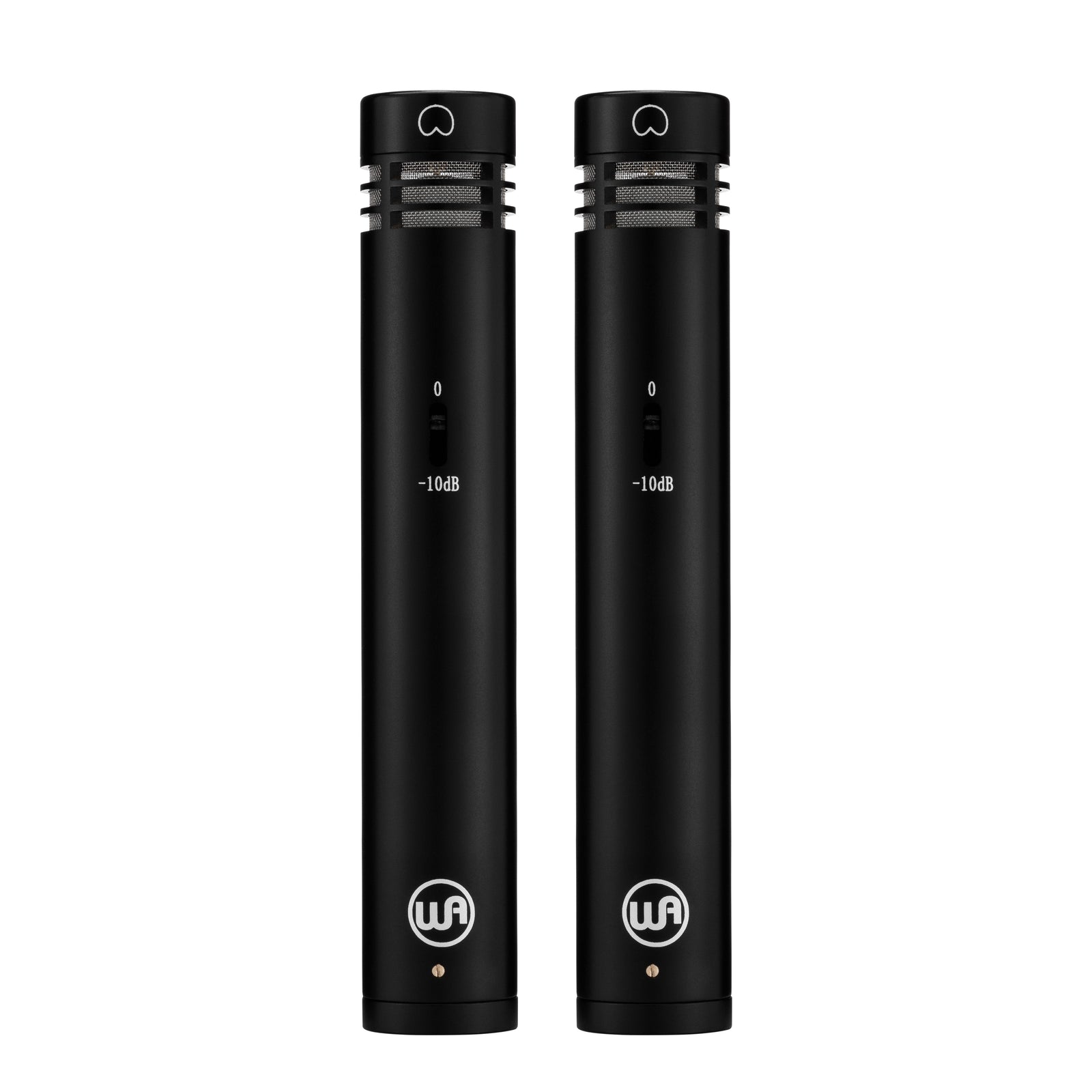

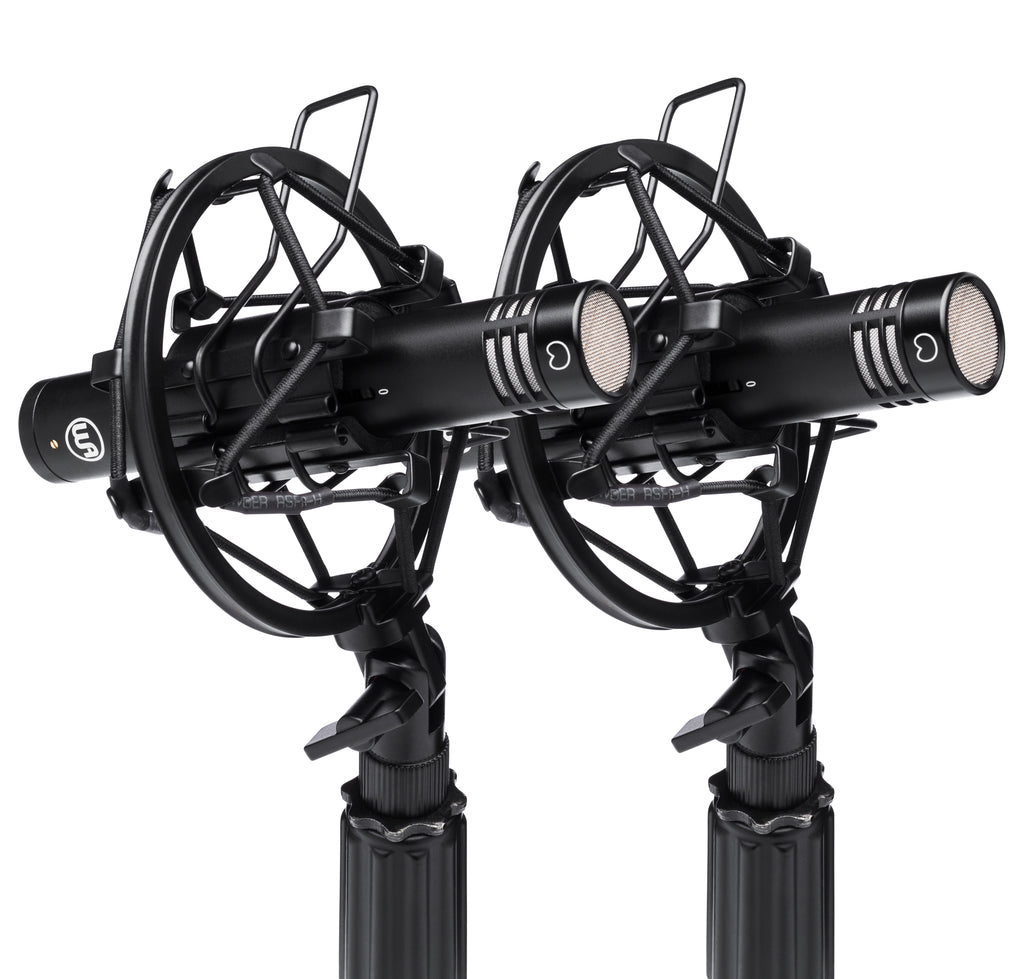

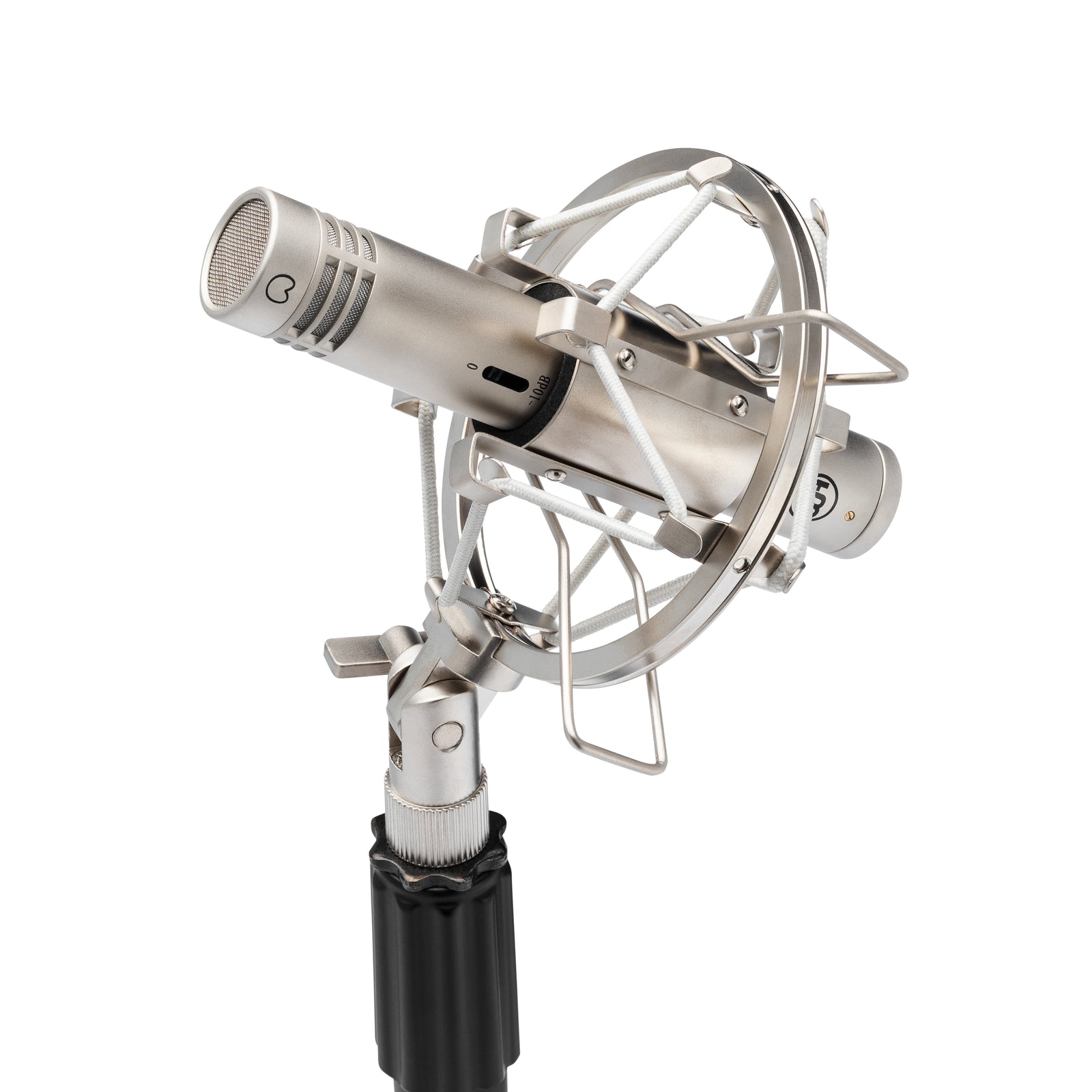

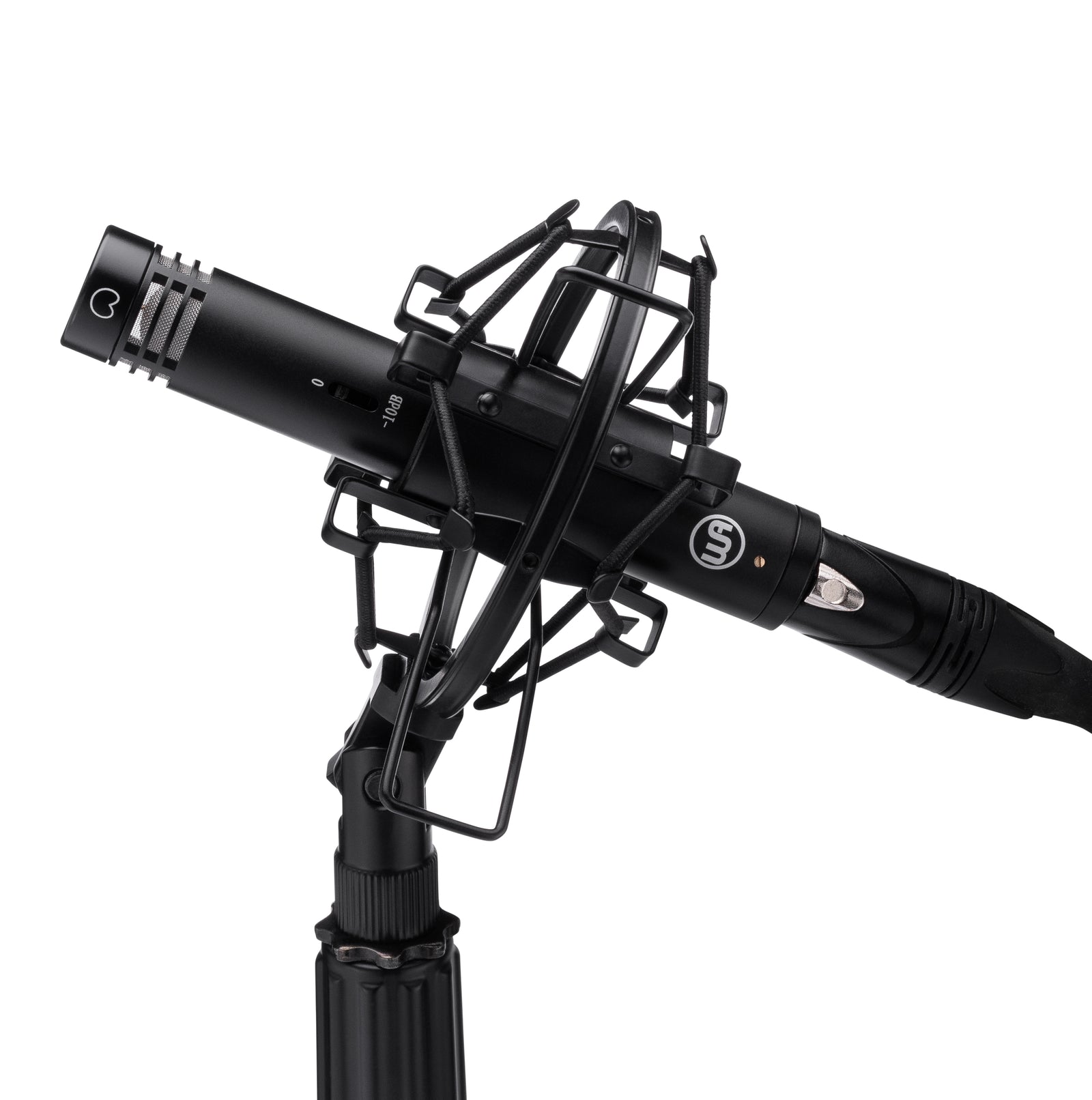

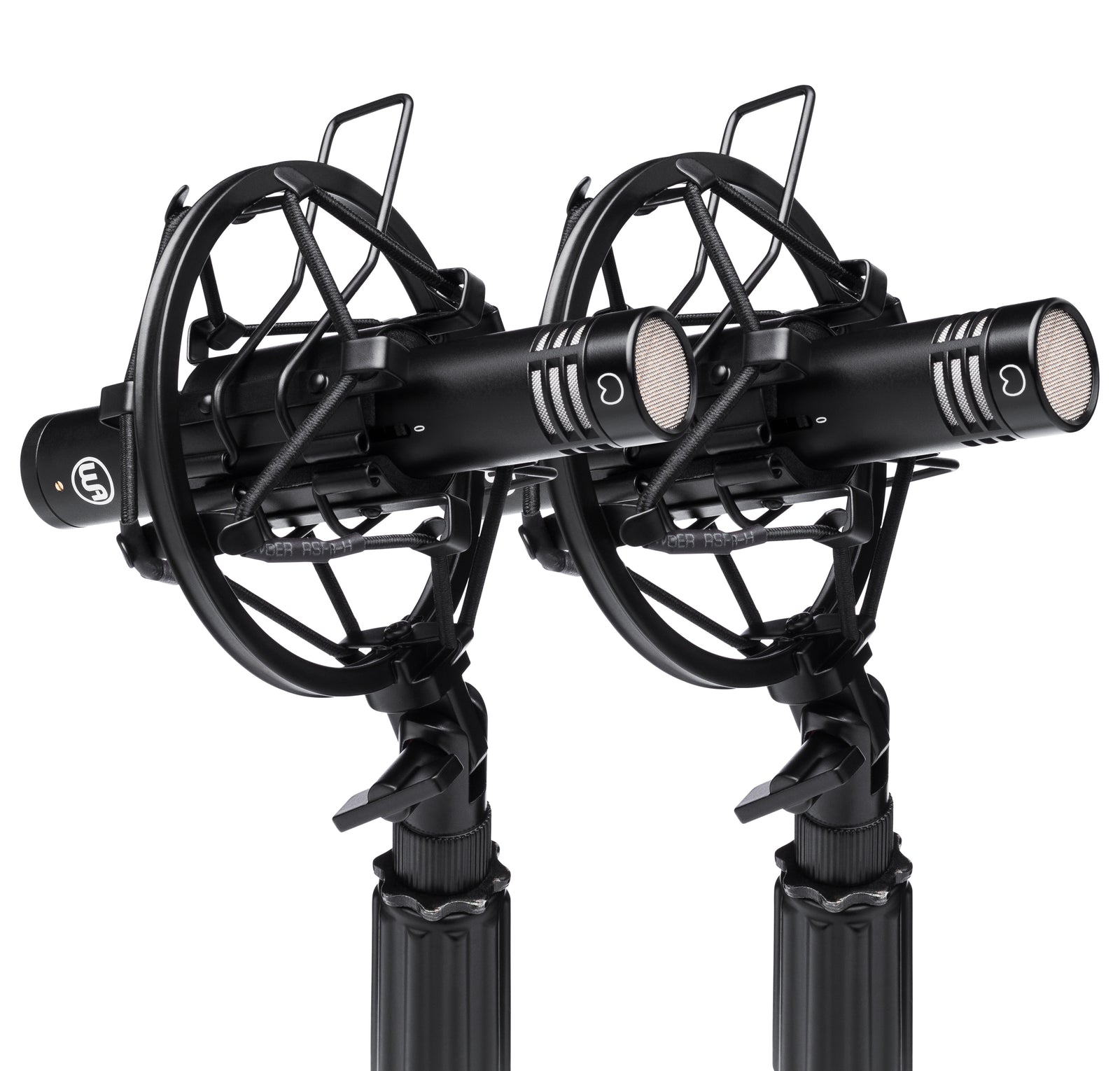

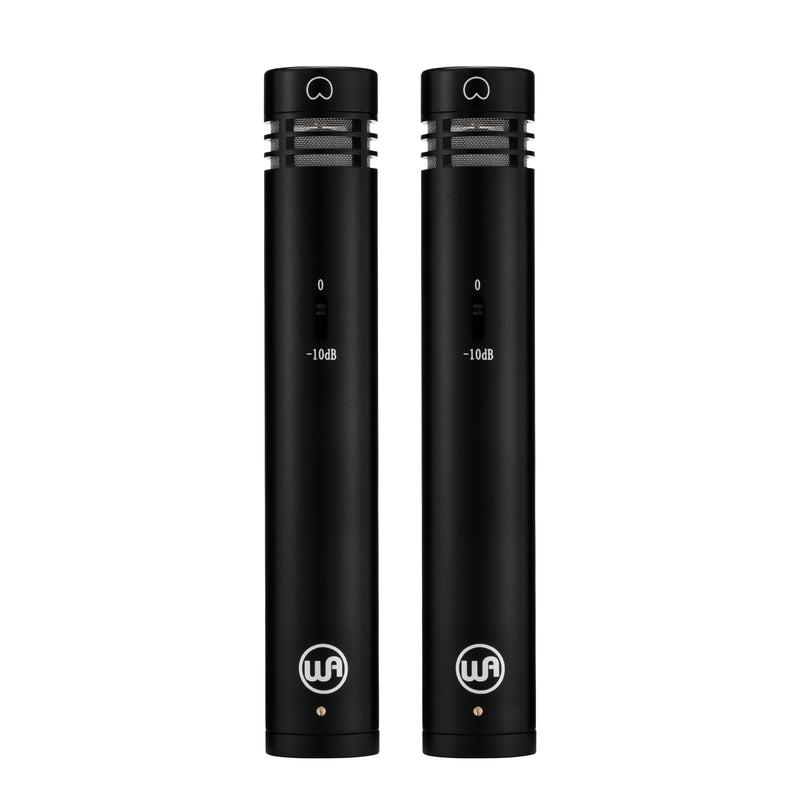

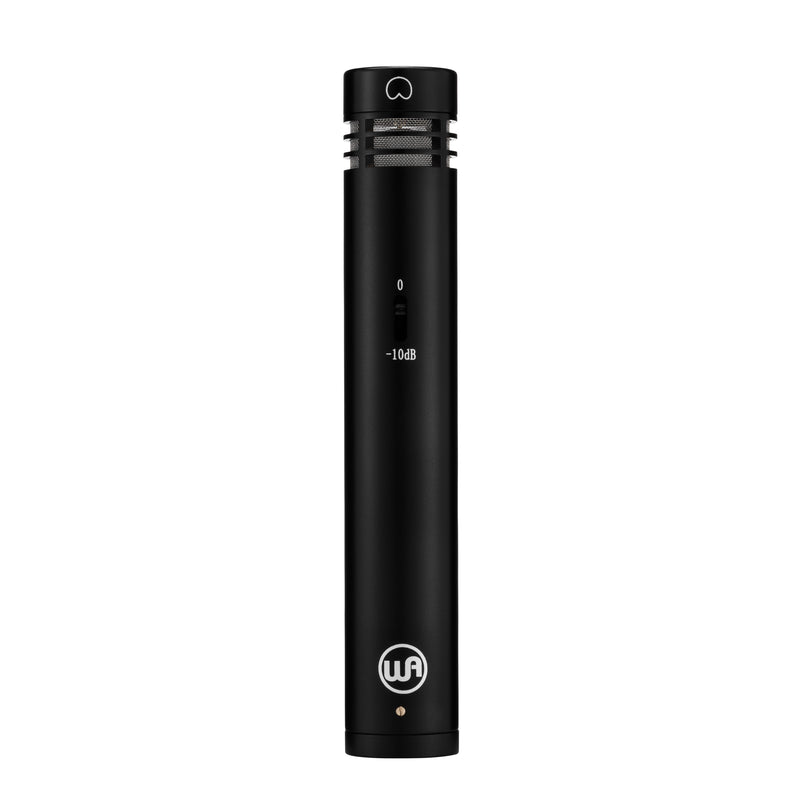

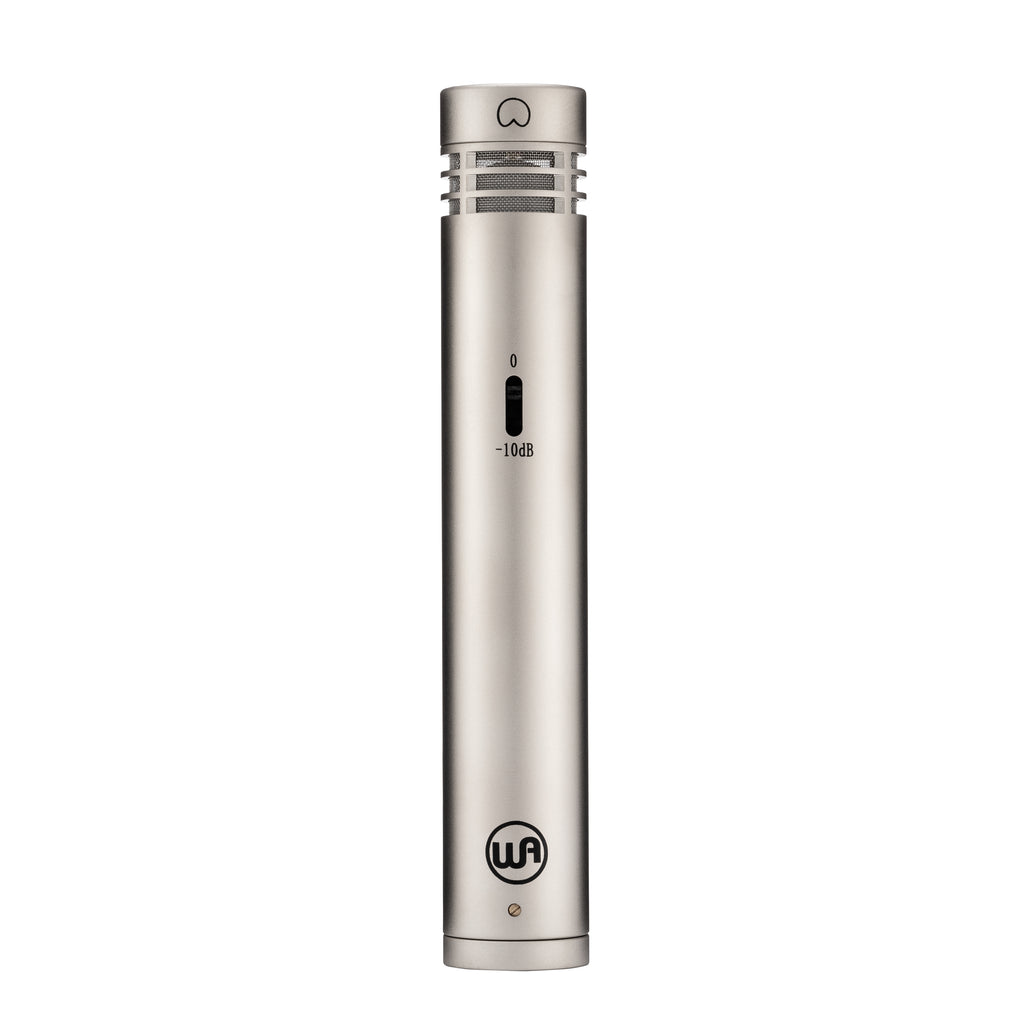

The WA-84 is offered in both nickel and black colours and in single and stereo pair quantities.
- Utilizes a CineMag USA Transformer
- Directional Pattern: Cardioid
- Fully Discrete Vintage-style Signal Path
- Vintage Capsule Reproduction
- 48V Phantom powered
- Frequency Range: 20Hz - 20kHz
- Sensitivity: -39dB or 11mV/Pa @ 1kHz
- Output Impedance: 200Ω
- Rated Load Impedance: ≥1kΩ
- Pad: 0db or -10db
- Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
- S/N Ratio: 78dBA (IEC651)
- Equivalent Noise: 16dBA (IEC651)
- Dynamic Range: 107dBA (IEC651)
- Connector: 3-Pin Gold-Plated XLR
- Weight: 122g each
- Finish: Black & Nickel

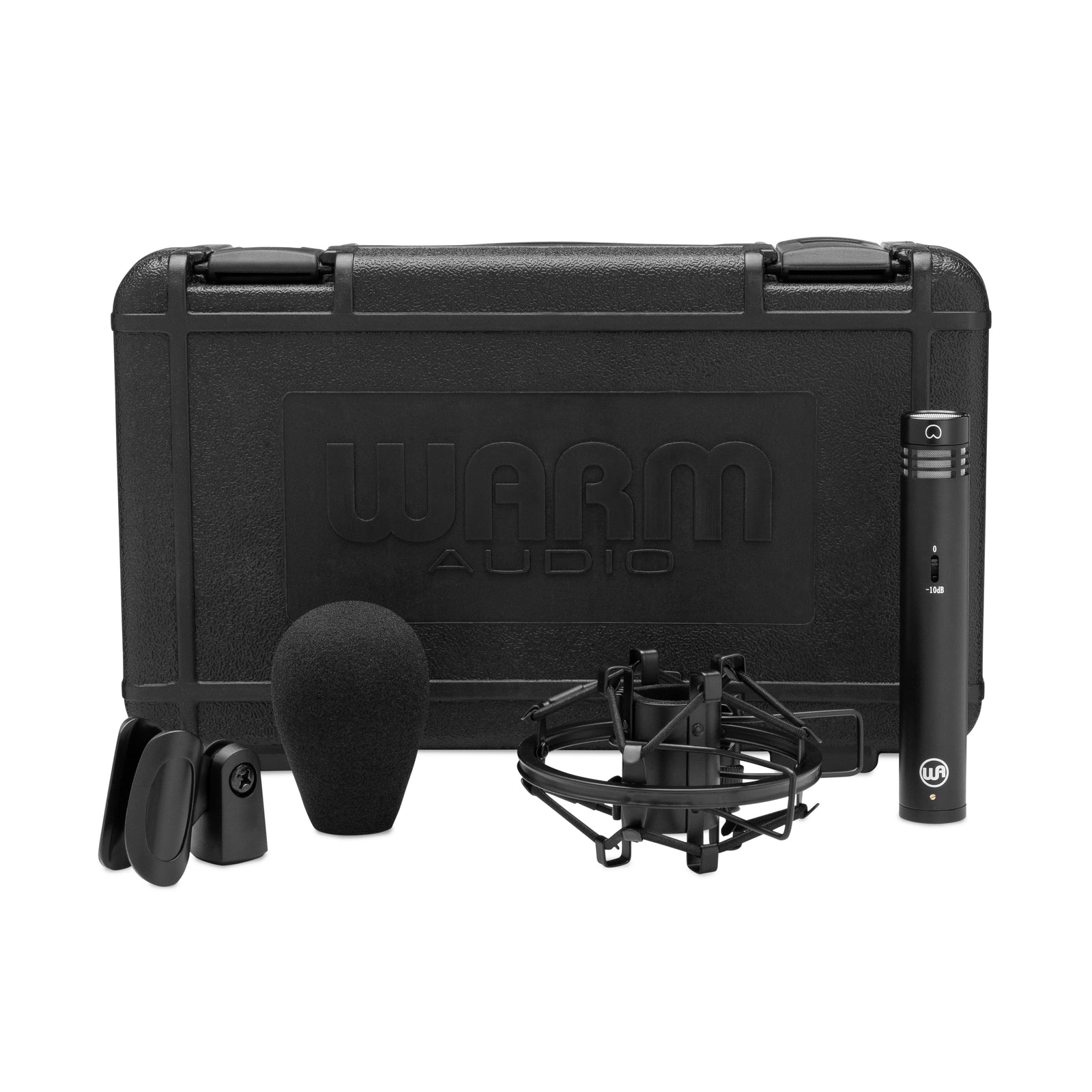

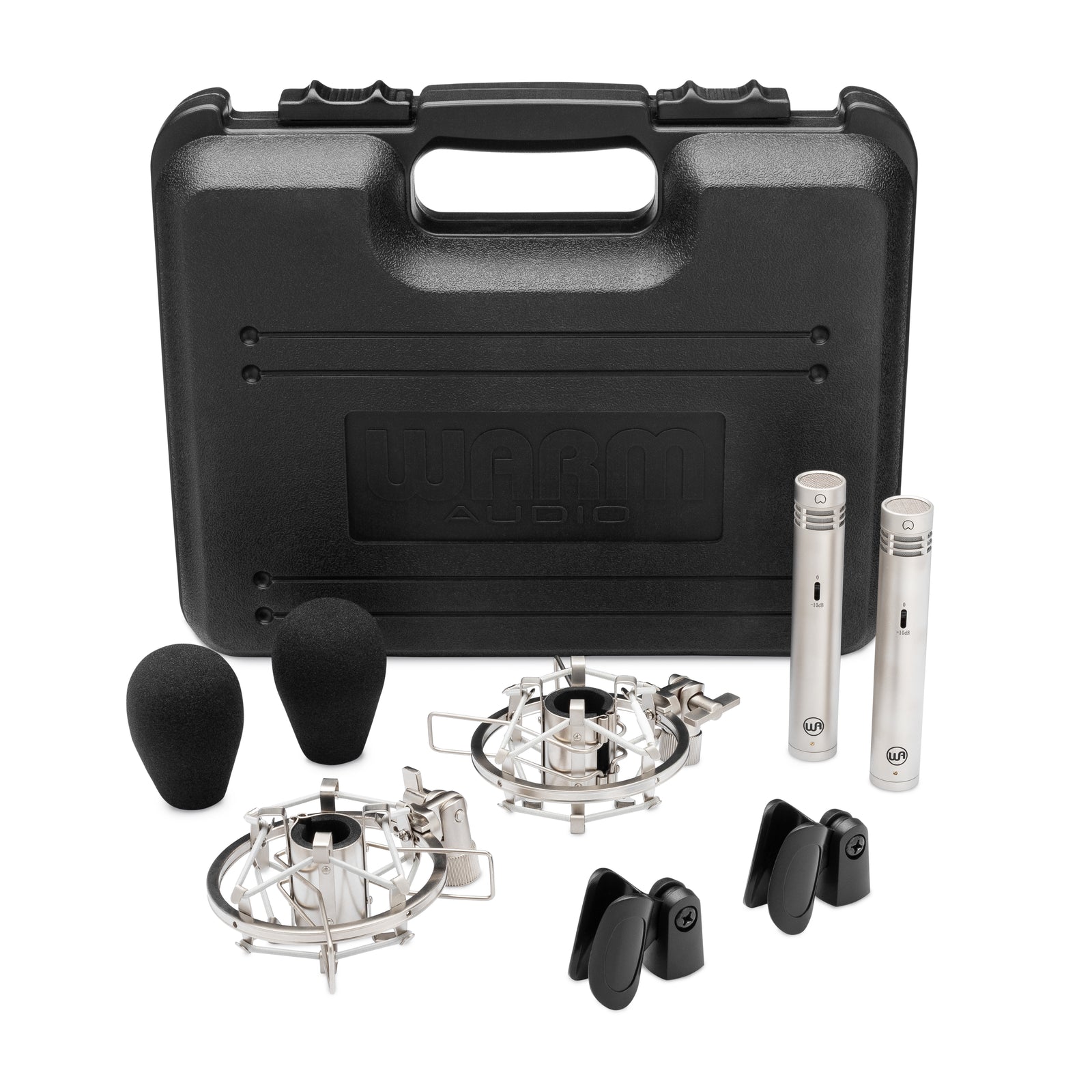

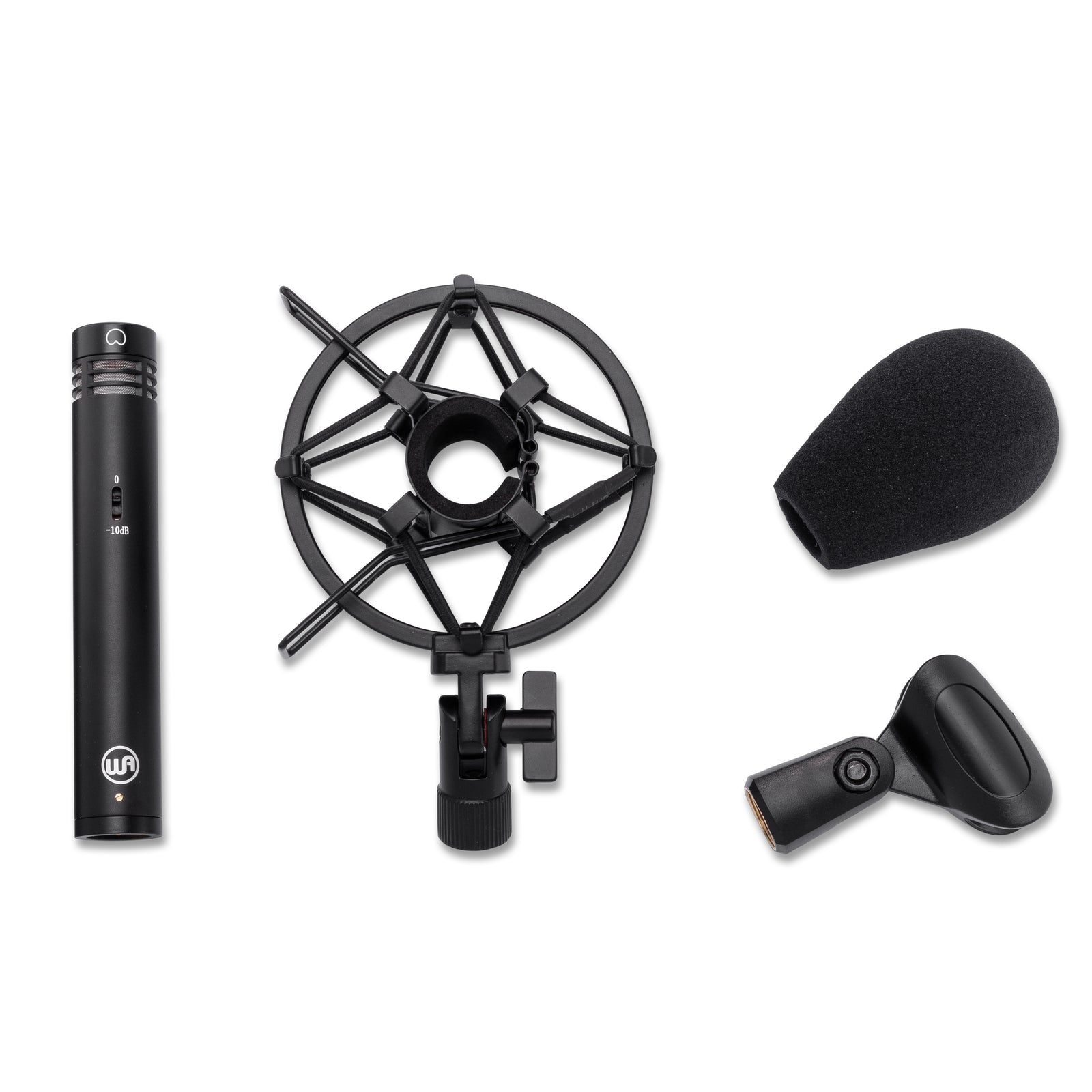

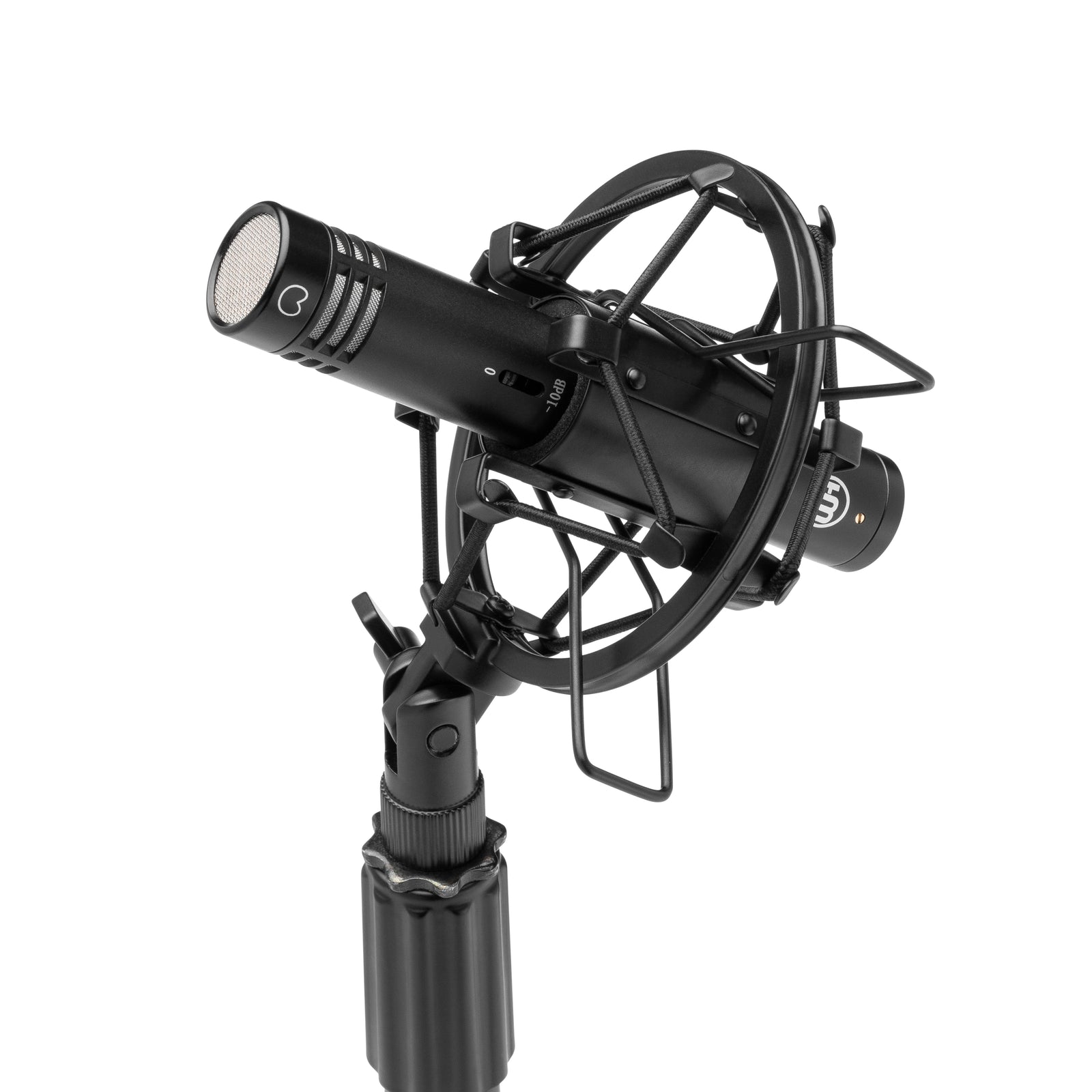

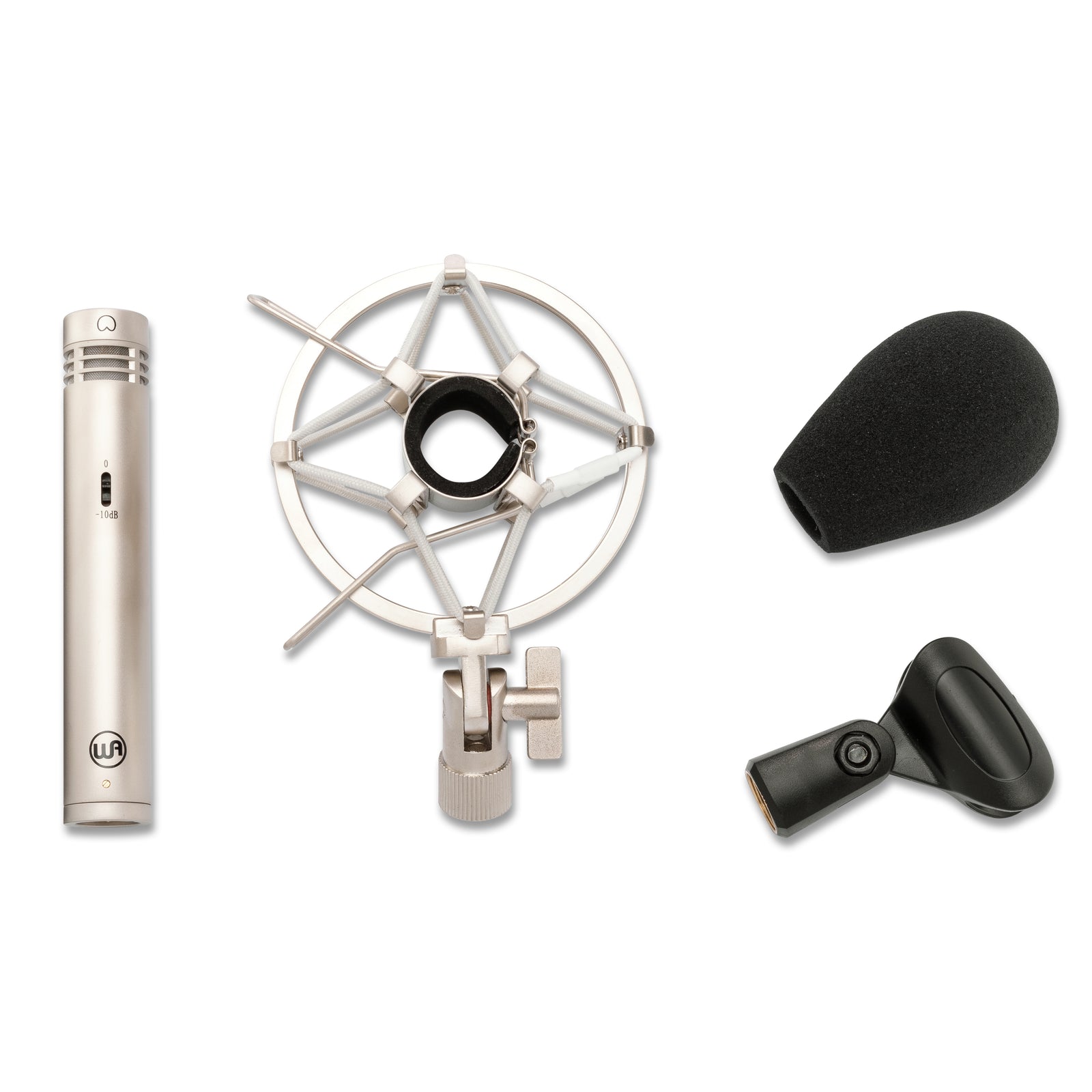

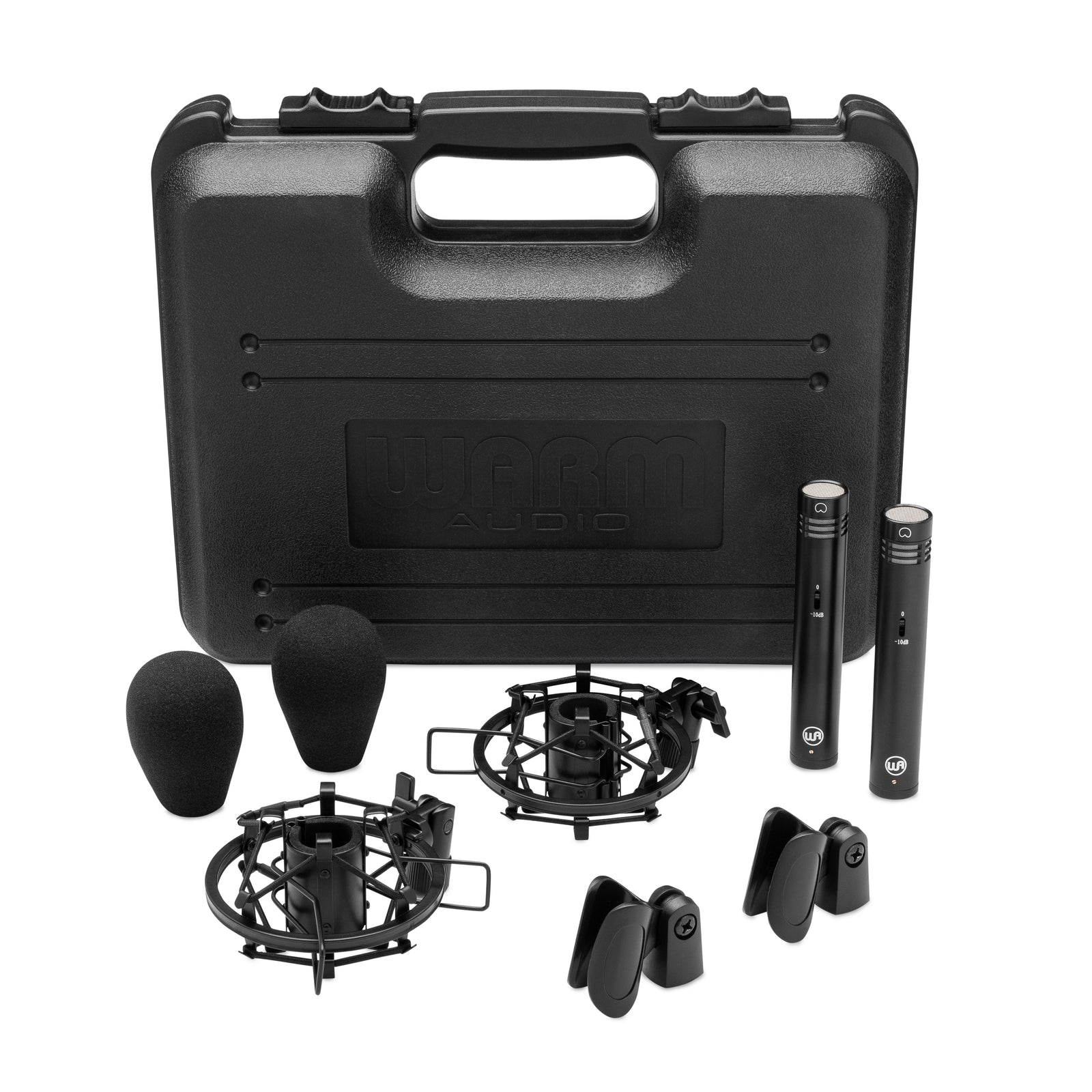

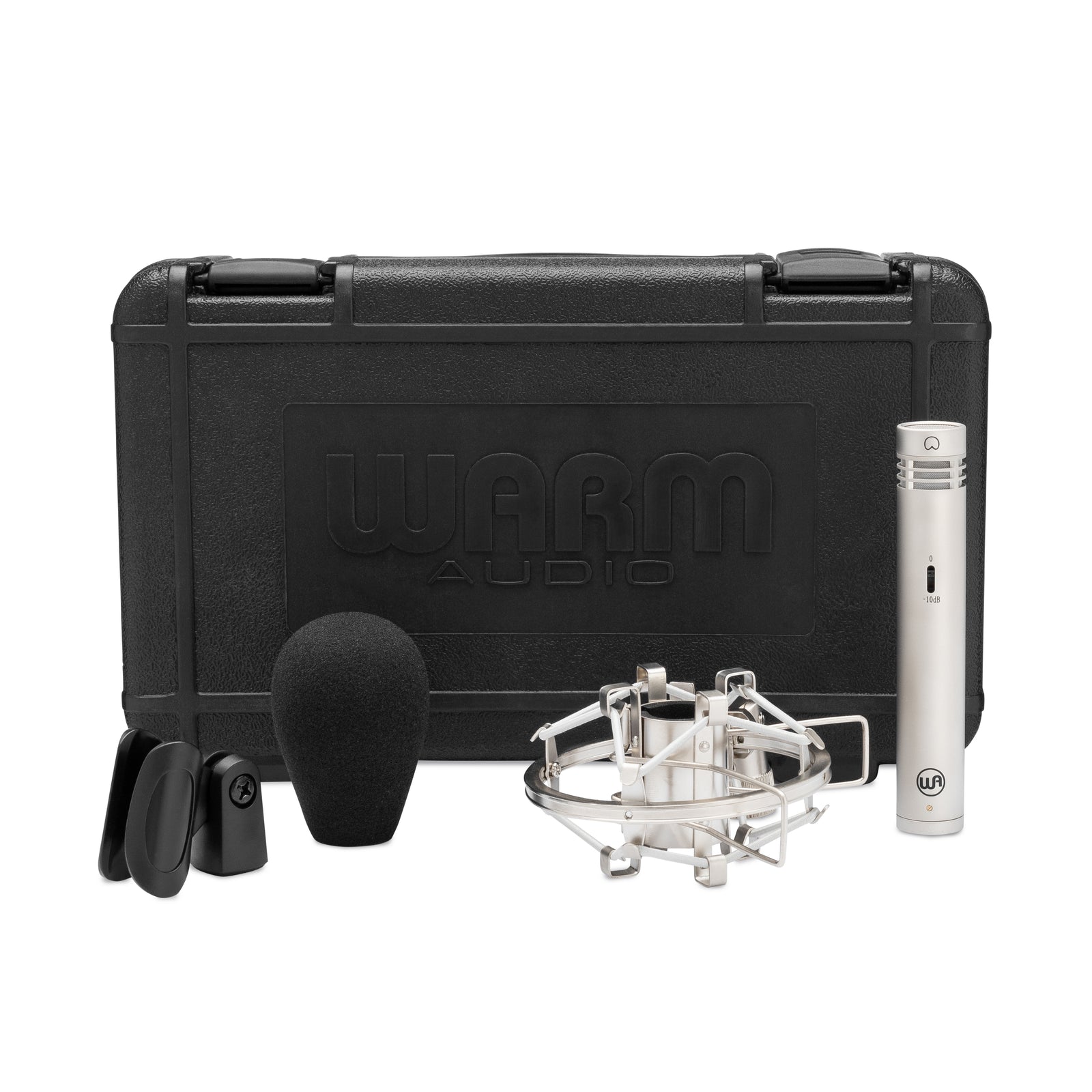

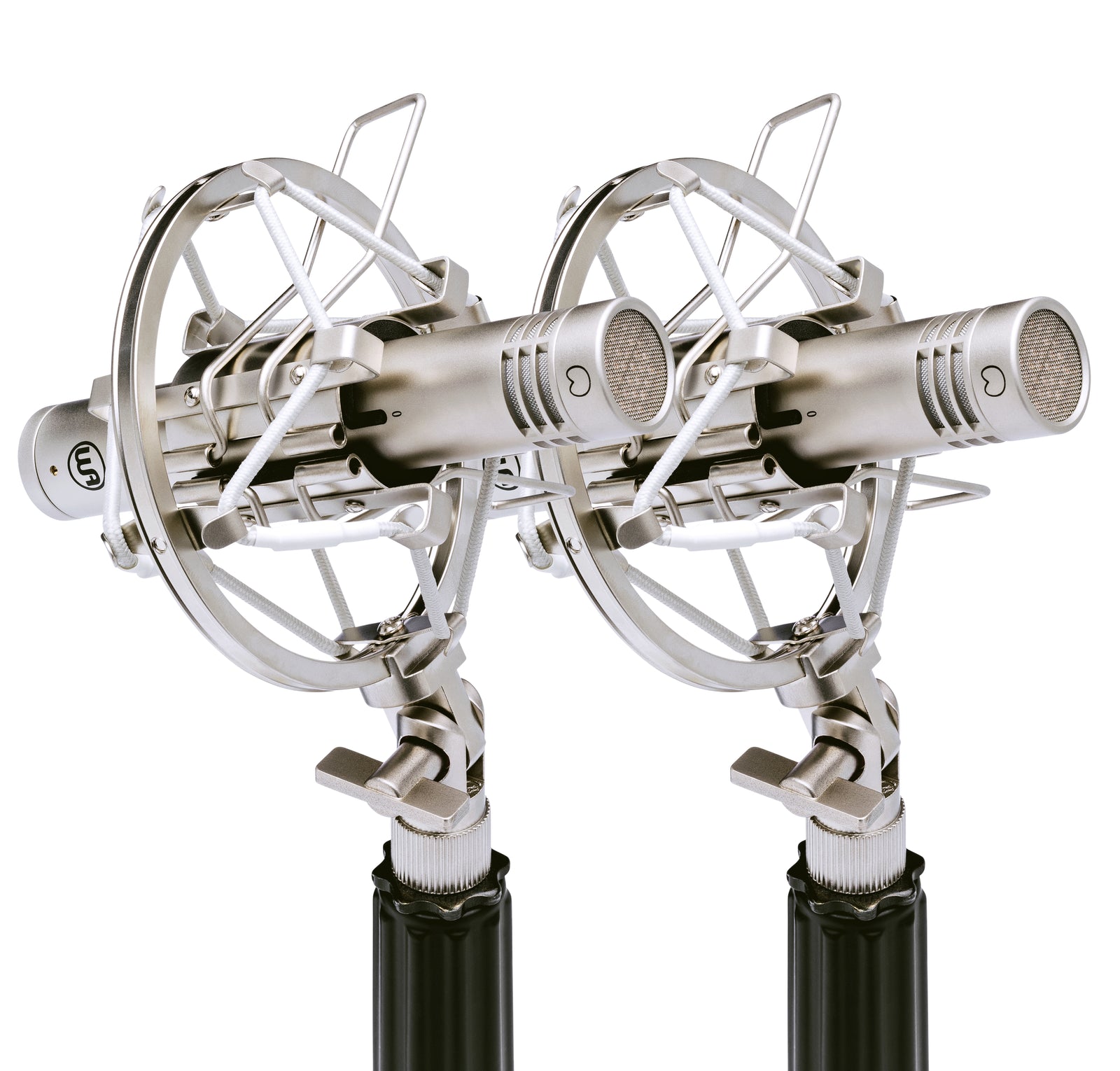

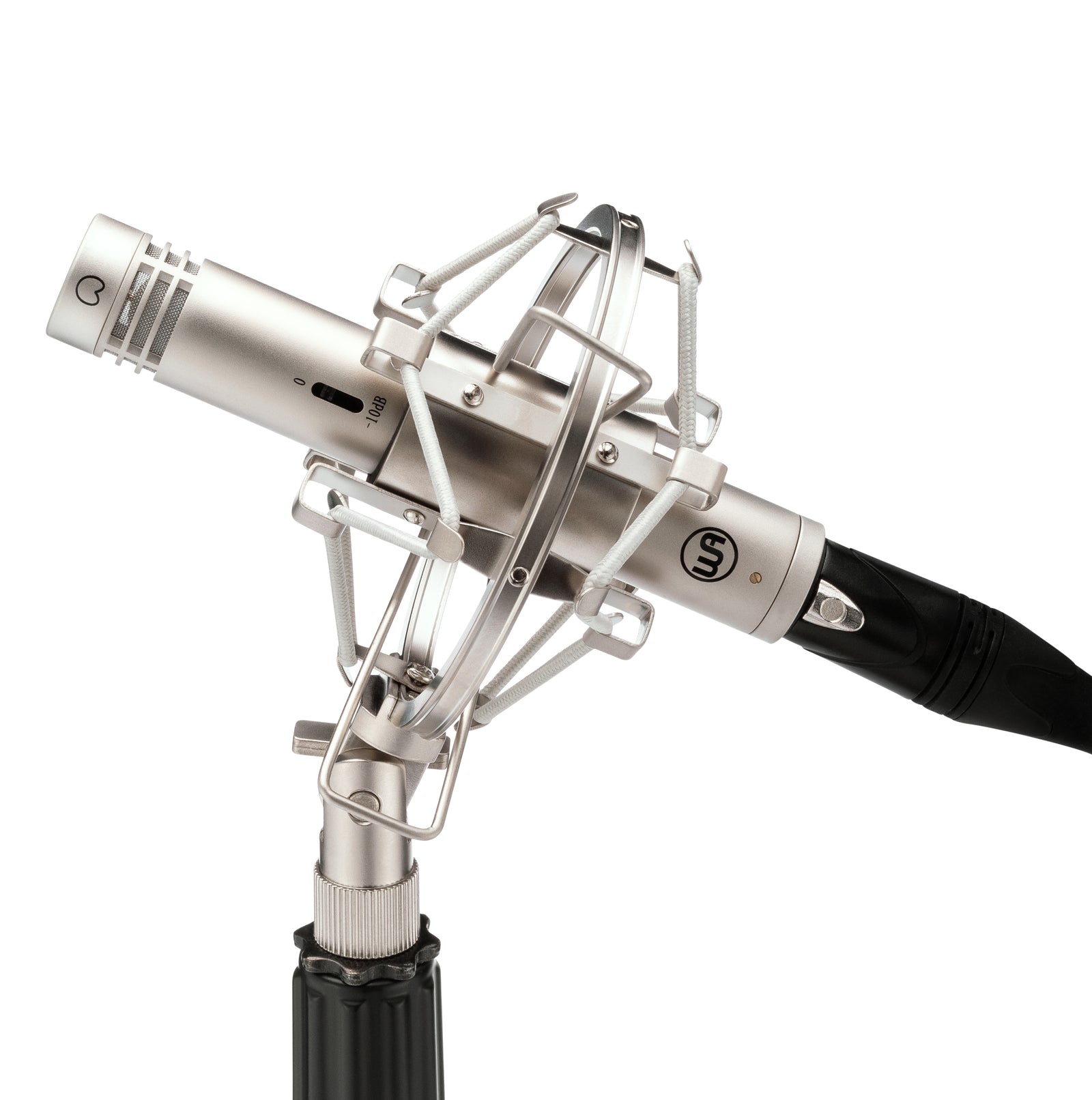

- Package Includes: Microphone, Cardioid Capsule, Shock-mount, Mic Clip, Windscreen and Carrying Case (Stereo pairs include 2 of each item in a single carrying case)
