The SOLO/610 delivers the classic Putnam 610 tube console sound in a portable, highly versatile mic preamp design. It provides the silky, vintage warmth of the original console’s mic amp design, and will flatter and enhance any microphone or instrument with its iconic tones.
Thanks to its convenient form factor, the SOLO/610 can be conveniently used in the control room or the recording room, on stage, or on a desktop. Functionally lean but sonically mean, the SOLO/610 maintains the character of the 610 console — at a price every serious project studio can afford.
Vintage Tones, Modern Workflow

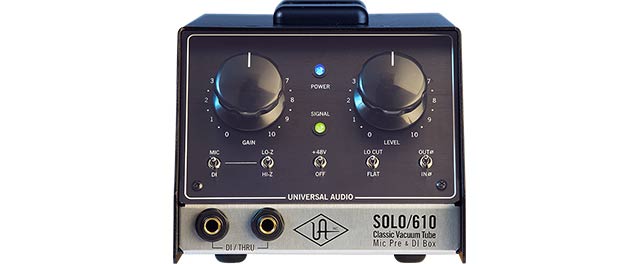

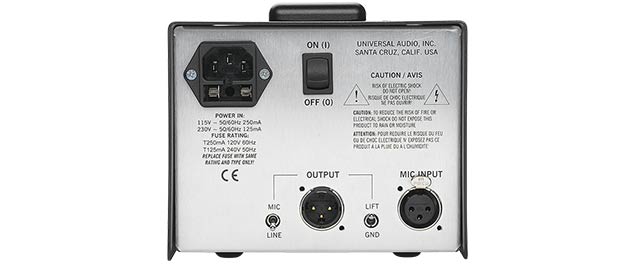

The SOLO/610 offers Mic and DI inputs, and Gain and Level controls for myriad clean or coloured sounds. Unlike its predecessors, the SOLO/610 has continuous Gain control with even greater range, allowing for precise gain structuring. The SOLO/610 has all of the essential features of a professional mic pre, including 48v Phantom Power, Lo-Cut filtering, Phase Reverse, and flexible dual impedance selection for both Mic and DI inputs. The SOLO/610 also includes essential DI features like Thru use in conjunction with an amplifier, plus Ground Lift and a versatile Mic/Line level output switch.
Key Features
- Classic Putnam 610 console mic preamplifier and DI
- Legendary all-tube sound, at a project studio price
- Gain, Level, and Impedance selection for maximum tonal variety
- Portable design for studio, desktop or stage
- Rugged construction-steel chassis
- DI features include Thru and Mic/Line level output
- Hand-built in USA; backed by 1-year limited warranty
Specifications
Input Impedance
Mic Input - Selectable 450 ohms (Lo-Z) or 1.6 kilohms (Hi-Z)
DI Input - Selectable 2.2 megohms (Lo-Z) or 50 kilohms (Hi-Z)
Output Load Impedance
20 Hz to 20 kHz +/- 1 dB
Maximum Gain
61 dB
Tube Complement
(1) 12AX7, (1) 12AT7
Maximum Mic Input Level
-12 dBu, 1.0% THD+N Ratio
Maximum Instrument Input Level
+4 dBu, 1.0% THD+N Ratio
Maximum Gain Mic Input
55 dB (1.6K ohm input), 60 dB (450 ohm input)
Mic/Instrument In Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB
Maximum Gain Instrument Input
37 dB
Dimensions
L: 14"
W: 5 3/4"
H: 5"
Weight
9 lbs.
