Put Unison preamps on stage or in your studio with Dante.
- Expand any Dante® network with remote-controlled mic/line preamps using Power over Ethernet (PoE)
- Combine with Apollo x16D interface to get the authentic Unison™ mic preamp sounds of API, Avalon, Manley, Neve, SSL, and more
- Link multiple Apollo e1x units with included coupling bracket and integrated mic-stand mount
- Pair with Apollo e2m stereo headphone amplifier/line interface and Apollo x16D for a complete I/O solution
Add the Iconic Sound of Preamps from Neve, API, and More
Apollo e1x lets you add remote-controllable Unison mic/line preamps to your Apollo x16D interface, putting legendary preamp sounds from API, Neve, Manley, SSL, and more on stage, at front-of-house, or in your multi-room studio using Dante networked audio.
Use with Any Dante Audio Network
Apollo e1x can be used as a remote-controllable mic/line preamp over any Dante network without an Apollo x16D interface, ideal for expanding your inputs — from additional stage rack connections to front-of-house measurement mics to a tamper-proof lectern preamp — no matter what Dante-enabled device you use.

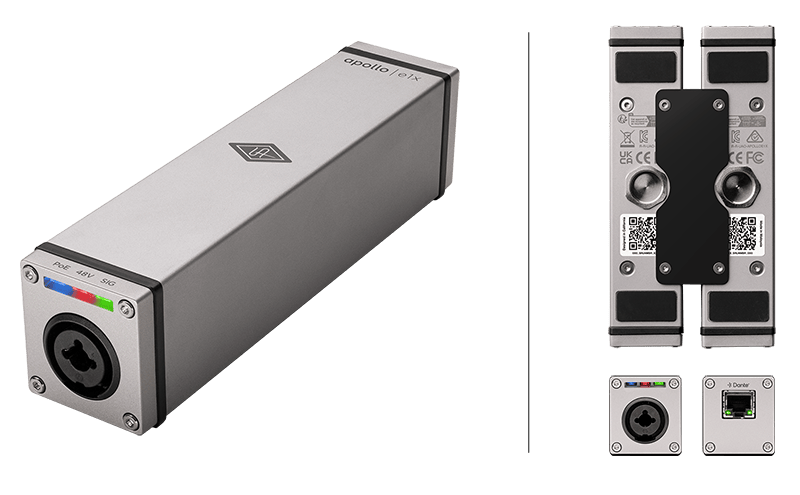

Link Multiple Apollo e1x Preamps
Need more mic pres? No problem. Use the included coupling bracket and threaded mic stand mount to connect multiple Apollo e1x preamps securely, giving you a clean, organised setup anywhere.
Pair with Apollo x16D and e2m Personal Monitoring
Unlock a complete I/O solution for your Dante network by pairing with Apollo e2m personal monitoring and Apollo x16D audio interfaces. This system gives you UAD realtime low-latency audio processing with personal cue monitoring and the iconic tone of classic mic preamps.
Details
- Single-channel Unison™ mic/line preamp for Apollo x16D with Dante networked audio connectivity
- Get the sound of iconic mic preamps from API, Neve, Manley, SSL, and more
- Assistive Auto-Gain for effortless level setting
- Unison support for up to 16 Apollo e1x units per Apollo x16D (DSP resource dependant)

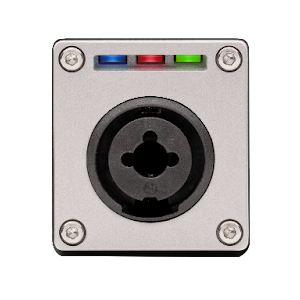

- Mic/line input combo jack (XLR mic / 1/4″ line input)
- Control gain, +48V phantom power, polarity inversion, and low cut over the network with UAD Console
- Use with any Dante audio network
- Dante routing directly via Dante Controller or in UAD Console with Apollo x16D
- Sample rate support: 44.1 to 96 kHz and AES67 support @ 48 kHz (set in Dante Controller)
- Dante Device Lock (set in Dante Controller)
- Included coupling bracket to securely link multiple Apollo e1x preamps

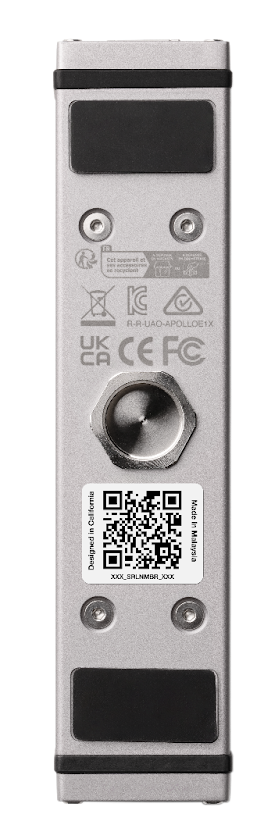

- Threaded 5/8″ mic stand mount
- Free industry-leading technical support from knowledgeable audio engineers
Specifications
All specifications are typical performance unless otherwise noted. Tested with the Audio Precision APx555 Audio Analyzer under the following conditions: 48 kHz internal sample rate, 24-bit sample depth, 20 kHz measurement bandwidth, +24 dBu headroom, balanced output, and internal clock. Specifications are subject to change without notice.
|
I/O Complement |
|
|
Simultaneous Channel I/O Count (analog + digital) |
1 x 1 |
|
Network Audio Ports |
One |
|
Analog Microphone Inputs |
One |
|
Analog Line Inputs |
One |
|
AD/DA Conversion |
|
|
Simultaneous A/D Conversion |
One channel |
|
Available Sample Rates (kHz) |
44.1, 48, 88.2, 96 |
|
Bit Depth Per Sample |
24 |
|
Analog to Network Latency |
Less than 0.2 ms |
|
Network Latency |
1, 2, or 5 ms (switchable) |
|
ANALOG I/O |
|
|
Microphone Input |
|
|
Frequency Response |
20 Hz – 20 kHz, ±0.04 dB |
|
Dynamic Range (A-weighted) |
120 dB |
|
THD + Noise (1 kHz @ 4.4 dBu -1 dBFS) |
-115 dB (0.00017%) |
|
Maximum Input Level (PAD on) |
25 dBu |
|
Default Input Impedance (variable via Unison plug-ins) |
5.4 K Ω |
|
Pad Attenuation (variable via Unison plug-ins) |
20 dB |
|
Gain Range |
+10 dB to +65 dB |
|
Phantom Power |
+48V |
|
Connector Type |
XLR Female, pin 2 positive (Combo XLR/TRS) |
|
Line Input |
|
|
Frequency Response |
20 Hz – 20 kHz, ±0.08 dB |
|
Dynamic Range (A-weighted) |
119 dB |
|
THD + Noise (1 kHz @ 23dBu, -1 dBFS) |
-112 dB (0.00025%) |
|
Maximum Input Level |
24 dBu |
|
Input Impedance |
10 K Ω |
|
Gain Range |
+10 dB to + 65 dB |
|
Connector Type |
1/4" female TRS balanced (Combo XLR/TRS) |
|
DIGITAL I/O |
|
|

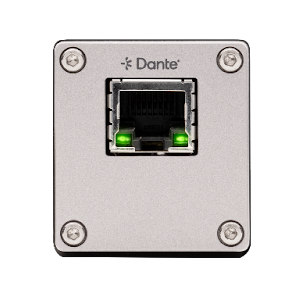

Network Audio Ports (100 Mbps Ethernet) |
One |
|
Digital Connector |
RJ45 Female, CAT 5 |
|
Networked Audio Format |
Dante or AES67 (48 kHz only) |
|
ELECTRICAL |
|
|
Power Supply |
Power over Ethernet (PoE) 802.3af |
|
Maximum Power Consumption (PoE) |
3W (typical), 4W maximum |
|
ENVIRONMENTAL |
|
|
Ambient Temperature Range |
32º to 104º F (0º to 40º C) |
|
MECHANICAL |
|
|
Width |
1.46" (36.98 mm) |
|
Height |
1.62" (41.1 mm) |
|
Depth, Chassis Only |
6.25" (158.8 mm) |
|
Shipping Box (Length x Width x Height) |
7" x 1.91" x 1.7" (77.8 mm x 48.4 mm x 43.2 mm) |
|
Shipping Weight (with box & accessories) |
0.75 pounds (0.3 kg) |
|
Weight (bare unit) |
0.5 lbs (208 grams) |
|
Package Contents |
Apollo e1x |
|
Product Safety Sheet |
|
