Pro-Quality Portable Recording, Simplified
The TASCAM DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording — and you’ll never need to worry about setting input levels.
Adjustable Stereo Condenser Microphones

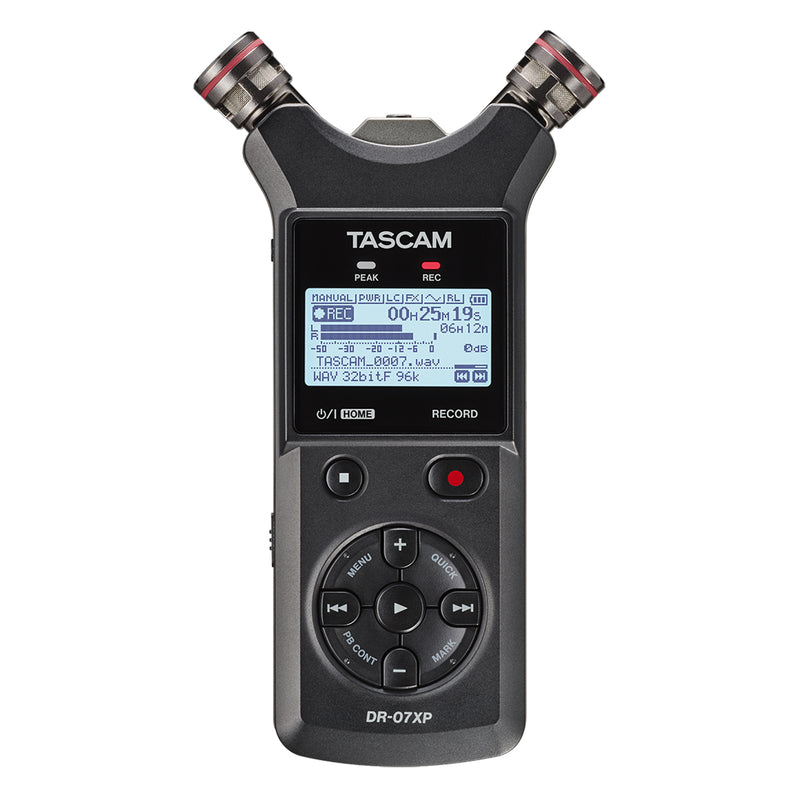

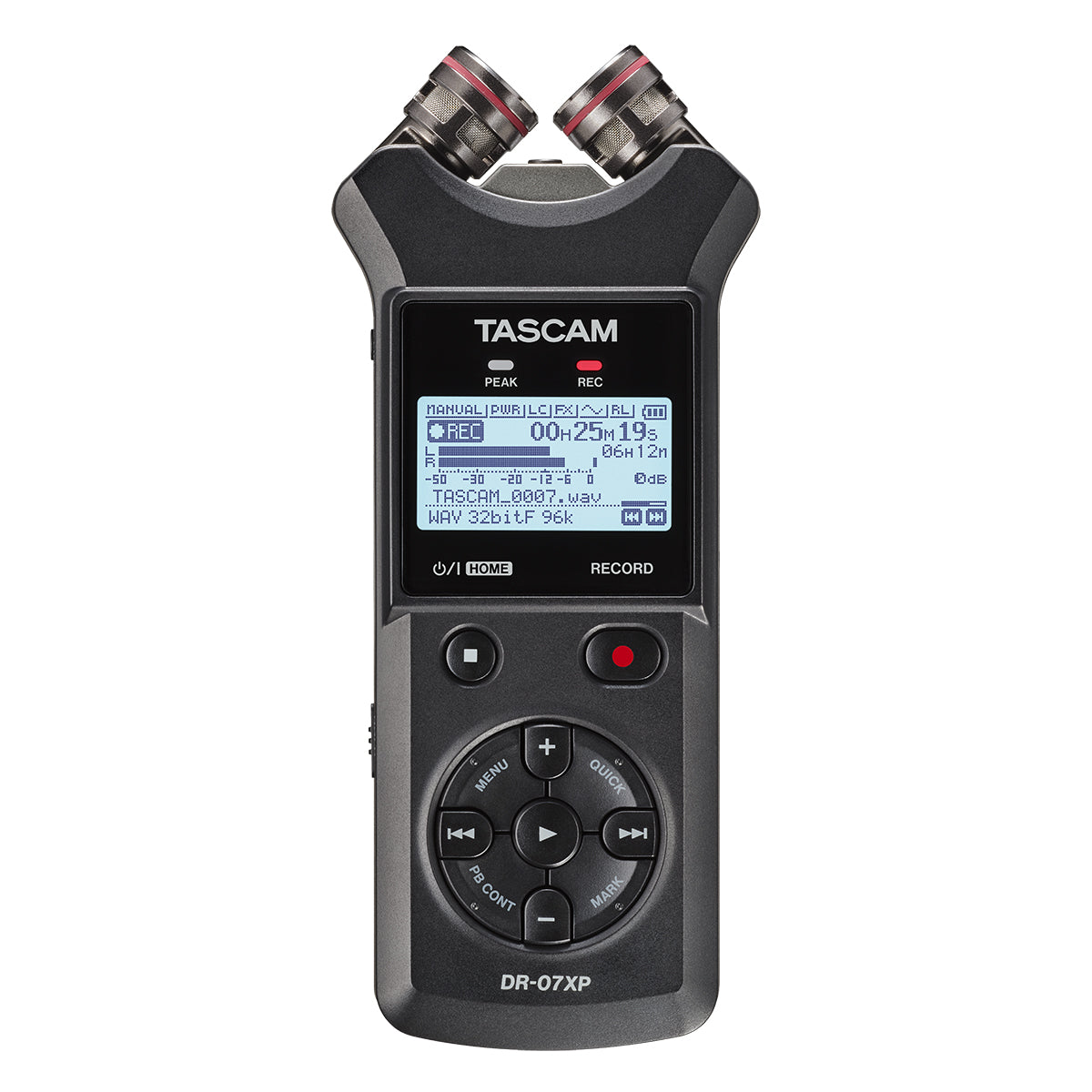

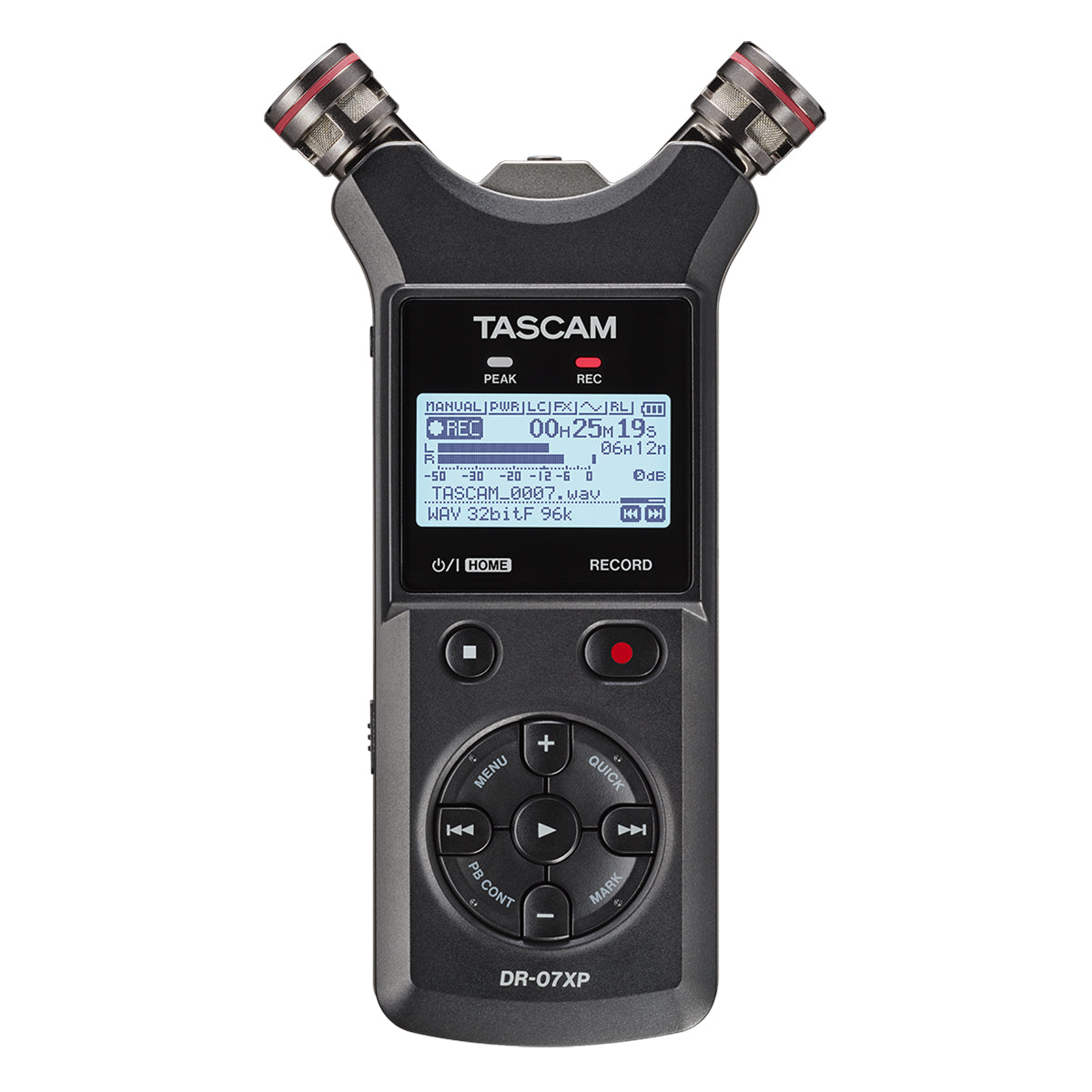

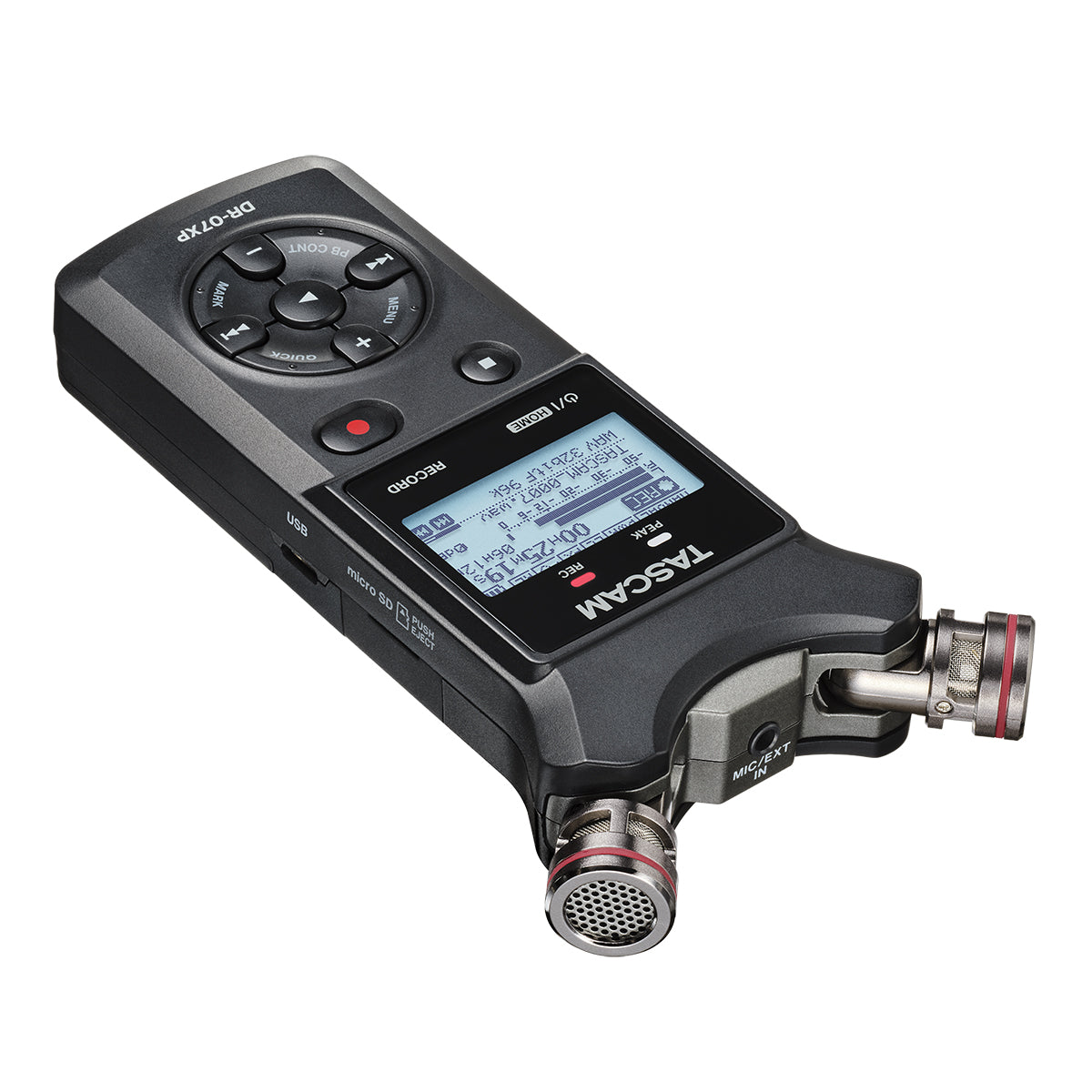

The DR-07XP features unidirectional stereo condenser microphones with adjustable A/B or X/Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.
Simplicity in Your Palm
With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.
Your Portable Recording Studio
The DR-07XP isn't only a powerful portable recorder — it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.
Ideal for Musicians
The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.
On Location
With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
Record Anything, Anywhere
From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.
Key Features
- 2-channel portable handheld audio recorder with microSDXC card storage
- 32-bit float recording mode ensures low-noise, distortion-free recordings
- Stereo AB/XY condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours operation with 2 x AA alkaline batteries
Additional Features
- Recording modes include 32-bit float/24-bit/16-bit, 96kHz/48kHz/44.1kHz
- microSDXC (up to 512GB) cards can be used as recording media
- USB Type-C port
- Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
- Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
- Long recordings as MP3 files possible
- Various recording function (Auto rec, Self timer, Pre rec)
- Overdubbing function
- Limiter and Peak reduction
- Three low-cut filter levels (40/80/120Hz)
- Auto Tone output for use with DSLR camera
- Reverb effect for vocal and instrument resonance
- Mark function
- 128×64 pixel graphic LCD with backlight
- Tripod mounting point attaches to any standard tripod
- Stereo mini line output and headphone output
- Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
- Playlist function
- Built-in monaural speaker makes it easy to check your recordings
- Chromatic tuner for tuning musical instruments before recording
* WS-11 Windscreen sold separately
* SD card not included
Specifications:
|
Recorder specifications |
|
|
Recording media/file systems |
microSD cards, microSDHC cards, microSDXC cards (up to 512 GB) |
|
Recording/playback formats |
|
|
WAV (BWF) |
|
|
Sampling frequency |
44.1 kHz / 48 kHz / 96 kHz |
|
Quantization bit depth |
16-bit / 24-bit / 32-bit float |
|
MP3 |
|
|
Sampling frequency |
44.1 / 48 kHz |
|
Quantization bit depth |
32 / 64 / 96 / 128 / 192 / 256 / 320 kbps |
|
Maximum number of input channels |
2 |
|
Maximum number of recordable tracks |
2 |
|
Analog audio input/output ratings |
|
|
MIC/EXT IN jack (can provide plug-in power) |
|
|
Connector |
3.5mm (1/8") stereo mini jack |
|
Input Impedance |
18 kΩ or more (when plug-in power is turned off) 2 kΩ or more (when plug-in power is turned on) |
|
Nominal input level |
- 20 dBV |
|
Maximum input level |
-4 dBV |
|
PHONES/LINE OUT jack |
|
|
Connector |
3.5mm (1/8") stereo mini jack |
|
Output impedance |
12 Ω |
|
Nominal output level |
- 14 dBV (10kΩ loaded) |
|
Maximum output level |
+2 dBV (10kΩ loaded) |
|
Maximum output |
20 mW + 20 mW (32 Ω load) |
|
Working impedance |
16 - 250Ω |
|
Built-in Speaker |
|
|
Output |
0.3W (monaural) |
|
USB |
|
|
Connector |
USB Type-C |
|
Format |
USB 2.0 High Speed Mass Storage Class USB 1.1 Full Speed Audio Class |
|
USB Audio |
|
|
Sampling rate |
44.1 / 48 kHz |
|
Quantization bit depth |
24-bit |
|
Number of inputs |
2 channels (output from this unit) |
|
Number of outputs |
2 channels (input to this unit) |
|
General |
|
|
Power |
2AA batteries (alkaline or NiMH) USB bus power (5V/0.5A) from a computer, etc. TASCAM PS-P520U AC adapter (sold separately) |
|
Power consumption |
1.7 W (maximum) |
|
Weight |
184 g / 0.406 lb (including batteries) 136 g / 0.30 lb (not including batteries) |
|
Operating temperature range |
0 – 40 °C / 32 – 104 °F |
|
Dimensions |
|
|
Mic closed |
68 x 159.6 x 27.0 mm 2.68 x 6.28 x 1.06 inch |
|
Mic opened |
90.3 x 159.6 x 27.0 mm 3.56 x 6.28 x 1.06 inch |
|
Included items |
DR-07XP x1 Safety guide (including warranty) x1 TASCAM ID registration guide x1 |
*Note:0 dBV=1 Vrms, 0 dBu=0.775 Vrms
Recording duration
|
Recording format |
Card capacity (hours:minutes) |
|||
|
32 GB |
128 GB |
|||
|
WAV 16-bit (stereo) |
44.1 kHz |
49:20 |
197:20 |
|
|
48 kHz |
45:20 |
181:20 |
||
|
96 kHz |
22:40 |
90:40 |
||
|
WAV 24-bit (stereo) |
44.1 kHz |
32:56 |
131:44 |
|
|
48 kHz |
30:16 |
121:04 |
||
|
96 kHz |
15:04 |
60:16 |
||
|
WAV 32-bit float (stereo) |
44.1 kHz |
24:40 |
98:40 |
|
|
48 kHz |
22:40 |
90:40 |
||
|
96 kHz |
11:20 |
45:20 |
||
|
MP3 (stereo/ mono) |
32 kbps |
44.1/48 kHz |
2209:36 |
8838:24 |
|
64 kbps |
44.1/48 kHz |
1104:48 |
4419:12 |
|
|
96 kbps |
44.1/48 kHz |
736:32 |
2946:08 |
|
|
128 kbps |
44.1/48 kHz |
552:24 |
2209:36 |
|
|
192 kbps |
44.1/48 kHz |
368:16 |
1473:04 |
|
|
256 kbps |
44.1/48 kHz |
276:08 |
1104:32 |
|
|
320 kbps |
44.1/48 kHz |
220:56 |
883:44 |
|
Battery operation time (continuous operation)
|
Batteries |
Rec/ play |
File format (recording setting) |
Operation time in hours |
Note |
|
Using alkaline batteries (EVOLTA) |
Recording |
WAV, 96 kHz, 32-bit float |
About 14.5 |
With built-in stereo mic input |
|
WAV, 96 kHz, 24-bit |
About 15.5 |
With built-in stereo mic input |
||
|
WAV, 44.1 kHz, 16-bit |
About 17.5 |
With built-in stereo mic input |
||
|
MP3, 44.1 kHz, 128 kbps |
About 13 |
With built-in stereo mic input |
||
|
MP3, 48 kHz, 320 kbps |
About 11 |
With built-in stereo mic input |
||
|
Playback |
WAV, 96 kHz, 32-bit float |
About 11 |
Using headphones |
|
|
About 11 |
Using built-in speaker |
|||
|
WAV, 96 kHz, 24-bit |
About 14 |
Using headphones |
||
|
About 14 |
Using built-in speaker |
|||
|
WAV, 44.1 kHz, 16-bit |
About 16.5 |
Using headphones |
||
|
About 16.5 |
Using built-in speaker |
|||
|
MP3, 44.1 kHz, 128 kbps |
About 16.5 |
Using headphones |
||
|
About 16.5 |
Using built-in speaker |
|||
|
MP3, 48 kHz, 320 kbps |
About 15.5 |
Using headphones |
||
|
About 15.5 |
Using built-in speaker |
|||
|
Using NiMH battery (eneloop) |
Recording |
WAV, 96 kHz, 32-bit float |
About 11.5 |
With built-in stereo mic input |
|
WAV, 96 kHz, 24-bit |
About 12.5 |
With built-in stereo mic input |
||
|
WAV, 44.1 kHz, 16-bit |
About 14.5 |
With built-in stereo mic input |
||
|
MP3, 44.1 kHz, 128 kbps |
About 13 |
With built-in stereo mic input |
||
|
MP3, 48 kHz, 320 kbps |
About 10 |
With built-in stereo mic input |
||
|
Playback |
WAV, 96 kHz, 32-bit float |
About 10 |
Using headphones |
|
|
About 10 |
Using built-in speaker |
|||
|
WAV, 96 kHz, 24-bit |
About 13 |
Using headphones |
||
|
About 12 |
Using built-in speaker |
|||
|
WAV, 44.1 kHz, 16-bit |
About 14 |
Using headphones |
||
|
About 15 |
Using built-in speaker |
|||
|
MP3, 44.1 kHz, 128 kbps |
About 13.5 |
Using headphones |
||
|
About 13 |
Using built-in speaker |
|||
|
MP3, 48 kHz, 320 kbps |
About 13.5 |
Using headphones |
||
|
About 13 |
Using built-in speaker |
Recording: JEITA recording time
Playback: JEITA music playback time
Note: The battery operation times (during continuous operation) could vary depending on the media being used.
Audio Performance
|
Frequency Response |
20–20 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA) 20–22 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 48 kHz, JEITA) 20–40 kHz +0/−1.5 dB (MIC/EXT IN to LINE OUT, 96 kHz, JEITA) |
|
Total harmonic distortion ratio (THD+N) |
0.01% or less (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA) |
Note: JEITA indicates conformance to JEITA CP-2150
