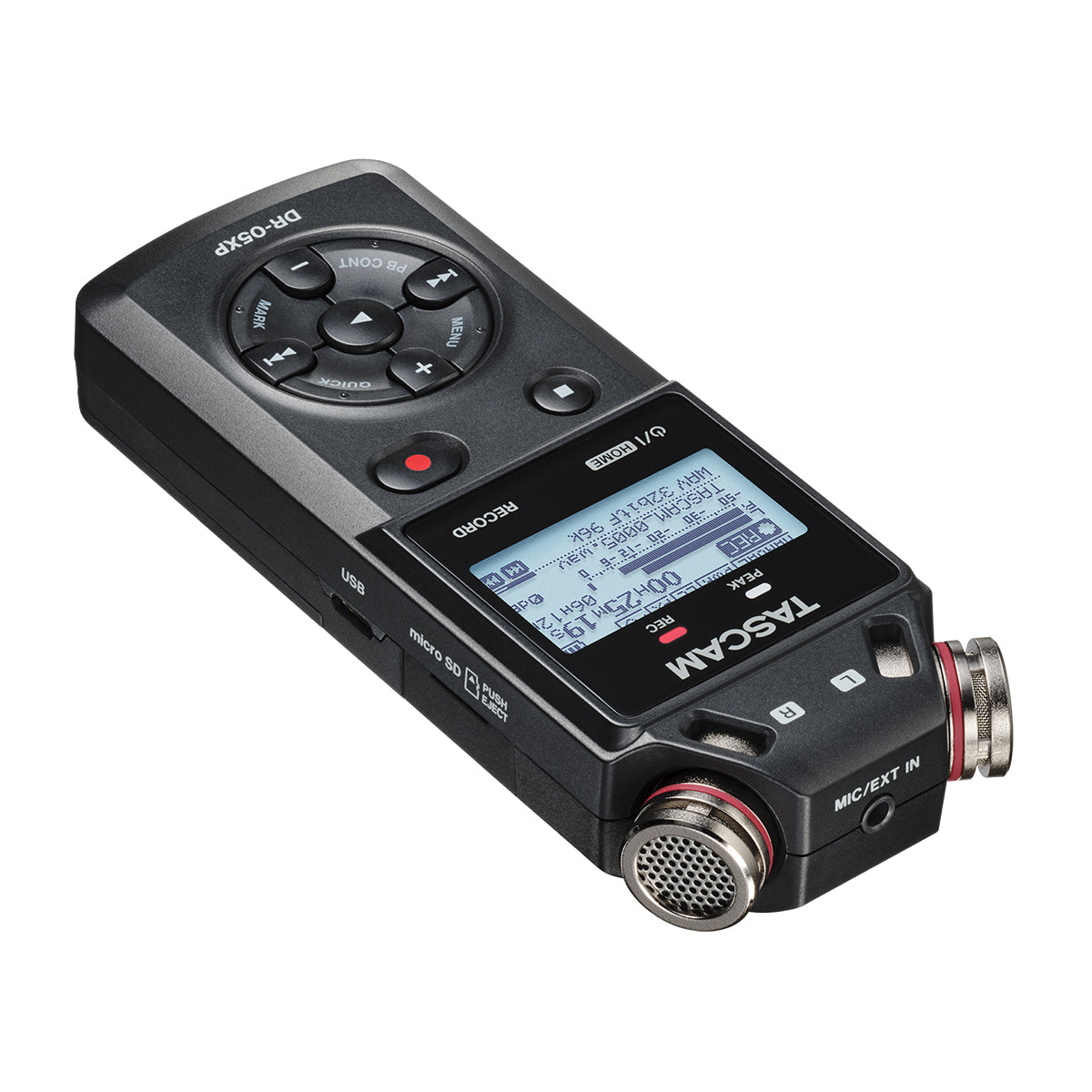

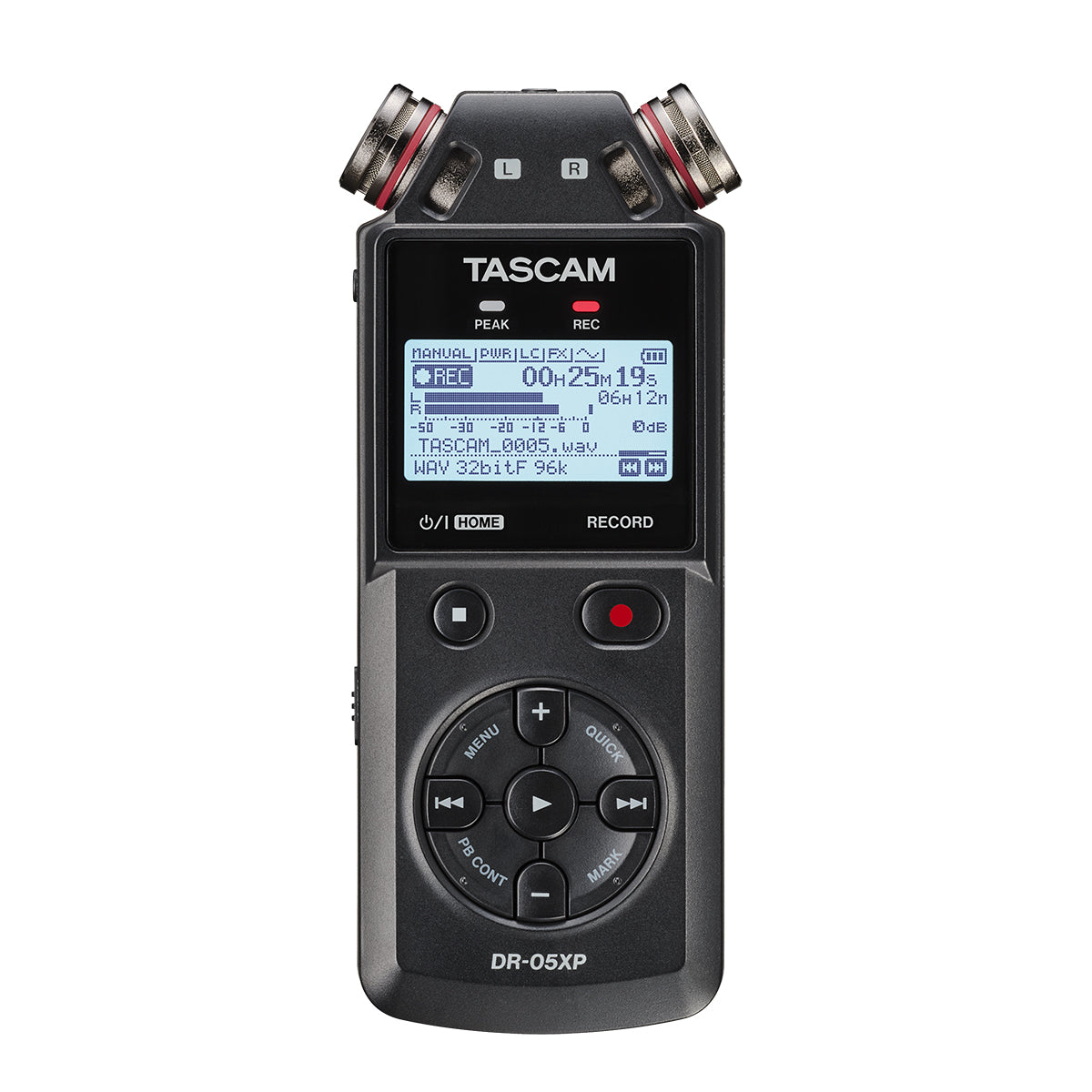

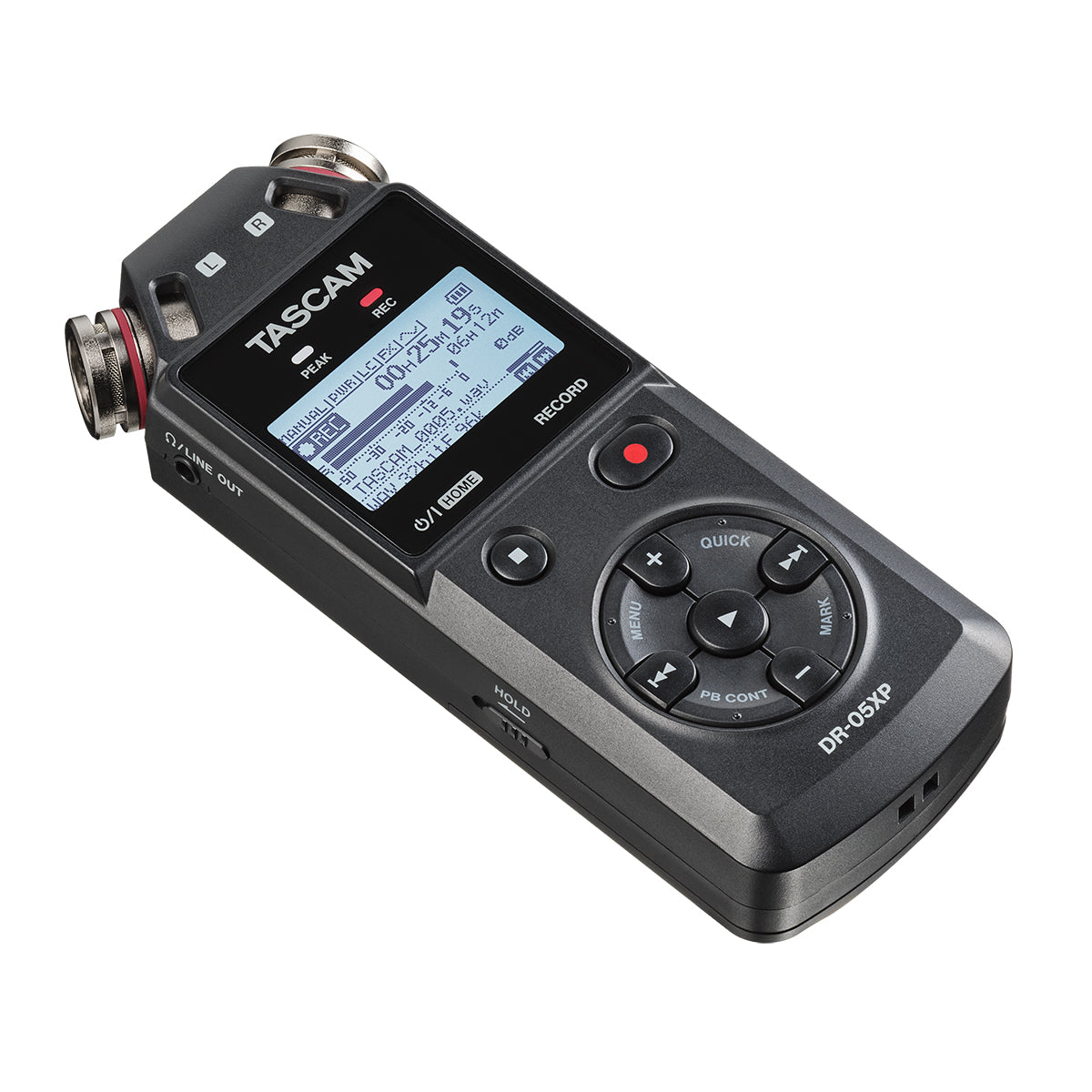

Tascam DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface

TascamSKU: DR-05XP

Price:
Sale price €139.00

Pro-Quality Portable Recording, Simplified

The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time

With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording — and you'll never need to worry about setting input levels.

Built-in Condenser Microphones

The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.

Simplicity in Your Palm

With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio

The DR-05XP isn't only a powerful portable recorder — it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians

The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On Location

With its compact size, the DR-05XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

Record Anything, Anywhere

From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-05XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

Features at a Glance

Key Features

  • 2-channel portable handheld audio recorder with microSDXC card storage
  • 32-bit float recording mode ensures low-noise, distortion-free recordings
  • Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
  • 2-in/2-out USB-C audio interface for recording directly to your computer
  • Up to 17.5 hours of operation with 2 x AA alkaline batteries

Additional Features

  • Recording modes include 32-bit float/24-bit/16-bit, 96kHz/48kHz/44.1kHz
  • microSDXC (up to 512GB) cards can be used as recording media
  • USB Type-C port
  • Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Long recordings as MP3 files possible
  • Various recording function (Auto rec, Self timer, Pre rec)
  • Overdubbing function
  • Limiter and Peak reduction
  • Three low-cut filter levels (40/80/120Hz)
  • Auto Tone output for use with DSLR camera
  • Reverb effect for vocal and instrument resonance
  • Mark function
  • 128×64 pixel graphic LCD with backlight
  • Tripod mounting point attaches to any standard tripod
  • Stereo mini line output and headphone output
  • Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
  • Playlist function
  • Built-in monaural speaker makes it easy to check your recordings
  • Chromatic tuner for tuning musical instruments before recording

* WS-11 Windscreen sold separately
* SD card not included

Specs

Recorder specifications



Recording media/file systems

microSD cards / microSDHC cards / microSDXC cards (up to 512 GB)

Recording/playback formats



WAV (BWF)



Sampling frequency

44.1 kHz / 48 kHz / 96 kHz

Quantization bit depth

16-bit / 24-bit / 32-bit float

MP3



Sampling frequency

44.1 / 48 kHz

Quantization bit depth

32 / 64 / 96 / 128 / 192 / 256 / 320 kbps

Maximum number of input channels

2

Maximum number of recordable tracks

2

Analog audio input/output ratings



MIC/EXT IN jack (can provide plug-in power)



Connector

3.5mm (1/8") stereo mini jack

Input Impedance

18 kΩ or more (when plug-in power is turned off)

2 kΩ or more (when plug-in power is turned on)

Nominal input level

- 20 dBV

Maximum input level

-4 dBV

PHONES/LINE OUT jack



Connector

3.5mm (1/8") stereo mini jack

Output impedance

12 Ω

Nominal output level

- 14 dBV (10kΩ loaded)

Maximum output level

+2 dBV (10kΩ loaded)

Maximum output

20 mW + 20 mW (32 Ω load)

Working impedance

16 - 250Ω

Built-in Speaker



Output

0.3W (monaural)

USB



Connector

USB Type-C

Format

USB 2.0 High Speed Mass Storage Class

USB 1.1 Full Speed Audio Class

USB Audio



Sampling rate

44.1 / 48 kHz

Quantization bit depth

24-bit

Number of inputs

2 channels (output from this unit)

Number of outputs

2 channels (input to this unit)

General



Power

2AA batteries (alkaline or NiMH)

USB bus power (5V/0.5A) from a computer, etc.

TASCAM PS-P520U AC adapter (sold separately)

Power consumption

1.7 W (maximum)

Weight

174 g / 0.384 lb (including batteries)

126 g / 0.278 lb (not including batteries)

Operating temperature range

0 – 40 °C / 32 – 104 °F

Dimensions

60.5 x 142.3 x 27 mm

2.39 x 5.61 x1.07 inch

(W x H x D, including protrusions)

Included items

DR-05XP x1

Safety guide (including warranty) x1

TASCAM ID registration guide x1

*Note:0 dBV=1 Vrms, 0 dBu=0.775 Vrms



Recording duration

Recording format

Card capacity (hours:minutes)

32 GB

128 GB

WAV 16-bit (stereo)

44.1 kHz

49:20

197:20

48 kHz

45:20

181:20

96 kHz

22:40

90:40

WAV 24-bit (stereo)

44.1 kHz

32:56

131:44

48 kHz

30:16

121:04

96 kHz

15:04

60:16

WAV 32-bit float (stereo)

44.1 kHz

24:40

98:40

48 kHz

22:40

90:40

96 kHz

11:20

45:20

MP3 (stereo/ mono)

32 kbps

44.1/48 kHz

2209:36

8838:24

64 kbps

44.1/48 kHz

1104:48

4419:12

96 kbps

44.1/48 kHz

736:32

2946:08

128 kbps

44.1/48 kHz

552:24

2209:36

192 kbps

44.1/48 kHz

368:16

1473:04

256 kbps

44.1/48 kHz

276:08

1104:32

320 kbps

44.1/48 kHz

220:56

883:44



Battery operation time (continuous operation)

Batteries

Rec/ play

File format (recording setting)

Operation time in hours

Note

Using alkaline batteries (EVOLTA)

Recording

WAV, 96 kHz, 32-bit float

About 14.5

With built-in stereo mic input

WAV, 96 kHz, 24-bit

About 15.5

With built-in stereo mic input

WAV, 44.1 kHz, 16-bit

About 17.5

With built-in stereo mic input

MP3, 44.1 kHz, 128 kbps

About 13

With built-in stereo mic input

MP3, 48 kHz, 320 kbps

About 11

With built-in stereo mic input

Playback

WAV, 96 kHz, 32-bit float

About 11

Using headphones

About 11

Using built-in speaker

WAV, 96 kHz, 24-bit

About 14

Using headphones

About 14

Using built-in speaker

WAV, 44.1 kHz, 16-bit

About 16.5

Using headphones

About 16.5

Using built-in speaker

MP3, 44.1 kHz, 128 kbps

About 16.5

Using headphones

About 16.5

Using built-in speaker

MP3, 48 kHz, 320 kbps

About 15.5

Using headphones

About 15.5

Using built-in speaker

Using NiMH battery (eneloop)

Recording

WAV, 96 kHz, 32-bit float

About 11.5

With built-in stereo mic input

WAV, 96 kHz, 24-bit

About 12.5

With built-in stereo mic input

WAV, 44.1 kHz, 16-bit

About 14.5

With built-in stereo mic input

MP3, 44.1 kHz, 128 kbps

About 13

With built-in stereo mic input

MP3, 48 kHz, 320 kbps

About 10

With built-in stereo mic input

Playback

WAV, 96 kHz, 32-bit float

About 10

Using headphones

About 10

Using built-in speaker

WAV, 96 kHz, 24-bit

About 13

Using headphones

About 12

Using built-in speaker

WAV, 44.1 kHz, 16-bit

About 14

Using headphones

About 15

Using built-in speaker

MP3, 44.1 kHz, 128 kbps

About 13.5

Using headphones

About 13

Using built-in speaker

MP3, 48 kHz, 320 kbps

About 13.5

Using headphones

About 13

Using built-in speaker

Recording: JEITA recording time
Playback: JEITA music playback time
Note: The battery operation times (during continuous operation) could vary depending on the media being used.



Audio Performance

Frequency Response

20–20 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA)

20–22 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 48 kHz, JEITA)

20–40 kHz +0/−1.5 dB (MIC/EXT IN to LINE OUT, 96 kHz, JEITA)

Total harmonic distortion ratio (THD+N)

0.01% or less (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA)

Note: JEITA indicates conformance to JEITA CP-2150
