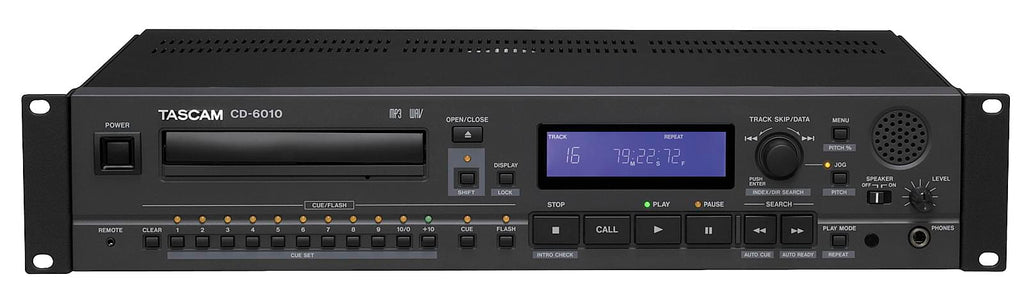

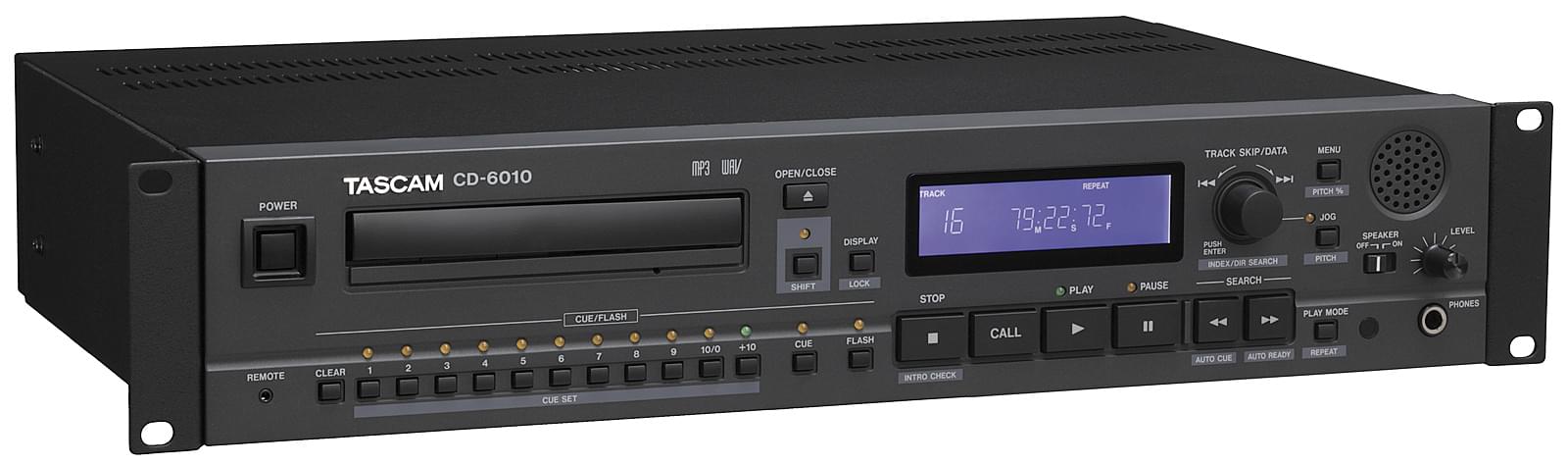

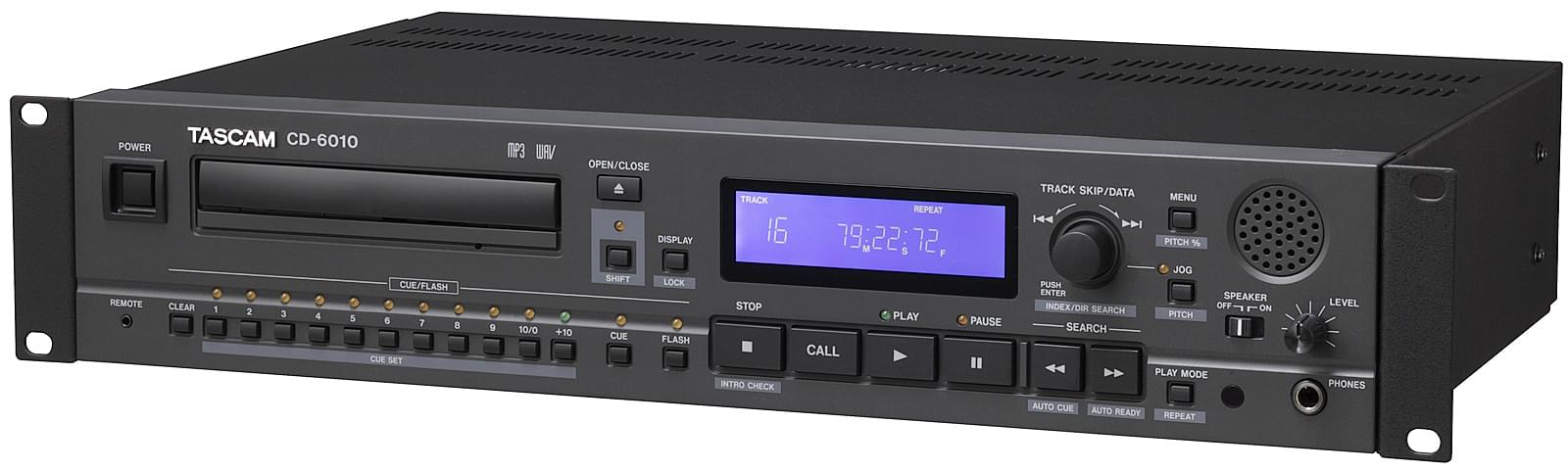

Tascam CD-6010 Professional CD Player

The CD-6010 offers top-of-the-line CD playback for any scenario. Designed with the Broadcast market in mind, this CD-player utilizes a tray-loading design, safety features and an emergency release function to accommodate all situations. By employing the CD-5010B drive, rated highly among audiophiles, the CD-6010 offers high-quality sound that is rarely matched in rack-mounted players. With CD’s still so widely used in the Broadcast, Installation, and Touring markets, the CD-6010 is specified.

Another unique feature of the CD-6010 is a monitoring speaker on the front of the unit – perfect for cuing-up tracks straight from the unit if installed in a remote area or closet. The CD-6010 also has 20 points of cue memory, 20 tracks of flash start, and supports Auto Cue, Auto Ready and Incremental Play. Furthermore, it features ±16% pitch control for CD playback speed and up to 100 discs of program memory.

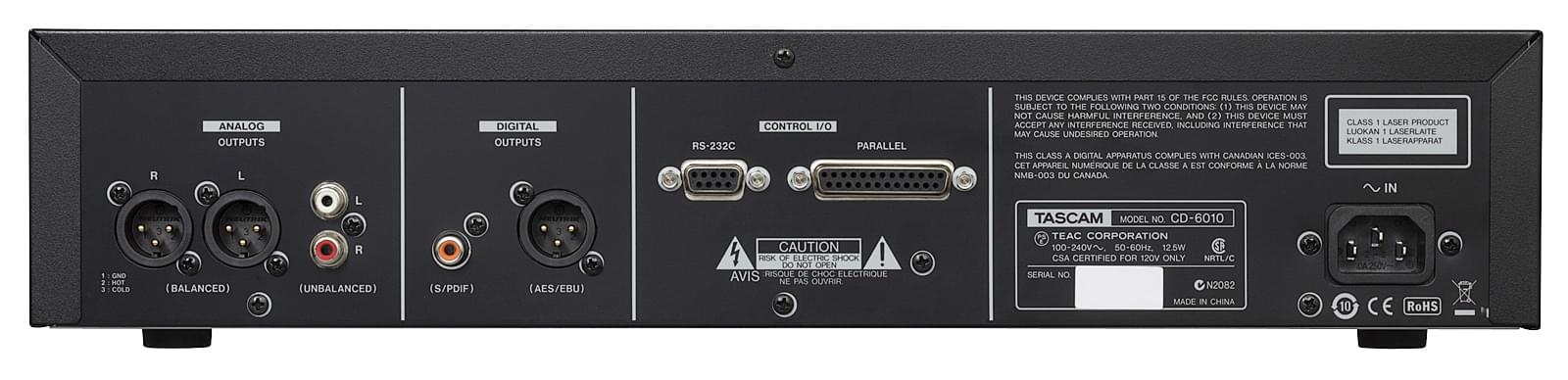

A complete compliment of interface ports are found on the rear panel. Both XLR balanced outputs and RCA unbalanced analogue outputs are provided, as well as SPDIF and AES/EBU digital outputs. The CD-6010 can be controlled through RS-232C, parallel control, or an optional RC-3F footswitch.

With its variety of ease-of-use, safety and bonus features, the CD-6010 is a prime 2U rack-mountable CD player for any professional application.

Features at a glance

• Highly reliable tray CD player for broadcast, installation or touring applications
• Audio CD-R/RW, MP3 (192 KBit/s) and WAV playback
• Flash start capability for up to 20 tracks
• Numeric keys for track selection and flash start
• Frame accurate search
• Memory for up to 20 cue points
• Skip back function (jump back a few seconds during playback)
• Auto cue, auto ready, incremental playback, intro check functions
• Resume function
• Index search for audio CDs
• Directory search for MP3 CDs
• Playback modes include Single, All and Program (up to 99 tracks)
• Memory for playback programs of up to 100 CDs
• Repeat modes include Single, All and A–B
• Selectable interval time between tracks
• ±16% pitch control
• Key original function (change speed only)
• Fade in/out (up to 10 seconds, in 0.5-second steps)
• Time display (track elapsed / track remain / total remain)
• Power-on play (timer function)
• Relay play with multiple units
• Fader start / event start
• Lock function to avoid accidental operation
• Anti-shock memory
• XLR balanced analogue output (output level may be customized by technical support)
• RCA unbalanced analogue output
• Coaxial digital output (SPDIF)
• XLR AES/EBU digital output
• Mono output
• Serial control (RS-232C, D-sub 9-pin)
• Parallel control port (D-sub 15-pin)
• Headphones output with dedicated volume control
• Switchable monitor loudspeaker
• Last mode memory (Playback mode / Program / Repeat mode / Time display)
• End Of Message notification
• Backlit LC display
• Removable power cable
• Rack-mountable chassis (2 U)
• Wireless remote control included (receiver can be disabled if required)
• Available as options:

• Footswitch for several functions (RC-3F)
• Direct play remote control (RC-20)
• Flash start remote control for instant access to 20 tracks, announcements or effects (RC-SS20)
