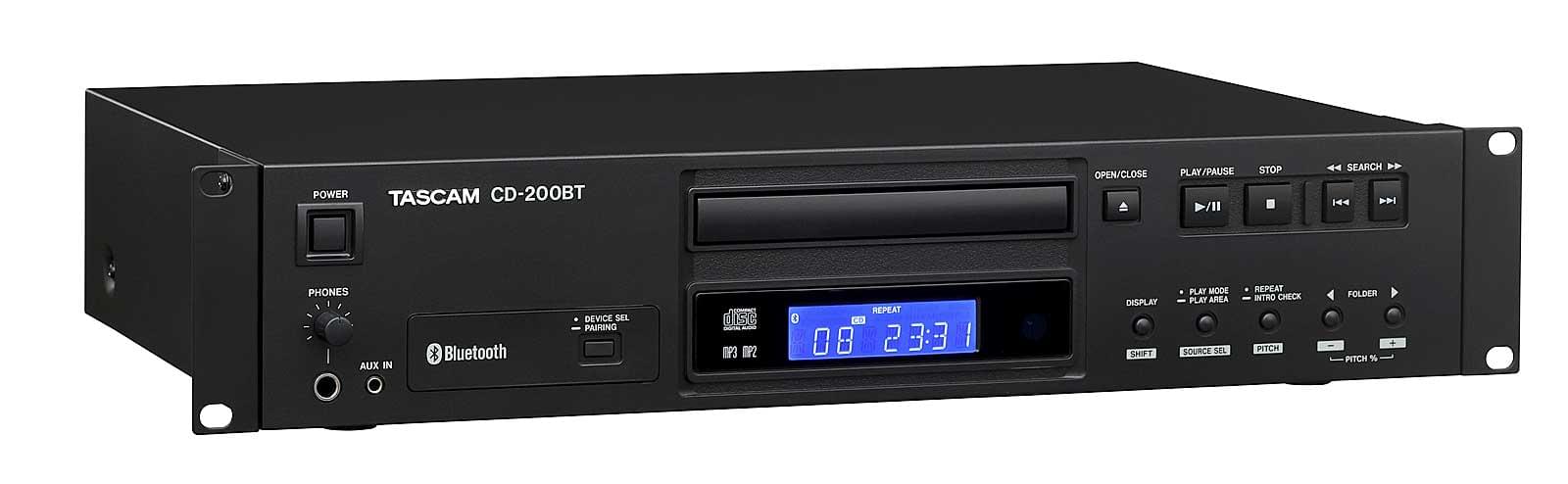

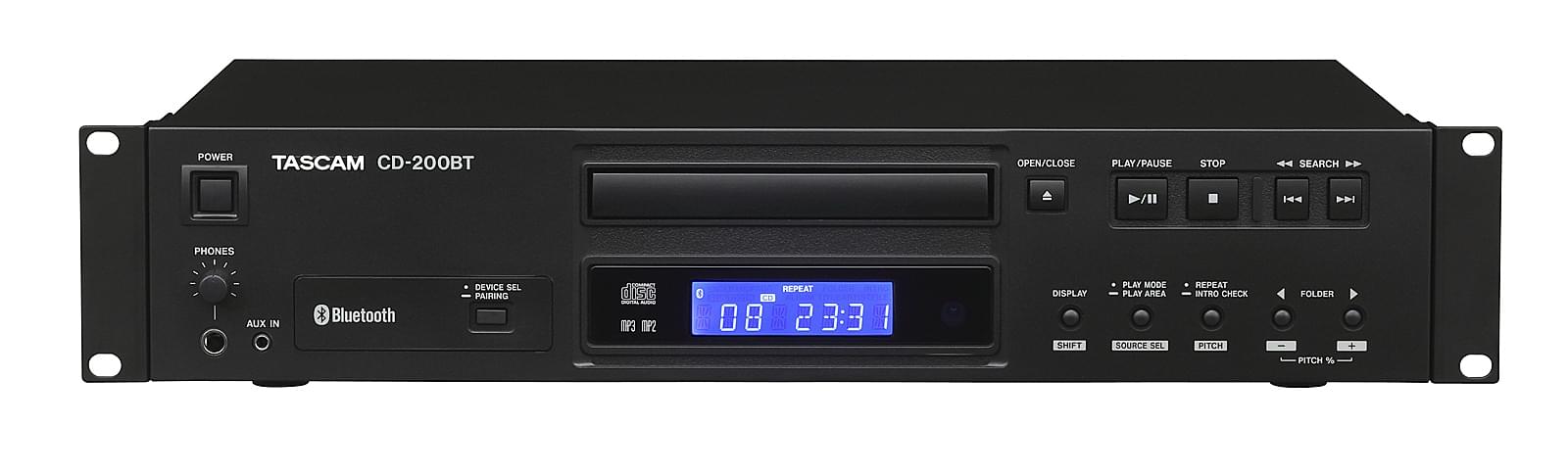

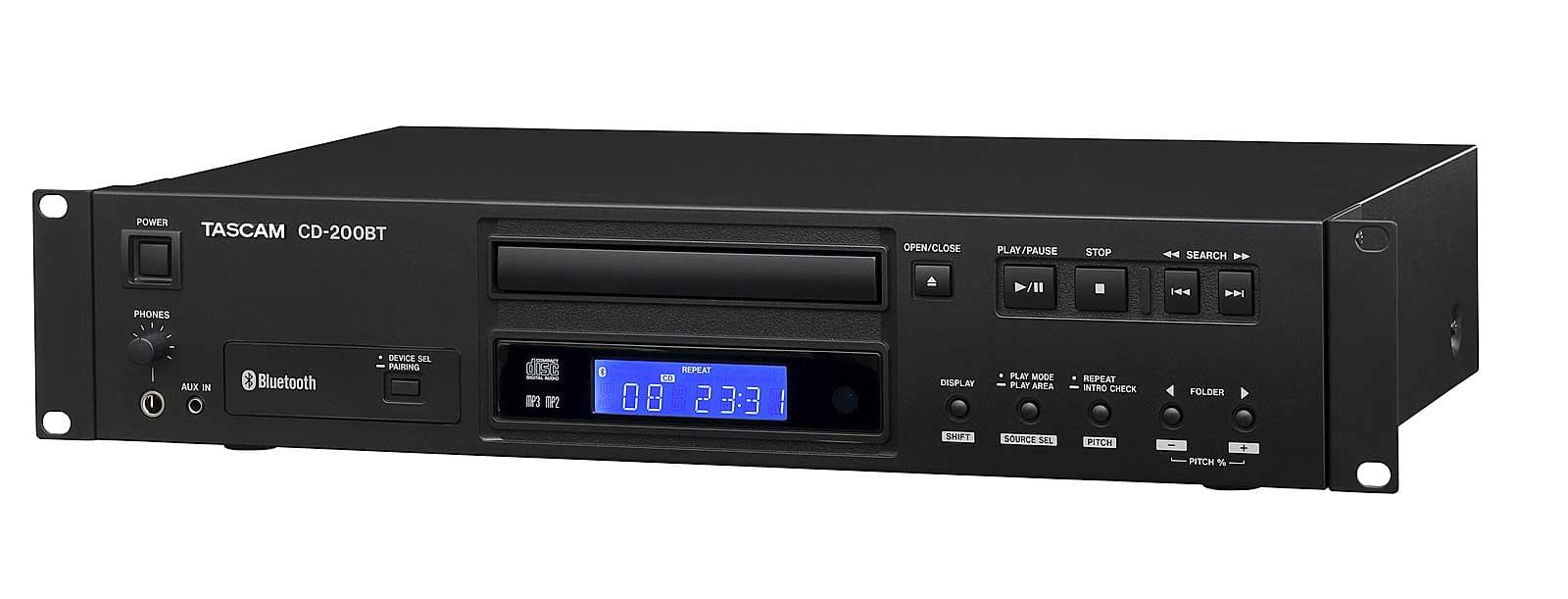

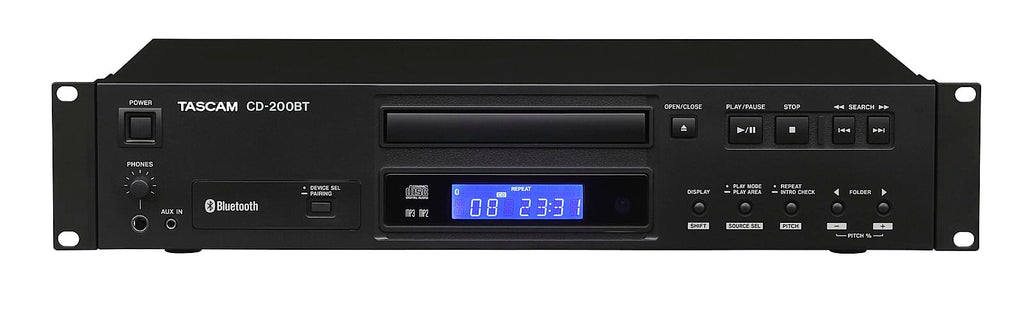

The CD-200BT is the next highly anticipated model in the top selling “CD-200” series. It is designed to meet the increasing demand for playback from various audio formats and devices compatible with Bluetooth® technology.
Users can pair up to 8 Bluetooth devices at a time in order for quick switching and playback. Also supported is the use of the aptX® codec to ensure a much higher quality and more reliable audio signal transmitted via Bluetooth. The unit is equipped with controls for fast track/file selection, multiple playback modes, ±14% pitch control and also includes a wireless remote control. Like all models in the signature “CD-200” series, the CD-200BT features Tascam’s esteemed CD-5020A transport to provide quiet playback, smooth loading and longevity while being outfitted with shockproof memory. To ensure easy set-up in any system, there are stereo line RCA, coaxial and optical audio outputs, as well as a headphones output with level control for monitoring.
The CD-200BT is the perfect 2U rack-mountable addition to any commercial or public space audio install. With its wide array of options and playback features the CD-200BT can meet nearly any demands one might encounter for reliable, high-quality audio playback.
Features at a glance
- Easy-to-use, affordable CD player with Bluetooth receiver
- Various playback options:
- Audio CD playback
- MP3 and WAV file playback from CD
- Internet radio or network file playback via a Bluetooth connection with a smartphone or computer
- Playback from other audio sources via AUX IN connector
- Bluetooth apt-X codec provides high quality audio transmission with low latency (AAC and SBS are also supported)
- Up to eight different Bluetooth devices are memorized and can easily be selected with a dedicated button
- High-quality TEAC audio CD drive (supports CD-R and CD-RW)
- Folder selection for MP3 and WAV CDs
- Continuous, Random and Program playback modes
- Repeat playback (Single, All, Folder)
- Intro Check feature
- CD text and ID3 tag support to display artist and track information if available
- Time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
- ±12.5 % pitch control
- Anti-shock memory
- Headphones output with level control

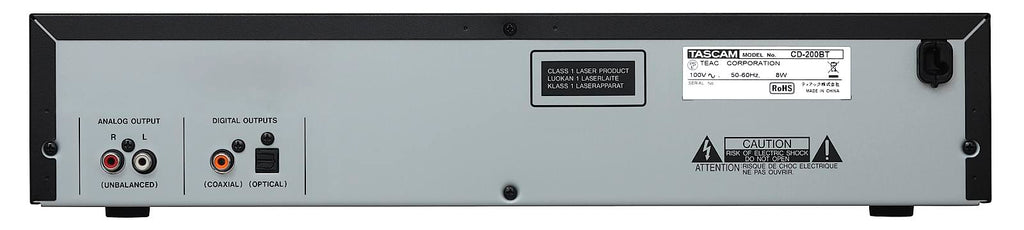

- Analogue output (RCA)
- SPDIF digital outputs (coaxial and optical)
- Wireless remote control included
- 19-inch rack-mount chassis (2U)
Specifications
|
General |
|
|
Supported disc types |
CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text) |
|
Playback file formats |
|
|
CD-DA |
44.1kHz, 16-bit stereo |
|
MP2 |
32/44.1/48kHz, 32–384kbps (data CDs) |
|
MP3 |
32/44.1/48kHz, 32–320kbps, VBR (data CDs) |
|
WAV |
8/16/32/11.025/22.05/44.1/12/24/48kHz, 16-bit (data CDs) |
|
Analogue audio inputs and outputs |
|
|
Analogue audio input |
AUX IN jack, 3.5-mm stereo mini jack |
|
Nominal input level |
–20 dBV |
|
Maximum input level |
–4 dBV |
|
Input impedance |
22 kΩ |
|
Analogue output (unbalanced) |
RCA pin jack |
|
Output impedance |
200 Ω |
|
Nominal output level |
–10 dBV (0.32 Vrms) |
|
Maximum output level |
+6 dBV (2.0 Vrms) |
|
Phones output |
6.3-mm stereo phone jack |
|
Maximum output power |
20 mW + 20 mW (THD+N: 0.1%, 32 Ω) |
|
Digital audio outputs |
|
|
Digital output (coaxial) |
RCA Pin Jack |
|
Compatible signal format |
IEC-60958-3 (SPDIF) |
|
Digital output (optical) |
TOS (JEITA RC-5720C) |
|
Compatible signal format |
IEC-60958-3 (SPDIF) |
|
Audio performance |
|
|
Frequency Response |
20 Hz – 20 kHz ±1.0 dB (during playback, JEITA) |
|
Signal-to-Noise Ratio (S/N) |
>90 dB (during playback, JEITA) |
|
Total Harmonic Distortion |
<0.01% (during playback, JEITA) |
|
Dynamic Range |
>90 dB (during playback, JEITA) |
|
Channel Separation |
>90 dB (during playback, JEITA) |
|
Bluetooth |
Version 3.0, Class 2 (approximate transmission distance: 10m*) |
|
Supported profiles |
A2DP, AVRCP |
|
Supported A2DP codecs |
SBC, AAC, aptX |
|
Supported A2DP content protection: |
SCMS-T |
|
*The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves. |
|
|
Power supply and other specifications |
|
|
Power requirements |
AC 120 V, 60 Hz (U.S.A./Canada) AC 230 V, 50 Hz (U.K./Europe) AC 240 V, 50 Hz (Australia) |
|
Power Consumption |
8 W (U.S.A./Canada/U.K./Europe) 9 W (Australia) |
|
Dimensions (W x H x D) |
481 mm x 95 mm x 298 mm |
|
Weight |
4.5 kg |
|
Operating Temperature |
5–35 °C |
|
Inclination of installation |
5° or less |
