The CD-200 offers a simple, cost-effective solution to installations or PA rental where the extra features of a more complex CD player might go unused. Yet it provides features such as pitch control with an on/off knob, a headphone output with level control, intro check, anti-shock memory, and a variety of convenient playback modes which can help prevent the user from making a mistake. The CD-200 can also play back MP3 and WAV files from data CDs and display ID3 tags and CD-Text. The included wireless remote control gives access to most features and allows a track to be selected directly via a 10-key pad.
Tascam CD-200: Simple, convenient and reliable!
Features
- Easy-to-use, affordable CD player
- High-quality TEAC drive (supports CD-R and CD-RW)
- Audio CD playback
- MP3 and WAV file playback from CD
- Folder selection for MP3 and WAV CDs
- Continuous, Random and Program playback modes
- Repeat playback (Single, All, Folder)
- Intro Check feature
- CD text and ID3 tag support to display artist and track information if available
- Time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
- ±12.5 % pitch control
- Anti-shock memory (10 seconds)
- Headphones output with level control
- Analogue output (RCA)
- SPDIF digital outputs (coaxial and optical)

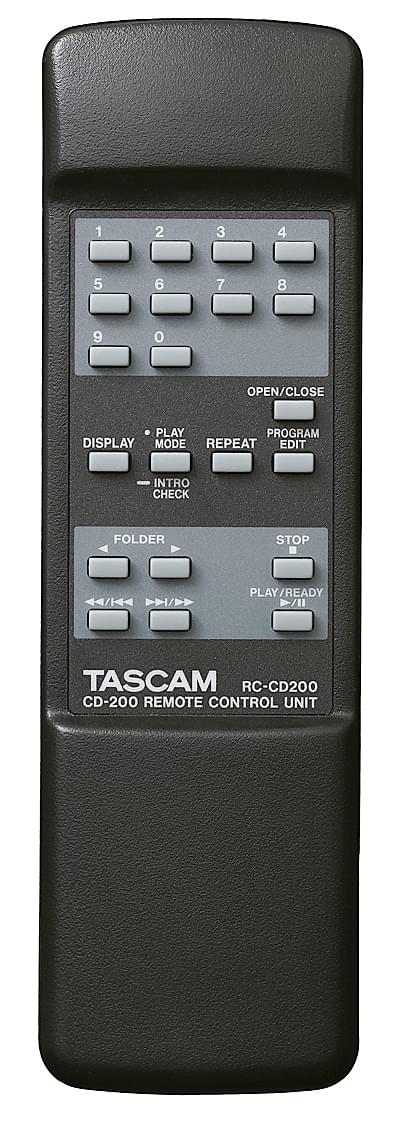

- Wireless remote control included
- 19-inch rack-mount chassis (2U)
Specifications
|
General |
|
|
Compatible discs |
CD-R/CD-RW (12-cm/8-cm) |
|
Formats |
CD-DA, CD-ROM (ISO 9660 Level 1, 2, 3 JOLIET Romeo UDF 1.5), MP3, WAV |
|
MP3 playback specifications |
|
|
Audio Mode |
Stereo/Joint Stereo/Dual Channel/Mono/VBR MPEG1 Audio Layer III (MP3) |
|
Sampling frequency |
32 kHz/44.1 kHz/48 kHz |
|
Bit rate |
32–320 Kbit/s |
|
WAV playback specifications |
|
|
Sampling frequency |
8 kHz/11.025 kHz/12 kHz/16 kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz |
|
Quantization bit rate |
8-bit/16-bit |
|
CD-DA playback specifications |
|
|
Sampling frequency |
44.1 kHz |
|
Quantization bit rate |
16-bit |
|
Number of channels |
2 (Stereo) |
|
Audio performance |
|
|
Frequency response |
20 Hz - 20 kHz ±1.5 dB |
|
Signal-to-Noise Ratio (S/N) |
> 90 dBA (20 kHz LPF) |
|
Distortion (THD+N) |
< 0.01% (1 kHz: 20 kHz LPF) |
|
Dynamic range |
90 dB min. |
|
Channel separation |
90 dB min. (1 kHz, 1 kHz BPF) |
|
Audio outputs |
|
|
Analogue output unbalanced |
RCA pin jacks |
|
Nominal output level |
–10 dBV |
|
Maximum output level |
+6 dBV |
|
Output impedance |
200 Ω |
|
Headphones output |
Standard stereo jack |
|
Nominal output power |
20 mW + 20 mW min. (When monitoring CD, THD+N: 0.1% max., 32 Ω load) |
|
Coaxial digital output |
RCA pin jack |
|
Compatible signal format |
IEC-60958-3 (SPDIF) |
|
Output impedance |
75 Ω |
|
Optical digital output |
Fibreoptic connector |
|
Compatible signal format |
IEC-60958-3 (SPDIF) |
|
Power supply and other specifications |
|
|
Power requirements |
AC 120 V, 60 Hz (USA/Canada) AC 230 V, 50 Hz (UK/Europe) AC 240 V, 50 Hz (Australia) |
|
Power consumption |
12 W |
|
Operating temperature range |
+5 °C to +35 °C |
|
Inclination of installation |
5 degrees or less |
|
Dimensions (W x H x D) |
481 mm x 95 mm x 298 mm |
|
Weight |
4.2 kg |
