Handle all popular video and audio formats with one high-performance playback unit
As a remote-controllable, professional-grade 4K UHD Blu-ray player, the Tascam BD-MP4K is the perfect choice for a wide range of commercial installations requiring ultra-high definition image quality, including public, educational and commercial facilities, theatres, amusement and entertainment businesses, to name but a few.

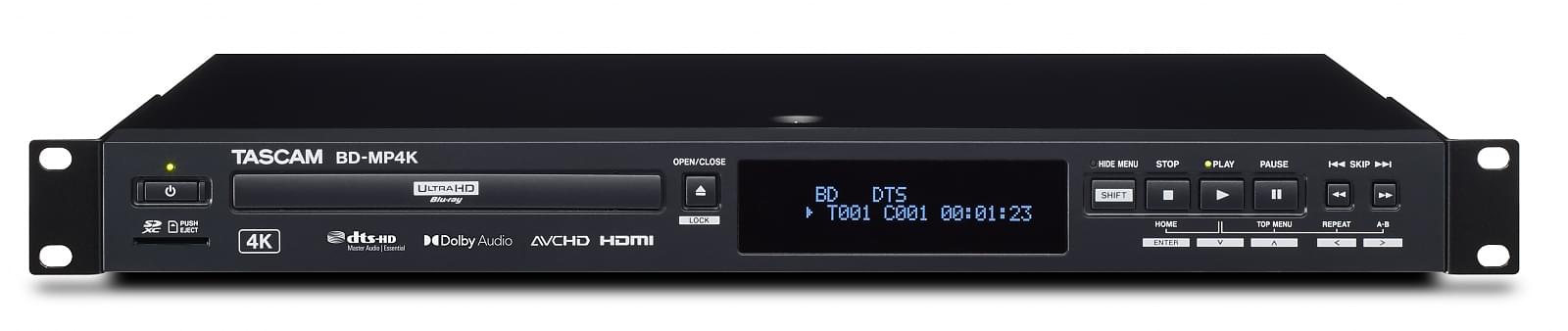

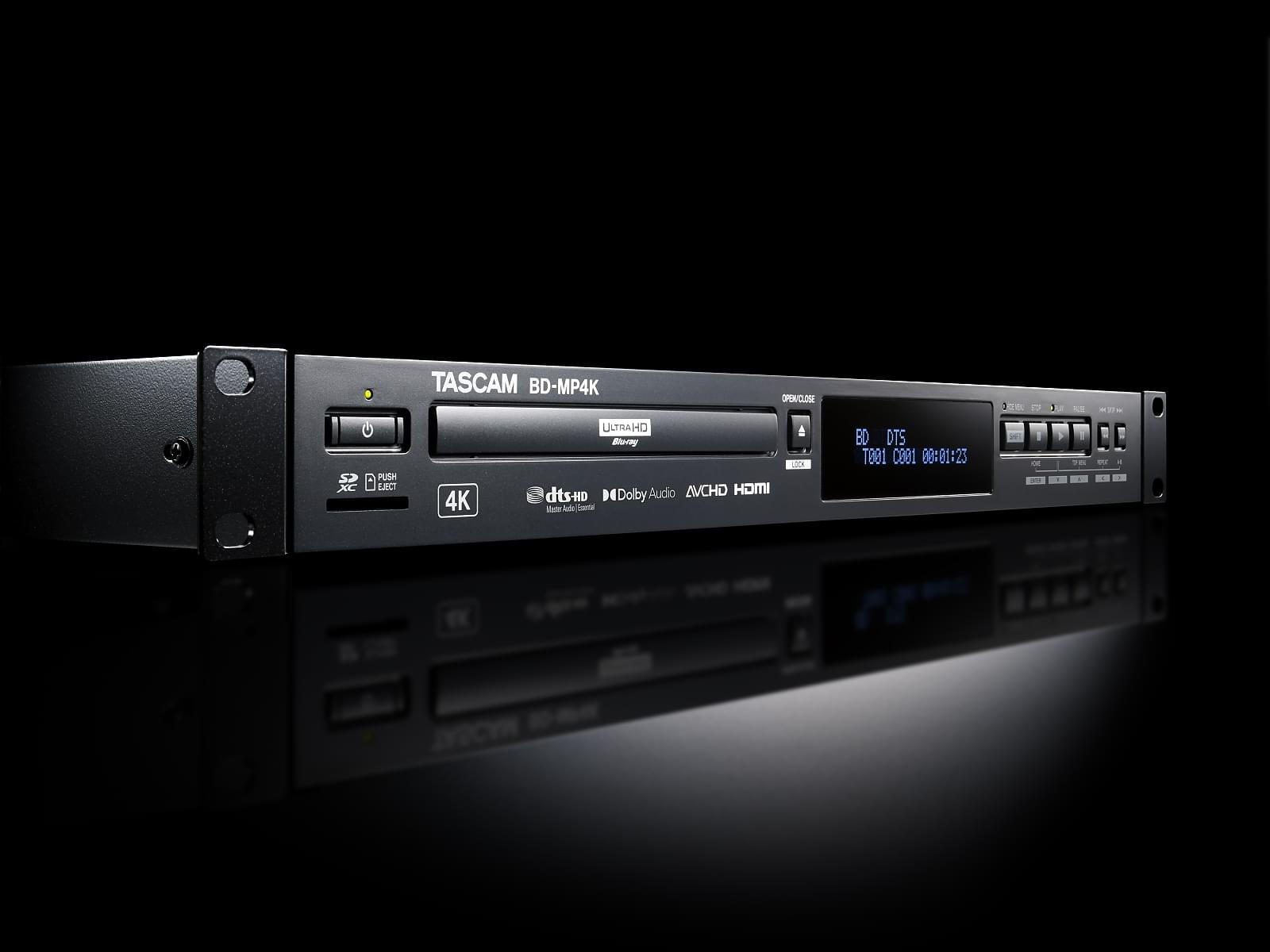

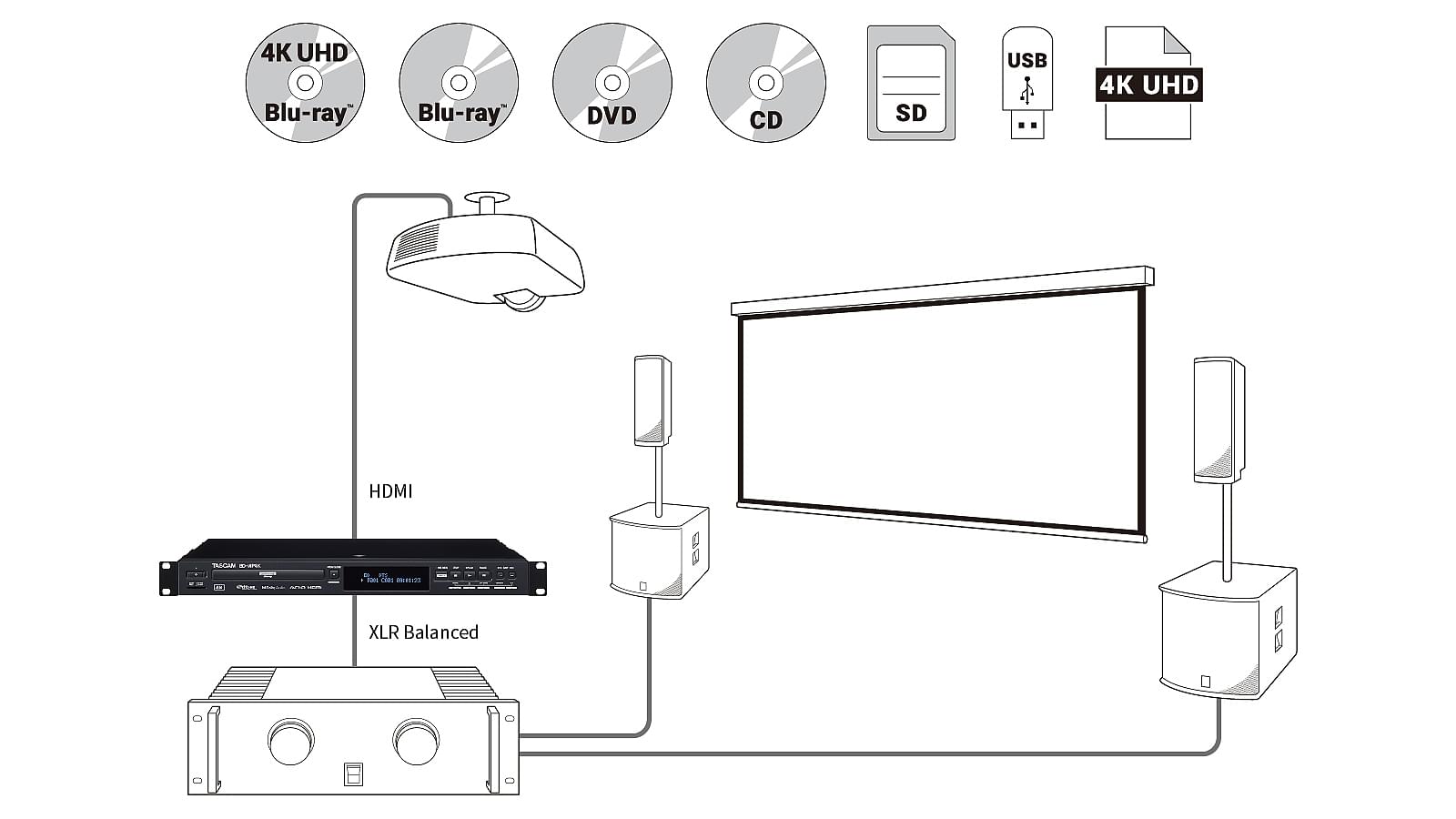

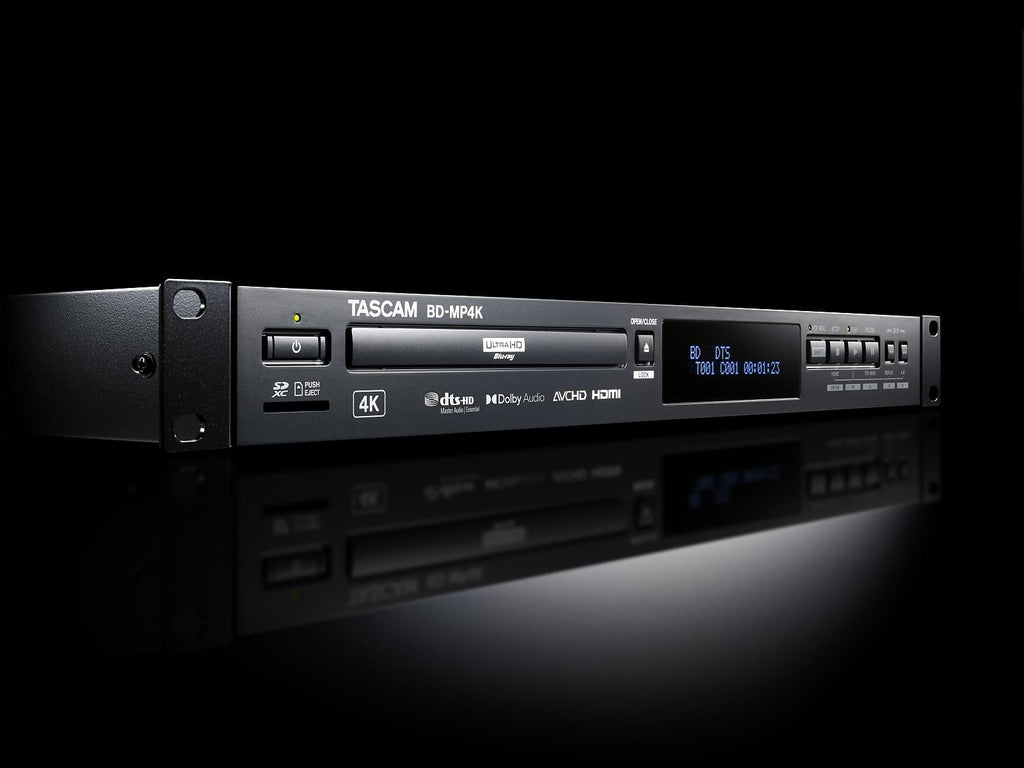

Occupying only one height unit in the rack, the compact BD-MP4K saves space by eliminating the need for discrete audio/video playback devices in an installation rack. It accepts a broad range of media and file formats from discs (Blu-ray, DVD, CD), USB flash devices, SD cards or even Samba network shares on a NAS or remote server through Gigabit Ethernet.
Easy integration into media systems

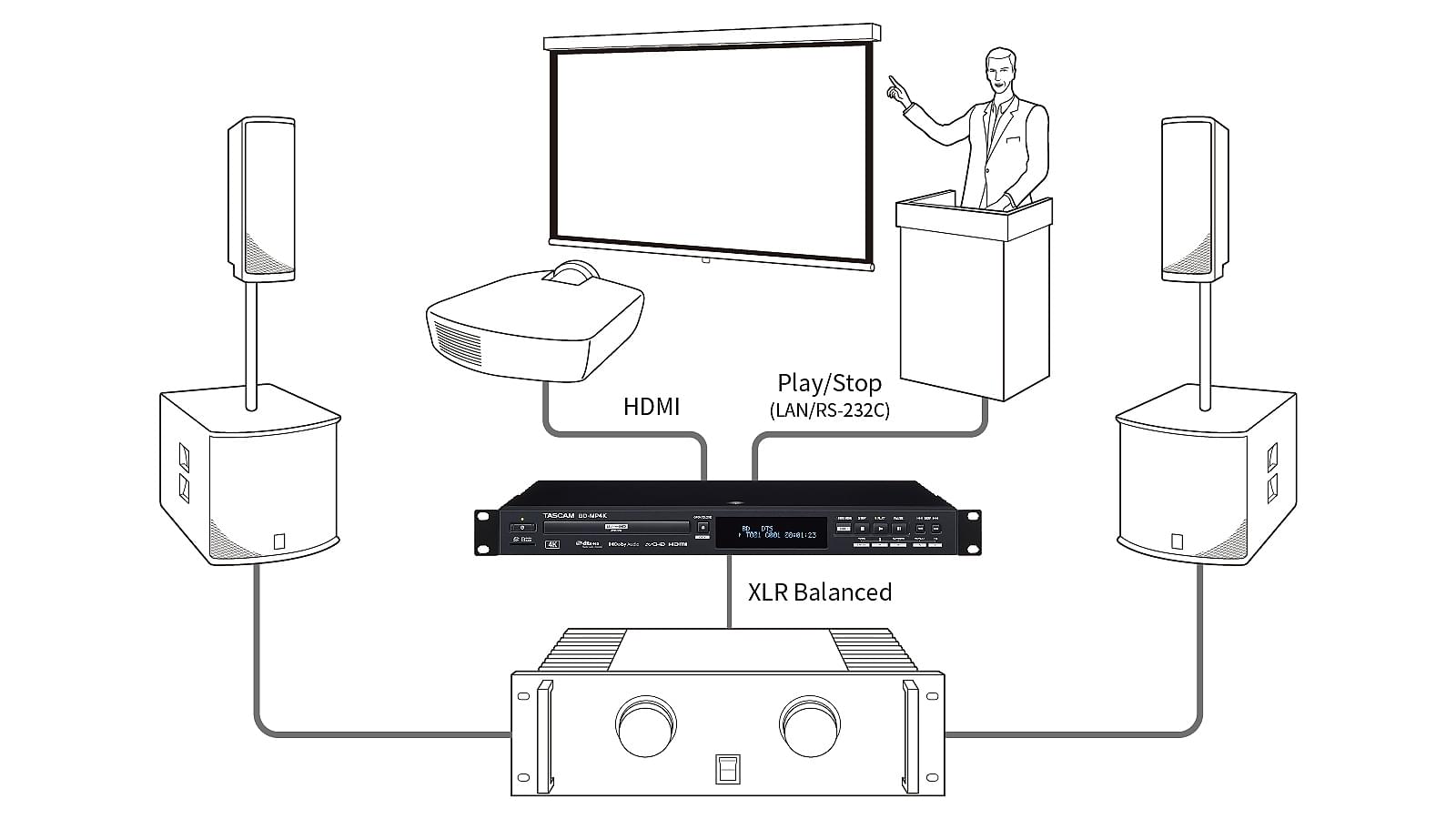

For integrated media systems where remote control operation beyond infrared is desired, the BD-MP4K offers both RS-232C and IP network connectivity. The unit’s RS-232C port enables seamless, reliable two-way control between devices with status feedback, while Gigabit Ethernet simplifies integration into larger systems with mutual control between components.
In addition to remote control operation, all playback functions can be accessed locally from the front panel if desired. There are also separate lock features for panel, tray and IR remote control to prevent accidental changes or non-authorised use.

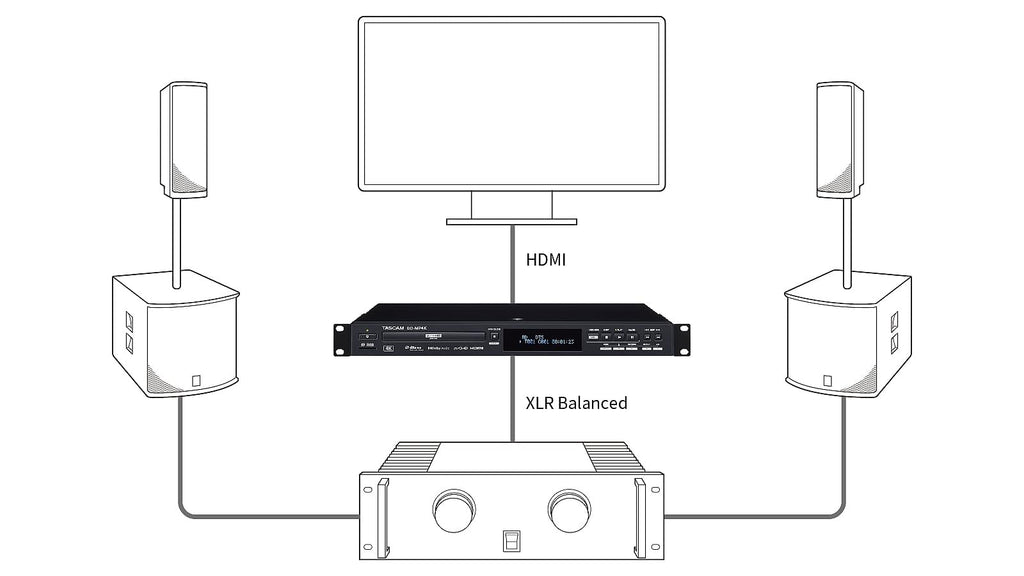

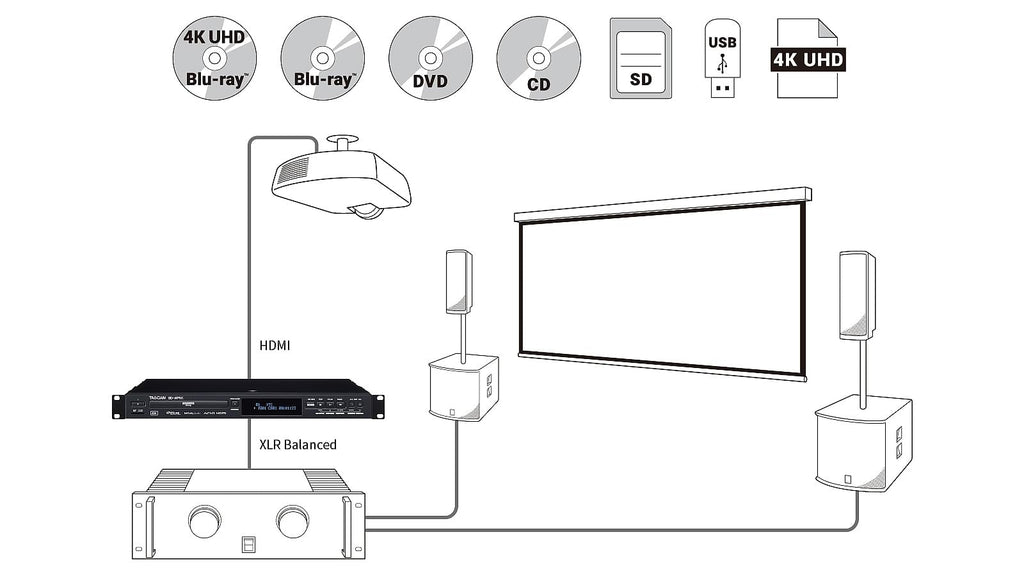

Connection of display monitors or televisions is quick and easy via two plug-and-play HDMI ports on the rear panel which support both HDMI 2.0 and 1.4 (audio only) formats.
Typical Tascam: A bit more of everything

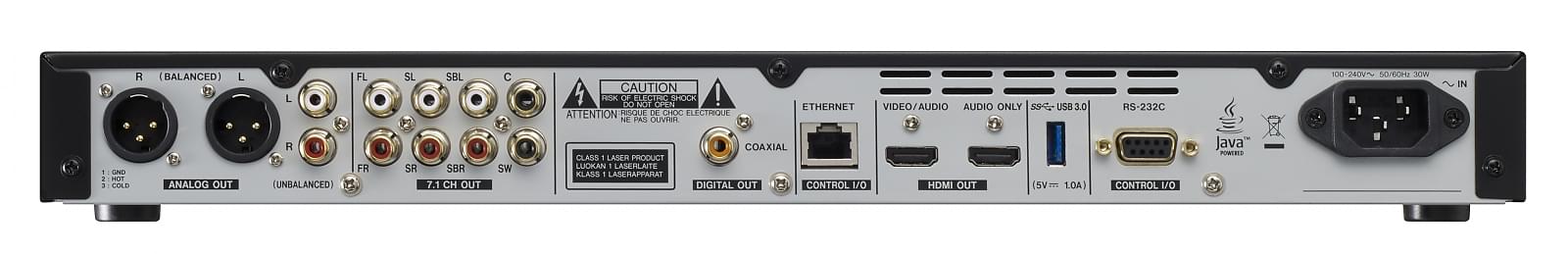

When it comes to professional audio quality and commercial integration, the BD-MP4K is pure Tascam. Individual connectors for 7.1 Surround Sound are provided on the rear panel for fully immersive, rich audio playback in any installation. Professional-grade XLR balanced stereo analogue outputs as well as RCA unbalanced stereo outputs are also available. And a coaxial output can deliver professional-grade digital audio formats including Dolby, DTS, and two-channel linear PCM (SPDIF).
With its high image resolution and superb audio quality, support for virtually all common media and file formats and comprehensive connection and configuration options, the BD-MP4K meets even the highest demands making it the ideal choice for professional use in permanent installation or touring.
Main Features
- Single-rackspace 4K/UHD Blu-ray, DVD, CD and solid-state player
- Controllable via Ethernet network, RS-232C or wireless remote control
- Plays video and audio material stored on following media:
- 4K/UHD BD, BD25, BD50, BD-ROM, BD-R, BD-RE
- DVD-ROM, DVD+R, DVD-R, DVD+RW, DVD-RW
- CD-DA, CD-R, CD-RW
- SD cards (up to 512 GB)
- USB flash media (up to 2 TB)
- Supports exFAT file format and playback of various formats of video, image and audio from SD cards and USB flash memory
- Can access a Samba share on the network to play files located on an external server
- Comprehensive menu with many detailed setting options for image and sound
- Power-on playback with the following disc media: 4K/UHD BD, BD, DVD, CD-DA
- Seamless repeat by chapter, title or marked section (A–B)
- Last memory function allows to resume playback of disc media
- Several lock functions (panel lock, IR remote lock, tray lock)
- On-screen menu can be hidden
- Many outputs available (can all be used simultaneously)
- HDMI 2.0 audio/video output, HDMI 1.4 audio output (HDMI audio is only output via one connector at a time; HDMI 1.4 has priority)
- Separate 7.1 surround sound outputs (RCA)
- XLR balanced and RCA unbalanced stereo outputs
- SPDIF/Dolby/DTS digital output (coaxial)
- Up to 40 dB attenuation for audio outputs
- USB 3.0 port for high-speed data transfer
- Built-in power supply with IEC socket and removable mains cable
- Rugged metal enclosure
- 1U rack-mount size

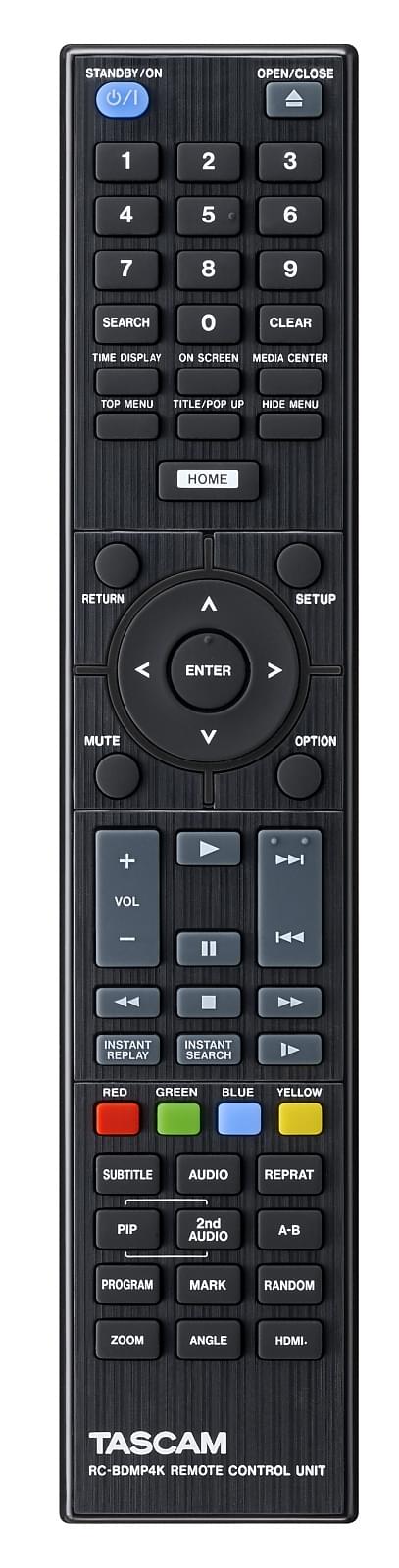

- Included: Infrared remote control (RC-BDMP4K), mains cable, 3p-2p conversion adapter, rack-mounting kit, owner’s manual
Specifications
|
Media |
|
|
Blu-ray |
4K/UHD BD, BD25, BD50, BD-ROM, BD-R, BD-RE |
|
Disc formats |
BDMV, BDAV |
|
DVD |
DVD-ROM, DVD+R, DVD-R, DVD+RW, DVD-RW |
|
Disc formats |
DVD-Video, DVD-VR, AVCHD |
|
CD |
CD-DA, CD-R, CD-RW |
|
SD |
SD card with up to 512 GB total capacity |
|
Supported file systems |
FAT16, FAT32, exFAT, NTFS |
|
USB |
USB flash drive (mass storage class) with up to 2 TB total capacity |
|
Supported file systems |
FAT16, FAT32, exFAT, NTFS |
|
Supported file formats |
|
|
Video |
3GP, ASF, AVI, DAT, M2TS, MKV, WMV, MOV, MP4, MPG, OGM, TP, TS |
|
Audio |
AAC, APE, FLAC, MP3, WAV, WMA |
|
Still image |
JPEG, GIF, PNG |
|
Audio resolution |
|
|
BD/DVD/USB/SD |
Sampling frequency: 44.1/48/64/88.2/96/176.4/192 kHz Bit width: 16/24 bit |
|
CD |
Sampling frequency: 44.1/48 kHz Bit width: 16/24 bit |
|
MP3/WMA |
Sampling frequency: 32/44.1/48 kHz Bit width: 16/24 bit MP3 bit rate: 112–320 kbit/s WMA bit rate: 48–192 kbit/s (WMA v9 only, DRM not supported) |
|
Video |
|
|
Resolutions |
Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p* *Monitor and cable must support this resolution |
|
Aspect ratios |
16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox |
|
Colour systems |
NTSC, PAL, Multi (if supported by TV) |
|
HDMI colour space |
RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2) |
|
Analogue audio outputs |
|
|
Balanced |
XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
|
Nominal output level |
+4 dBu (1.23 Vrms) |
|
Maximum output level |
+20 dBu (7.75 Vrms) |
|
Output impedance |
200 Ω |
|
Unbalanced |
RCA pin jacks |
|
Nominal output level |
–10 dBV (0.316 Vrms) |
|
Maximum output level |
+6 dBV (2.0 Vrms) |
|
Output impedance |
200 Ω |
|
7.1 |
8 × RCA pin jacks |
|
Nominal output level |
–10 dBV (0.316 Vrms) |
|
Maximum output level |
+6 dBV (2.0 Vrms) |
|
Output impedance |
200 Ω |
|
Audio performance |
|
|
Frequency response |
20 Hz – 20 kHz, ±0.5 dB |
|
Signal-to-noise ratio |
> 96 dB (JEITA) |
|
Total harmonic distortion |
< 0.03 % (1 kHZ, JEITA) |
|
Dynamic range |
> 96 dB (JEITA) |
|
Channel separation |
> 89 dB |
|
Digital outputs |
|
|
HDMI output (VIDEO/AUDIO) |
19-pin HDMI, Type A, Version 2.0 |
|
HDMI output (AUDIO ONLY) |
19-pin HDMI, Type A, Version 1.4 |
|
Coaxial audio output |
RCA pin jack |
|
Format |
IEC 60958-3 (SPDIF) |
|
Output impedance |
75 Ω |
|
Other inputs and outputs |
|
|
RS-232C |
D-sub 9-pin |
|
Mode |
Full duplex |
|
Baud rate |
9600, 38400 bits/s (selectable) |
|
Ethernet |
RJ45 |
|
Compatible standards |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Supported protocols |
SMB/CIFS for network storage TCP/IP for control using a dedicated protocol |
|
Supported Samba version |
3.0.37 |
|
USB |
USB A-type (1 × rear) |
|
Protocol |
USB 3.0 compliant |
|
Rated supply voltage |
DC 5 V, 1 A |
|
Power supply and other specifications |
|
|
Power connector |
IEC receptacle |
|
Power requirements |
AC 100–240 V, 50/60 Hz |
|
Power consumption |
30 W (typical) < 0.5 W (standby) |
|
Dimensions (W × H × D) |
483 mm × 44 mm × 281 mm |
|
Weight |
2.8 kg |
|
Permissible operating temperature |
5–35 °C |
|
Permissible operating humidity |
25–85 %, no condensation |
|
Included accessories |
IR remote control (RC-BDMP4K), AC power cable, 3-pin to 2 -pin adapter, rack-mounting kit (4 screws, 4 washers), Owner’s manual |
