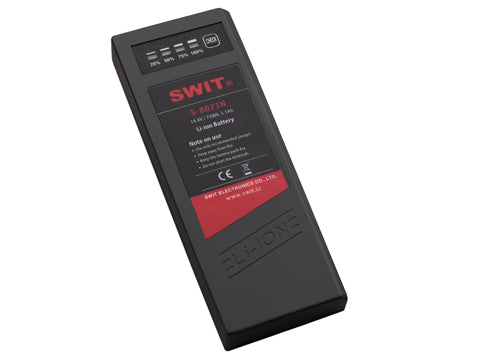

The S-8073N is the NP-1 type rechargeable Li-ion battery pack for professional video cameras, as well as the audio mixers of NP-1 battery connection.
73Wh / 5.1Ah High Capacity
Consists of 8pcs 18650 battery cells, and reach 73Wh / 5.1Ah high capacity, not restricted by IATA air transportation regulations. MAX 70W, 6A output.

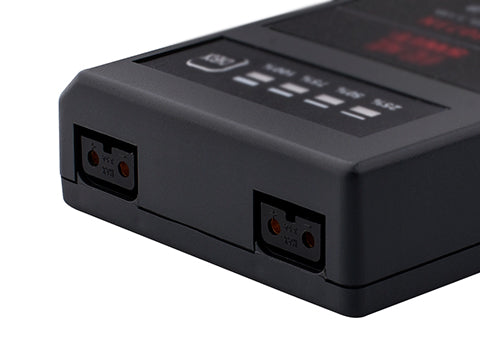

2x D-tap DC output socket
S-8073N has two D-tap DC output sockets, with max 50W, 3.5A output per socket. You can also charge S-8073N via the D-tap socket by SWIT portable single channel charger S-3010B.

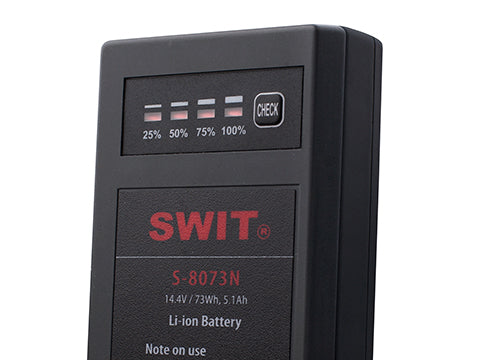

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Key Features:
- Li-ion, 14.4V, 73Wh capacity
- NP-1 Type
- 2x D-tap DC output socket
- 4-level LED power indicator
- Not restricted by IATA
- Multiple circuit protections
| Nominal Voltage | 14.4V |
| Capacity | 73Wh/5.1Ah |
| Max output power | 66W |
| Max output current | 5.5A |
| Mount Type | NP-1 |
| Operation Temperature | 0-40°C |
| Net weight | Approx 0.49kg |
| Dimensions | 185×72×25mm |
