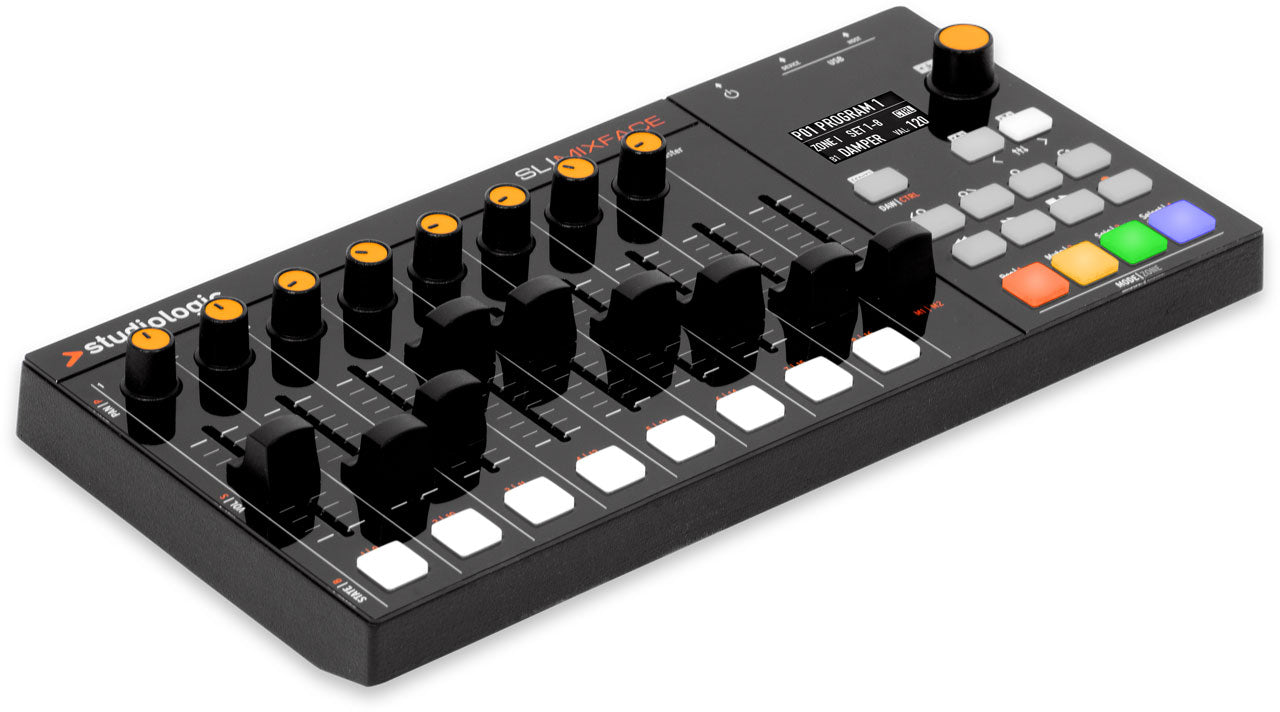

The SL MIXFACE is a complete controller device which combines style and simplicity with a powerful engine. Designed for mobility, you can bring it everywhere and use it in total freedom thanks to its hosting capability and auto-mapping of the main DAW apps.
Through its connectivity and the integrated batteries it's a perfect portable device, which with a simple gesture becomes the best desk companion.

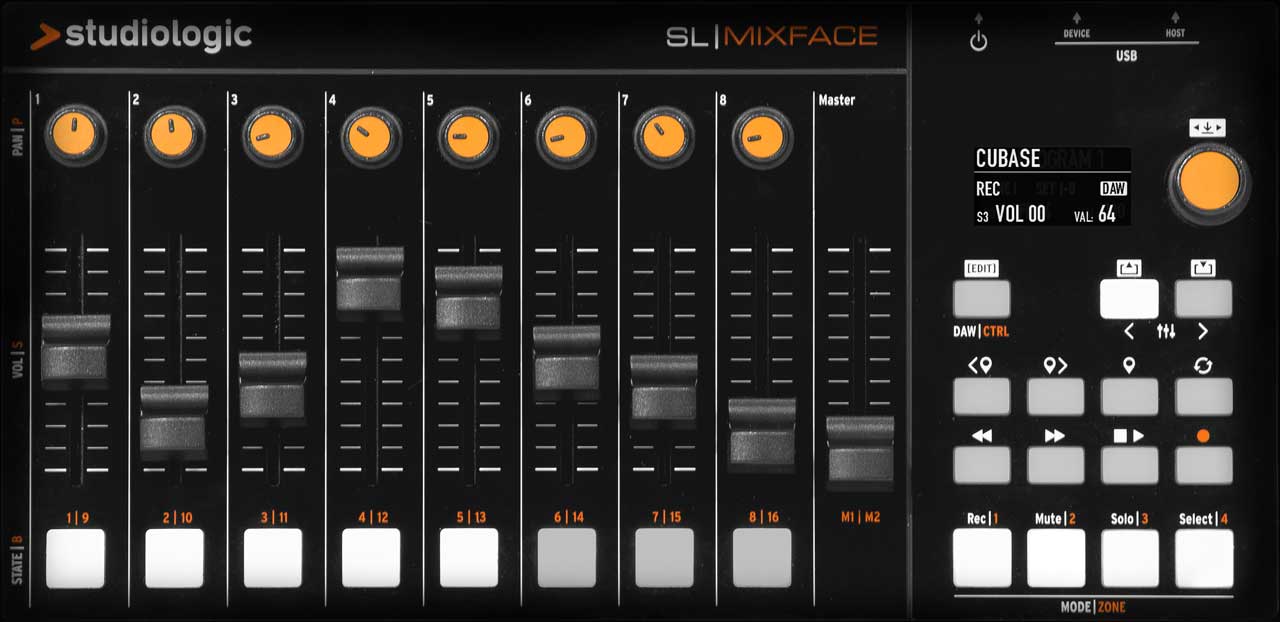

DAW Mode / Control Mode
Press a button and switch the control from the DAW environment to your favourite instrument and vice versa. All the Transport functions are always ready to go, while you can edit any sound parameter of the instrument or mix the tracks of your song.
Connectivity

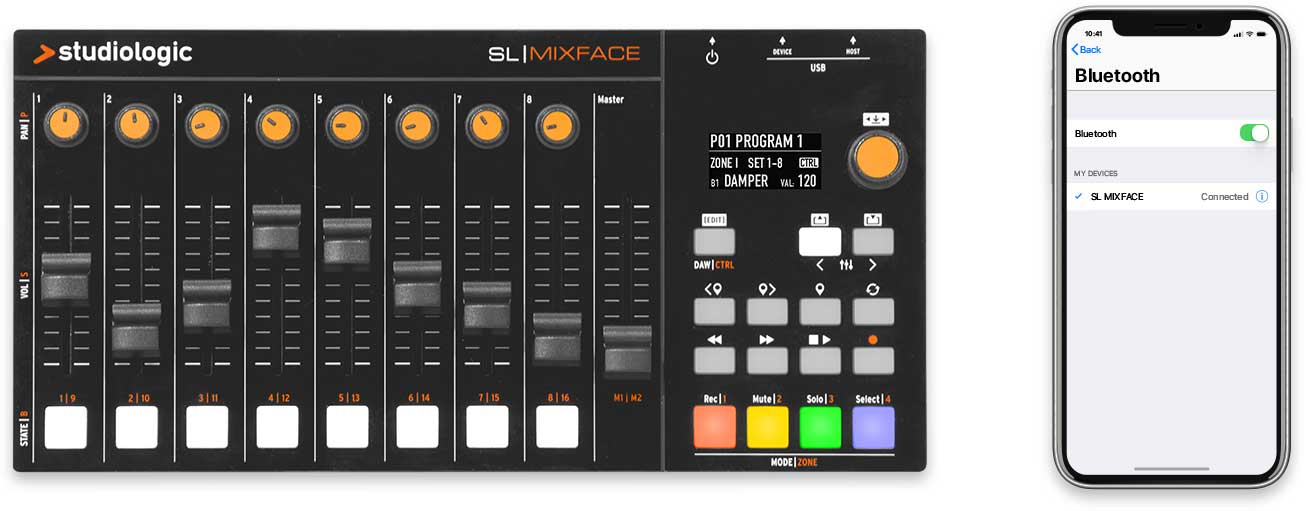

The SL MIXFACE is able to host any keyboard turning it into a full 4 layers MIDI controller. Thanks to its connectivity ports it communicates with the computer as device by using Bluetooth and USB at the same time.
Extended capability

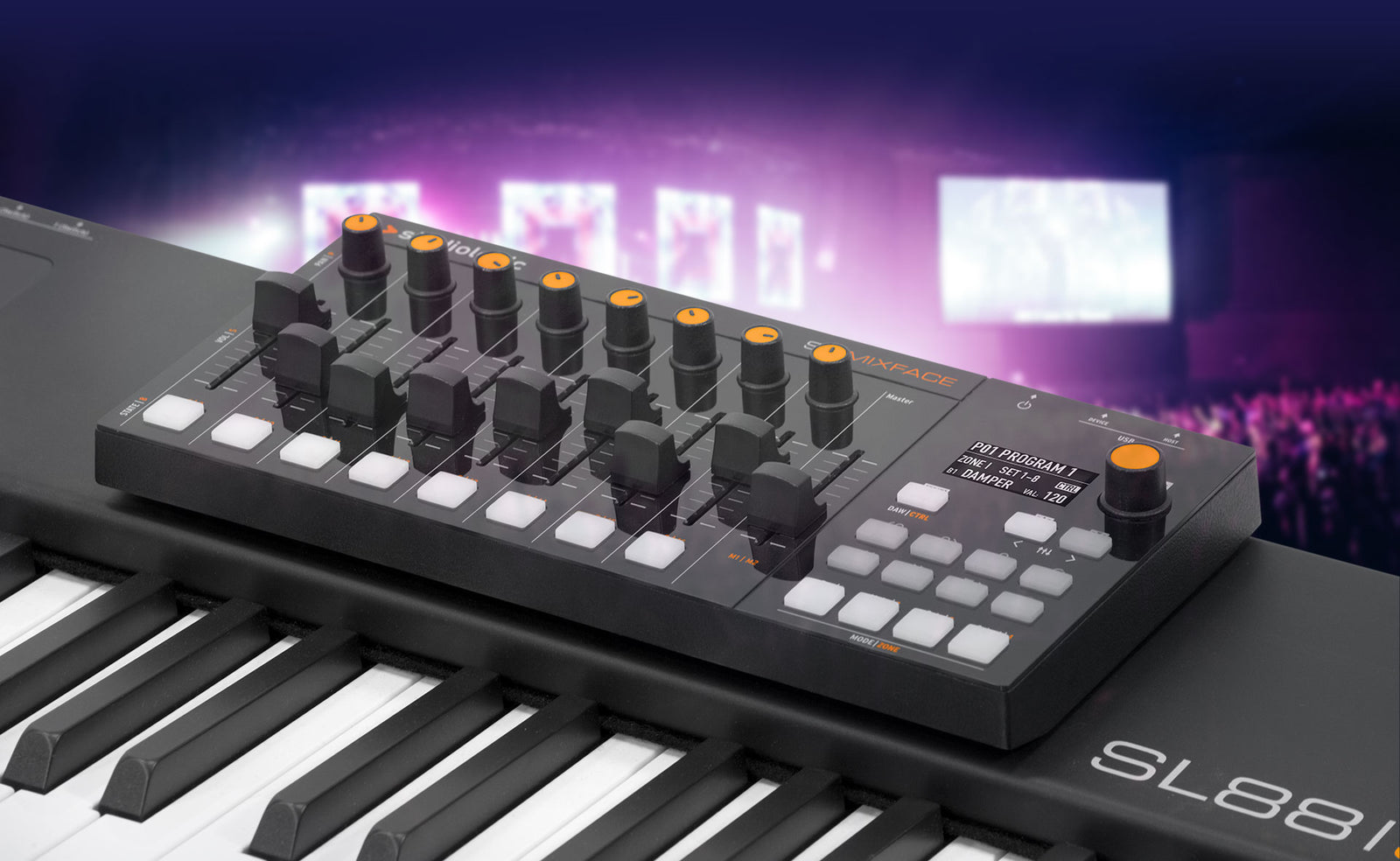

The SL MIXFACE perfectly matches the SL controller line expanding its control capability. Thanks to the magnetic system it sticks on it becoming a natural physical controls extension. Simply plug MIXFACE to an SL keyboard and it gets the control of the 4 layers on the fly.
Supported DAWs
- Ableton Live
- Apple Logic Pro X
- Apple Garageband
- Steinberg Cubase
- MOTU Digital Performer
- Presonus Studio One
- Avid Pro Tools
- Propellerheads Reason
General
- OLED display 128 x 64 dots
- Navigation Encoder
- 8 Knobs, 9 Sliders, 8 Buttons
DAW
- Rec, Mute, Solo, Select
- 3 Controls for each Track (Knob, Slider, Button)
- Master Slider
- Transport
- Play/Stop, Record, Next track, Previous Track
- Set marker, Next marker, Previous marker, Cycle
- Supporter DAWs
- Ableton Live
- Apple GarageBand1
- Apple Logic Pro X
- Avid Pro Tools
- Motu Digital Performer
- Presonus Studio One
- Propellerheads Reason
- Steinberg Cubase
Controller
- 12 User Presets
- Integration with SL Controllers
- 4 Zones
- Controls for Zone
- 16 Sets (Knob + Slider + Button)
- 2 Master Sliders
Connections
- Micro USB (Device)
- USB Host
- Bluetooth 4.2 Low Energy
Power and battery
- USB powered (when conected via USB)
- Three AAA batteries (when connected wirelessly)
- Battery life
- Up to 4 hours
Size and weight
- Width: 26,2 cm / 10,3"
- Depth: 13 cm / 5,1"

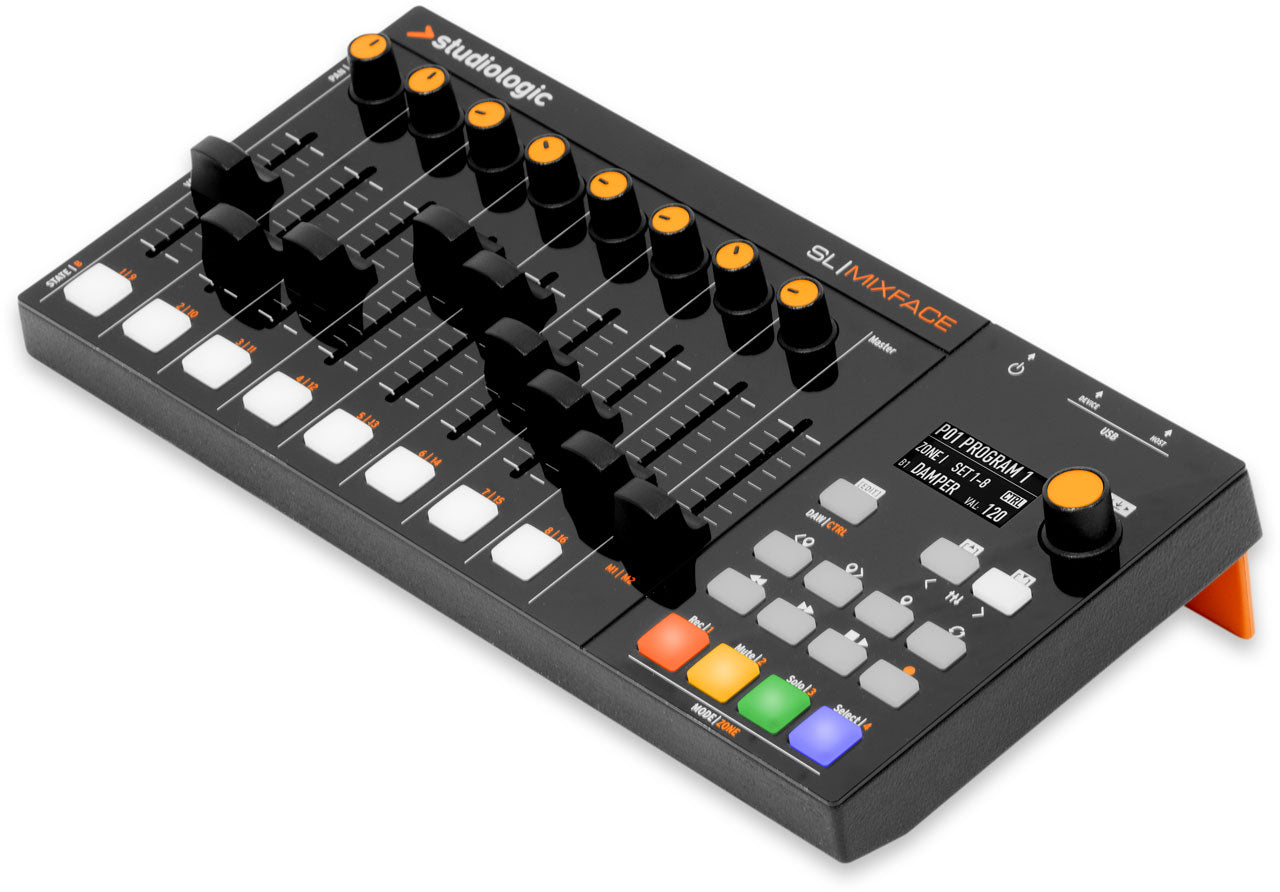

- Height: 3,6 cm / 1,4" - 5,6 cm / 2,2" raised
- Weight: 570 g / 1,25 lbs without batteries
Package content
- SL Mixface
- Power adapter
- CD Manual
1. macOS version only, Garage Band for iOS is not supported. Marker functions are not available.
Specifications are subject to change without notice.
