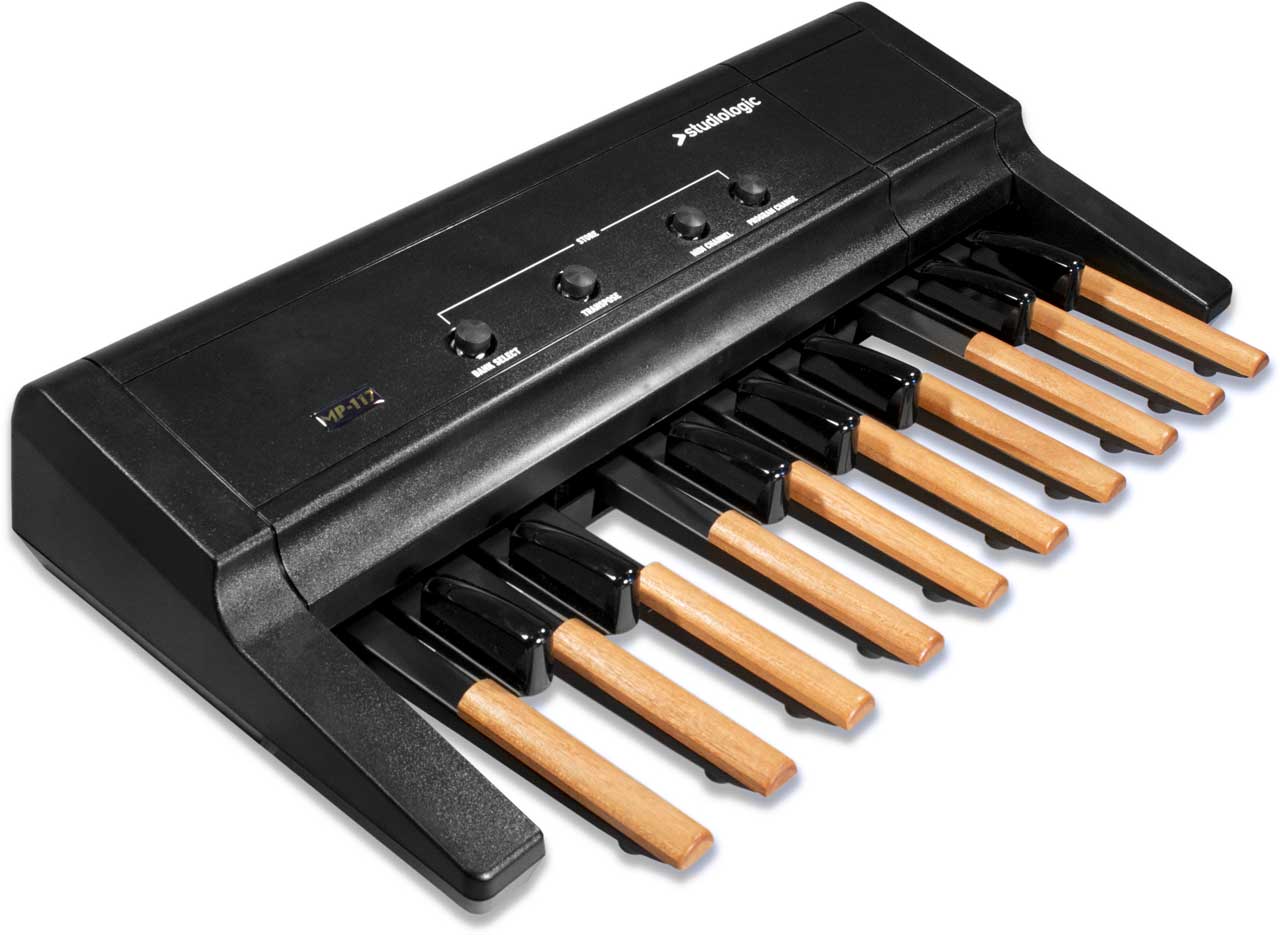

The pedalboard brings the Studiologic touch to your feet allowing control of any MIDI device. It is the perfect companion to your compact digital organ and a hands free controller for musicians performing either on a guitar or a microphone or for driving a massive bass sound with the tip of your toe.

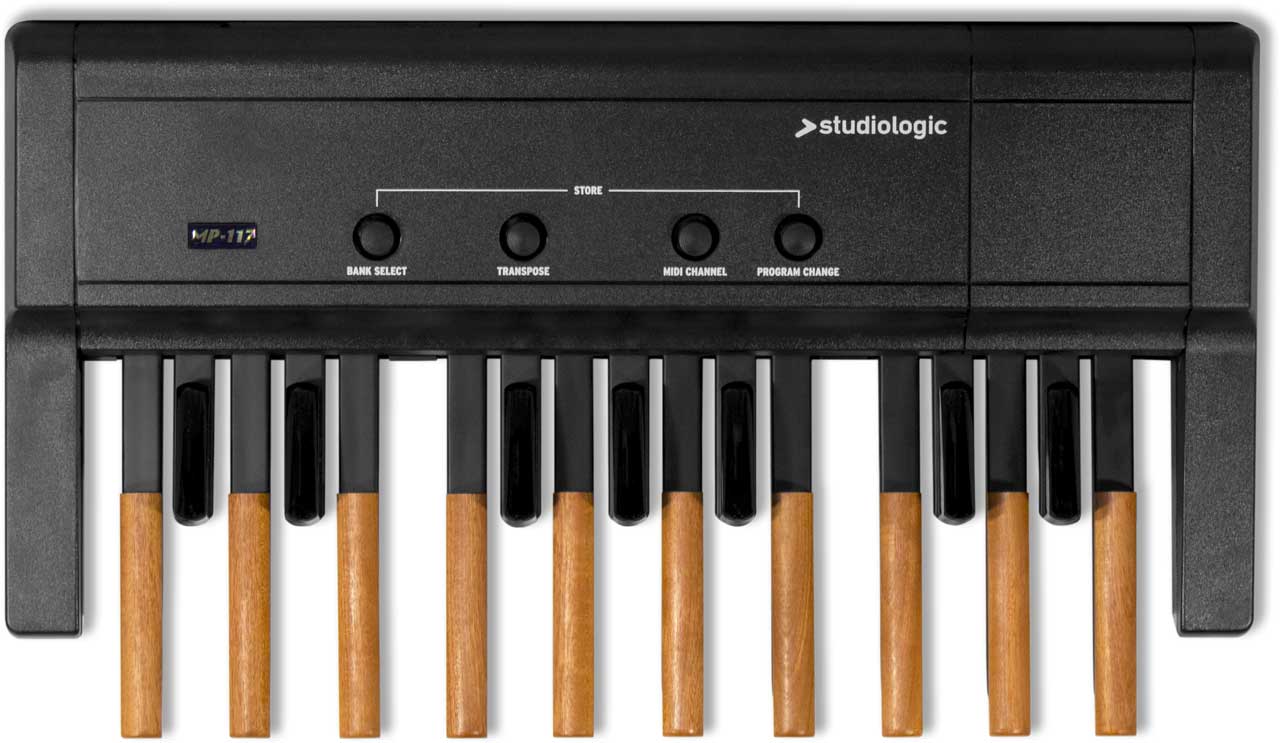

The MP Pedalboard control panel allows transposing, MIDI channel selection and MIDI program change through its 4 rugged generously sized big push buttons. Its design features optimize transportability and solidness both in the studio and on the stage.
Keyboard
- 13 or 17 notes
- Touch
- Dynamic curve
Features
- MIDI
- 1 zone with full extension
- Program Change, Bank Select, MIDI Channel, Transpose (max +/- 24 semitones)
Controls / UI
- 4 Function buttons
- Virtual numeric keypad
Connections
- MIDI Out
Power supply
- DC IN: 9V
- Adapter
- Input: 100-240V / Output: 9V-1A
Size and weight
- MP-117
- Width: 74 cm / 29,1"
- Depth: 42 cm / 16,5"
- Height: 14 cm / 5,5"
- Weight: 7,5 Kg / 16,5 lbs
- MP-113
- Width: 54 cm / 21,3"
- Depth: 42 cm / 16,5"
- Height: 14 cm / 5,5"
- Weight: 5,5 Kg / 12,1 lbs
Package content
- MP-113 / MP-117
- Power adapter
- Numeric keypad stickers
- CD Manual
