Overview
The USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable connects any standard 2.5in or 3.5in SATA or IDE hard drive to a computer through an available USB 3.0 Port (Backward compatible with USB 2.0). The adapter lets you connect a bare drive with no enclosure, saving time and hassle.
The USB 3.0 SATA/IDE Adapter lets you externally connect a bare drive with no drive enclosure or HDD dock required, and features LED indicators that allow you to easily monitor status and activity updates.
The adapter cable works with Windows®, Linux, and Mac® computers and does not require any software or driver installation - a true plug-and-play solution for adding cost-effective external storage, or overcoming incompatibility between all hard drives and USB enabled motherboards that may not be SATA or IDE-equipped.
Backed by our 2-year warranty, the USB3SSATAIDE USB 3.0 to IDE/SATA Adapter Cable comes complete with universal adapter and power cords, providing the additional power required to connect 3.5-inch and larger capacity 2.5-inch hard drives.
The StarTech.com Advantage
- Versatile adapter, supports both 2.5in/3.5in SATA, and IDE hard drives
- USB 3.0, for fast access to external storage at up to 5Gbps
- Backward compatible with USB 2.0 and 1.1
Applications
- Service technicians who need to test or retrieve data from old hard drives
- Technicians who travel and deal with many different types of hard drives
- Connect your 2.5" and 3.5" drives to almost any notebook or desktop
- Ideal for testing and quickly swapping drives
- Easily connect and access data from a 2.5in or 3.5in hard drive with USB 3.0
- Retrieve data from a hard drive without having to connect the drive internally
|
HARDWARE |
||
|
|
Bus Type |
USB 3.0 |
|
|
Chipset ID |
Innostor - IS611 |
|
|
Compatible Drive Types |
SATA & IDE |
|
|
Drive Size |
2.5in & 3.5in |
|
|
Interface |
SATA & IDE |
|
|
Number of Drives |
1 |
|
PERFORMANCE |
||
|
|
ATAPI Support |
Yes |
|
|
Maximum Data Transfer Rate |
4.8 Gbps |
|
|
MTBF |
35,000 hours |
|
|
Type and Rate |
USB 3.0 - 4.8 Gbit/s |
|
CONNECTOR(S) |
||
|
|
Drive Connectors |
1 - IDE (40 Pin, EIDE/PATA) Female |
|
|
|
1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female |
|
|
|
1 - LP4 (4 pin, Molex Large Drive Power) Male |
|
|
|
1 - SATA (7 pin, Data) Female |
|
|
|
1 - SATA Power (15 pin) Female |
|
|
Host Connectors |
1 - USB Type-A (9 pin) USB 3.0 Male |
|
SOFTWARE |
||
|
|
OS Compatibility |
OS independent; No software or drivers required |
|
SPECIAL NOTES / REQUIREMENTS |
||
|
|
Note |
Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. |
|
INDICATORS |
||
|
|
LED Indicators |
1 - IDE Detect/Activity |
|
|
|
1 - SATA Detect/Activity |
|
|
|
1 - USB Link |
|
POWER |
||
|
|
Output Current |
2A |
|
|
Power Source |
AC Adapter Included |
|
ENVIRONMENTAL |
||
|
|
Humidity |
5% ~ 85% RH |
|
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
|
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
PHYSICAL CHARACTERISTICS |
||
|
|
Color |
Black |
|
|
Enclosure Type |
Plastic |
|
|
Product Height |
18 mm [0.7 in] |
|
|
Product Length |
70 mm [2.8 in] |
|
|
Product Weight |
62 g [2.2 oz] |
|
|
Product Width |
43 mm [1.7 in] |
|
PACKAGING INFORMATION |
||
|
|
Shipping (Package) Weight |
653 g [23.1 oz] |
|

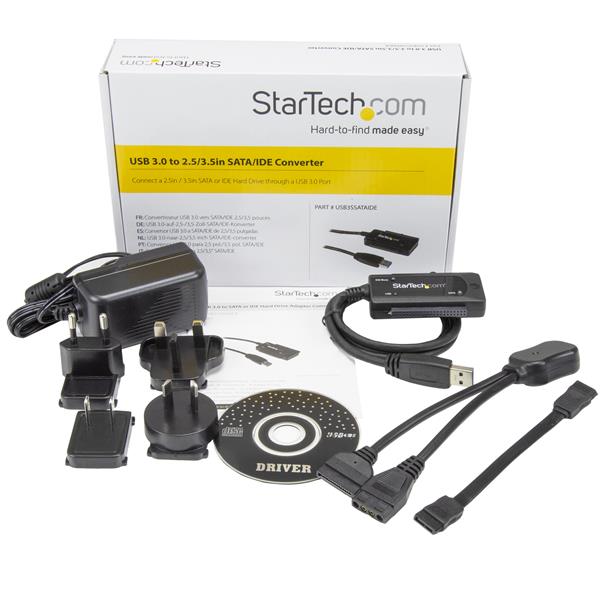

WHAT'S IN THE BOX |
||
|
|
Included in Package |
1 - USB 3.0 to SATA/IDE converter |
|
|
|
1 - SATA data cable |
|
|
|
1 - power adapter breakout cable |
|
|
|
1 - universal power adapter (NA/JP, UK, EU, AU) |
|
|
|
1 - instruction manual |
