Overview

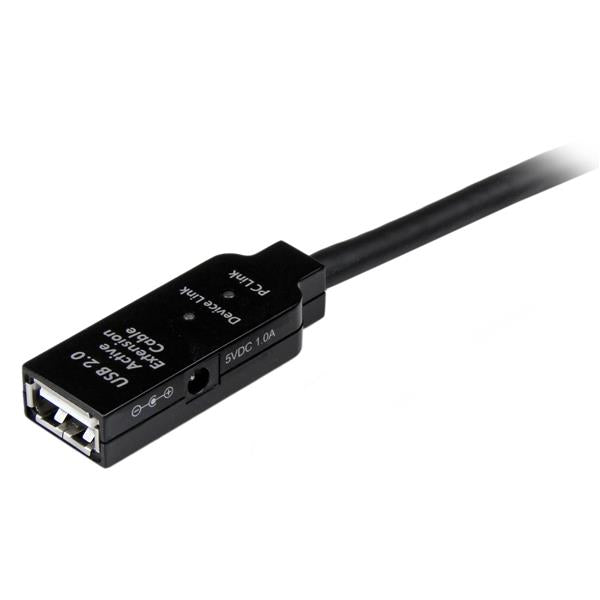

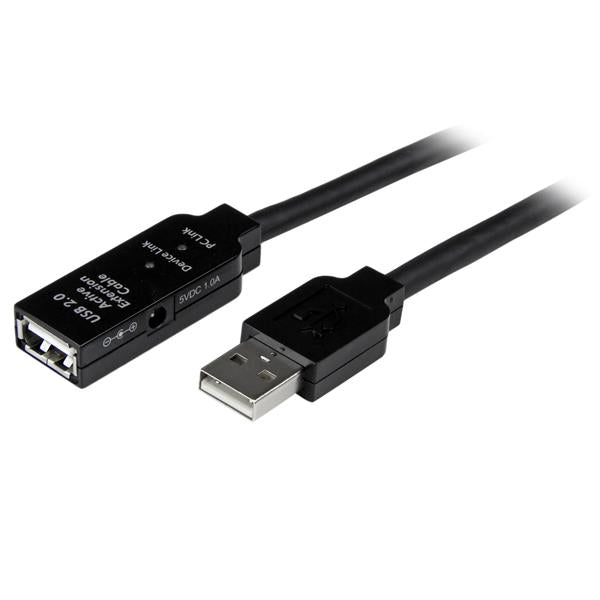

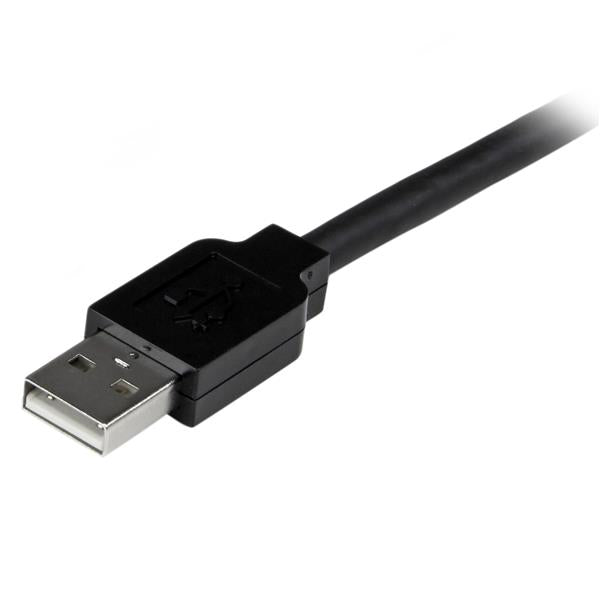

The USB2AAEXT Active USB 2.0 Extension Cables offer one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices.
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables.
If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable – this will allow you to use USB bus-powered devices that may require extra power.
The USB2AAEXT repeater cables support the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage
- No USB signal loss
- Power your USB devices directly from the USB port or through the included universal external power adapter
- Daisy chain up to 4 cables together
|
HARDWARE |
||
|
|
Cable Jacket Type |
PVC - Polyvinyl Chloride |
|
|
Connector Plating |
Nickel |
|
CONNECTOR(S) |
||
|
|
Connector A |
1 - USB Type-A (4 pin) USB 2.0 Male |
|
|
Connector B |
1 - USB Type-A (4 pin) USB 2.0 Female |
|
SPECIAL NOTES / REQUIREMENTS |
||
|
|
Note |
Cascade up to 4 USB2AAEXT10M devices together for further extension |
|
POWER |
||
|
|
Center Tip Polarity |
Positive |
|
|
Input Current |
0.35 A |
|
|
Input Voltage |
110V-240V AC |
|
|
Output Current |
1A |
|
|
Output Voltage |
5 DC |
|
|
Plug Type |
H |
|
|
Power Consumption (In Watts) |
5 |
|
|
Power Source |
AC Adapter Included |
|
PHYSICAL CHARACTERISTICS |
||
|
|
Colour |
Black |
|
|
Connector Style |
Straight |
|
|
Product Length |
10 m [32.8 ft] |
|
|
Product Weight |
402 g [14.2 oz] |
|
PACKAGING INFORMATION |
||
|
|
Package Quantity |
1 |
|
|
Shipping (Package) Weight |
605 g [21.4 oz] |
|
WHAT'S IN THE BOX |
||
|
|
Included in Package |

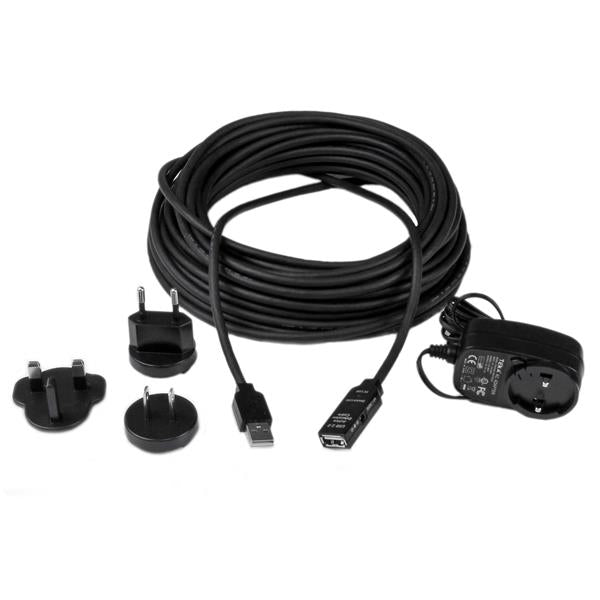

1 - USB 2.0 Active Extension Cable - M/F |
|
|
|
1 - Universal Power Adapter |
|
|
|
1 - Plug Adapters for North America, UK, Europe, and Australia |
