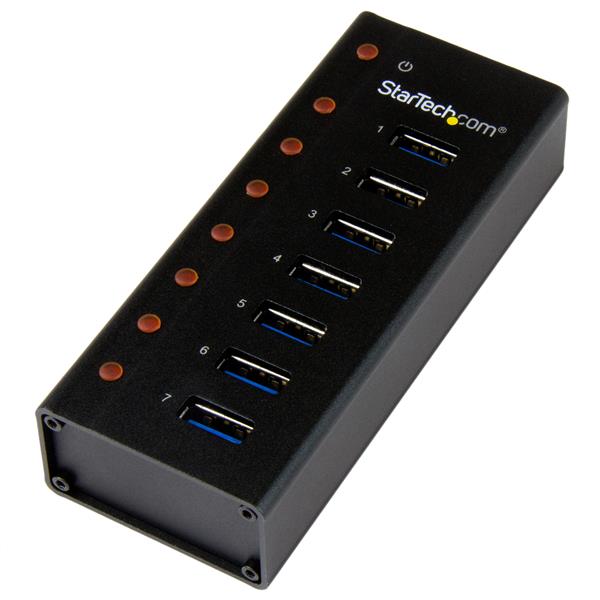

The StarTech.com 7-port USB 3.0 hub is your answer for a durable and compact hub that's ideal for desktop or travel usage.
Enjoy desktop convenience or painless portability

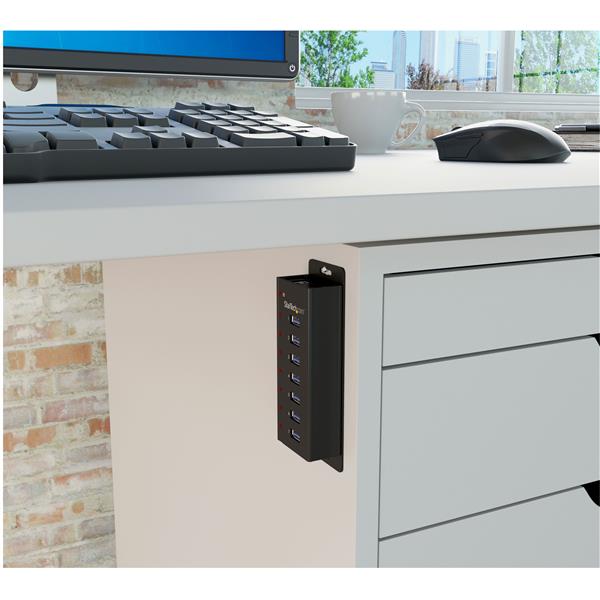

This hub is perfect for a permanent setup with a desktop computer, with a rugged metal housing that can withstand the wear and tear of daily use. Plus, you can attach it to a surface such as a desktop or wall using the included wall-mount bracket.
The compact size and durability of the hub also make it perfectly portable. When you’re on the go, its robust design resists damage that can occur when travelling or from back-and-forth trips from home to office.
Connect devices quickly and easily

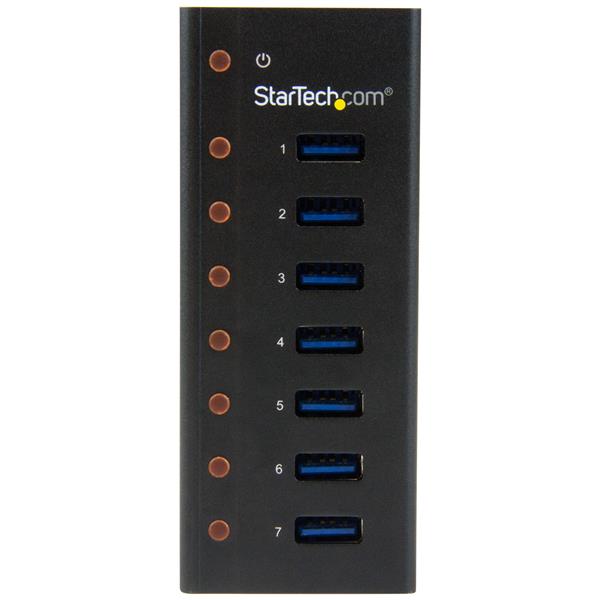

The ports on this hub are upright, which makes it perfect for IT professionals or anyone who needs to plug and unplug their USB devices regularly. You have lots of room to grip the connectors, without the worry of oversized plugs taking up too much space and reducing the number of available ports.
With extra USB 3.0 ports, you can increase productivity and connect more devices to your computer, or simply avoid the hassle of swapping connected devices on your port-limited laptop. The hub makes your USB ports more accessible and can easily extend the range of your devices by acting as a mid-point repeater.
Use with high-performance and older devices
The ST7300U3M supports the latest USB 3.0 products including UASP-enabled storage devices. With data transfer speeds of up to 5 Gb per second using SuperSpeed USB 3.0 technology, this high-performance hub is the perfect accessory for your desktop, laptop, MacBook®, or UltraBook™.
You can also use the hub with older peripherals and computers, with support for USB 2.0 and 1.x devices and no additional drivers or software required for installation.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Deploy in hot desk environments to provide USB hub access for multiple devices
- Connect a wide variety of peripherals at home or in the office, all from a single USB 3.0 connection
- Transfer large files at lightning speed, with throughput support up to 5 Gbps
- Upright port configuration makes plug-in easy, even for oversized USB connectors
- Backward compatibility lets you save money and use with existing USB 2.0 and 1.x devices
|
WARRANTY INFORMATION |
||
|
|
Warranty |
2 Years |
|
HARDWARE |
||
|
|
Bus Type |
USB 3.0 |
|
|
Chipset ID |
ASMedia - ASM1074 |
|
|
Fast-Charge Port(s) |
No |
|
|
Interface |
USB 3.0 |
|
|
Ports |
7 |
|
|
USB-C Device Port(s) |
No |
|
|
USB-C Host Connection |
No |
|
PERFORMANCE |
||
|
|
Maximum Data Transfer Rate |
5 Gbps |
|
|
Type and Rate |
USB 3.0 - 5 Gbit/s |
|
CONNECTOR(S) |
||
|
|
Connector Type(s) |
7 - USB Type-A (9 pin) USB 3.0 Female |
|
|
|
1 - USB Type-B (9 pin) USB 3.0 Female |
|
SOFTWARE |
||
|
|
OS Compatibility |
OS Independent; No additional drivers or software required |
|
SPECIAL NOTES / REQUIREMENTS |
||
|
|
Note |
If connected to a USB 2.0 host port, performance may be limited |
|
|
System and Cable Requirements |
Available USB 3.0 port |
|
INDICATORS |
||
|
|
LED Indicators |
1 - Power |
|
|
|
7 - Hub Port Connection |
|
POWER |
||
|
|
Center Tip Polarity |
Positive |
|
|
Input Current |
1.3 A |
|
|

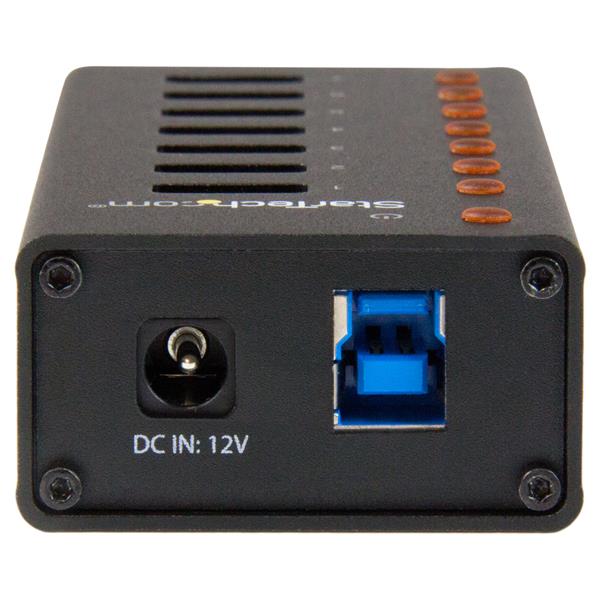

Input Voltage |
100 ~ 240 AC |
|
|
Output Current |
3.0 A |
|
|
Output Voltage |
12 DC |
|
|
Plug Type |
M |
|
|
Power Consumption (In Watts) |
36 |
|
|
Power Source |
AC Adapter Included |
|
ENVIRONMENTAL |
||
|
|
Humidity |
20~80% RH |
|
|
Operating Temperature |
5°C to 35°C (41°F to 95°F) |
|
|
Storage Temperature |
-20°C to 50°C (-4°F to 122°F) |
|
PHYSICAL CHARACTERISTICS |
||
|
|
Cable Length |
1219 mm [48 in] |
|
|
Color |
Black |
|
|
Enclosure Type |
Aluminum |
|
|
Form Factor |
Desktop |
|
|
Product Height |
24 mm [0.9 in] |
|
|
Product Length |
110 mm [4.3 in] |
|
|
Product Weight |
134 g [4.7 oz] |
|
|
Product Width |
44 mm [1.7 in] |
|
PACKAGING INFORMATION |
||
|
|
Shipping (Package) Weight |
568 g [20.1 oz] |
|

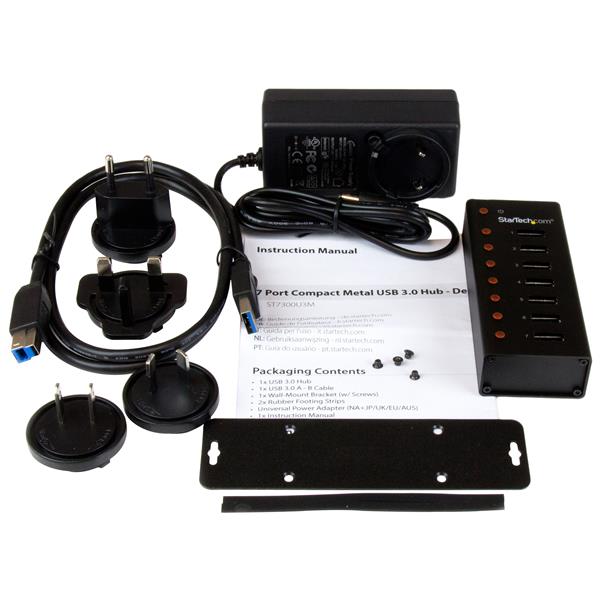

WHAT'S IN THE BOX |
||
|
|
Included in Package |
1 - USB 3.0 Hub |
|
|
|
1 - USB 3.0 A - B Cable - 3.3 ft. |
|
|
|
1 - Wall-Mount Bracket (w/ Screws) |
|
|
|
2 - Rubber Footing Strips |
|
|
|
1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) |
|
|
|
1 - Instruction Manual |
