Overview

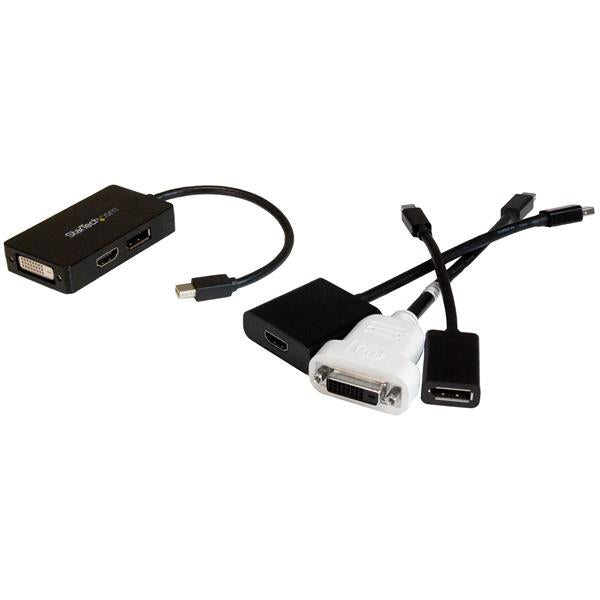

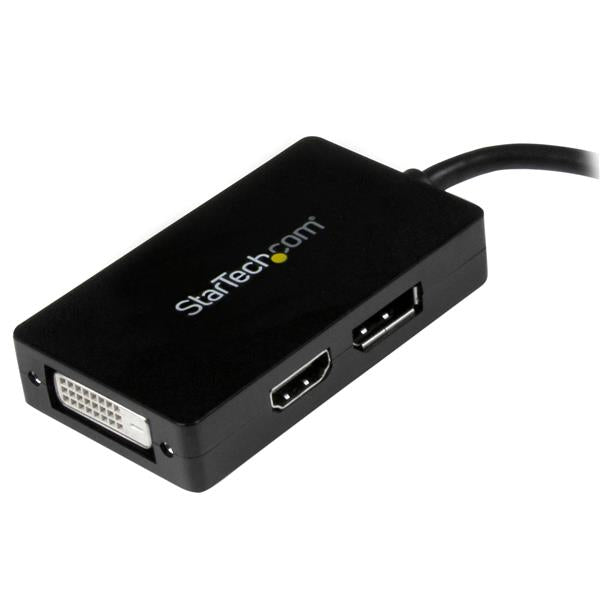

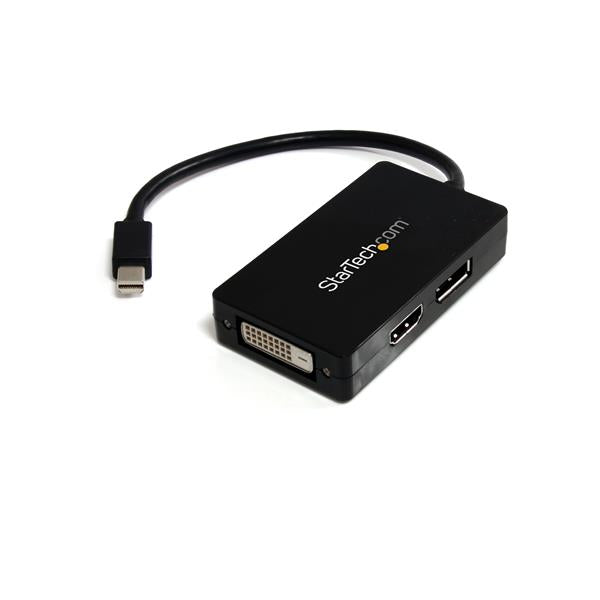

The MDP2DPDVHD mini DisplayPort® to DisplayPort®, DVI or HDMI® Multifunction Adapter converts a mini DisplayPort (mDP®) input to DisplayPort, DVI or HDMI output signals - all in a single compact adapter.

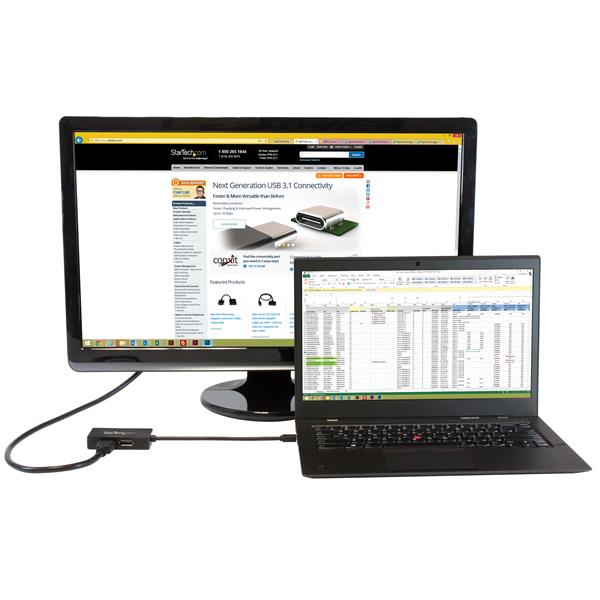

This multifunction adapter offers the unique ability to connect almost any display to your mini DisplayPort equipped PC or Mac, providing the perfect solution for business environments that have mixed display hardware - saving the expense of purchasing new displays for compatibility. A plug-and-play solution that requires no software or drivers, this versatile mDP adapter offers a quick and simple installation for the utmost convenience.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Adapting mini DisplayPort to 3 different output signals in a single adapter provides maximum flexibility for connecting almost any display
- Compact design provides portability and minimises workspace disruption
Applications
- Ideal for digital entertainment centres, home offices, business conference rooms and trade show displays
- Use your existing DVI, HDMI® or DisplayPort® monitors with a new mini DisplayPort® device
- Perfect for IT professionals seeking a solution for connecting mixed display hardware to mini DisplayPort computers
|
HARDWARE |
||
|
|
Active or Passive Adapter |
Passive |
|
|
Adapter Style |
Adapters |
|
|
Audio |
Yes |
|
|
AV Input |
Mini-DisplayPort |
|
|
AV Output |
DisplayPort |
|
|
|
DVI-D |
|
|
|
HDMI |
|
PERFORMANCE |
||
|
|
Audio Specifications |
5.1 Surround Sound |
|
|
Maximum Digital Resolutions |
DisplayPort: 2560x1600 DVI/HDMI; 1920x1200 |
|
CONNECTOR(S) |
||
|
|
Connector A |

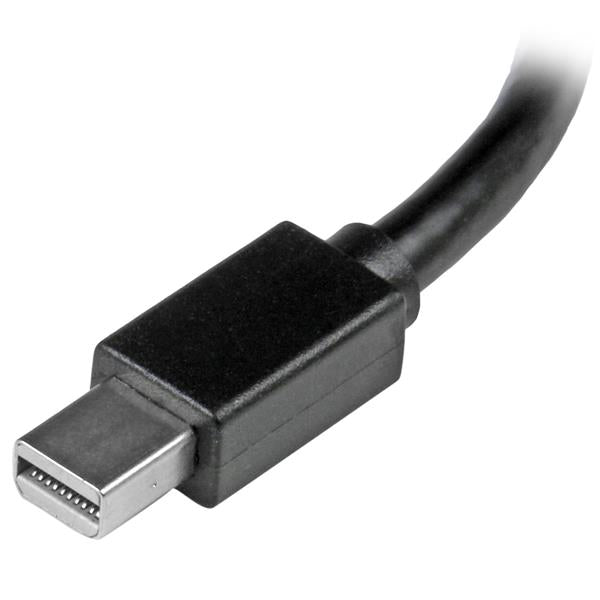

1 - Mini-DisplayPort (20 pin) Male |
|
|
Connector B |
1 - DisplayPort (20 pin) Female |
|
|
|
1 - DVI-D (25 pin) Female |
|
|
|
1 - HDMI (19 pin) Female |
|
ENVIRONMENTAL |
||
|
|
Humidity |
10~85% RH |
|
|
Operating Temperature |
0°C to 70°C (32°F to 158°F) |
|
|
Storage Temperature |
-10°C to 80°C (14°F to 176°F) |
|
PHYSICAL CHARACTERISTICS |
||
|
|
Cable Length |
150 mm [5.9 in] |
|
|
Color |
Black |
|
|
Enclosure Type |
Plastic |
|
|
Product Height |
15 mm [0.6 in] |
|
|
Product Length |
240 mm [9.4 in] |
|
|
Product Weight |
45 g [1.6 oz] |
|
|
Product Width |
45 mm [1.8 in] |
|
PACKAGING INFORMATION |
||
|
|
Shipping (Package) Weight |
0.1 kg [0.1 lb] |
|
WHAT'S IN THE BOX |
||
|
|
Included in Package |
1 - MDP to DP/DVI/HDMI Adapter |
