Overview

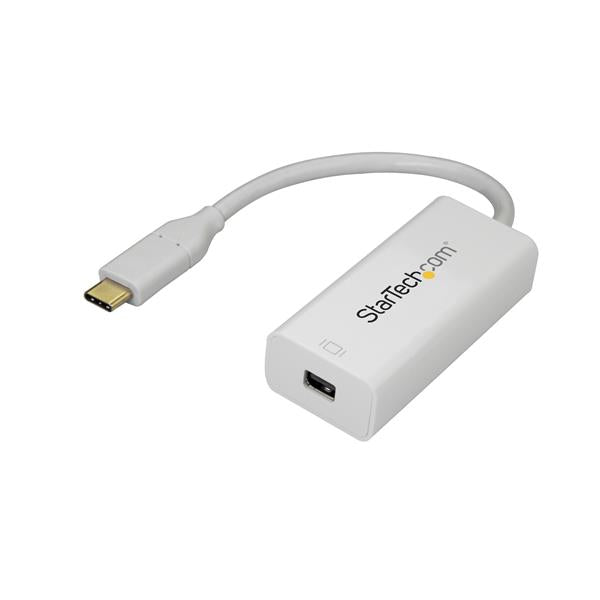

This USB-C™ to Mini DisplayPort adapter lets you output mDP video and audio from the USB Type-C™ port on your laptop or other device. The adapter works with USB-C devices that pass a DisplayPort video signal (DP Alt Mode), such as your MacBook Pro, Chromebook™ or other USB-C laptop.
This versatile adapter enables you to connect a Mini DisplayPort monitor to your USB-C computer using a Mini DisplayPort cable, or re-purpose your existing mDP equipped workspace to work with your new USB-C computer.
Ultra HD 4K resolution at 60Hz
For easier multitasking, the adapter lets you harness the video capabilities that are built into your computer's USB-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier to multitask, even while working on resource-demanding applications.
With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
The CDP2MDP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Notes:
- Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
- This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
|
HARDWARE |
||
|
|
Active or Passive Adapter |
Passive |
|
|
Adapter Style |
Adapters |
|
|
Audio |
Yes |
|
|
AV Input |
USB Type-C |
|
|
AV Output |
Mini-DisplayPort |
|
|
Chipset ID |
NXP - PTN5100 Pericom - PI3DPX1203 |
|
PERFORMANCE |
||
|
|
Audio Specifications |
7.1 surround sound |
|
|
Maximum Digital Resolutions |
4K (3840 x 2160) @ 60 Hz |
|
|
Supported Resolutions |
1024 x 768 1280 x 720 1920 x 1080 @ 144hz 1920 x 1200 2560 x 1440 2560 x 1600 3840 x 2160 @ 60Hz |
|
|
Video Revision |
DisplayPort 1.2 |
|
|
Wide Screen Supported |
Yes |
|
CONNECTOR(S) |
||
|
|
Connector A |

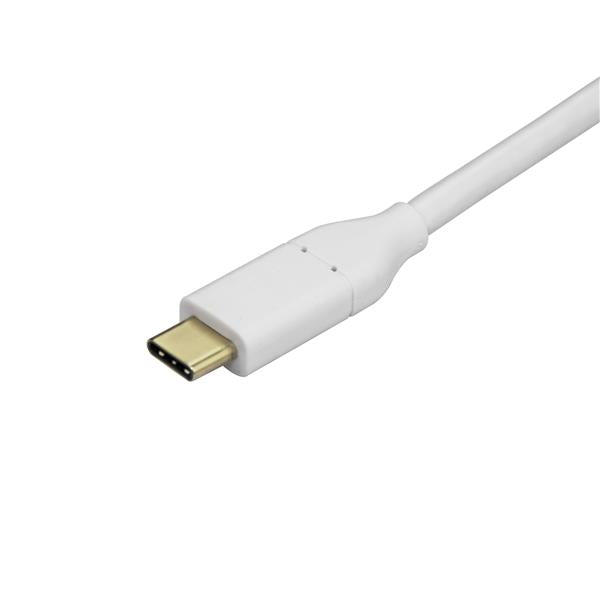

1 - USB-C (24 pin) DisplayPort Alt Mode Male Input |
|
|
|

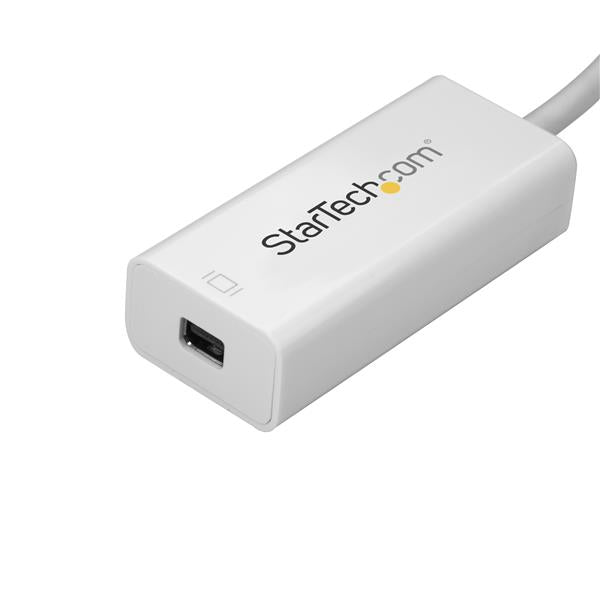

1 - Mini-DisplayPort (20 pin) Female Output |
|
SPECIAL NOTES / REQUIREMENTS |
||
|
|
System and Cable Requirements |
Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter |
|
|
|
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters |
|
|
|
This adapter will not support Thunderbolt displays |
|
ENVIRONMENTAL |
||
|
|
Humidity |
5% to 90% RH (non-condensing) |
|
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
|
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
|
PHYSICAL CHARACTERISTICS |
||
|
|
Cable Length |
14 mm [0.6 in] |
|
|
Color |
White |
|
|
Enclosure Type |
Plastic |
|
|
Product Height |
16 mm [0.6 in] |
|
|
Product Length |
60 mm [2.4 in] |
|
|
Product Weight |
25 g [0.9 oz] |
|
|
Product Width |
27 mm [1.1 in] |
|
PACKAGING INFORMATION |
||
|
|
Shipping (Package) Weight |
0 kg [0.1 lb] |
|
WHAT'S IN THE BOX |
||
|
|
Included in Package |
1 - USB-C to Mini DisplayPort adapter |
