Overview

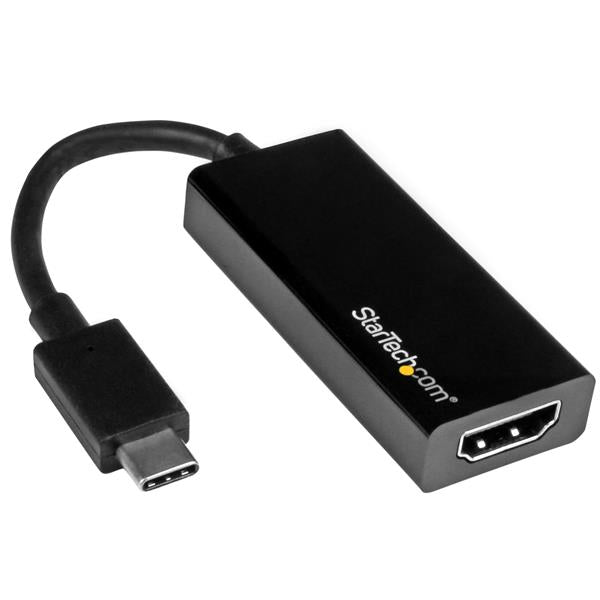

This USB-C™ to HDMI® adapter lets you output HDMI video and audio from a USB Type-C™ device such as a MacBook or Chromebook™ laptop. This adapter works with USB-C devices that pass a DisplayPort video signal. It's also compatible with Thunderbolt™ 3 ports.
Ultimate portability
This USB type-C video adapter is highly portable with a small footprint and lightweight design. The adapter is the perfect accessory for your MacBook or Chromebook, fitting easily into your laptop bag or carrying case, which is great for BYOD (Bring Your Own Device) applications at the office.
Hassle-free connection with USB Type-C
This adapter lets you utilise the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of fiddling with your device when you're trying to deliver a presentation.
Astonishing picture quality
At four times the resolution of high-definition 1080p, you’ll be amazed at the picture quality of a 4K monitor or television. The adapter lets you harness the video capabilities built into your USB Type-C connection, to deliver the astonishing quality of Ultra HD to your 4K display. 4K resolution gives you additional screen space to simplify your approach to detailed work such as editing video and viewing large spreadsheets. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
The CDP2HD is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Note: Your USB-C equipped device must support video to work with this adapter.
Applications
- Keep the adapter with you while traveling, to connect to any HDMI monitor, television or projector you come across
- Connect your BYOD MacBook or Chromebook to a provided HDMI display at work
- Walk into any boardroom, ready to deliver a presentation from your USB-C laptop
- Connect an HDMI display to your USB-C laptop to use as a secondary monitor
|
HARDWARE |
||
|
|
Audio |
Yes |
|
|
AV Input |
USB Type-C |
|
|
AV Output |
HDMI |
|
|
Chipset ID |
Parade - PS171 STMicroelectronics - STM32F072CBU6 |
|
|
Ports |
1 |
|
PERFORMANCE |
||
|
|
Audio Specifications |
7.1 surround sound |
|
|
Maximum Digital Resolutions |
3840 x 2160 (Ultra HD 4K) @30hz |
|
|
Supported Resolutions |
1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840 x 2160 (Ultra HD 4K) @30hz |
|
|
Wide Screen Supported |
Yes |
|
CONNECTOR(S) |
||
|
|
Connector A |

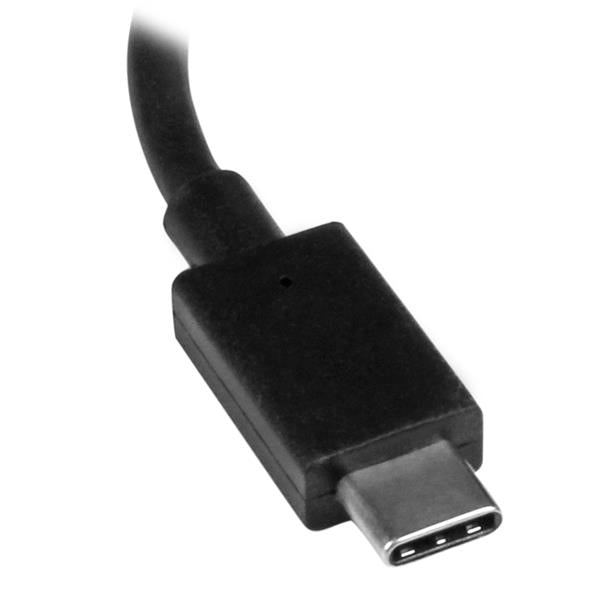

1 - USB-C (24 pin) DisplayPort Alt Mode Male Input |
|
|
Connector B |

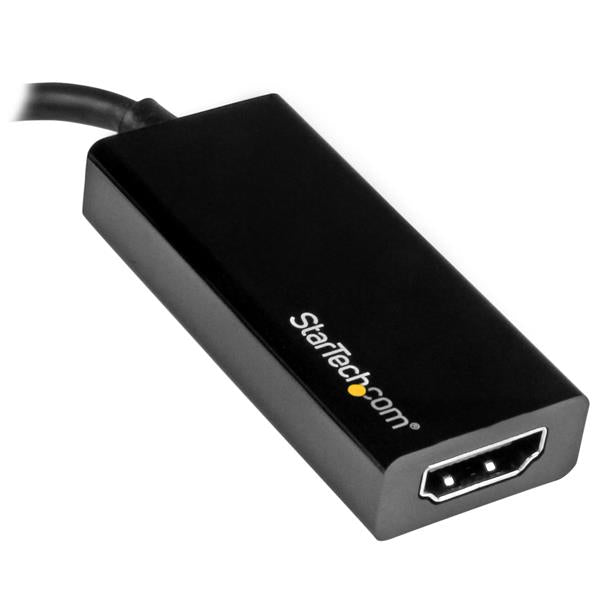

1 - HDMI (19 pin) Female Output |
|
SPECIAL NOTES / REQUIREMENTS |
||
|
|
System and Cable Requirements |
Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. |
|
PHYSICAL CHARACTERISTICS |
||
|
|
Accent Color |
Black |
|
|
Color |
Black |
|
|
Enclosure Type |
Plastic |
|
|
Product Height |
9 mm [0.4 in] |
|
|
Product Length |
147 mm [5.8 in] |
|
|
Product Weight |
27 g [1 oz] |
|
|
Product Width |
23 mm [0.9 in] |
|
PACKAGING INFORMATION |
||
|
|
Shipping (Package) Weight |
32 g [1.1 oz] |
|
WHAT'S IN THE BOX |
||
|
|
Included in Package |
1 - USB-C to HDMI adapter |
