The SSL big console sound has been available in 12 different modules for our own modular X-Rack system for many years. The system enjoys a large and enthusiastic customer base with more than 15,000 modules sold. X-Rack users reap the benefits of the very high-quality power supply and on board TotalRecallTM offered by the X-Rack system. The release of modules for the widely-used 500 format modular rack platform makes a small slice of the SSL sound available to a wider group of users.
SSL's range of modules for the 500 series rack format currently consists of five different modules; the classic Stereo Bus Compressor which has featured on every model of SSL large format analogue console, E-Series EQ and E-Series Dynamics modules which deliver the legendary sound of the channel strip processing from SSL's 1980's E-Series console, and the incredibly versatile VHD Pre input module which can deliver ultra-clean recordings or a range of more saturated tonal characteristics and the LMC+ module, a new twist on the legendary SSL Listen Mic Compressor.

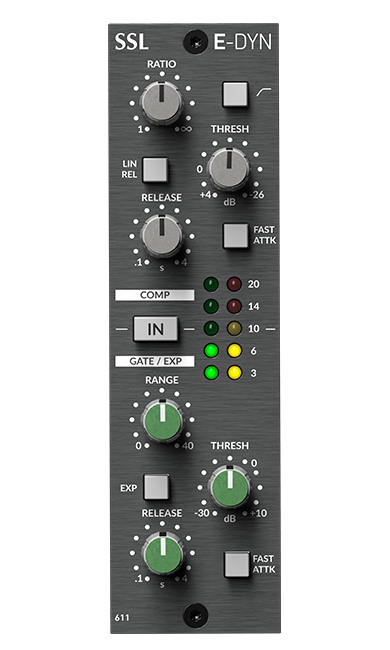

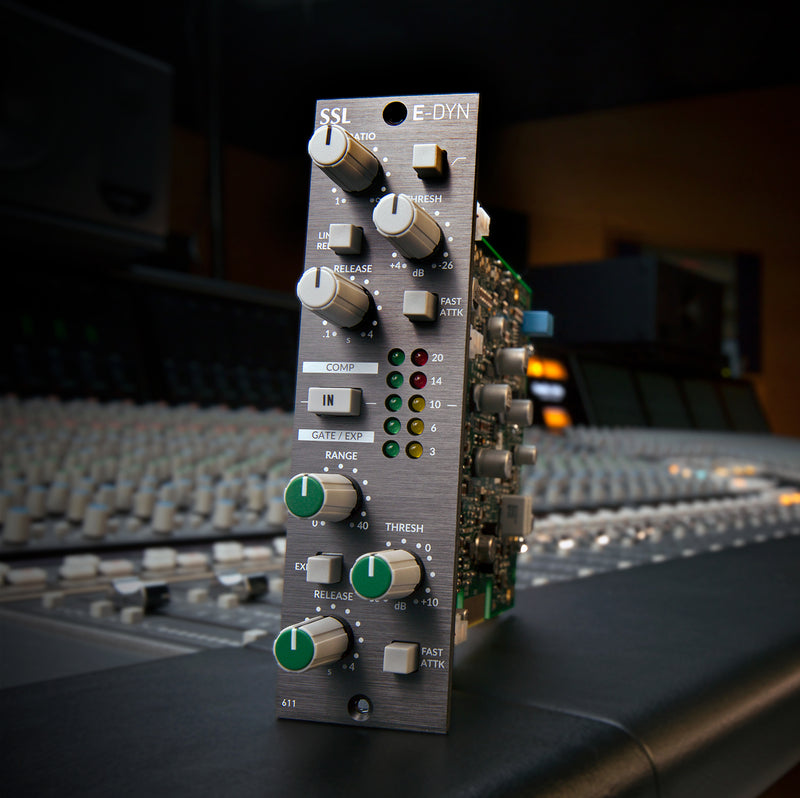

The new E Series Dynamics Module for 500 Series racks reproduces the legendary sonic signature of an early 80's classic, the SL 4000 E console channel strip, which was featured on countless 1980's recordings. The E Series Dynamics Module features a compressor/limiter and an expander/gate, both of which return faithfully to the circuitry and key components which define the sound of the original SL 611E Series channel strip. A true RMS converter is used in the side chain while the gain element is an all discrete design identical to the Class A VCA chip used in the original unit. The compressor contains additional switching options to defeat the over-easy curve and to use a linear release instead of the more usual logarithmic curve. The result is a compressor with three distinct voices, each with its own musical character.
Key Features
- Immortal SSL 4000 Series circuitry
- Class A VCA replication
- Expander/Gate
- Based on classic 611E console channel strip
See User Guide in Downloads for Specs
