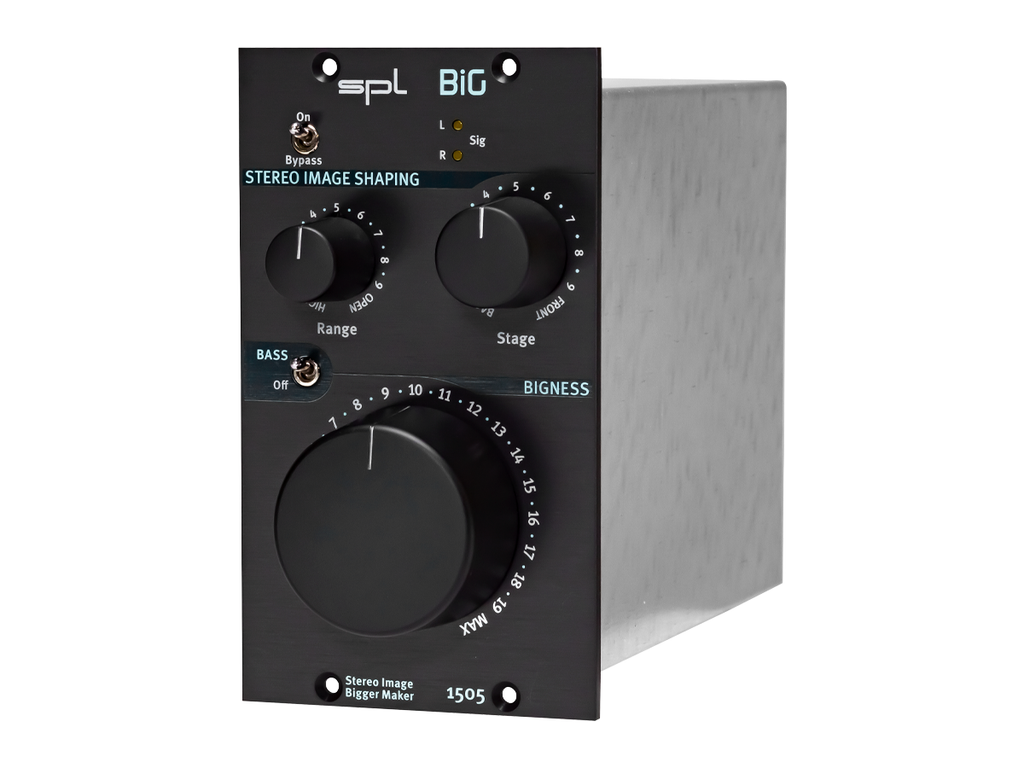

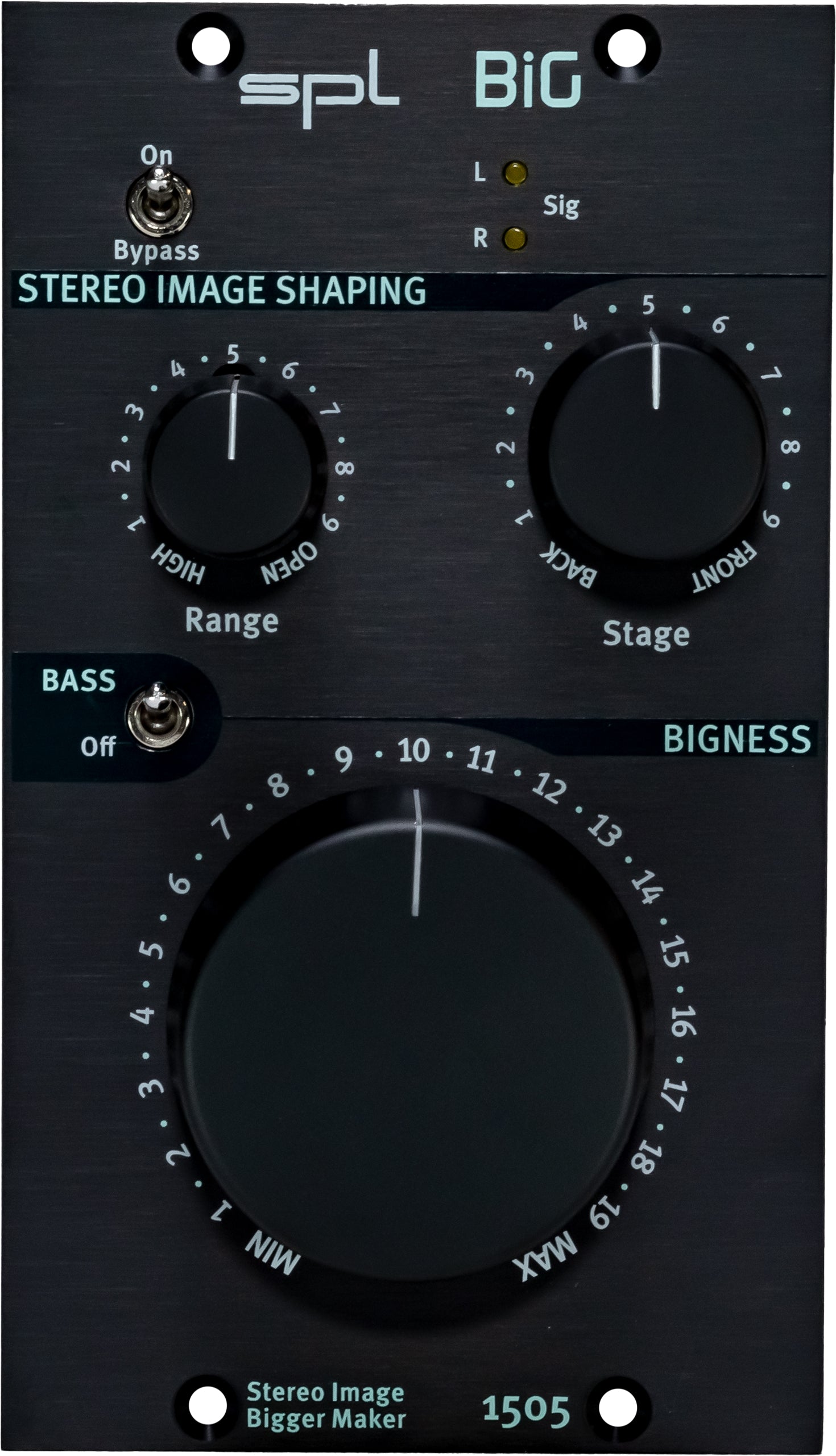

BiG is special. BiG is unique.
BiG enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. Intuitive with just three controls.
Main Features
- Stereo image broadener module
- Range and Stage focus controls
- Bigness knob for intensity control
- Switchable ‘Bass' mode
- Bypass switch
- Suitable for 500-series racks/lunchboxes
- Made in Niederkrüchten, Germany

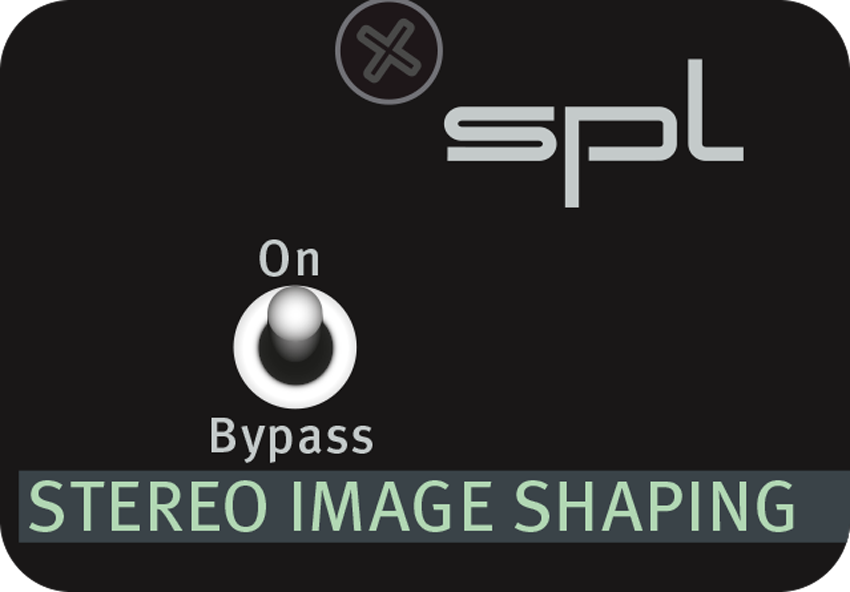

On/Bypass
The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal.

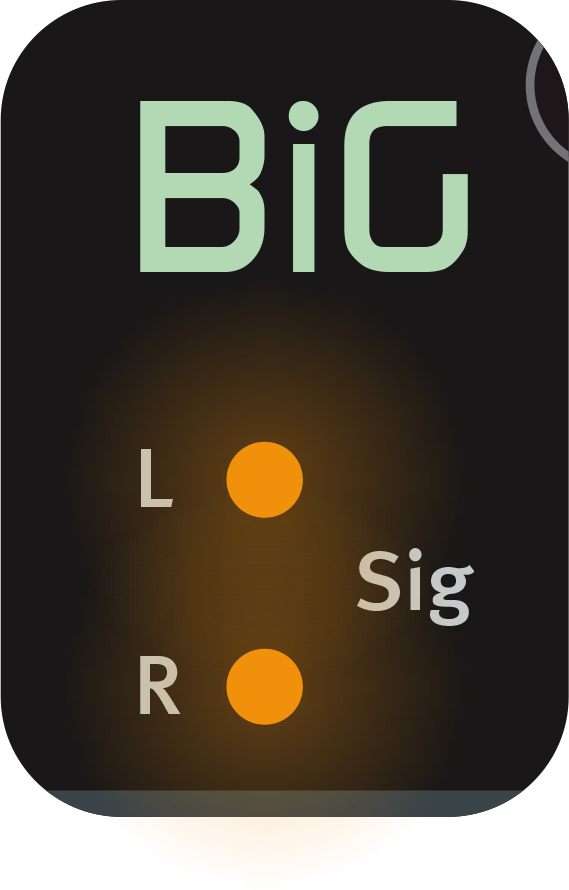

Signal LEDs
The signal LEDs (Sig) indicate whether an audio signal is present at the input of the respective channel. (With a level higher than -20 dBu)
Stereo Image Shaping

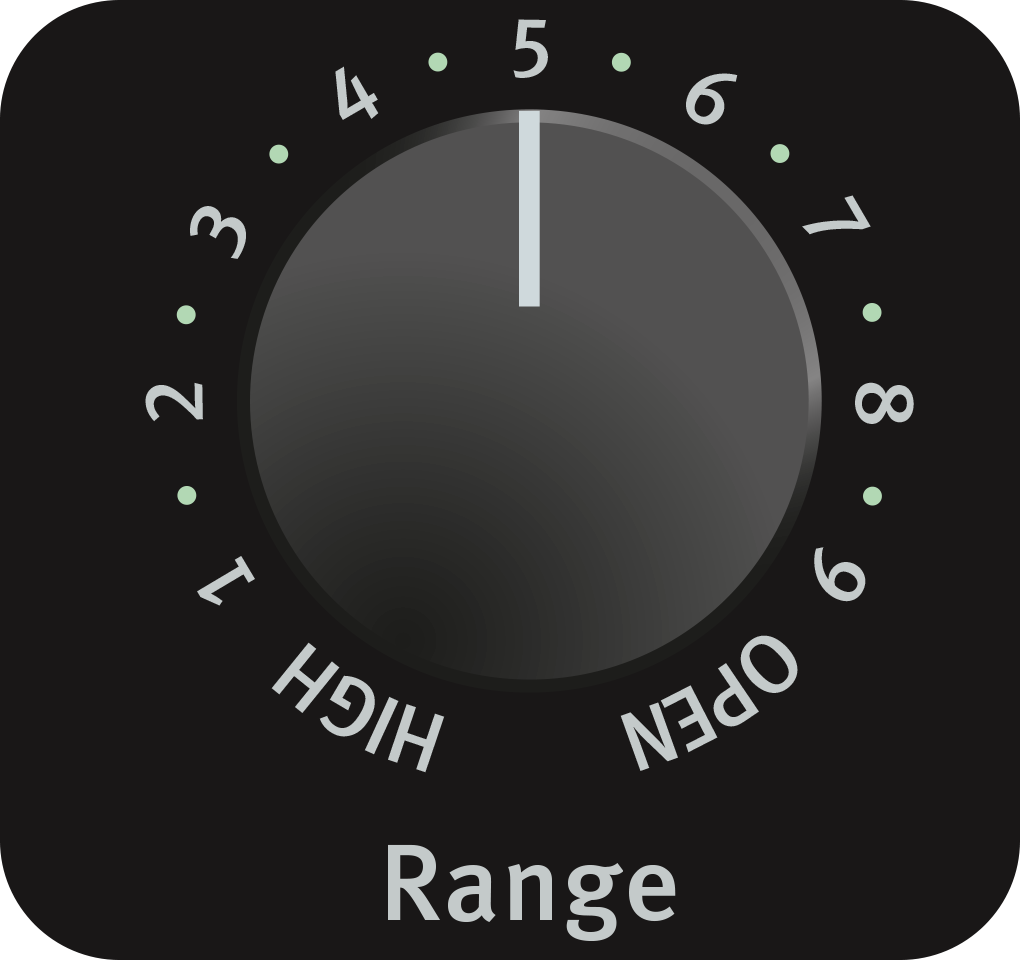

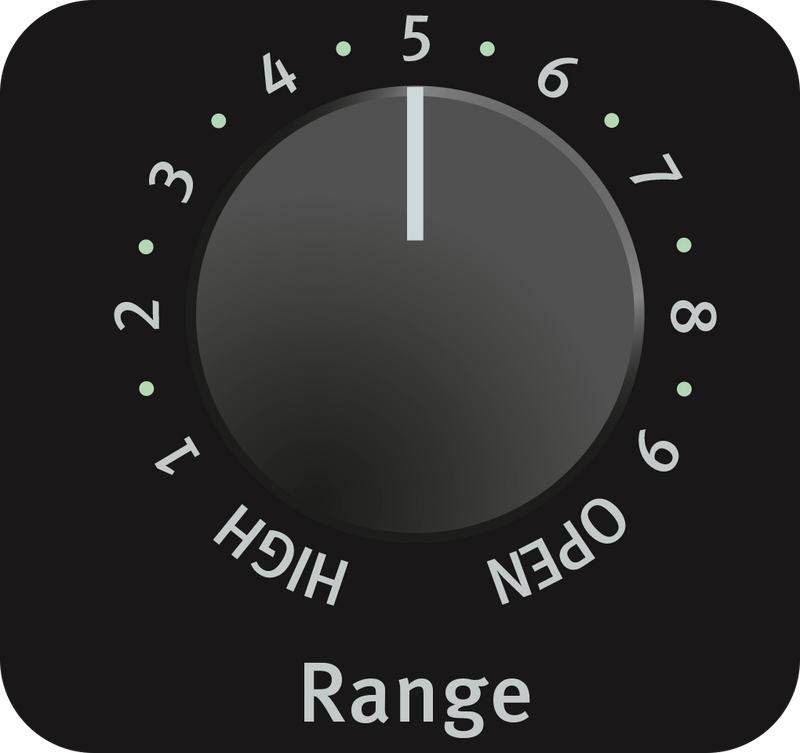

Range
With the Range control, the frequency Range which should be processed can be selected.
Stage
With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.

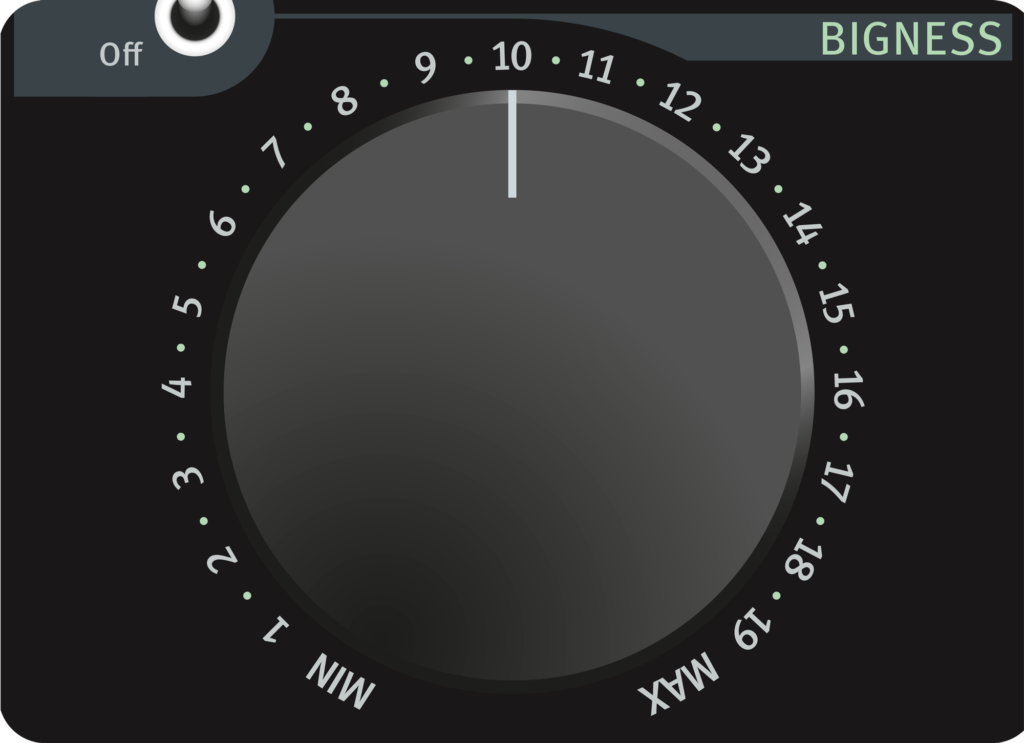

BIGNESS
The huge BIGNESS control adjusts the intensity of the STEREO IMAGE SHAPING.

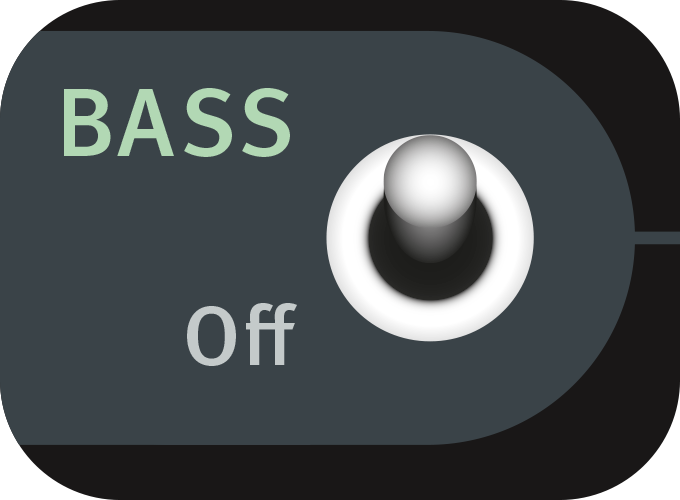

BASS
The BASS/Off switch can be used to activate (BASS) or deactivate (Off) an
additional bass boost following the BIGNESS section. The bass boost is performed by a passive filter implemented in a similar circuit to the one used in the AirBass function of the SPL IRON Mastering Compressor.
Sounds good
With all SPL devices we develop not only according to plan, but also by ear.
All important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.
Performance
- Max Gain: 21 dBu
- Impedance: 20 kΩ in, 150 Ω out
- CMR: > 82 dBu @ 1 kHz
- Frequency Range: 10 Hz – 100 kHz @ -3 dB
- THD & N: 0.001 % (0 dBu, 10 Hz – 22 kHz)
- Noise: -97 dBu (A-weighted)
- Dynamic Range: 113 dB
Physical Properties
- Dimensions: 75 x 133 x 179 mm (WxHxD)
- Weight: 0.9 kg
